Product Description

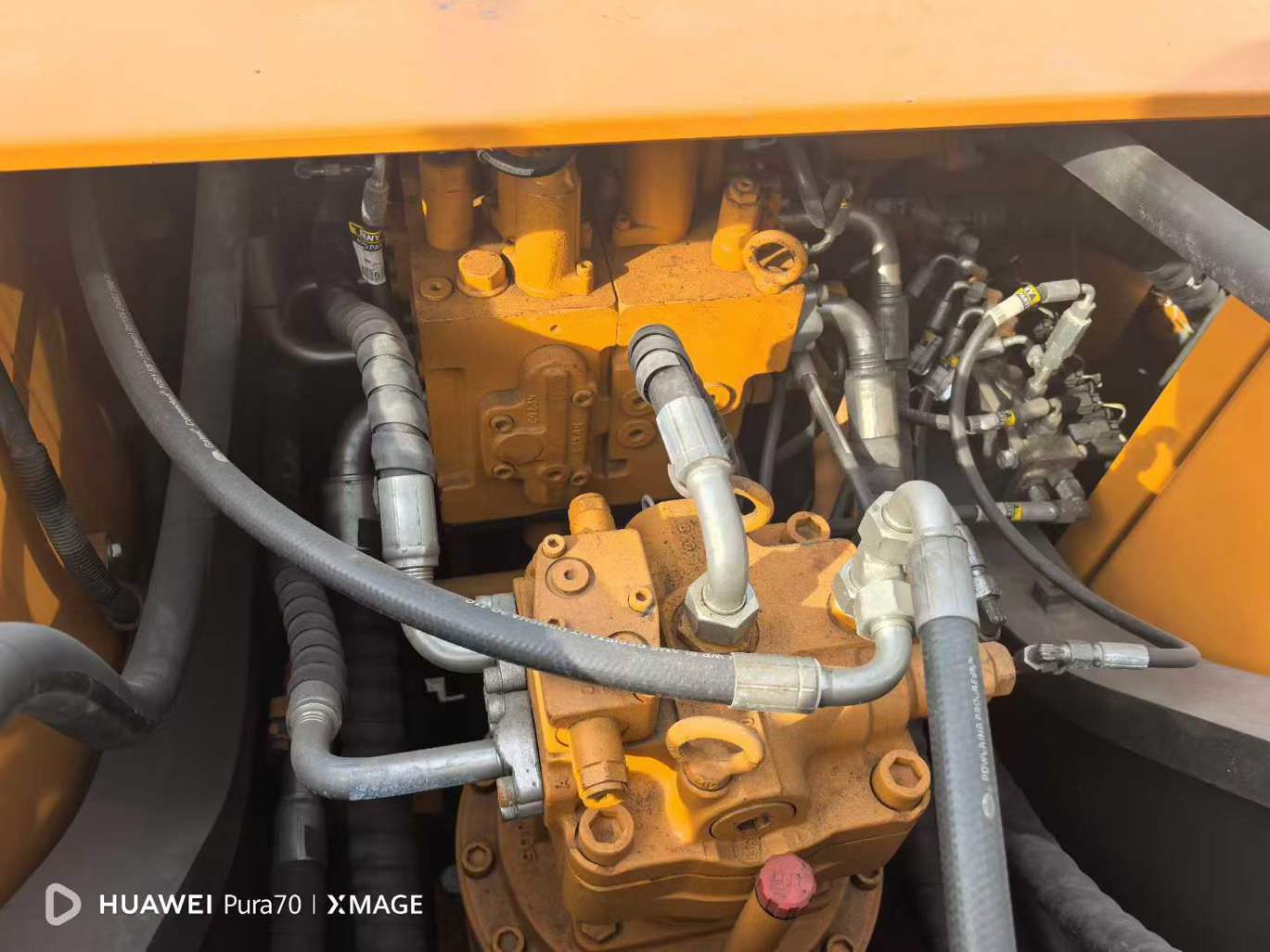

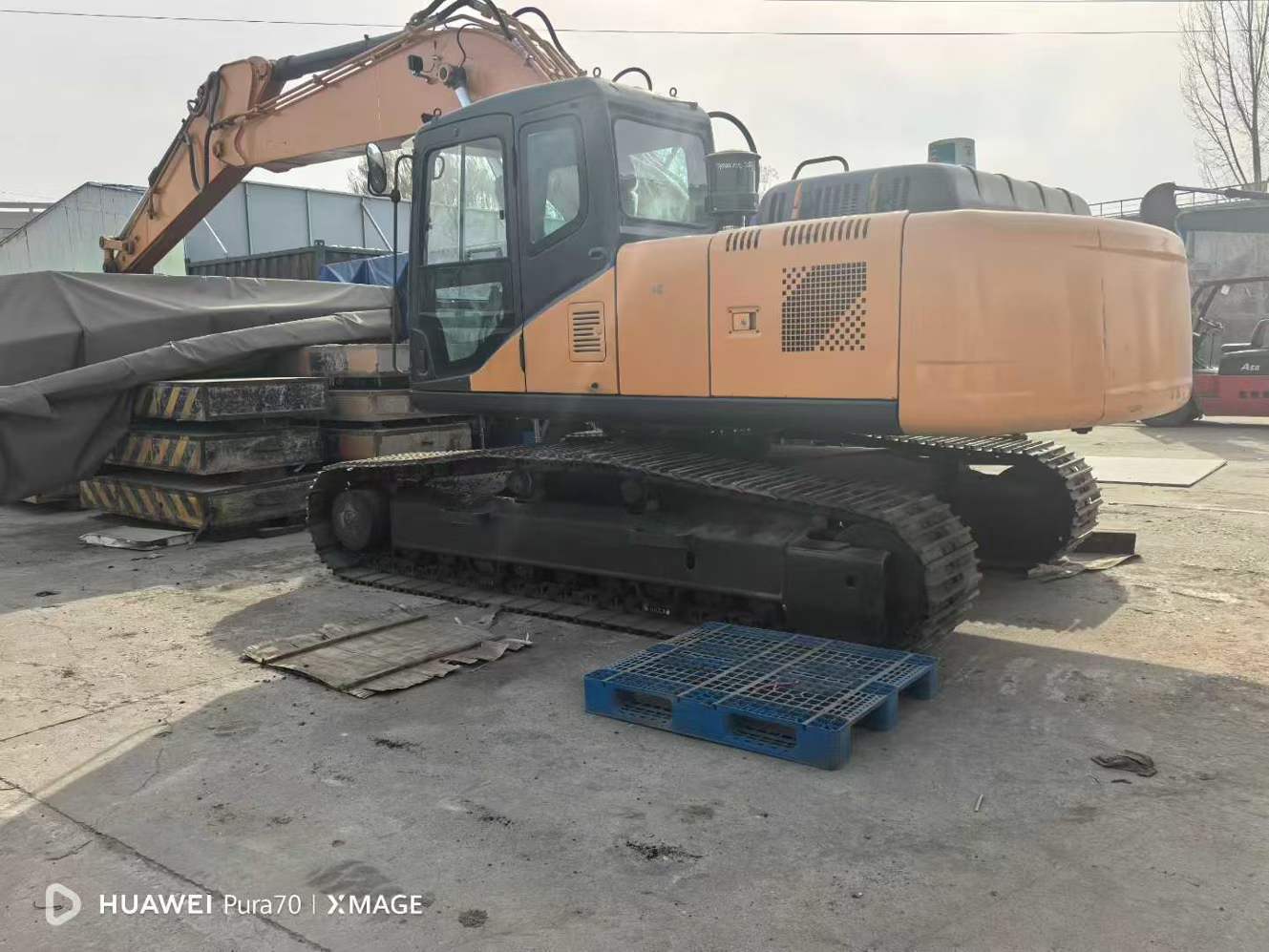

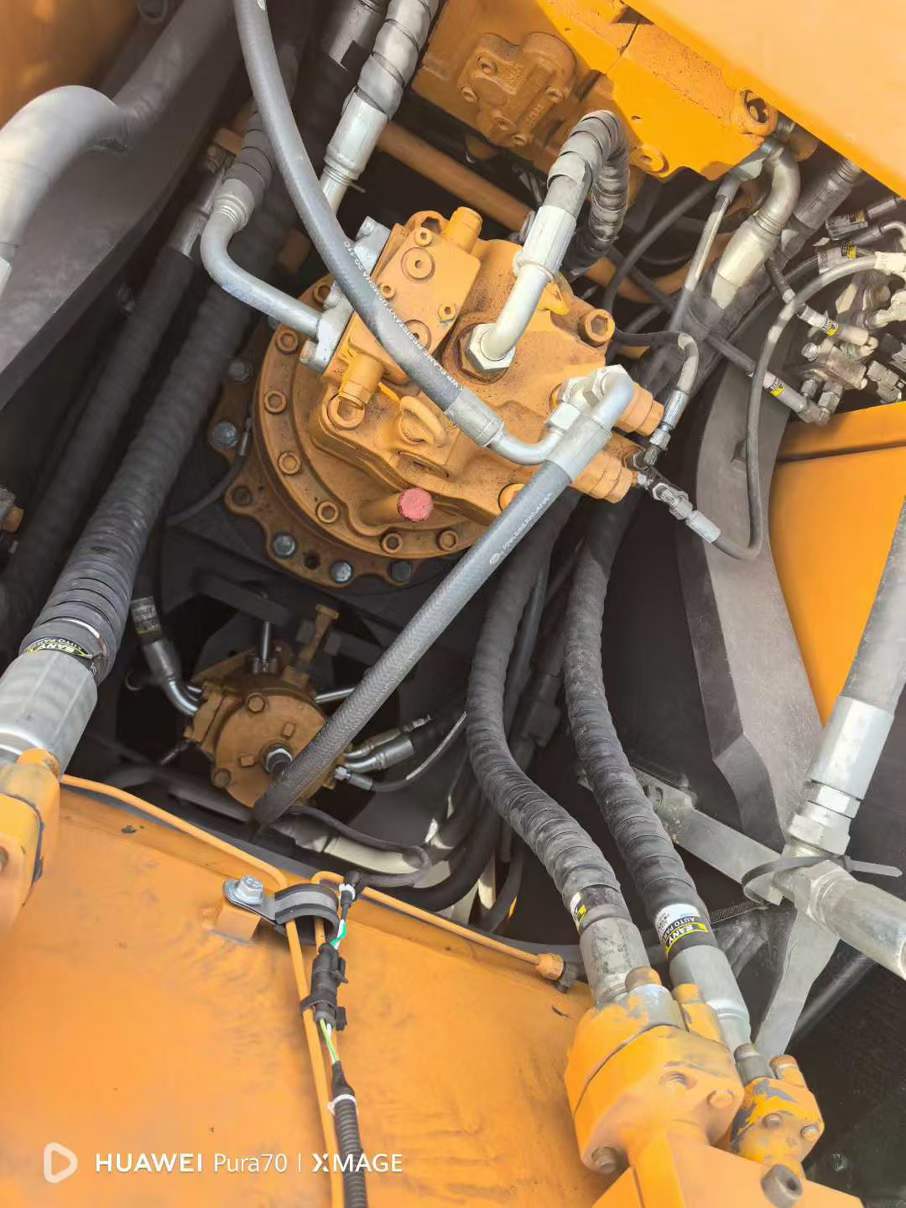

There is currently a carefully refurbished Sany 235 excavator, specially designed for the export market. The total working time of this equipment is only 1,000 hours, ensuring its good mechanical condition and long service life. In terms of the power system, it is equipped with a high-performance Cummins engine, with a maximum output power of 129 kilowatts (approximately 173 horsepower), providing strong power support. At the same time, it has excellent fuel economy, ensuring efficient operation while reducing operating costs. The hydraulic system adopts an advanced combination of variable piston pumps and high-quality hydraulic motors, which can achieve precise control and smooth operation. It performs well in both digging force and lifting speed. In addition, the durability and reliability of this hydraulic system have been widely recognized by the market, reducing maintenance frequency and further enhancing work efficiency. As a second-hand excavator targeting the international market, we have carried out comprehensive and meticulous inspection and repair work on it, including but not limited to replacing worn parts, thoroughly cleaning the interior and exterior, and conducting necessary debugging and calibration, etc., striving t
| Specifications | Value |
|---|---|
| No. | 979033 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23000 |
| Bucket capacity (m³) | 1.35 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz TCD5.7/ Isuzu 4HK1 |
| Rated power (kw/rpm) | 129/2100; 128/2000 |
| Emission standard | Country IV |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.5 |
| Total transport length (mm) | 9635 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 442 |
| Minimum turning radius of front working device (mm) | 3662 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2813 |
| Total track length (mm) | 4446 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7600 |
| Maximum digging radius (mm) | 9735 |
| Maximum digging depth (mm) | 6450 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6735 |
