| Specifications | Value |
|---|---|
| No. | 963546 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
Description

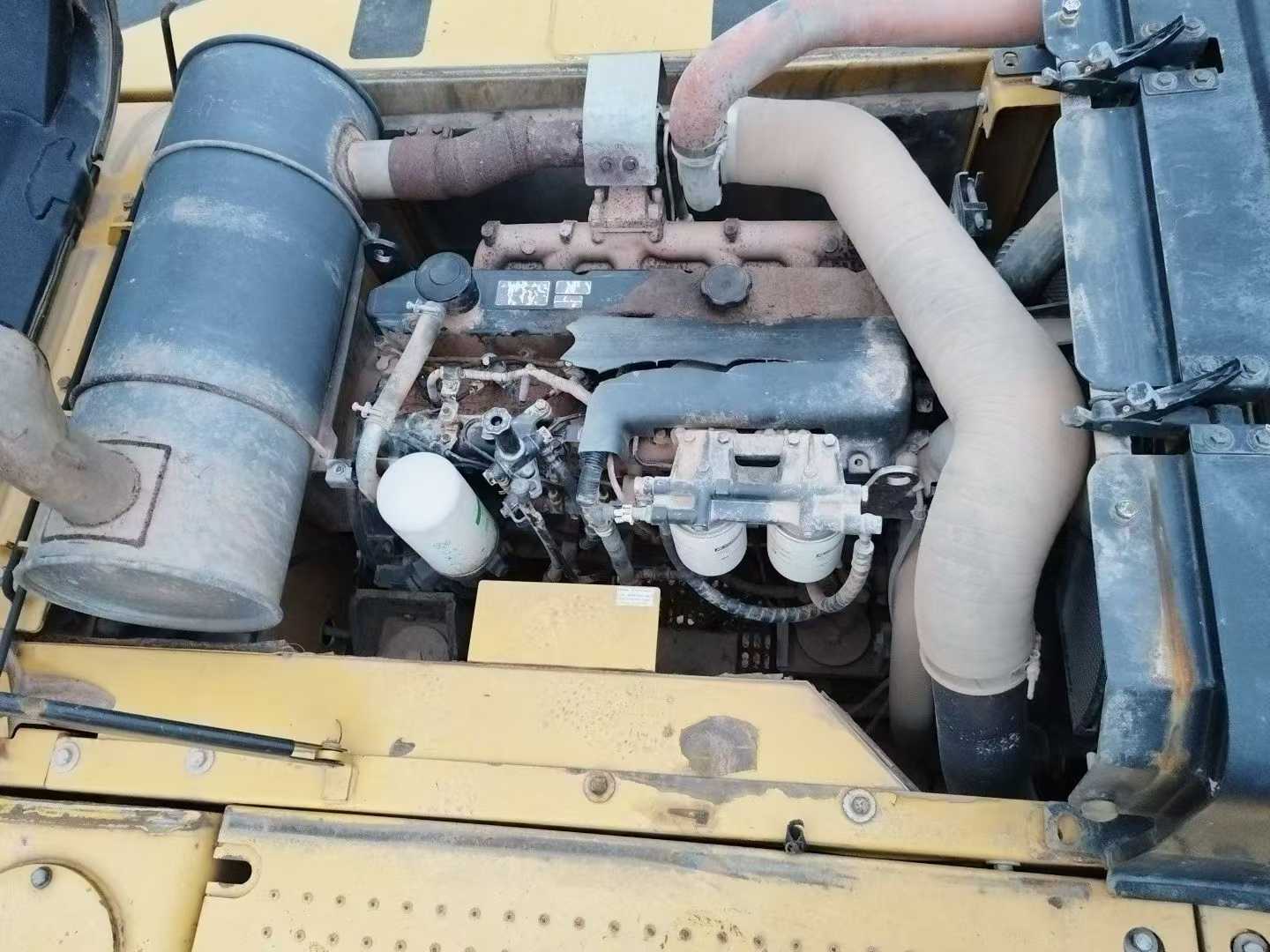

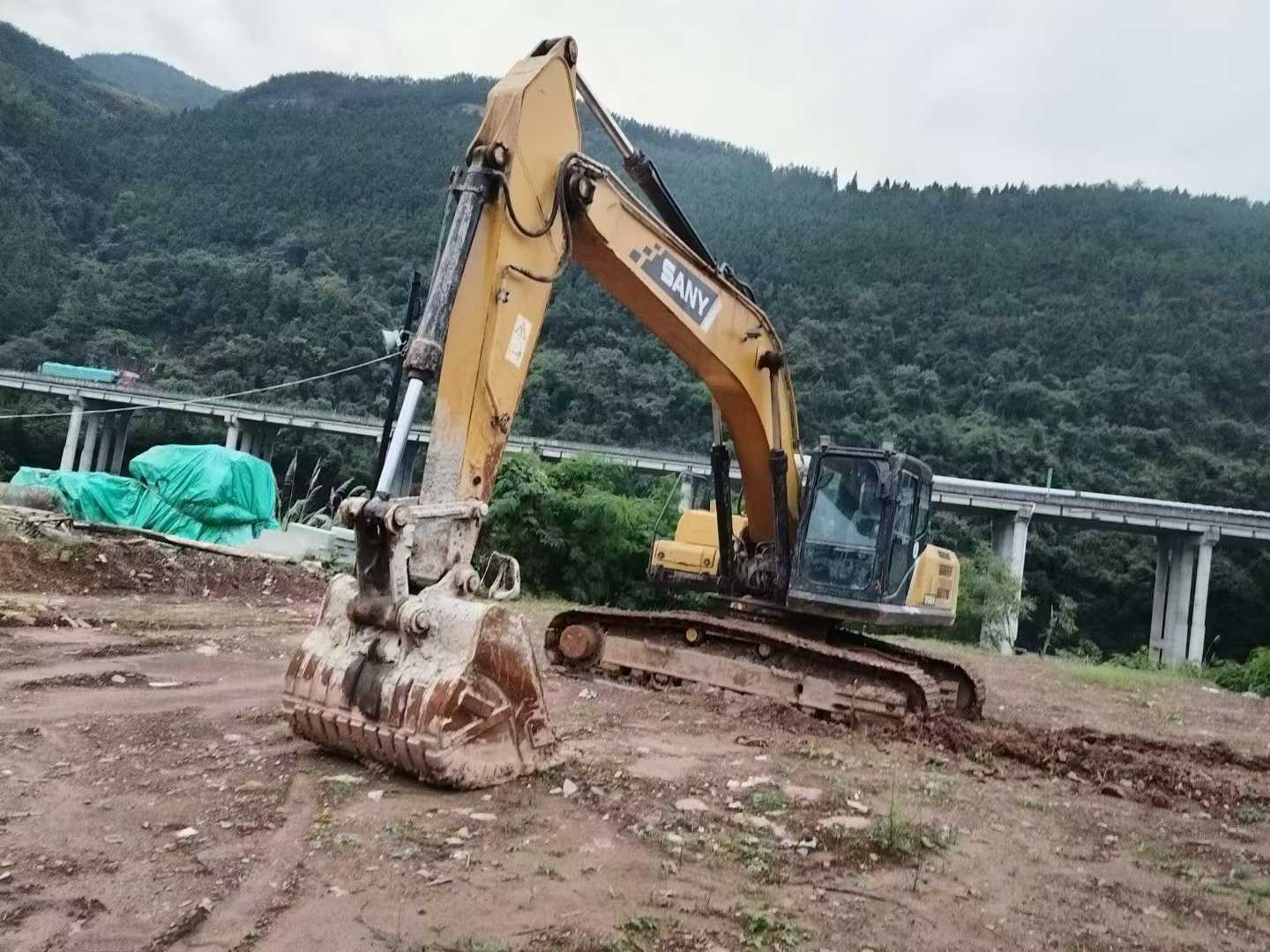

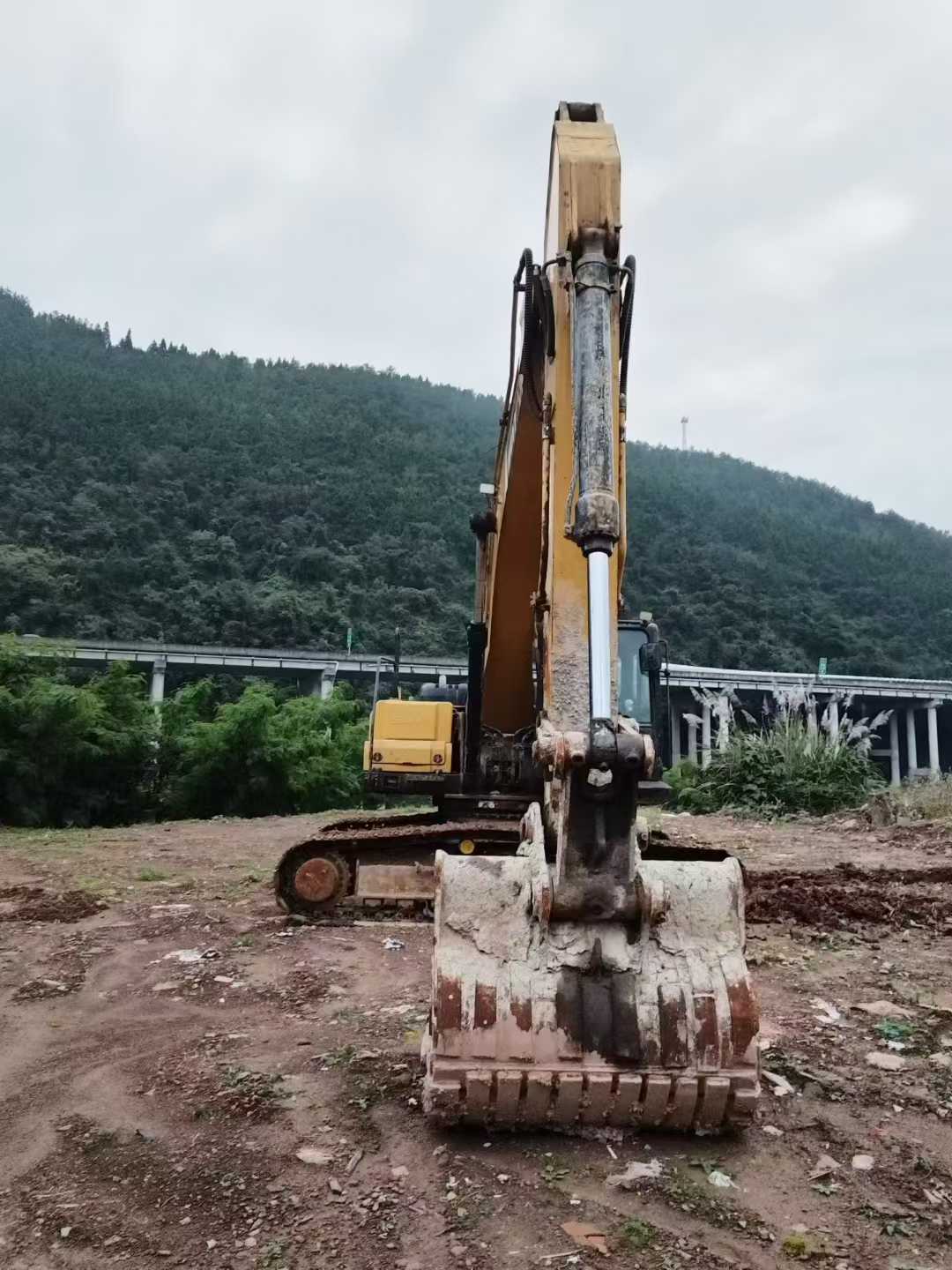

This Sany SY245 excavator, manufactured in 2018, is a very popular medium-sized excavator in the market. Its working time is only 3,500 hours, which means its service life is still quite long. With proper maintenance, it can almost be regarded as a nearly new car. This excavator is equipped with a highly efficient and energy-saving engine independently developed by Sany Heavy Industry. It features strong power and low fuel consumption, capable of meeting the operational requirements under various complex working conditions. Meanwhile, its advanced hydraulic system design ensures smoothness and accuracy during operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, this model is also equipped with an intelligent control system, which can achieve remote fault diagnosis and maintenance reminder functions, greatly enhancing the reliability and working efficiency of the equipment. The vehicle body structure is sturdy and durable, made of high-strength steel, effectively extending the overall service life of the machine. In conclusion, this Sany SY245 not only boasts outstanding performance but also offers an extremely high cost-performance ratio, making it an ideal choice for users who
