| Specifications | Value |
|---|---|
| No. | 964792 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz |
| Rated power (kw/rpm) | 150/2100 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175(187) |
| Rod digging force (kN) | 120(129) |
| Travel speed (km/h) | 5.8/3.7 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 5675 |
Description

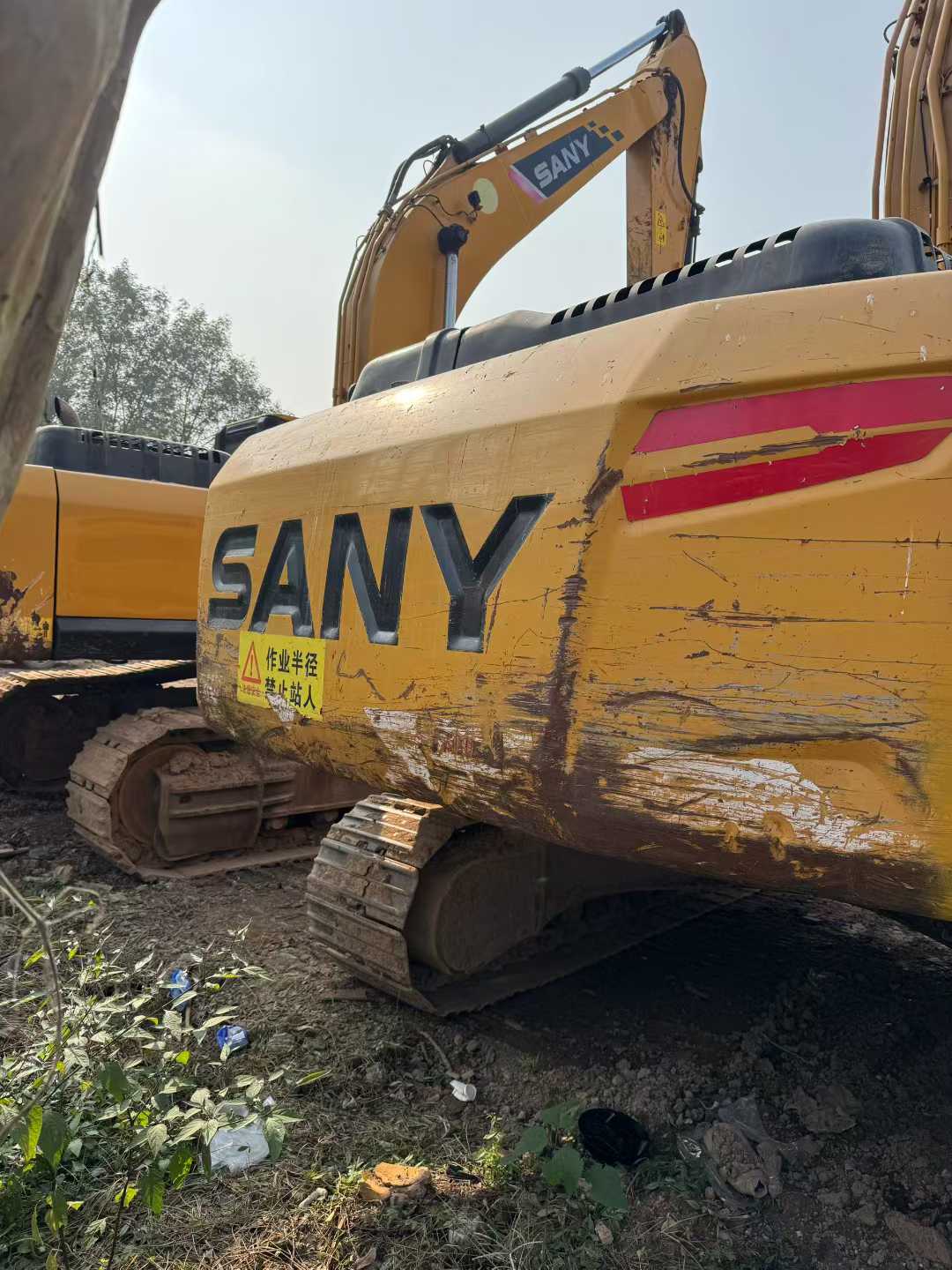

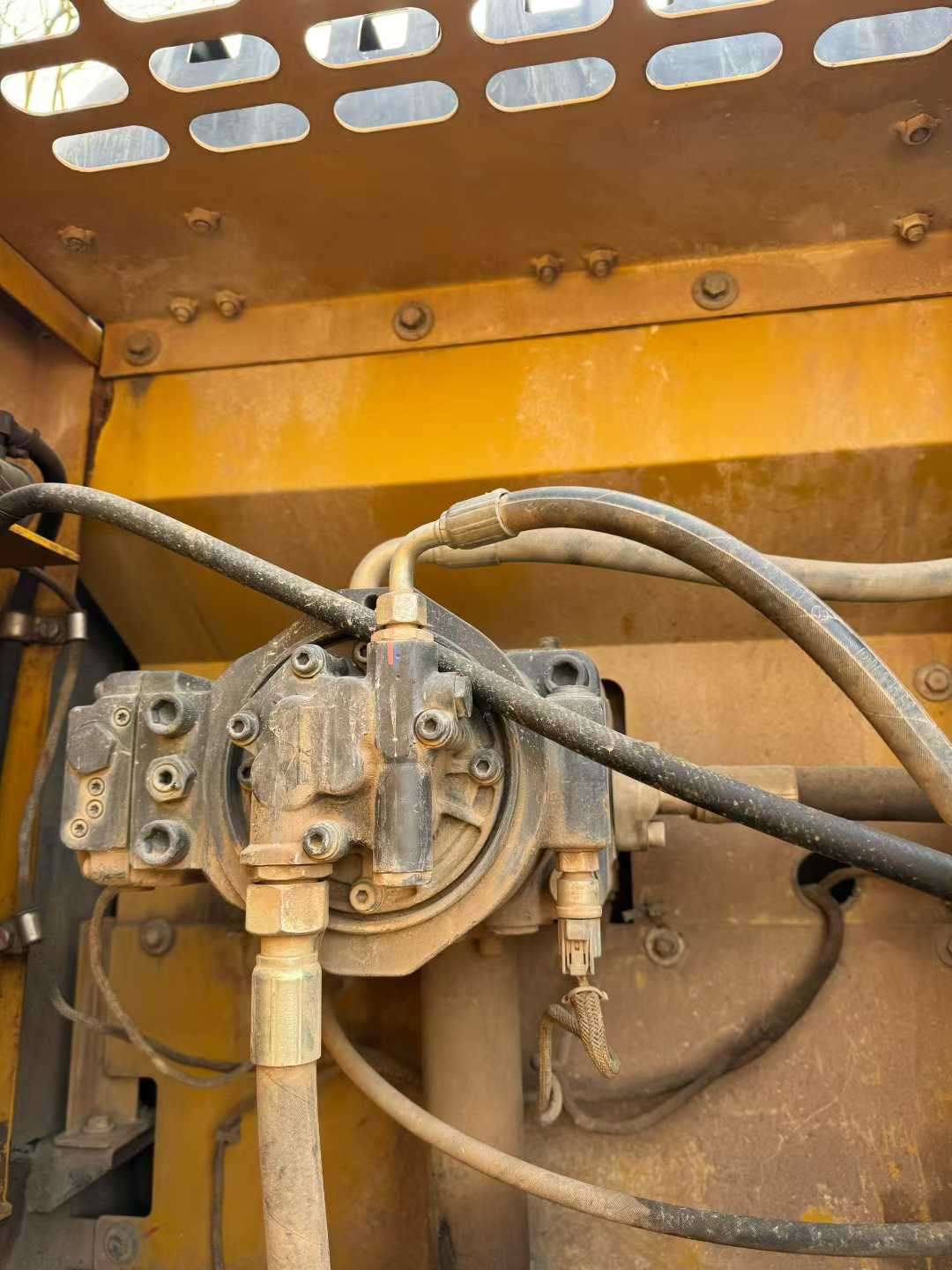

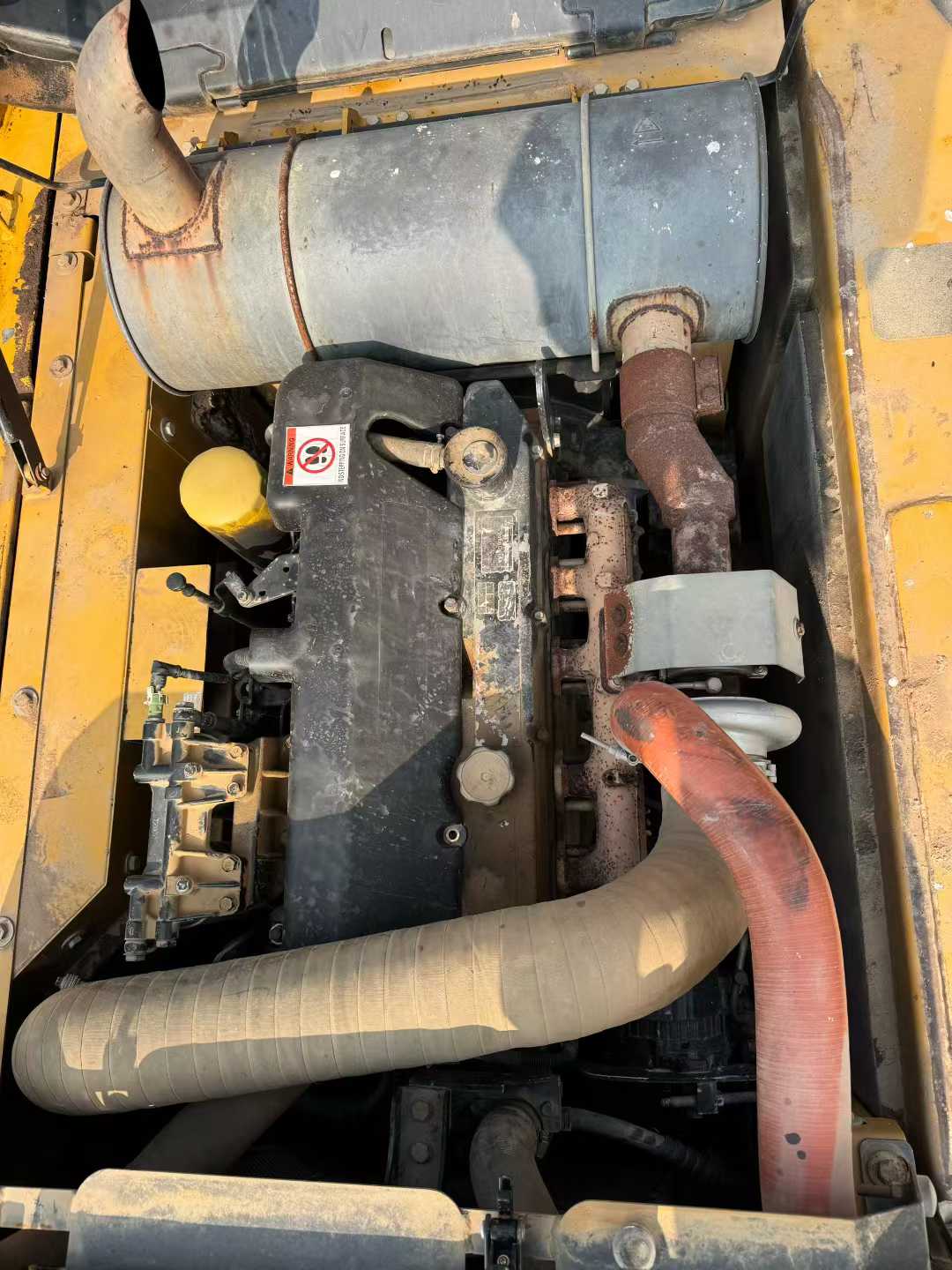

"Recommendation of Premium Second-hand Excavators There is currently a Sany SY245H-10 medium-sized excavator purchased in 2019. It is in excellent condition, has a working time of only about 2,000 hours, is used frequently, and is well maintained. The overall condition of the machine is good. This device is a classic work of Sany Heavy Industry, featuring a powerful power system and an efficient hydraulic system. It can easily handle various complex working conditions, whether it is earthwork excavation, mining or road construction, it can handle them with ease. "Power System It is equipped with an imported Cummins QSB6.7 engine, with a power output of 138kW at 2000rpm, meeting the National III emission standards. Not only is it powerful, but it also has good fuel economy and runs smoothly and reliably. In addition, this model is also equipped with an advanced electronic control system that can automatically adjust the output power according to the actual load, effectively reducing fuel consumption while extending the engine's service life. "Hydraulic System Equipped with Kawasaki KPM series main pumps and valve groups, the maximum digging force reaches 180kN, the bucket capacity is 1.2 cubic meters, the rotary speed is 12.5r/min, an
