Sany SY245H

2016 Sany SY245H

1/9

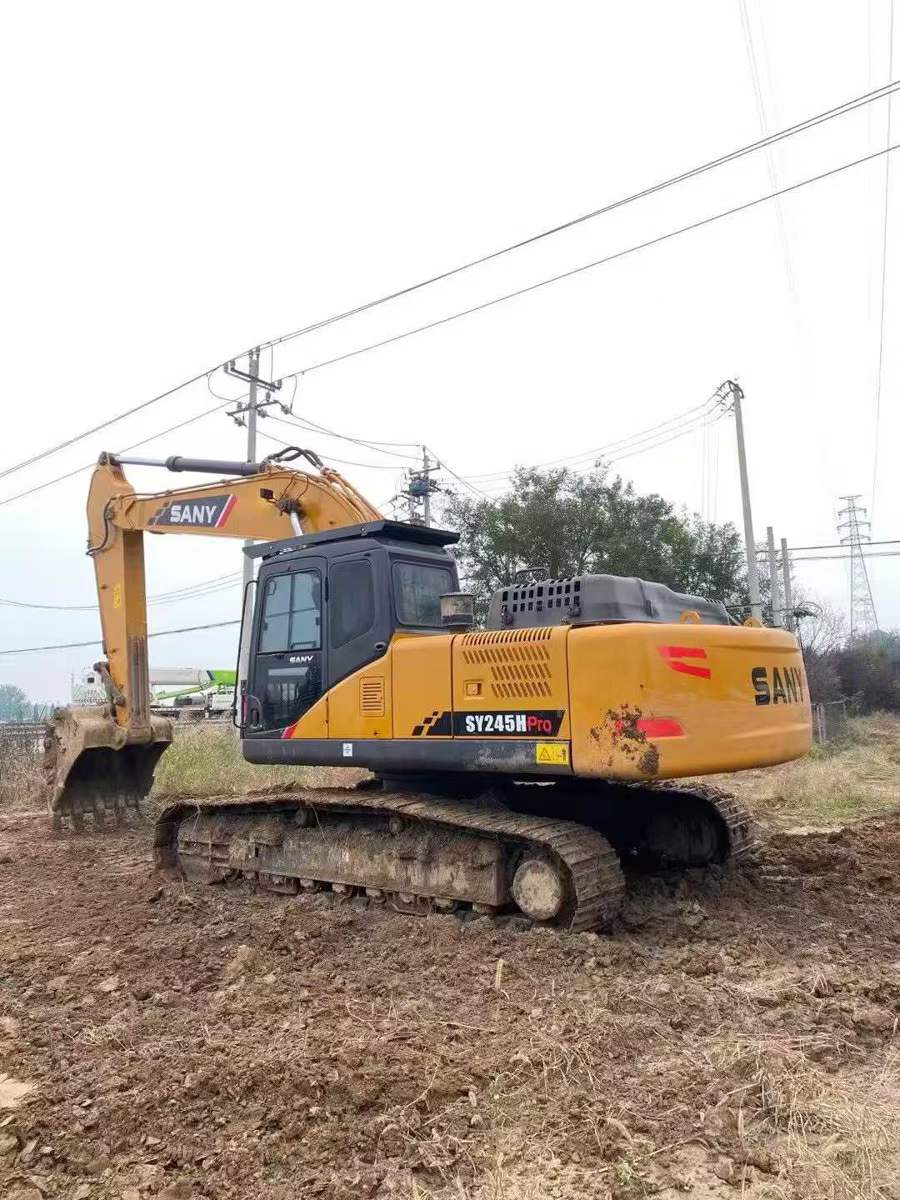

Used Sany SY245H Excavator 2016 Model / 1

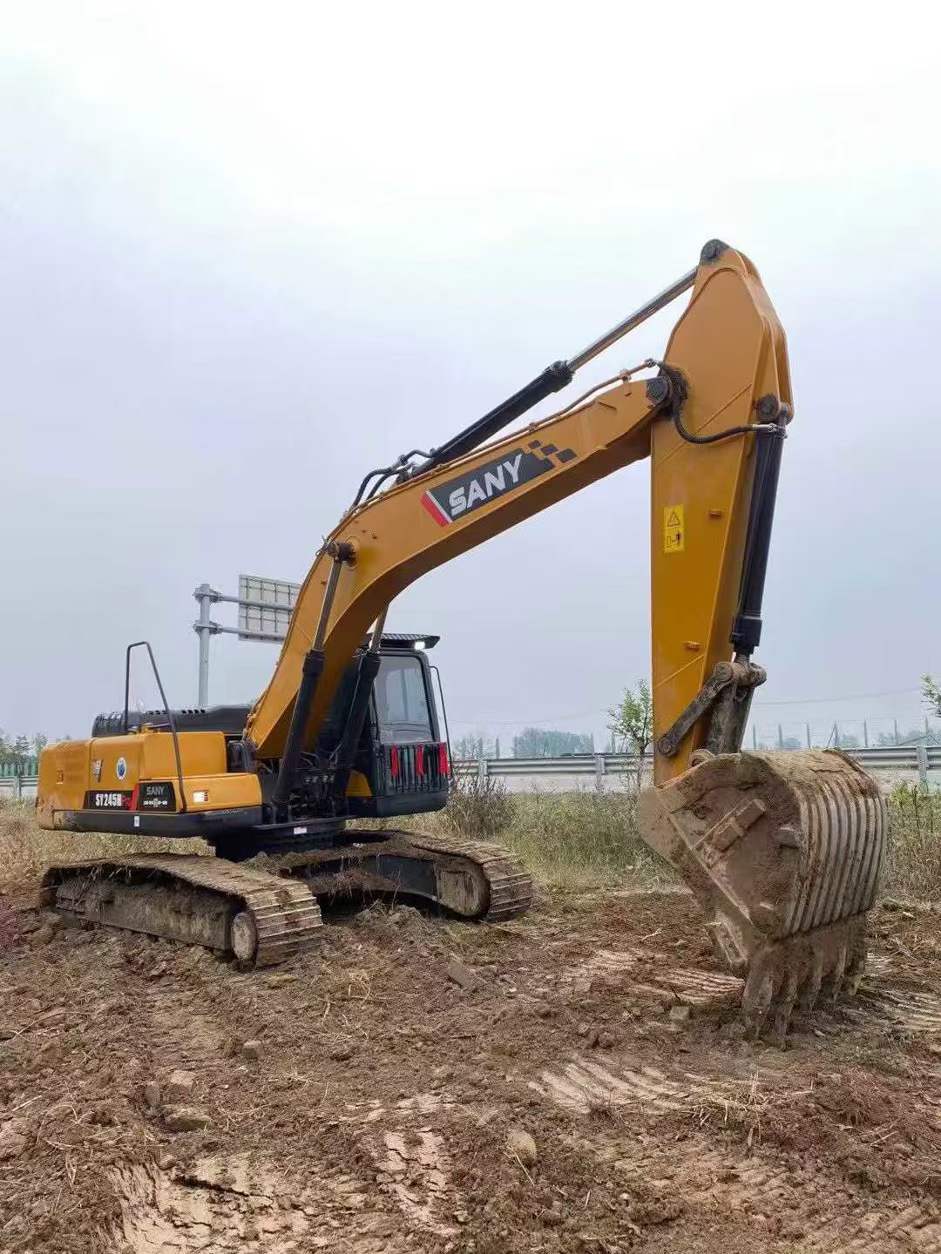

Used Sany SY245H Excavator 2016 Model / 2

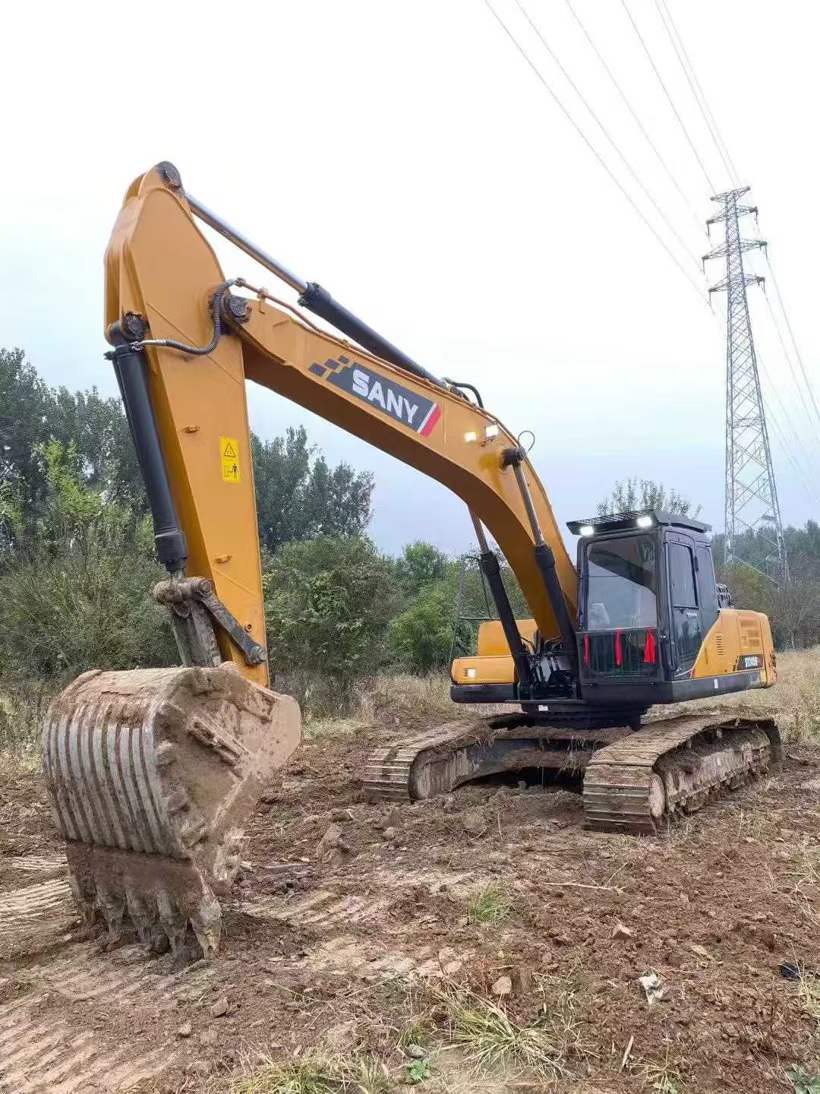

Used Sany SY245H Excavator 2016 Model / 3

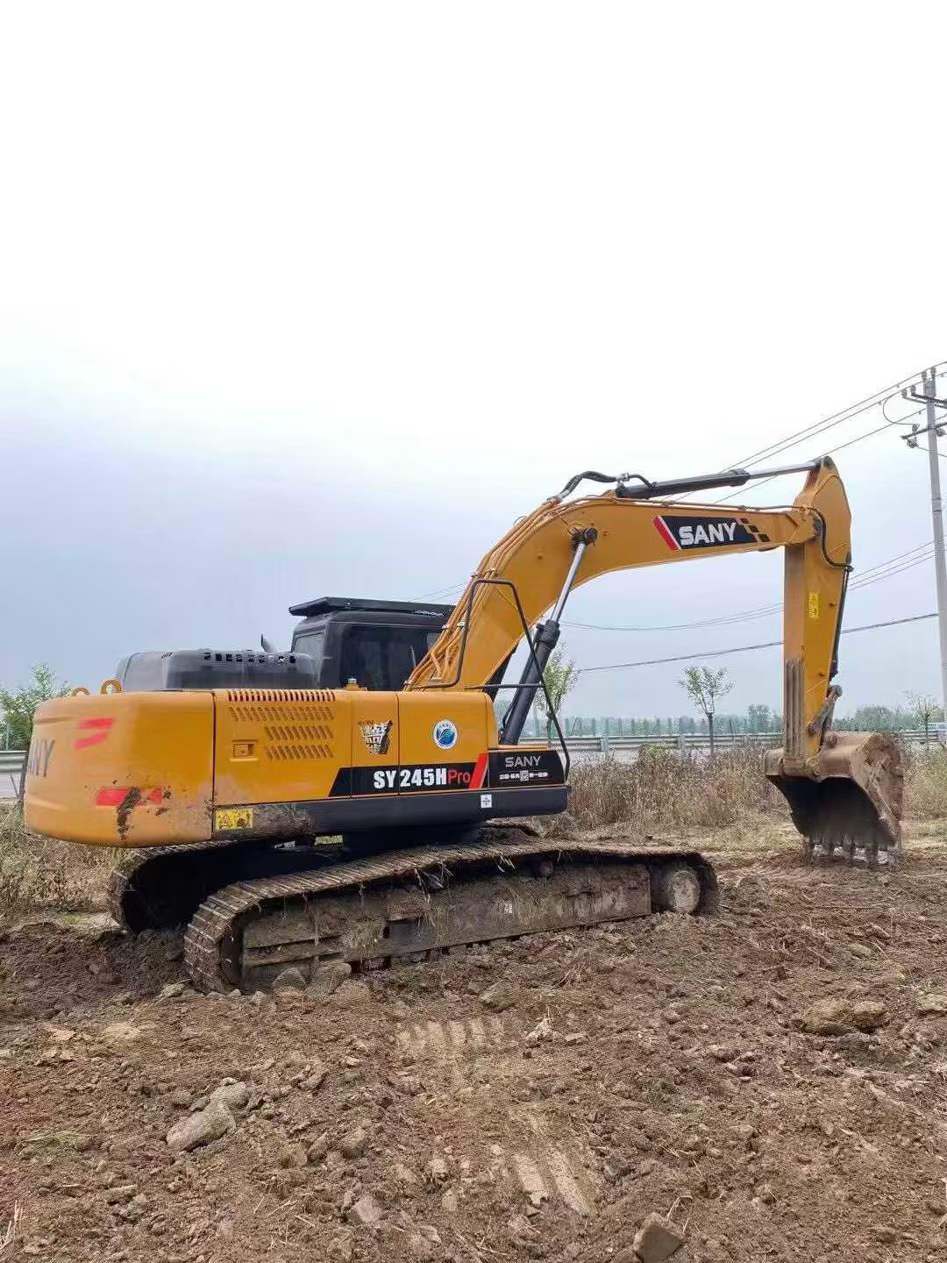

Used Sany SY245H Excavator 2016 Model / 4
Used Sany SY245H Excavator 2016 Model / 5
Used Sany SY245H Excavator 2016 Model / 6

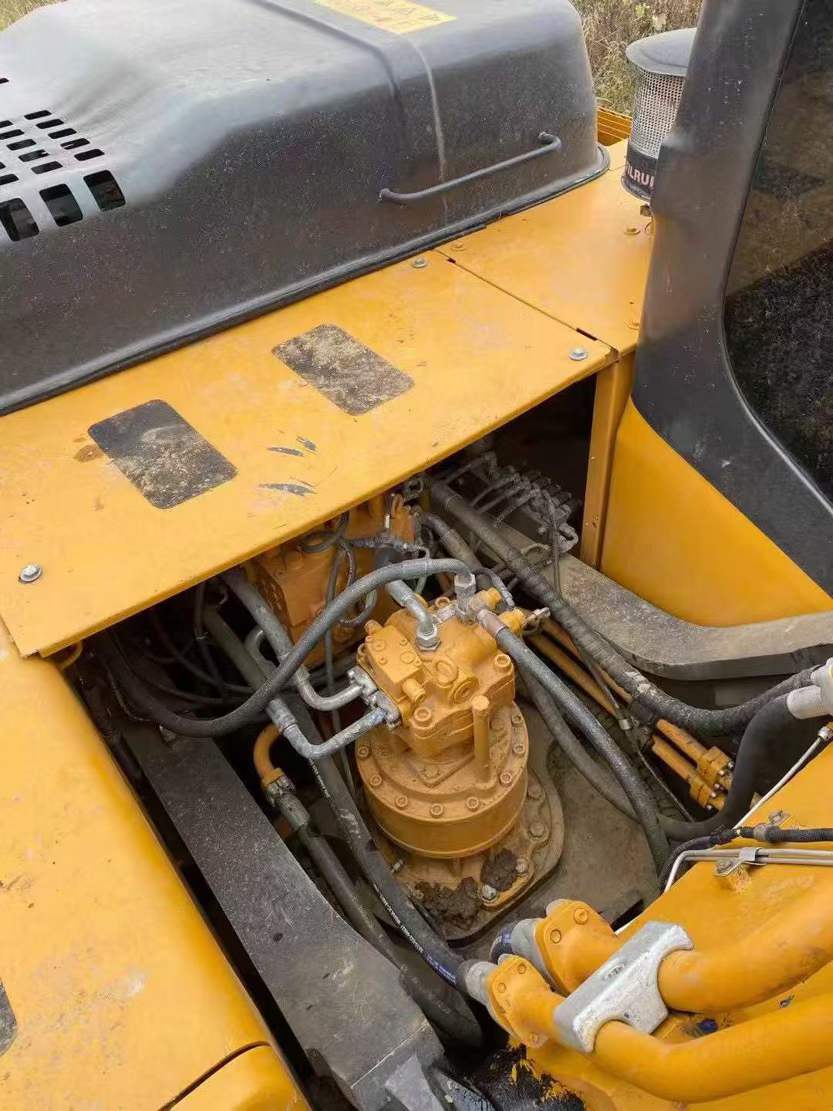

Used Sany SY245H Excavator 2016 Model / 7

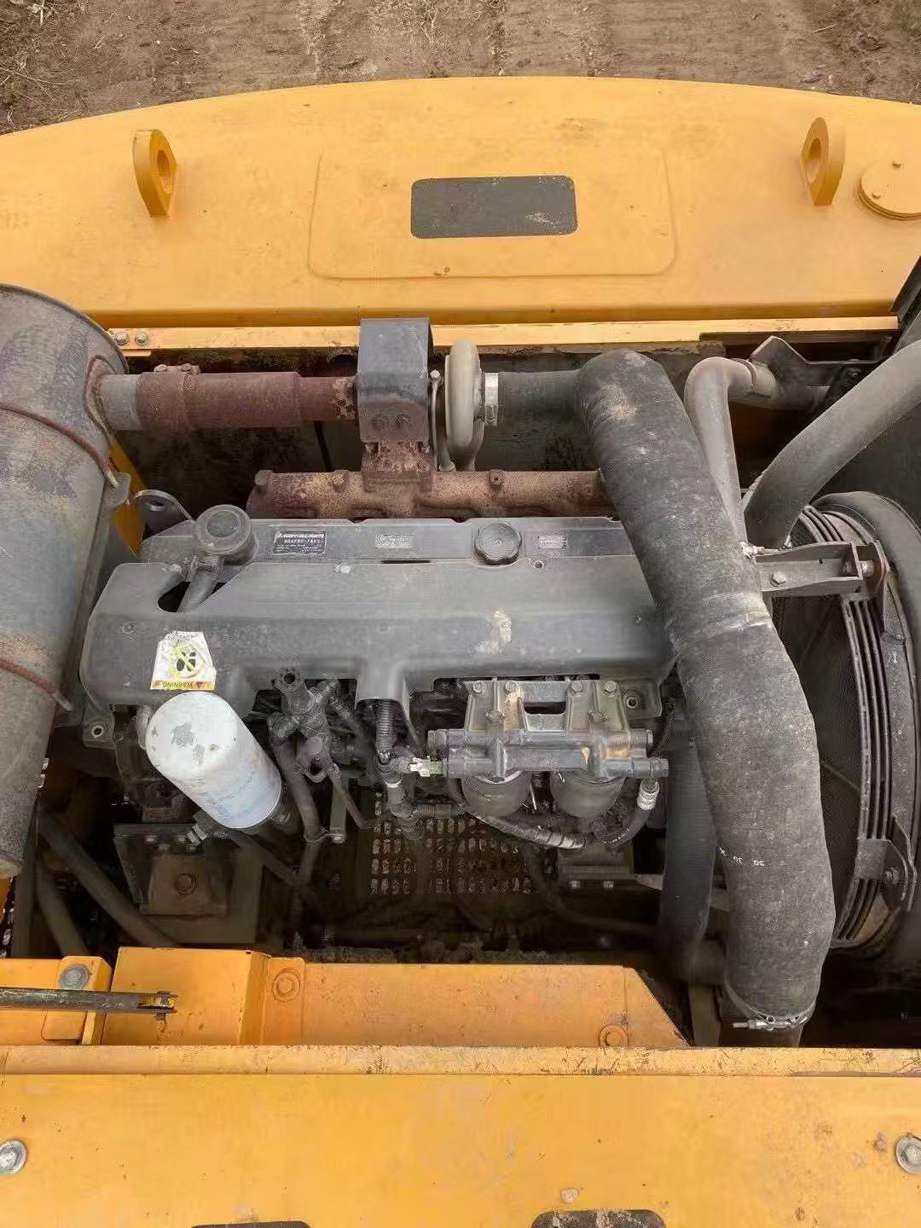

Used Sany SY245H Excavator 2016 Model / 8

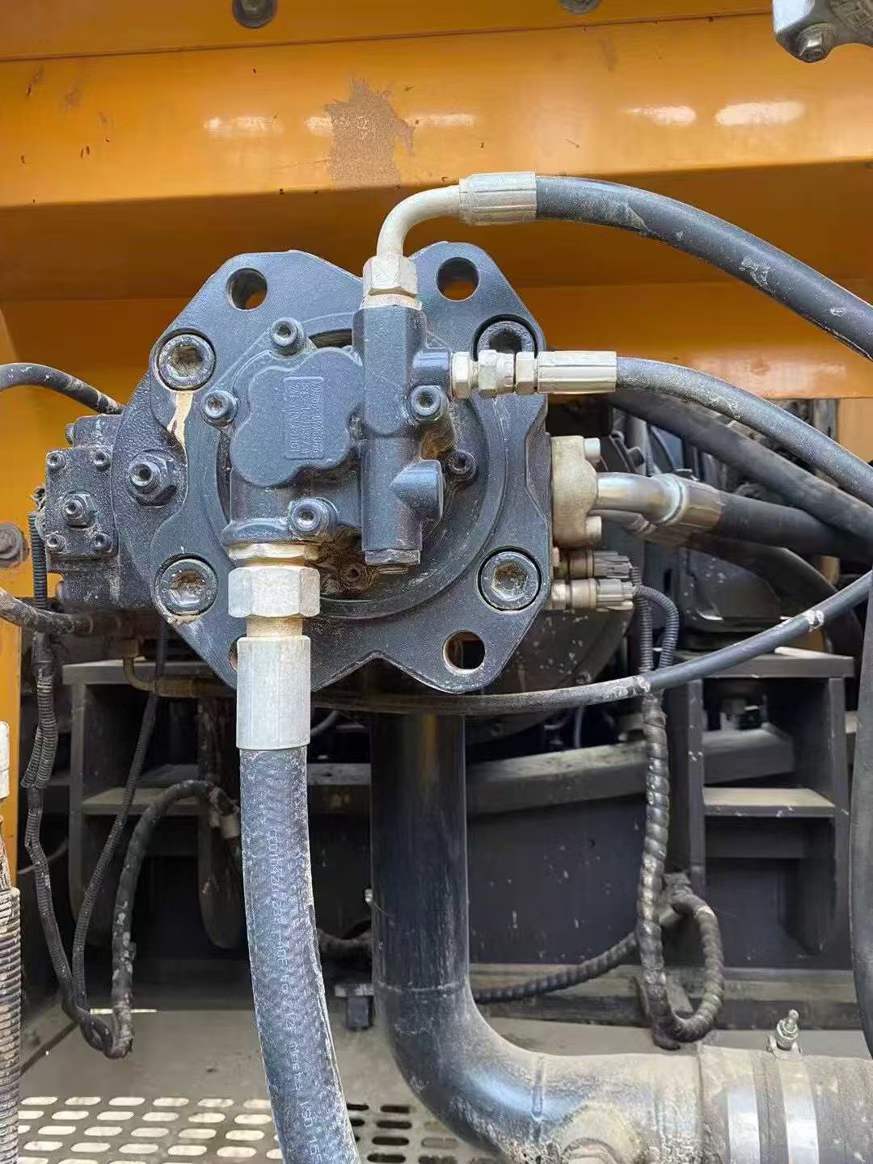

Used Sany SY245H Excavator 2016 Model / 9
Product Description
SpecificationsValue
No.965560
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Description

【 Premium Sany 245H excavator, ready for immediate sale upon completion of construction site 】 We are extremely honored to recommend this second-hand Sany 245H excavator to you. Since it was put into use, this machine has accumulated only 3,000 hours of working time, and the vehicle condition has been maintained in perfect condition, almost comparable to that of a new car. Not only does it have a neat appearance, but its internal structure has also been carefully maintained, ensuring its outstanding performance and long service life. In terms of power, this 245H is equipped with a high-performance engine, providing strong and stable power output. It can handle both hard rocks and soft soil with ease. More importantly, this model adopts an advanced fuel management system, which results in lower fuel consumption, higher work efficiency, and saves users a significant amount of operating costs. The hydraulic system is one of the key factors in evaluating the quality of an excavator. This Sany 245H model adopts hydraulic components provided by internationally renowned brands, combined with a precise control system design, ensuring smoothness and accuracy during operation. Even in complex working environments, it can handle things with ea

Overview

No.965560

Brand Name:

Sany

Model Number:

SY245H

Year:

2016

Location:

Peking China

Are you interested in this machine?

Please contact us

Why should you cooperate with us?

With over 7 years of experience in the construction machinery industry, you can say that we are professional practitioners in the machinery industry. Why cooperate with Global Used Excavator? Because we are only focused on the machinery industry. We have a large amount of first-hand equipment information. We contact direct sellers and there are no middlemen.

How do we work?

Tell us the brand, model, year, and operating hours of the equipment you need. Then we will start looking for the suitable equipment for you globally. It's as simple as that. Once we find the equipment that suits you, we will contact you and we can discuss any further steps.

Advantages when cooperating with us!

You can continue with your work without having to spend time and money traveling around and/or asking dealers and traders for quotes on your own. You don't need to visit multiple web portals to compare, evaluate, and find the mechanical equipment you need. We will do all of this for you! And jointly decide on any further steps.

Providing quality service for our customers!

We can offer a wide range of "additional" quality services. We can help you arrange equipment inspections, repairs, overhauls, painting, hydraulic pump and arm operations, and more.

Here are the ways you can purchase from Global Used Excavator!

Option 1: You can find a machine on our website and tell us which machine it is. We will contact the owner of the machine to obtain more information, pictures, and prices. We will send you a quotation and jointly decide on any further steps.
Option 2: We conduct a search for you. You tell us the brand, model, year, and maximum hours of the machine you need, and we will start serving you. We will send you a quotation and jointly decide on any further steps.
