| Specifications | Value |
|---|---|
| No. | 965665 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
Description

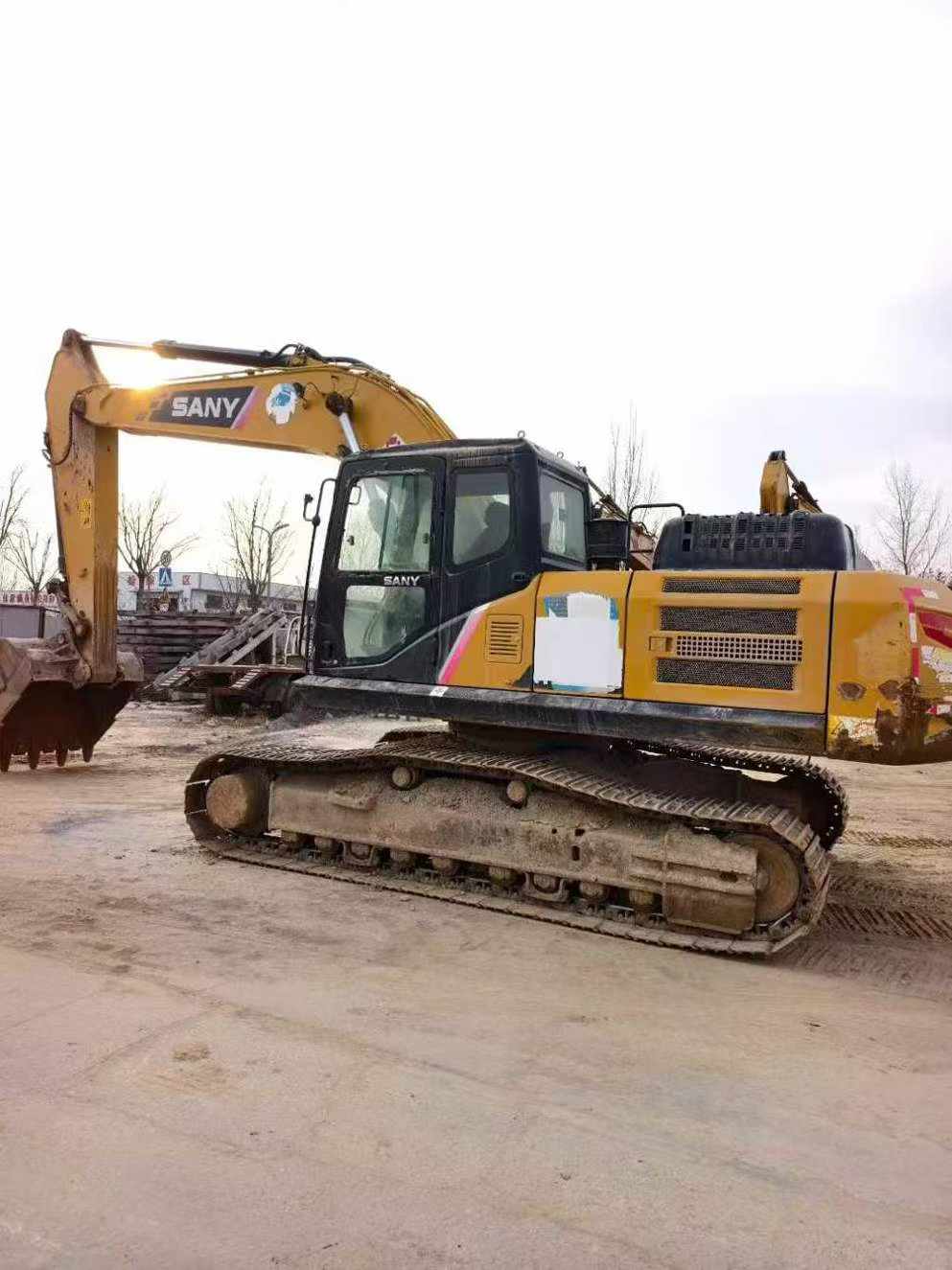

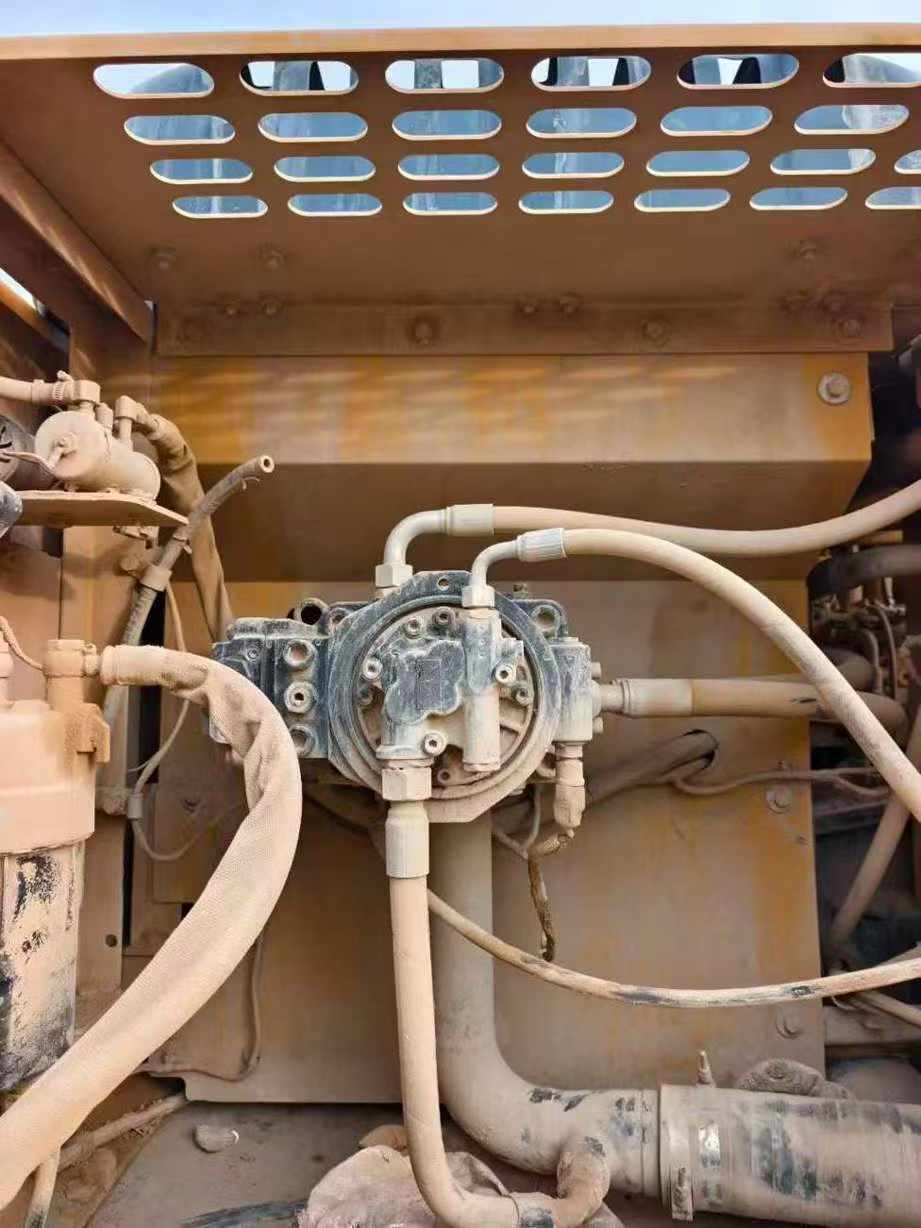

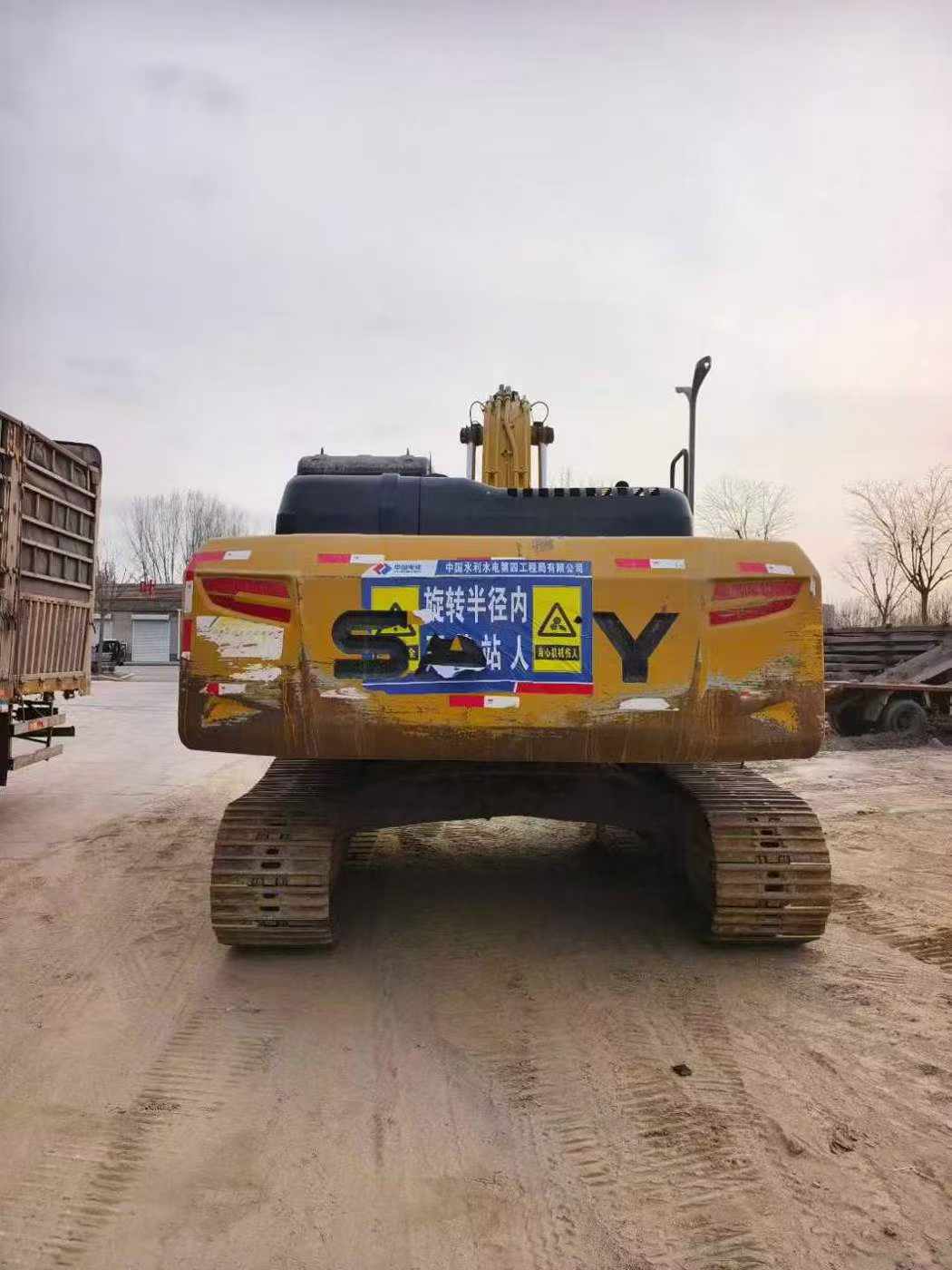

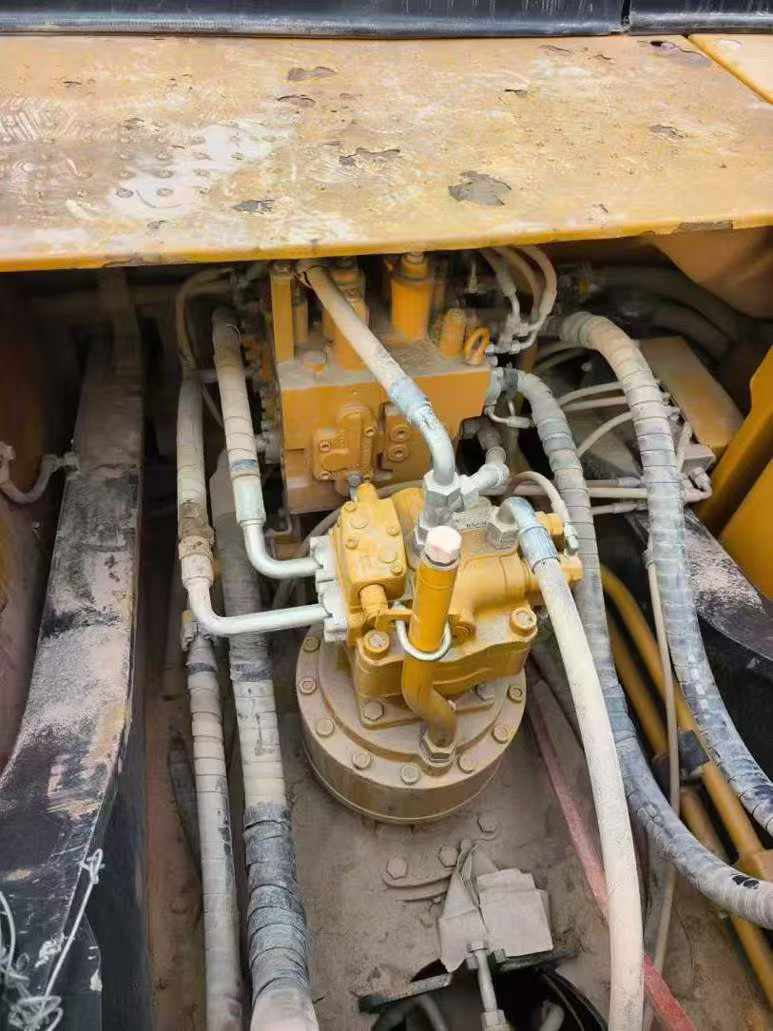

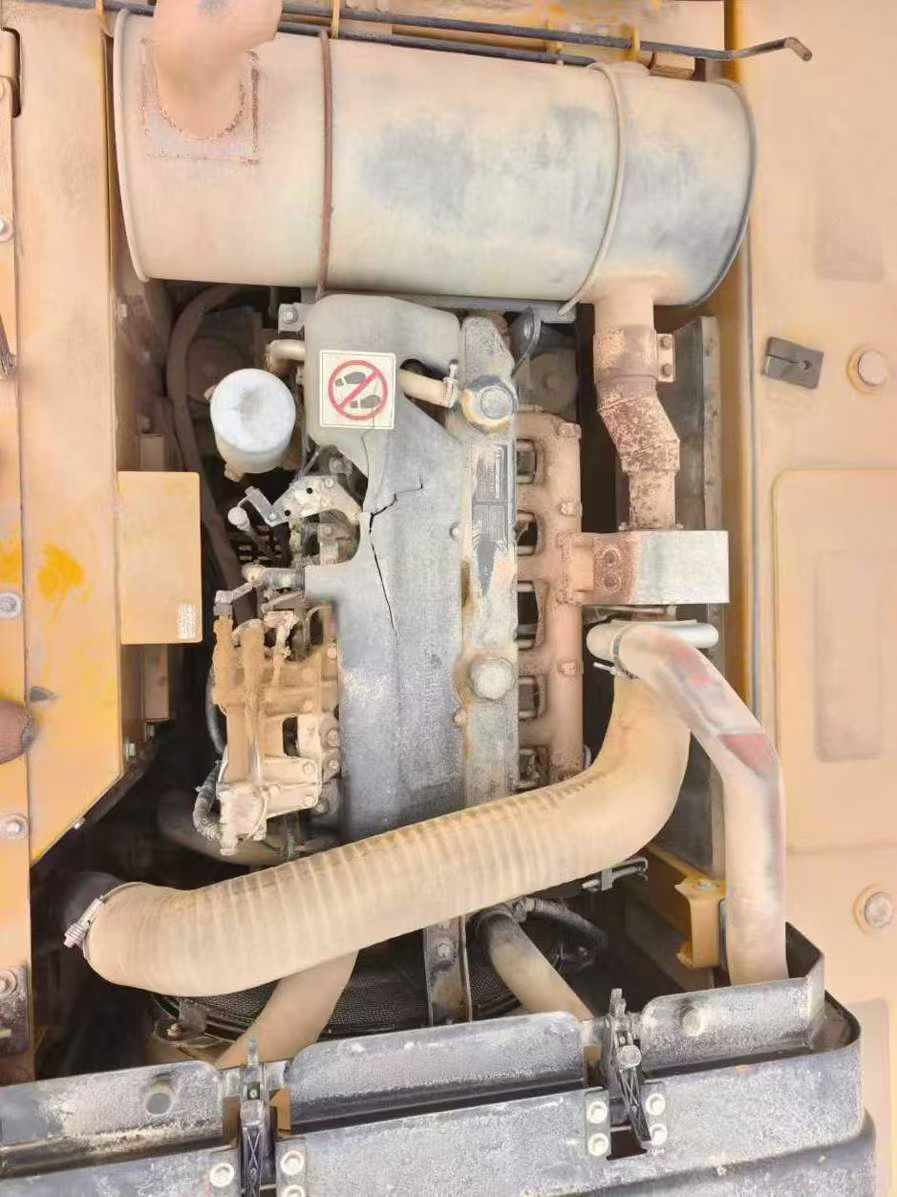

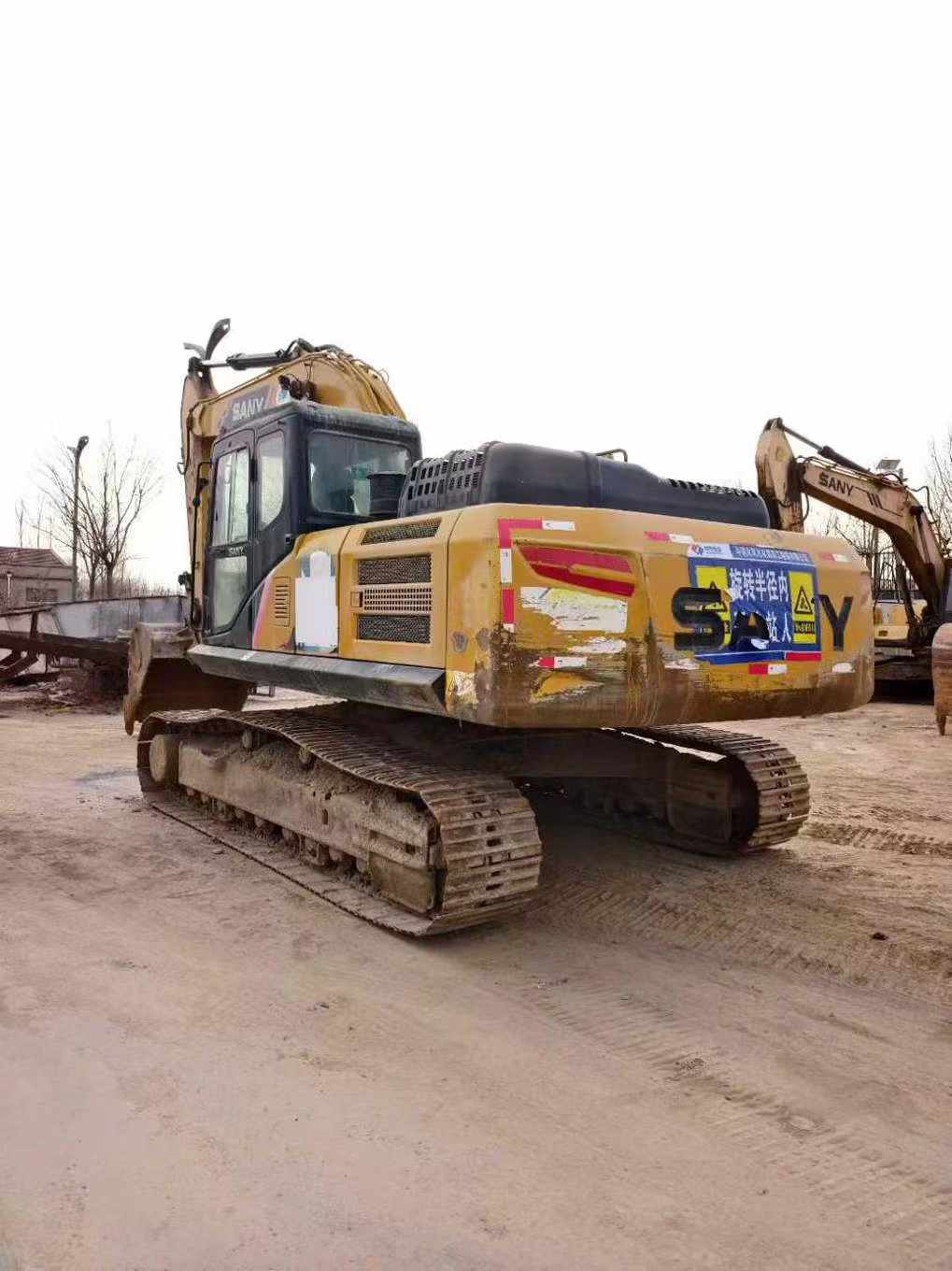

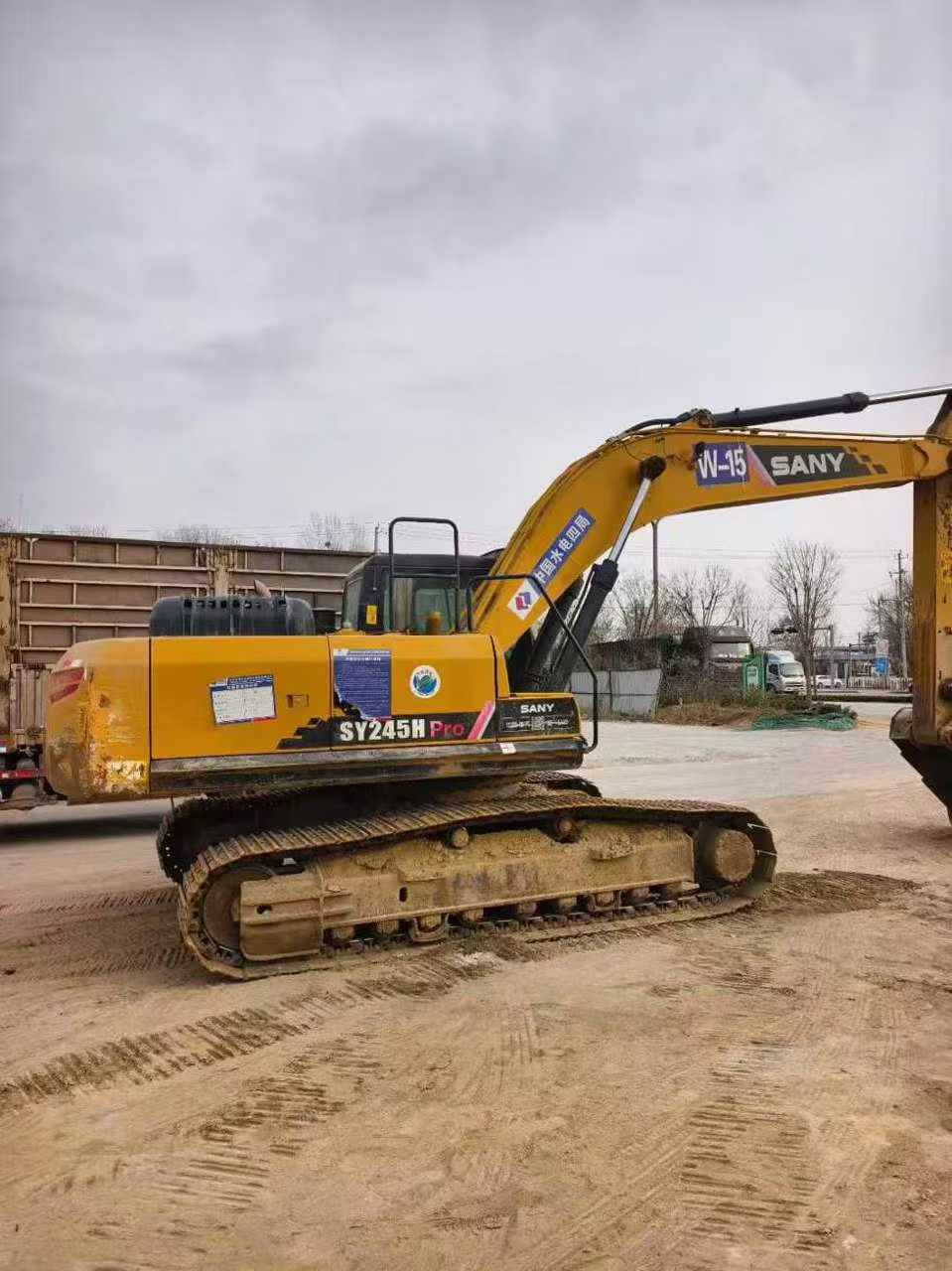

【 Quality Recommendation 】 The Sany SY245H excavator, manufactured in the second half of 2020, has remained in its original state since its release and has never undergone any modification or hamming operations, ensuring the integrity and stability of its mechanical structure. As of now, the cumulative working time of this machine is only 1,800 hours, and it is in an excellent working condition. In terms of power, it is equipped with a Cummins QSB6.7 engine, which is renowned for its excellent fuel economy and strong power output, providing stable and reliable performance under various working conditions. Meanwhile, an efficient cooling system ensures the stability of the engine temperature during long-term operation, thereby extending its service life. The hydraulic system adopts the main pump and motor of Kawasaki brand from Japan, which are perfectly matched with the control system independently developed by Sany, making the operation of the entire machine more precise and smooth. Whether it is complex operations such as excavation, loading or crushing, they can all be handled with ease. In addition, advanced negative flow control technology effectively reduces energy consumption and enhances work efficiency. The exterior of the
