2019 Sany SY245H

1/9
Used Sany SY245H Excavator 2019 Model / 1

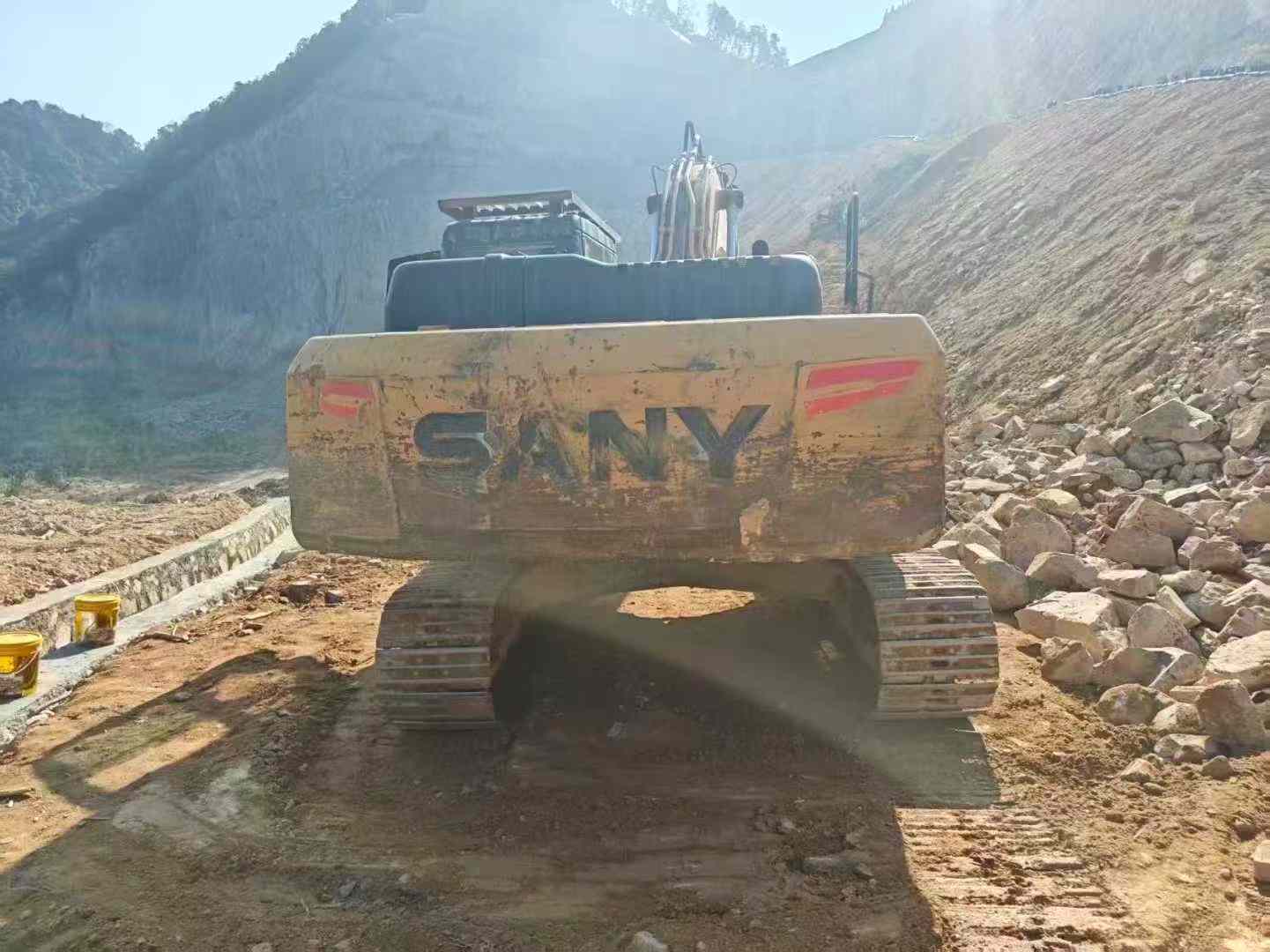

Used Sany SY245H Excavator 2019 Model / 2

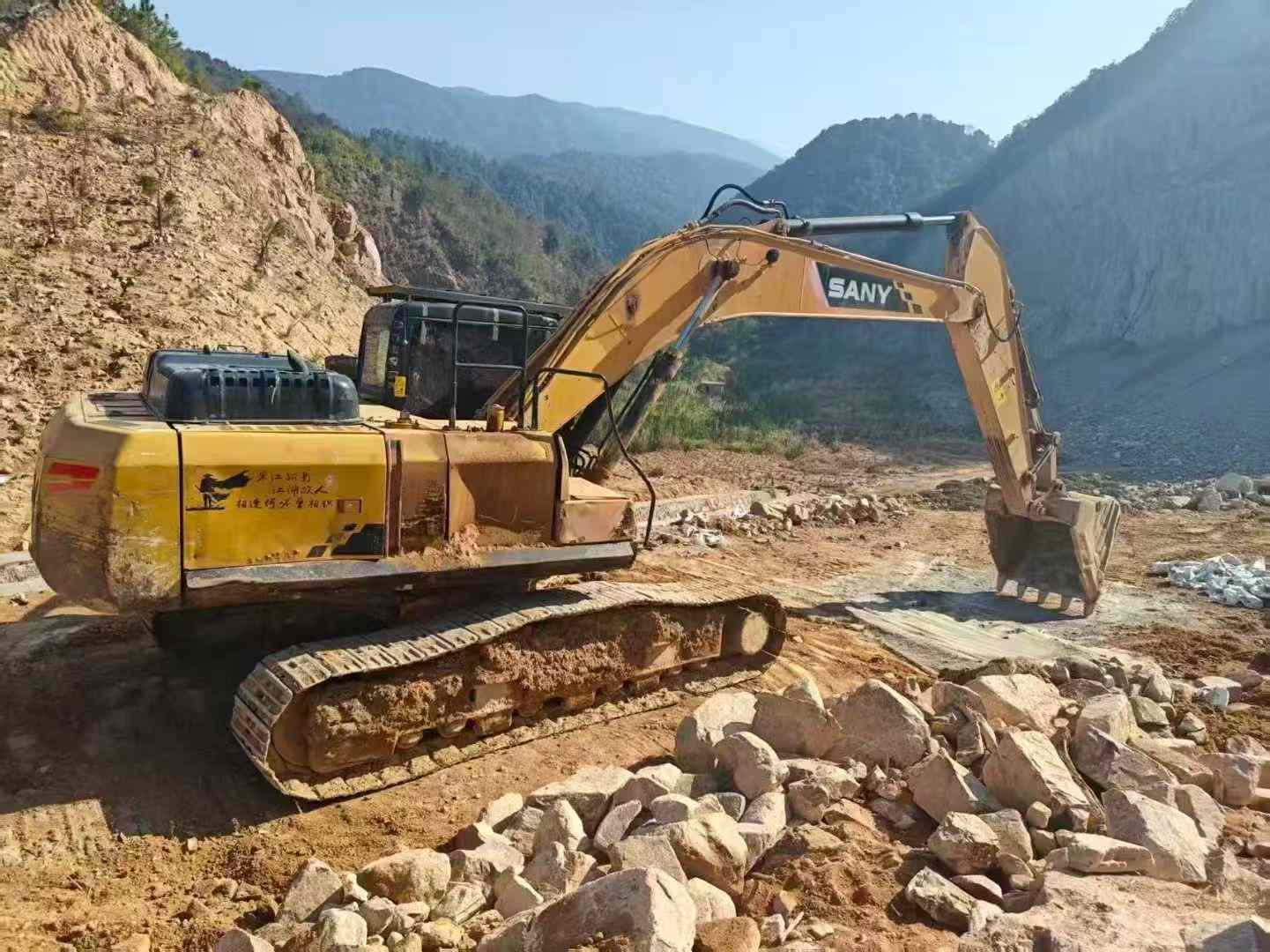

Used Sany SY245H Excavator 2019 Model / 3

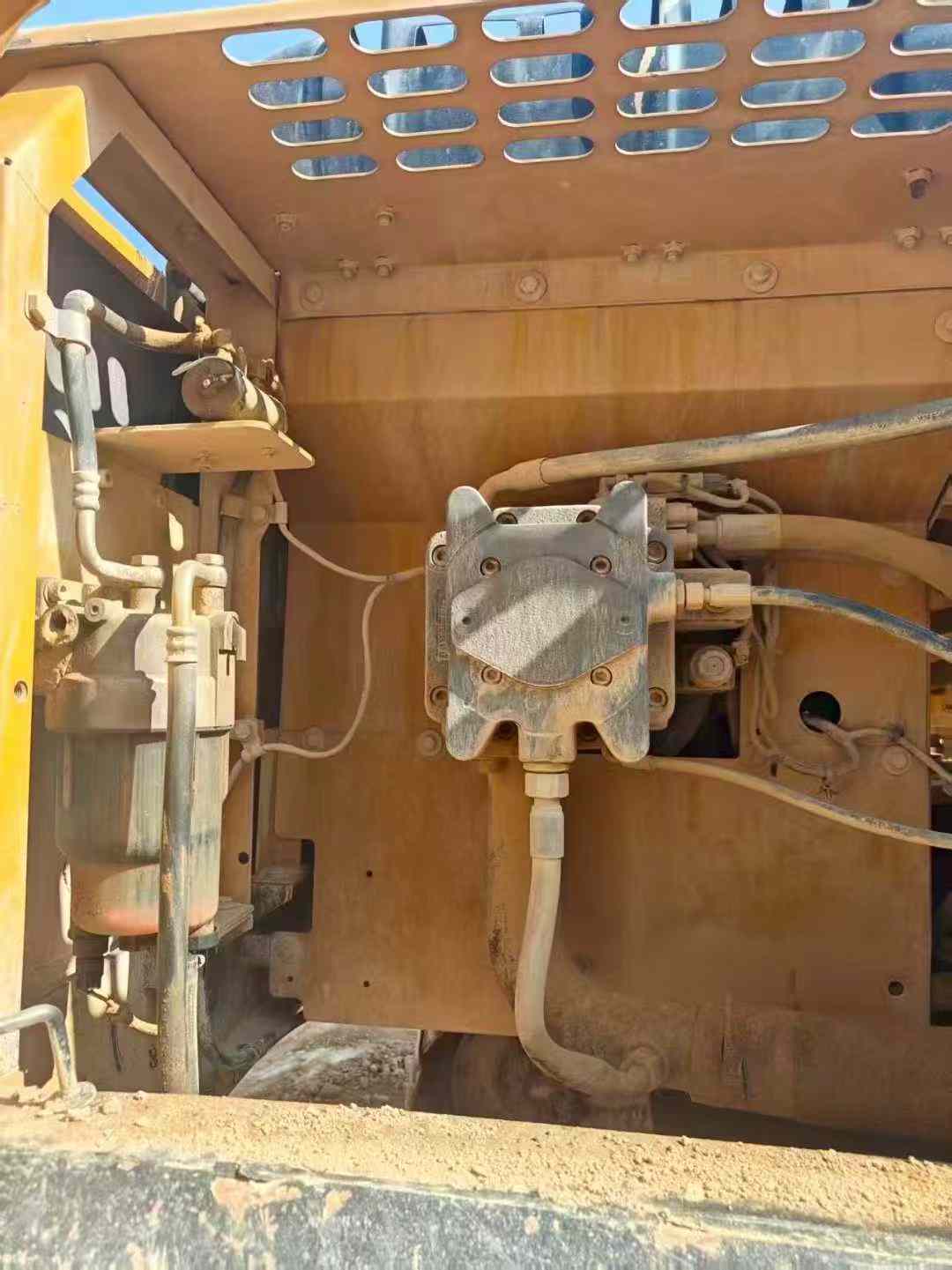

Used Sany SY245H Excavator 2019 Model / 4

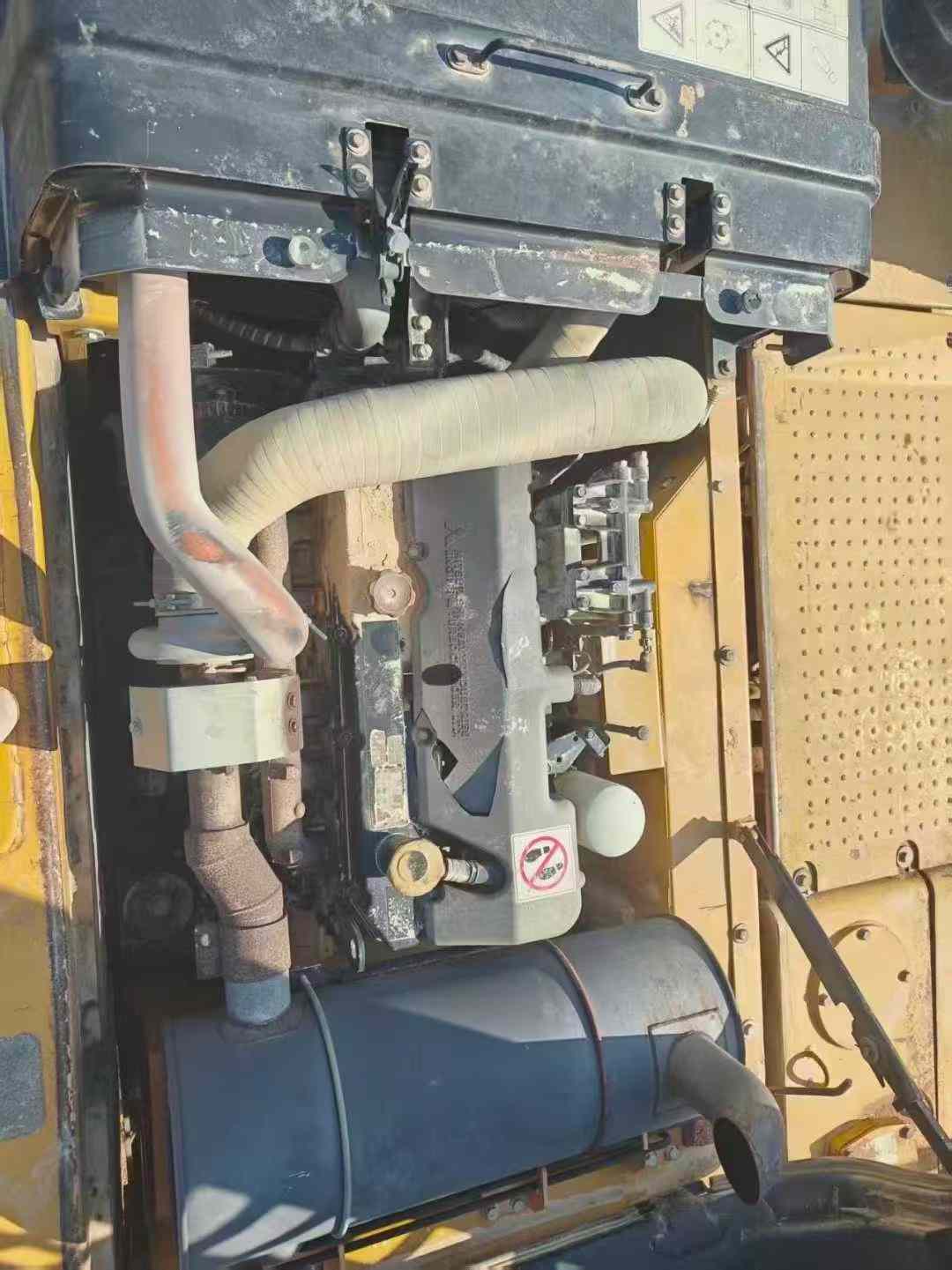

Used Sany SY245H Excavator 2019 Model / 5

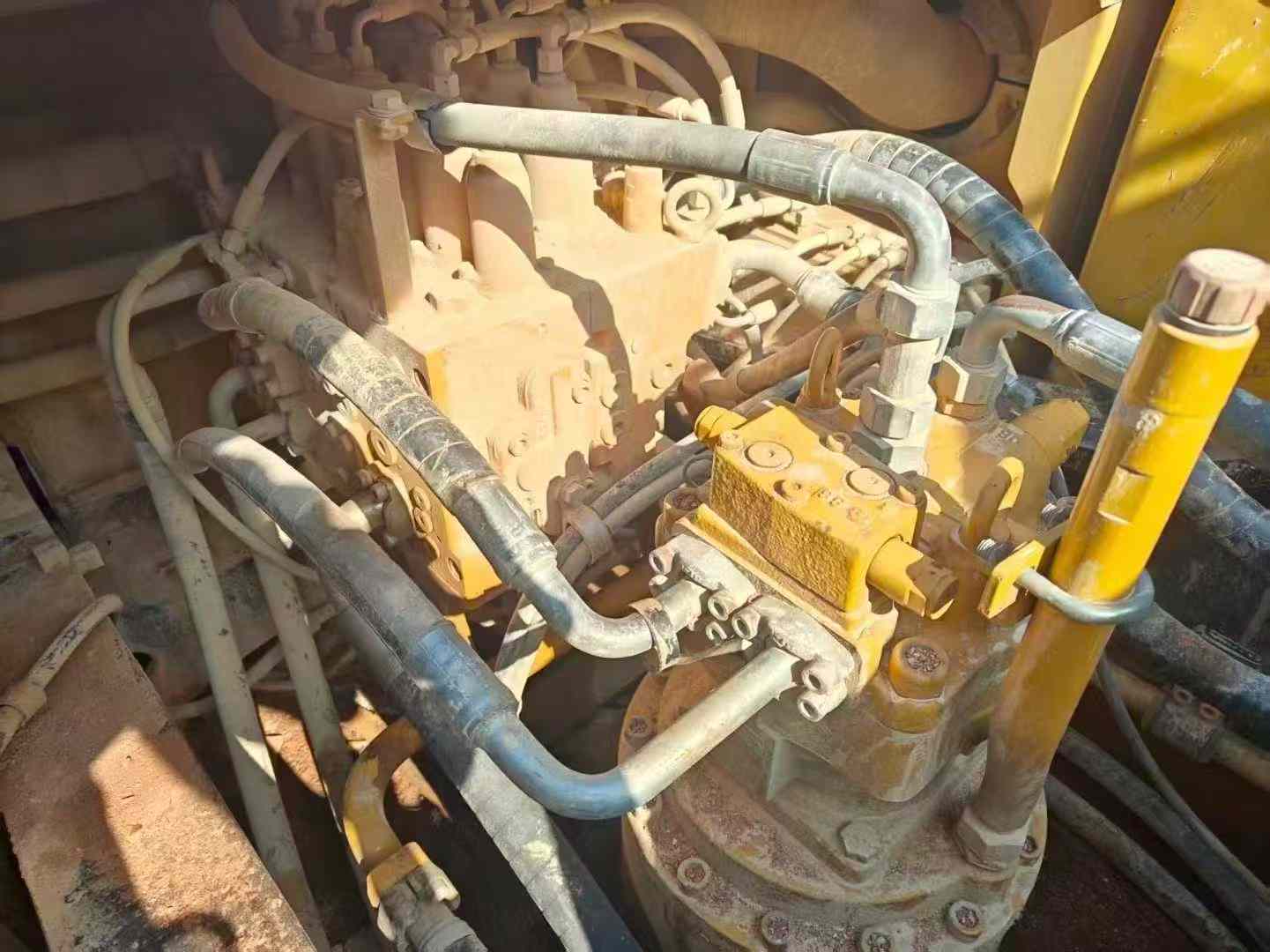

Used Sany SY245H Excavator 2019 Model / 6
Used Sany SY245H Excavator 2019 Model / 7

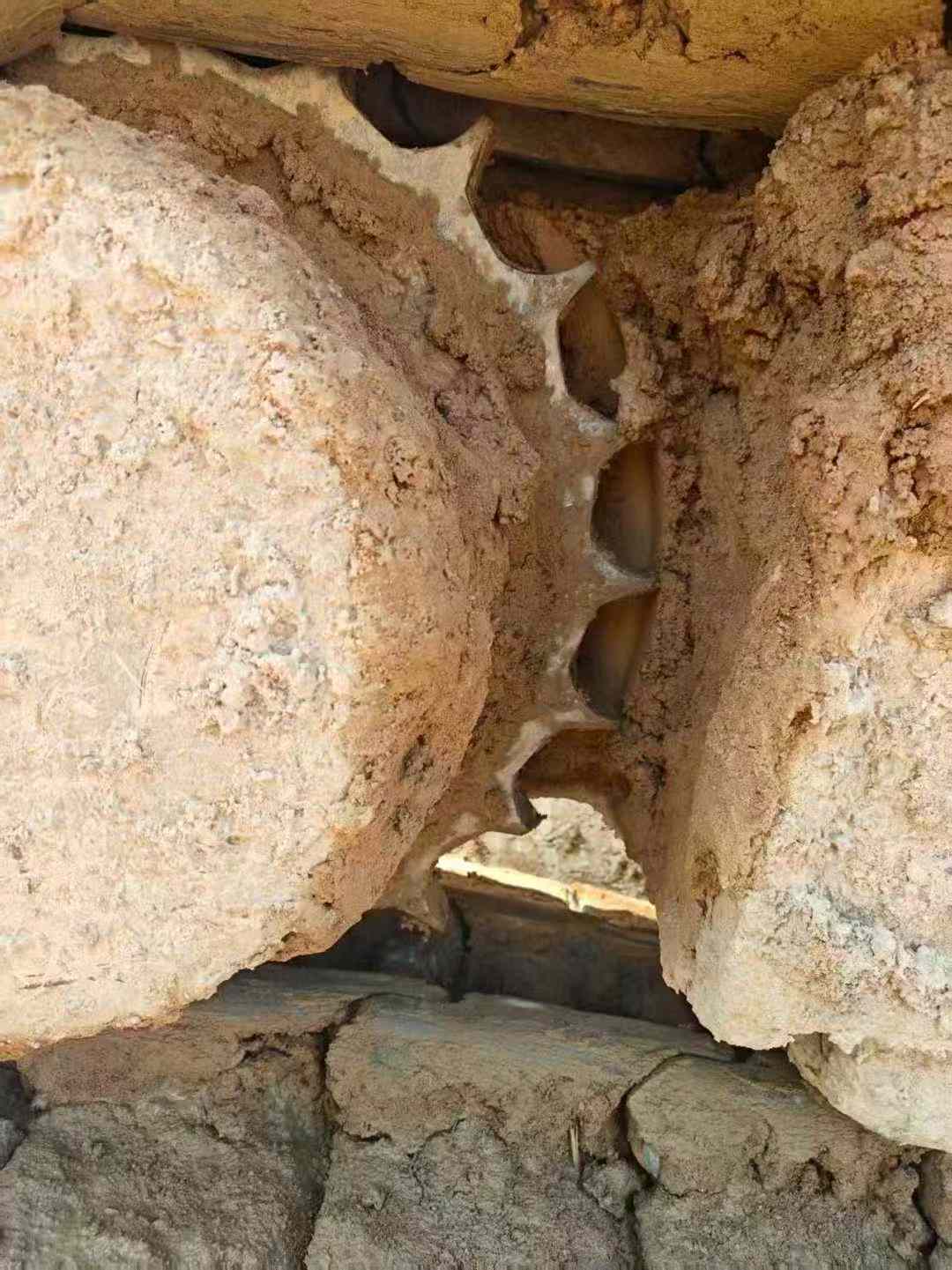

Used Sany SY245H Excavator 2019 Model / 8

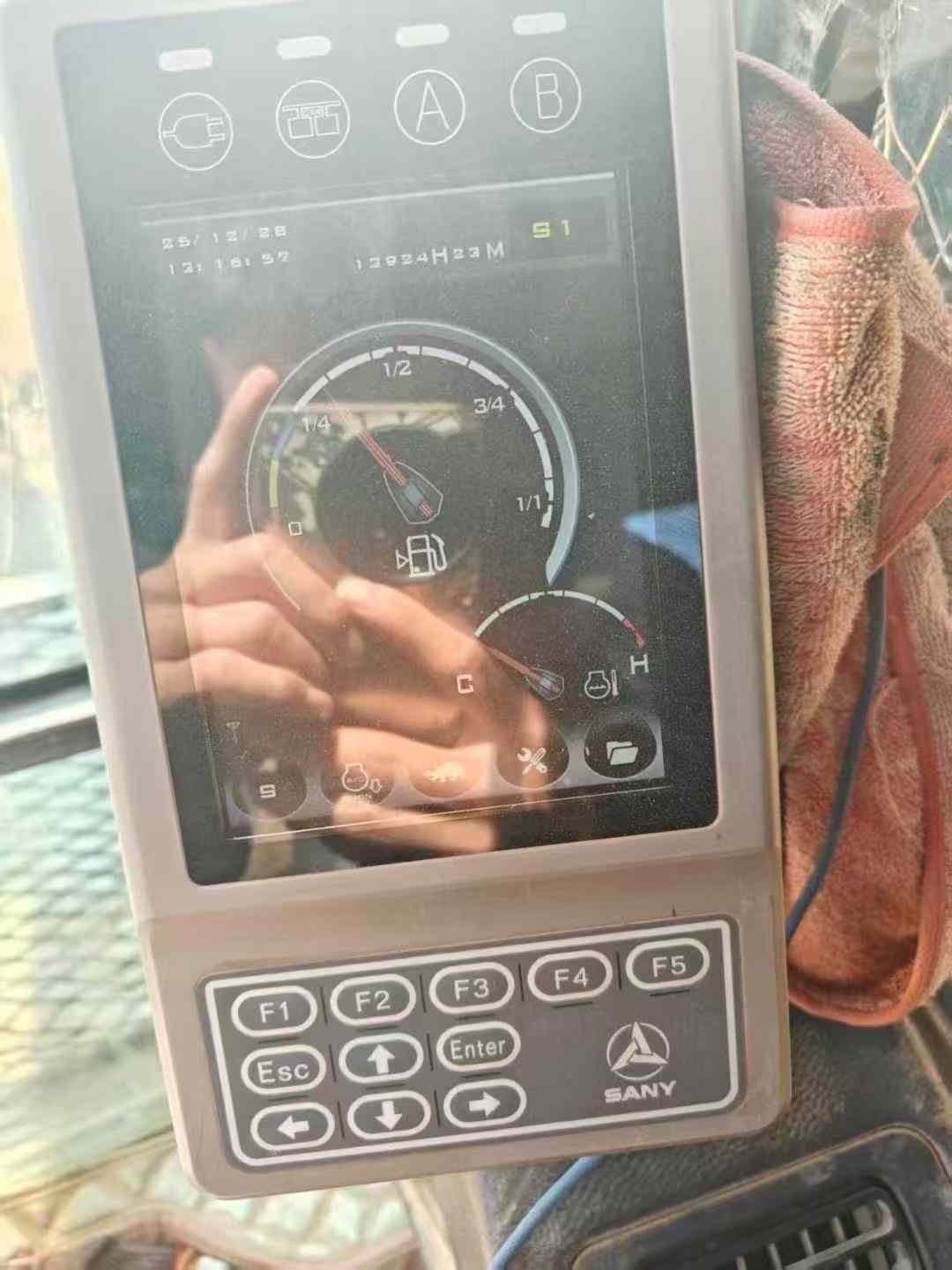

Used Sany SY245H Excavator 2019 Model / 9

Product Description

There is currently one Sany SY245H excavator from 2019, with a working time of only 198,000 hours. It is in excellent condition and has undergone strict testing to ensure stable and reliable performance. This device is equipped with a high-performance Sany dedicated engine, with an expected power of 170 kilowatts. It is powerful and has excellent fuel economy, making it suitable for various complex working conditions. In terms of the hydraulic system, this excavator is equipped with a high-efficiency hydraulic pump and motor combination, which can provide a smooth and powerful operating experience. It can handle tasks such as digging, loading and crushing with ease. Its advanced load sensing technology enables it to maintain optimal working efficiency under different load conditions, while reducing energy consumption and maintenance costs. In addition, the Sany SY245H also has the following significant advantages: It adopts a reinforced structural design, which enhances the durability of the entire machine. The cab is spacious and comfortable, with a wide field of vision. It is equipped with an air conditioning system, ensuring a good working environment even during long periods of operation. Maintenance and upkeep are convenient and

SpecificationsValue
No.975473
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.975473

Brand Name:

Sany

Model Number:

SY245H

Year:

2019

Location:

Zhejiang China
