Product Description

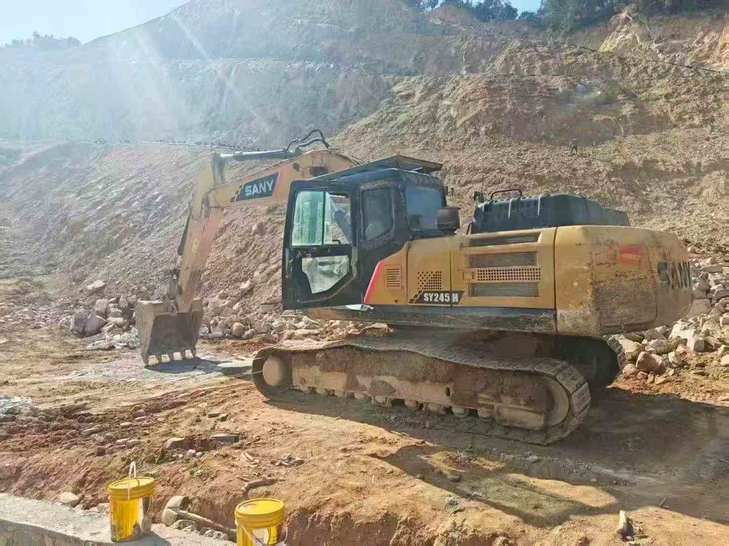

We are selling a second-hand Sany SY245H excavator produced in 2019. With a total working time of only over 190,000 hours, the machine is exempt from inspection and has stable and reliable performance. This device is equipped with an efficient and energy-saving engine (expected model ISUZU), which has strong power and can meet the operation requirements under various complex working conditions. In terms of the hydraulic system, an advanced combination of hydraulic pumps and hydraulic motors is adopted, ensuring smooth power transmission and response speed. Whether it is excavation, loading or crushing operations, it can handle them with ease. This excavator has the following significant advantages: - Low fuel consumption: By optimizing the fuel injection system and combustion efficiency, the operating cost is effectively reduced. - High durability: Key components are all made of high-quality materials and undergo strict testing to ensure reliability during long-term high-intensity operation. - Comfortable operating environment: The cab is designed in accordance with ergonomic principles and is equipped with an air conditioning system, providing operators with good working conditions even in bad weather. - Easy to maintain: The structu
| Specifications | Value |
|---|---|
| No. | 977547 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
