Product Description

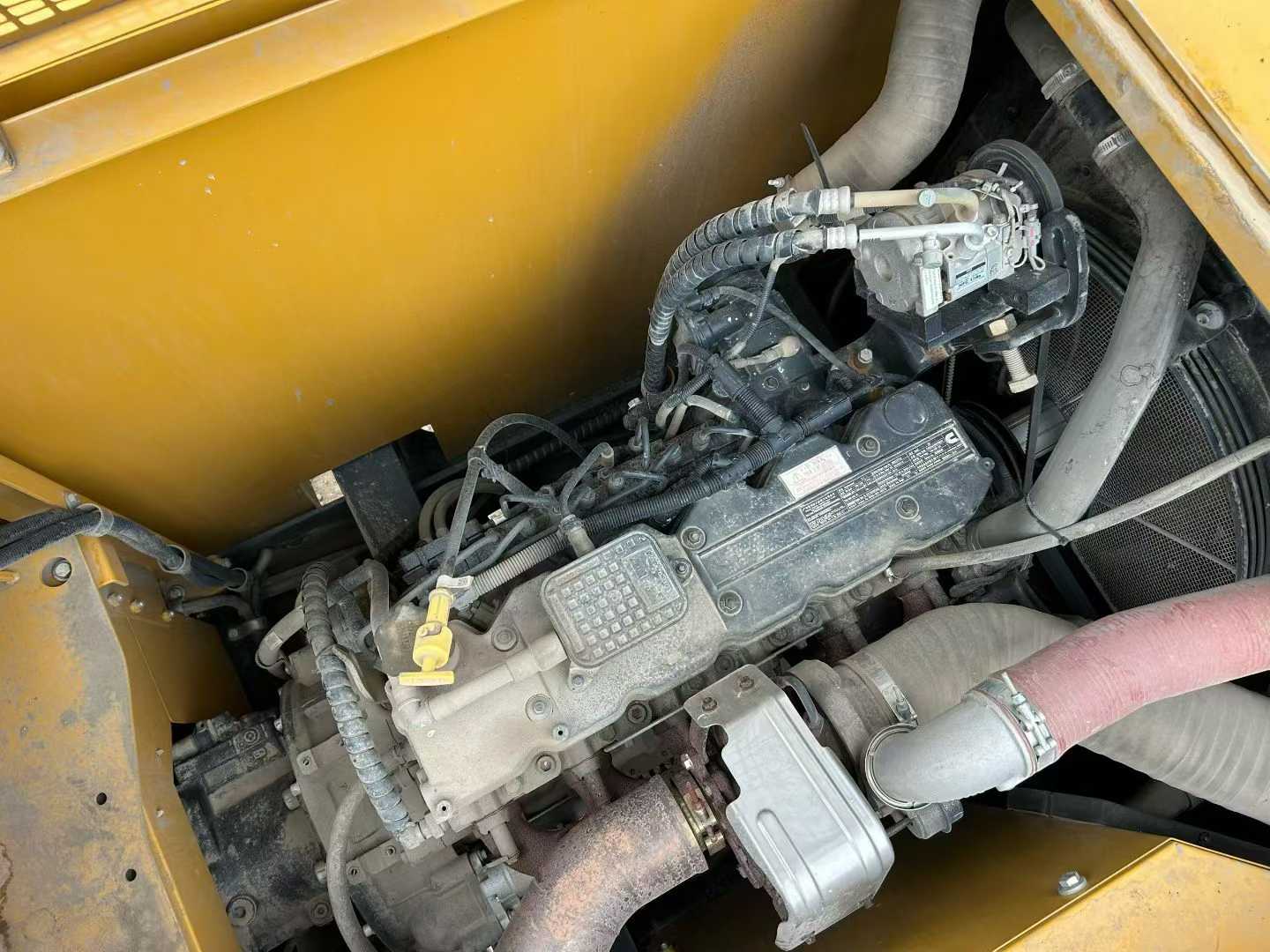

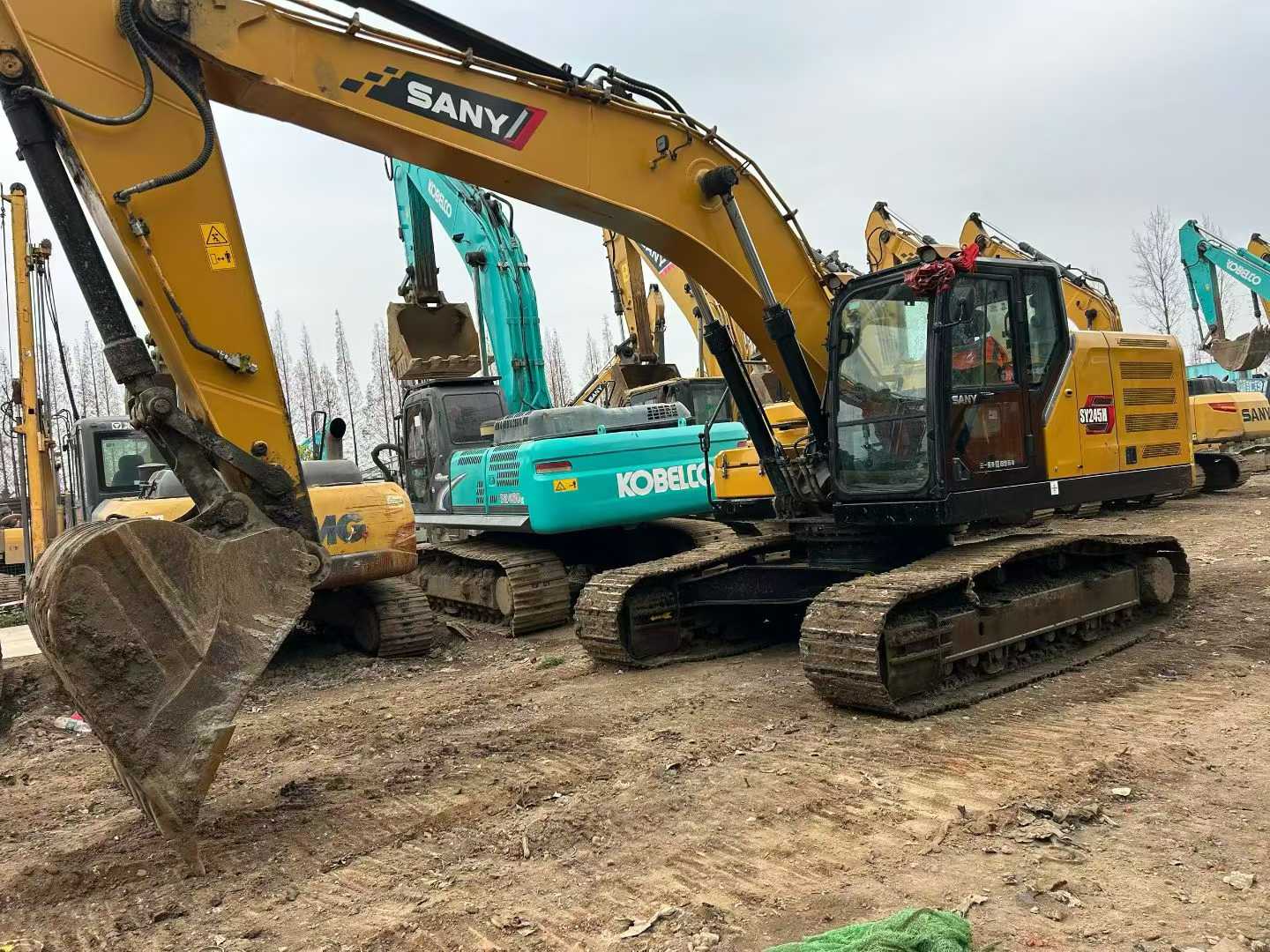

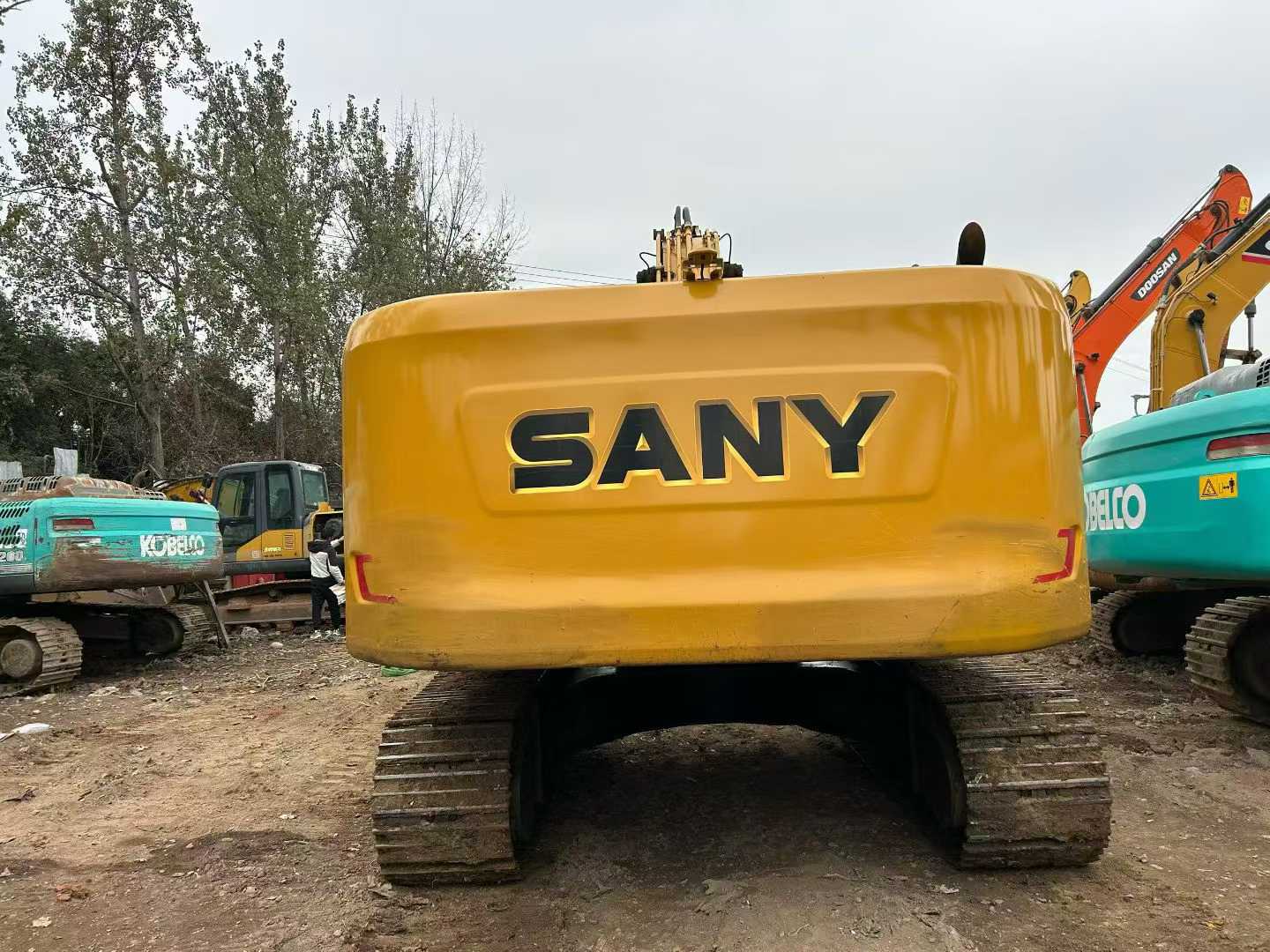

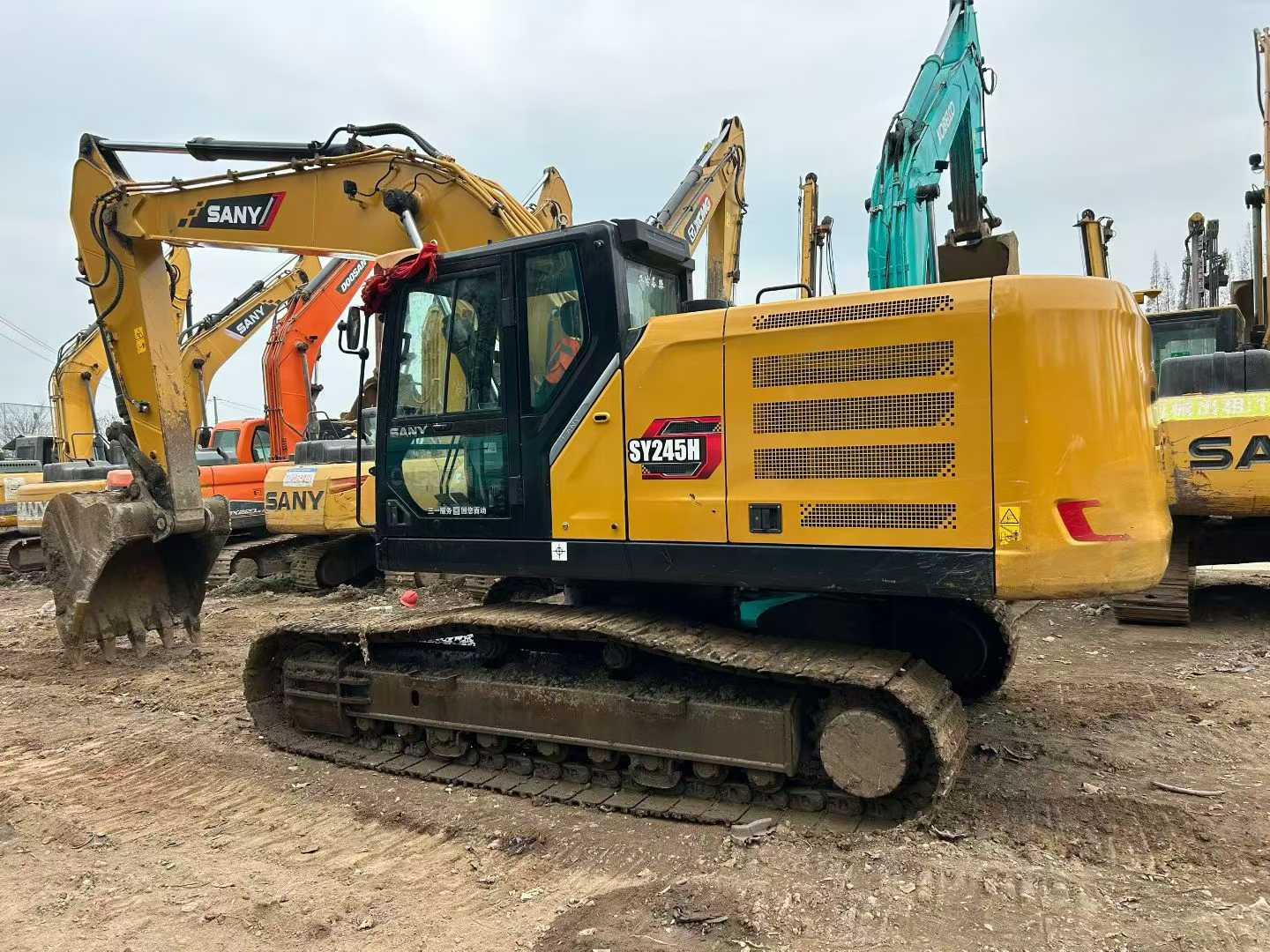

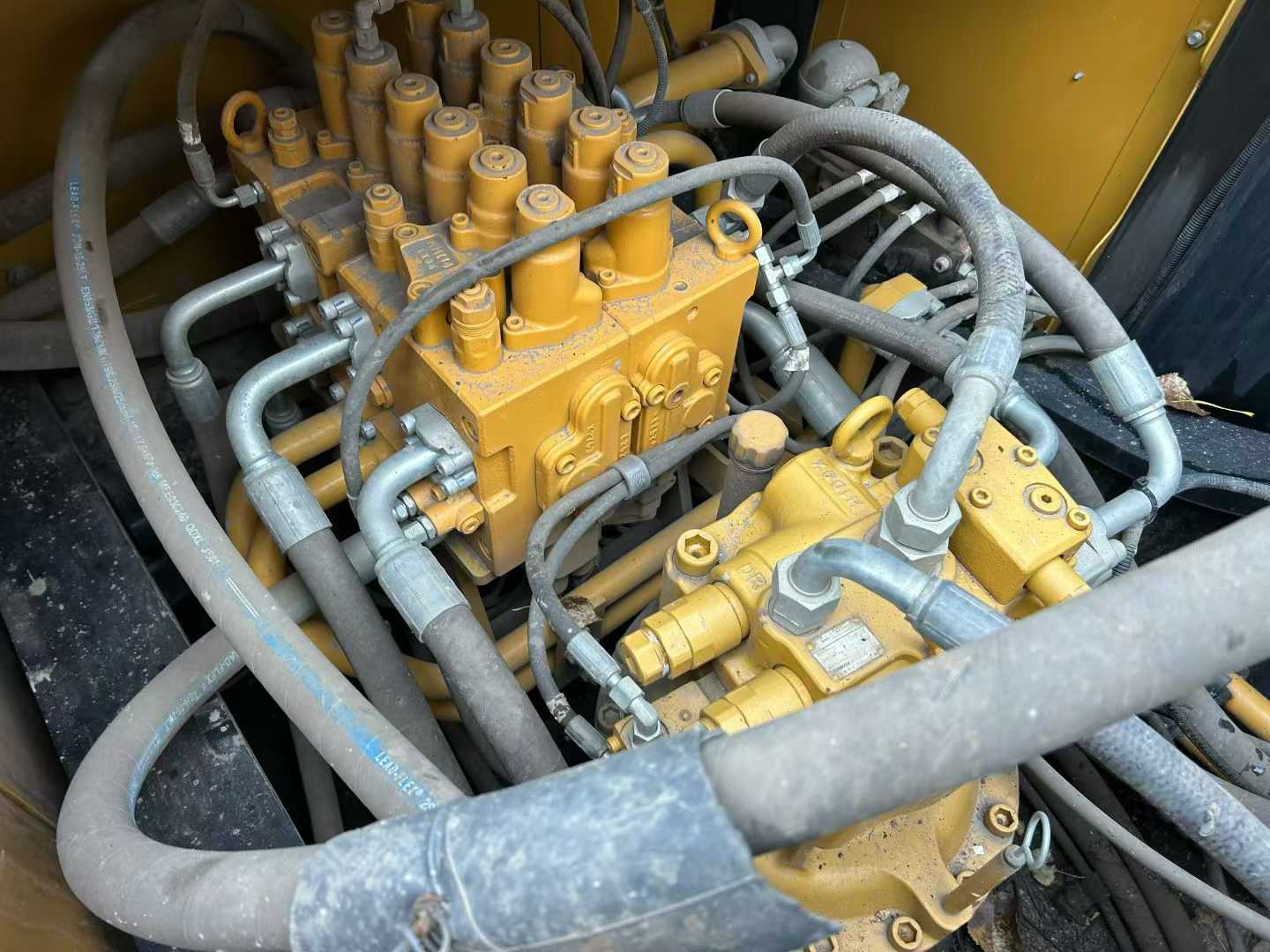

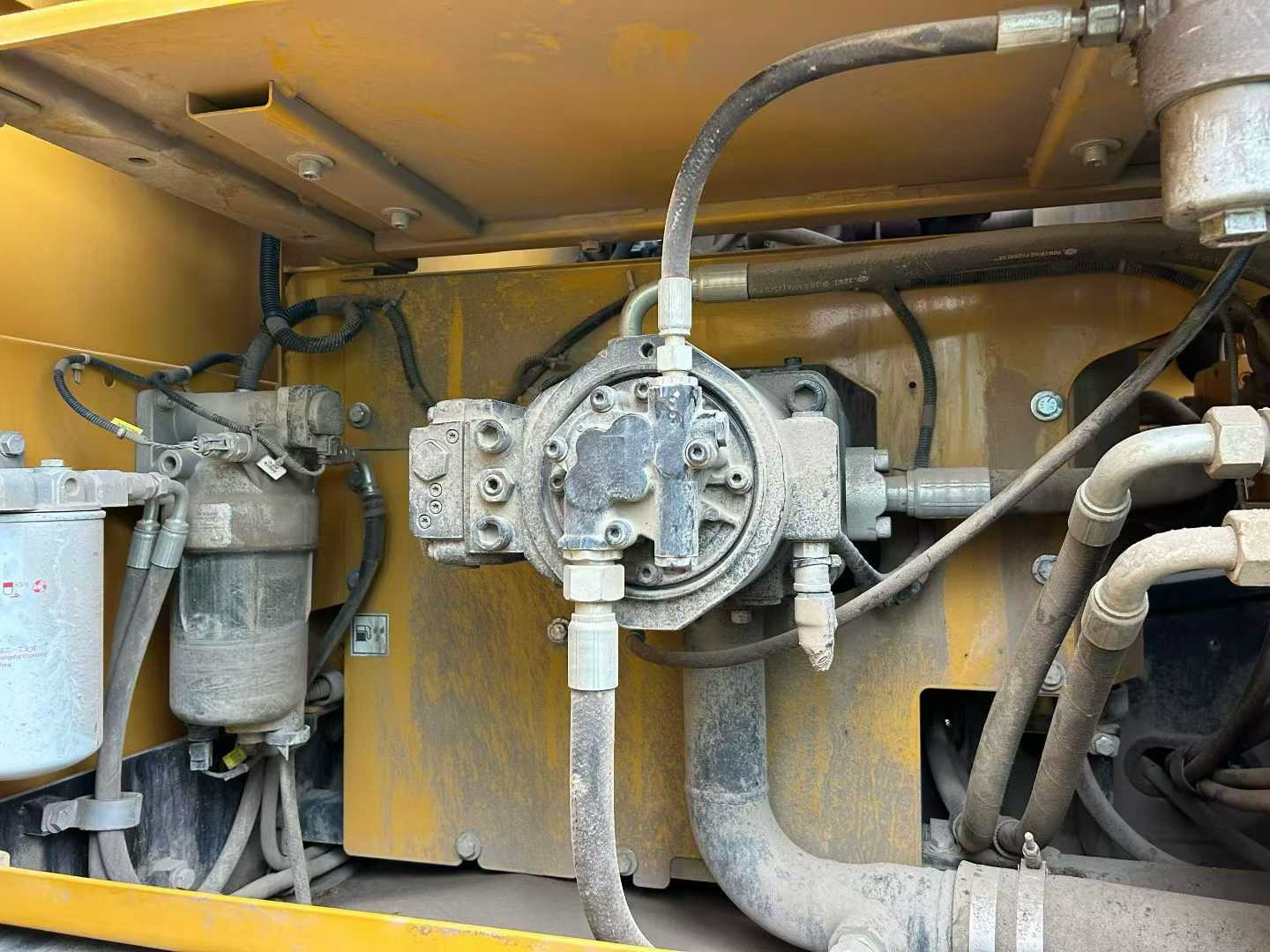

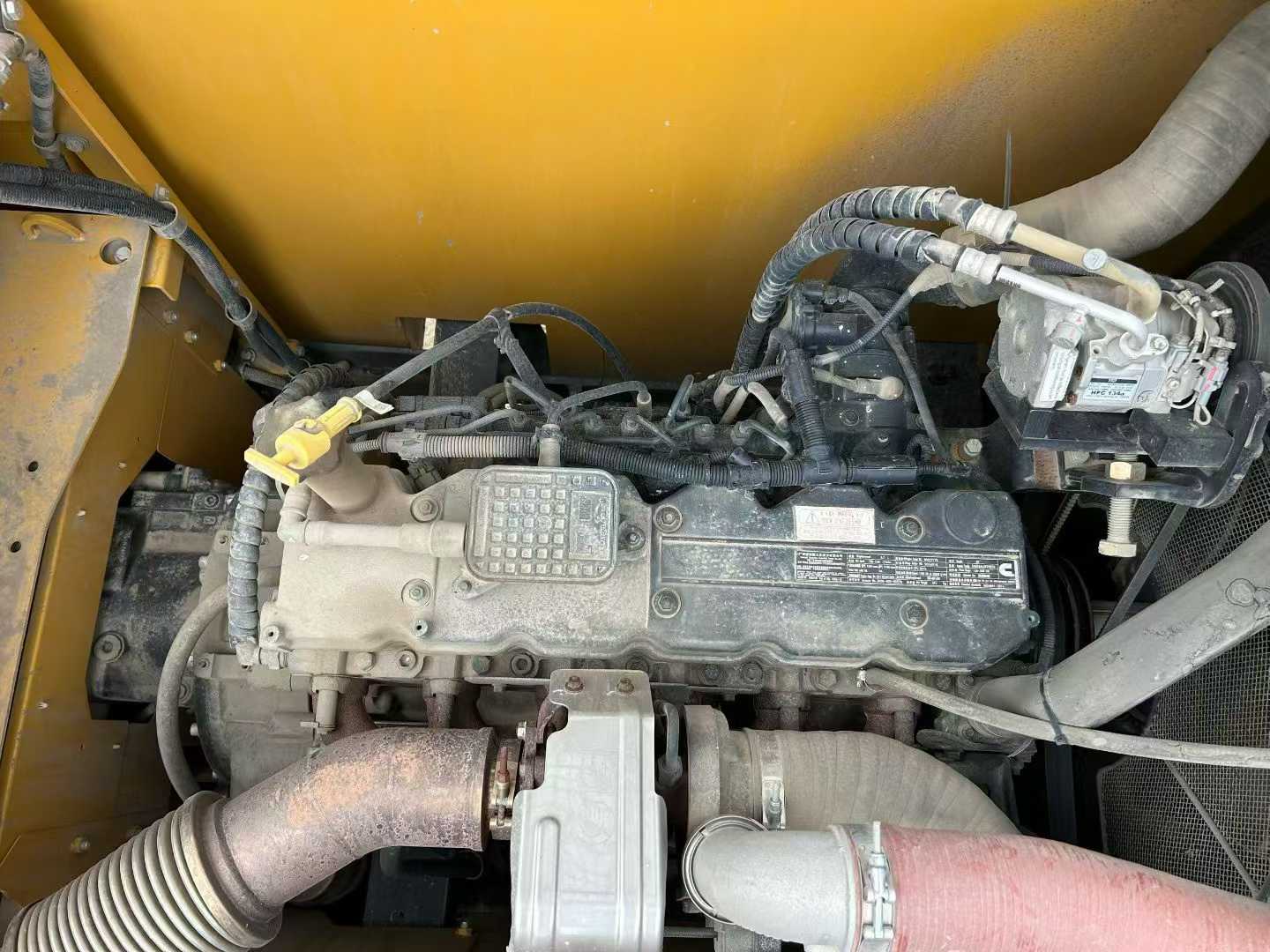

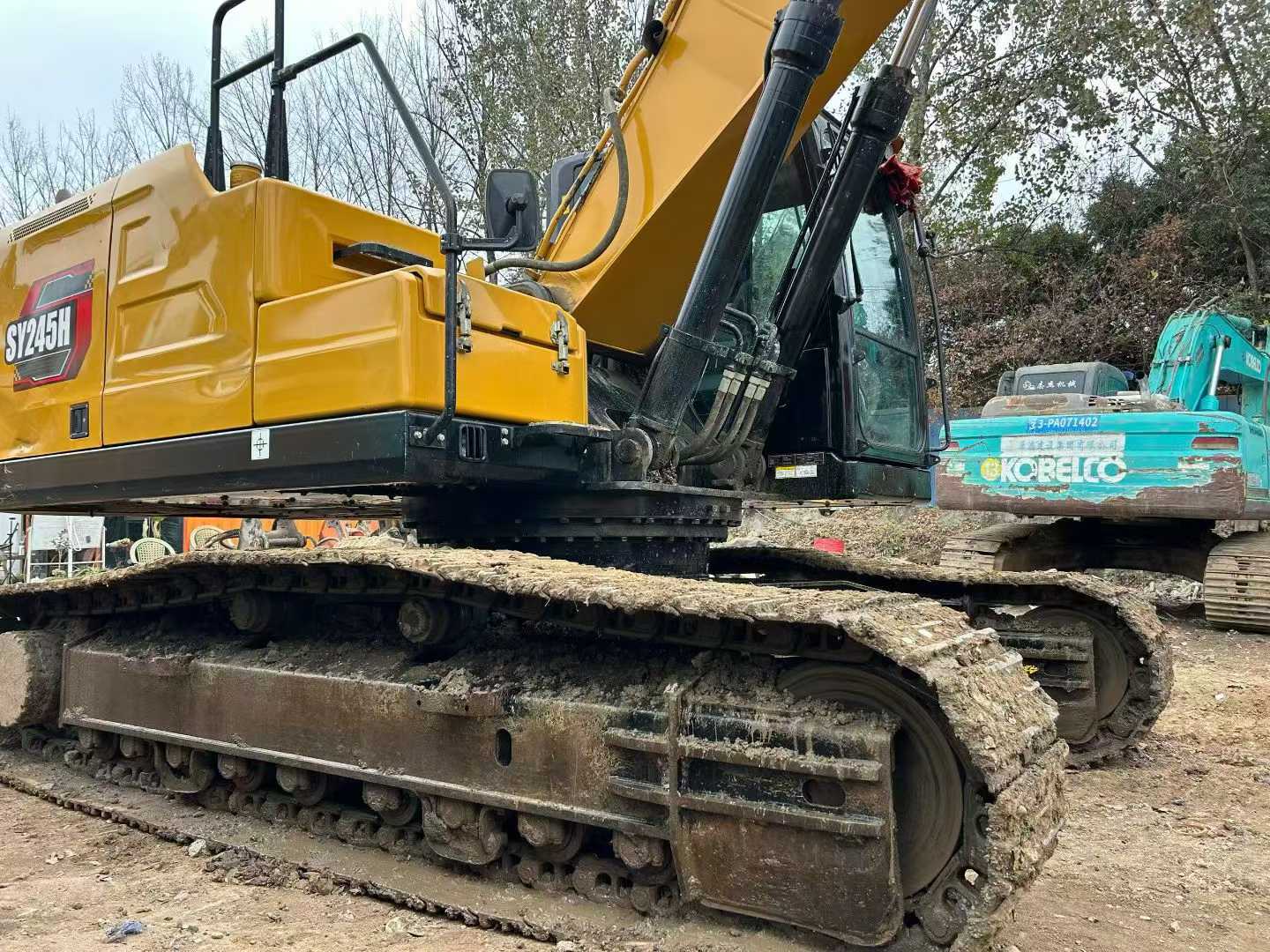

【 Premium Recommendation 】 Sany 245H excavator, ready for factory release in 2024, no inspection required for vehicle condition, immediate dispatch from stock This Sany 245H excavator was manufactured in 2024 and has an extremely short working time, with only a few hundred hours of usage, almost equivalent to brand new equipment. It is equipped with a high-performance engine (possibly model C7.1), with strong power reaching 168 kilowatts, ensuring efficient and stable working performance. In terms of the hydraulic system, this model adopts an advanced combination of hydraulic pumps and hydraulic motors, providing outstanding operational response speed and smoothness. Whether it is excavation, loading or crushing operations, it can handle them with ease. The Sany 245H excavator is designed with full consideration of the operator's comfort and safety. The cab is spacious and bright, offering a wide field of vision. Meanwhile, it is also equipped with an intelligent control system that can automatically adjust operation parameters to adapt to different working conditions, greatly improving work efficiency and reducing fuel consumption. In addition, the sturdy and durable structural components as well as the high-quality after-sales serv
| Specifications | Value |
|---|---|
| No. | 978435 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |

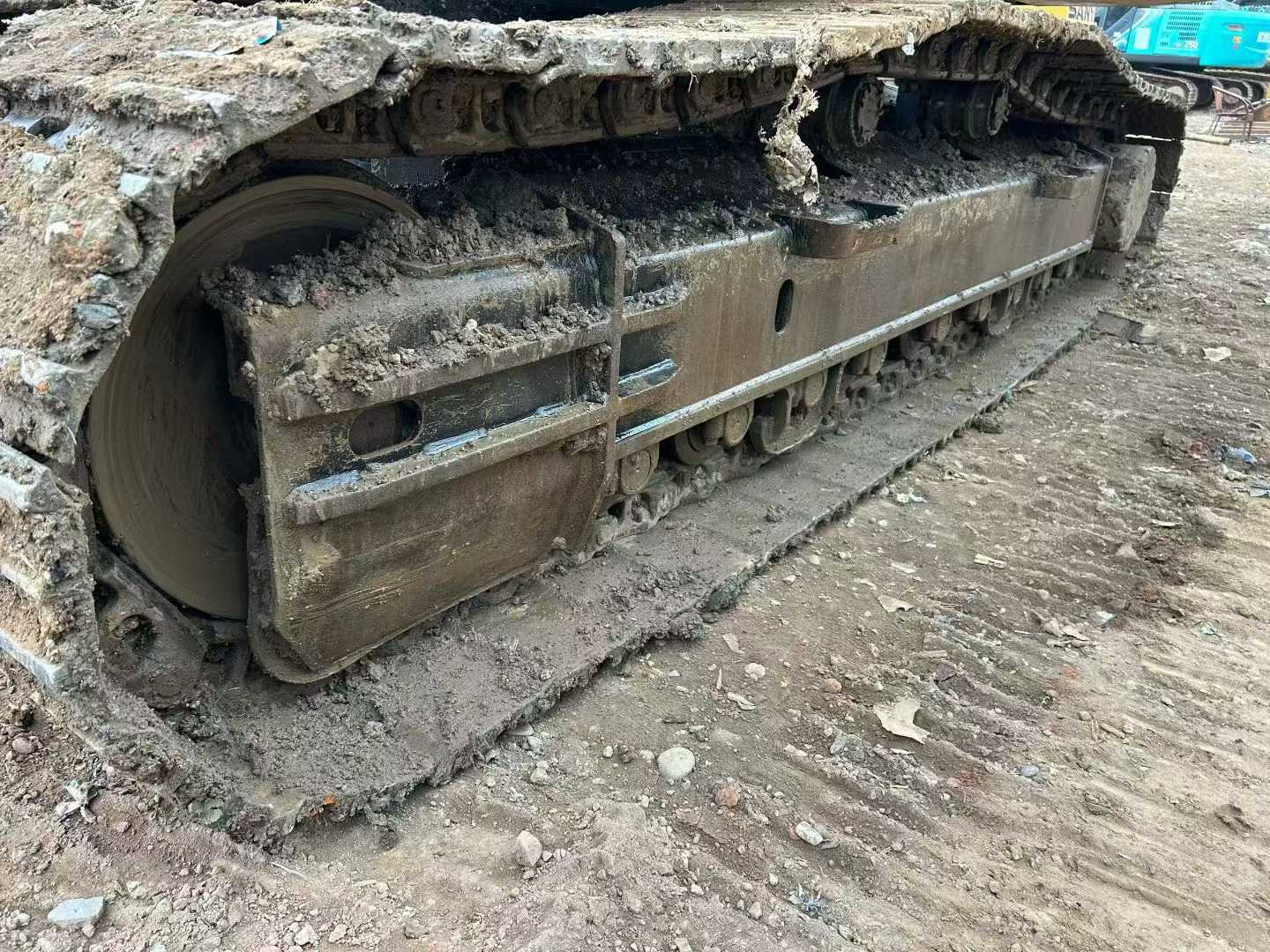

| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
