Product Description

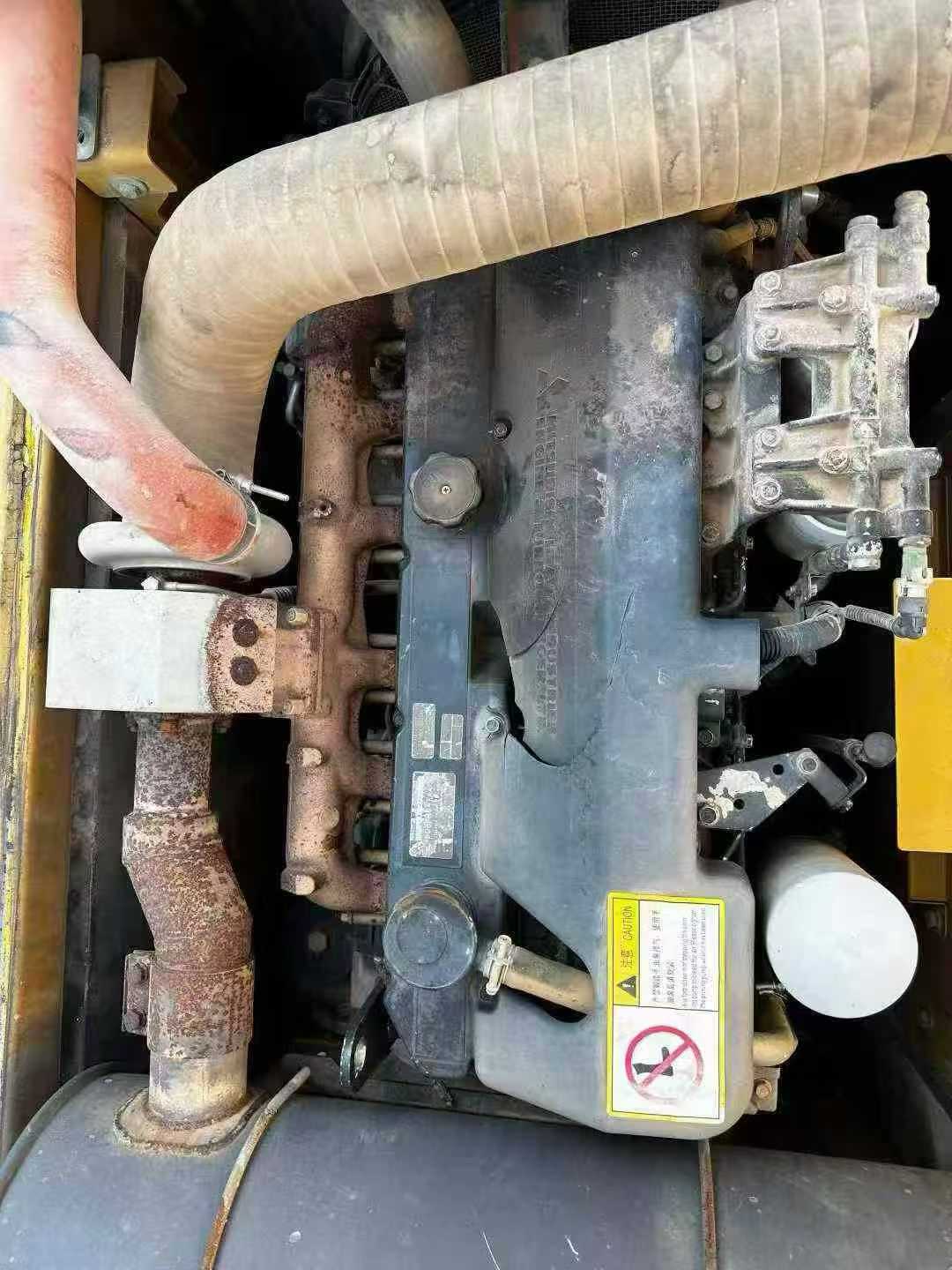

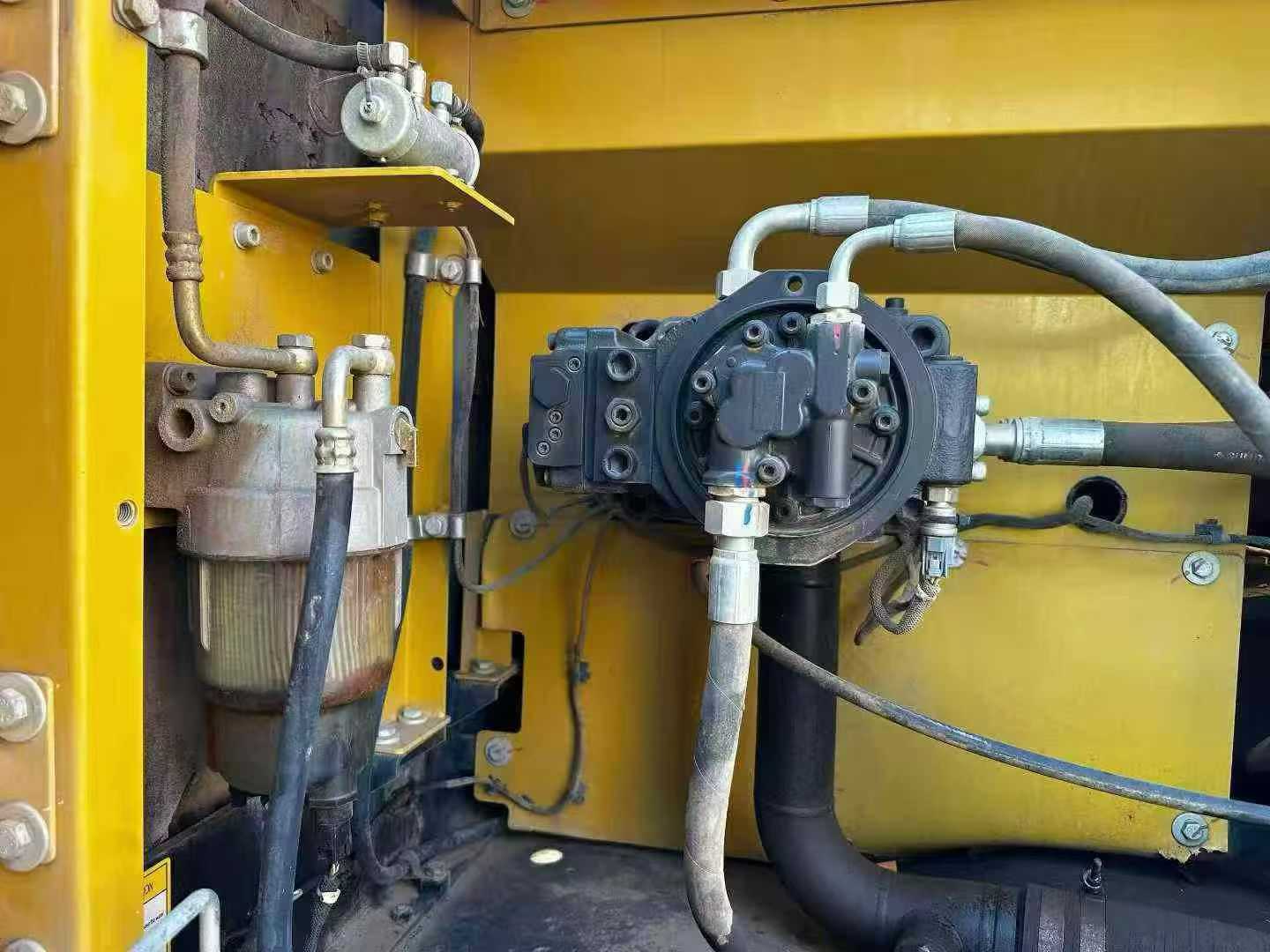

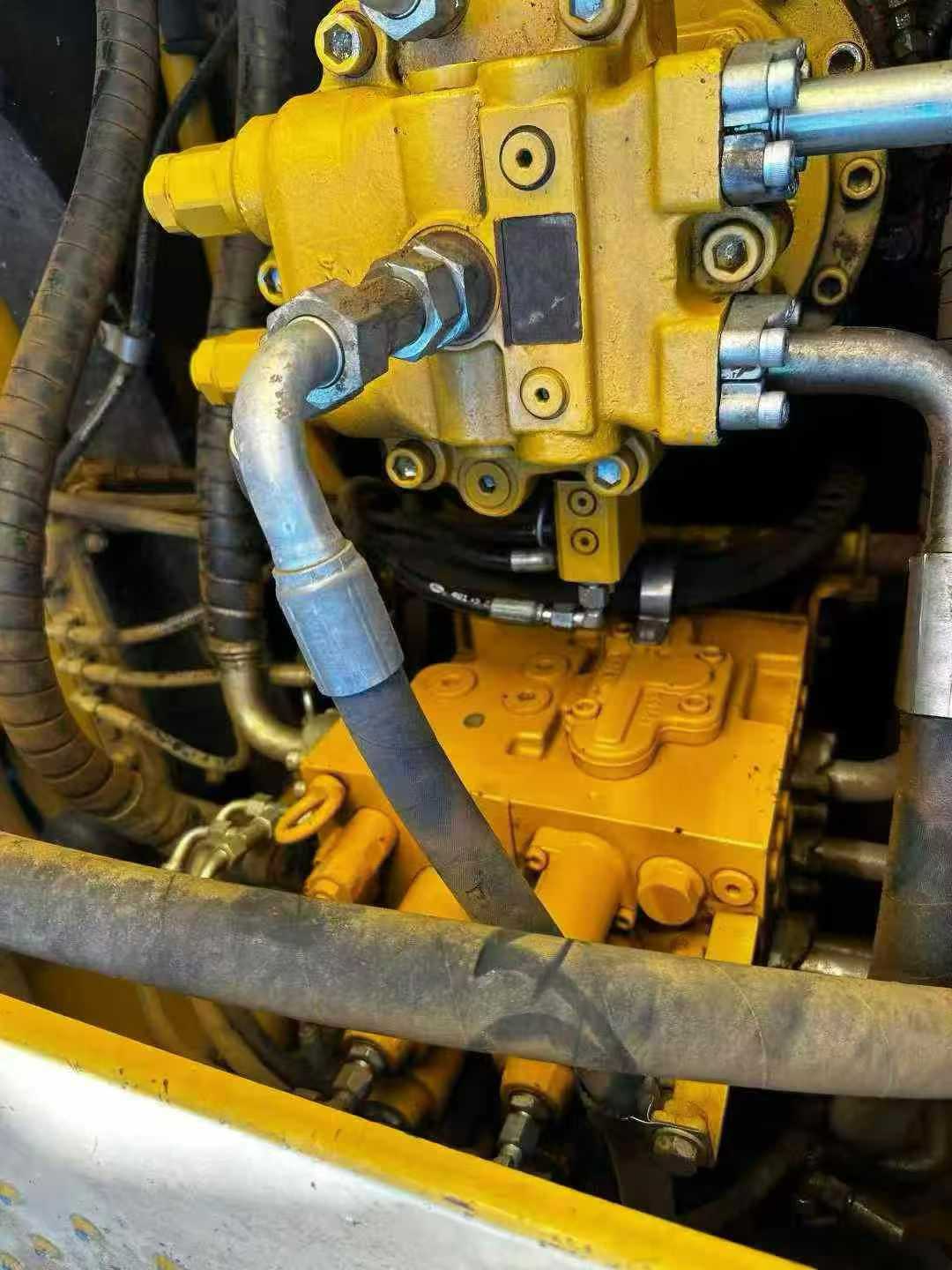

There is currently a Sany SY265 excavator purchased in 2019, with a working time of approximately 3,000 hours. It is known as the "Little Prince of Earthwork" and is particularly suitable for various earthwork operations. This device is equipped with an efficient and reliable engine, possibly the ISUZU 6BG1TRP-01K, with a power output of 140 kilowatts, ensuring strong and stable power output under various working conditions. In terms of the hydraulic system, this SY205 is equipped with advanced negative flow control technology. By combining a high-performance variable piston pump with a low-noise designed hydraulic motor, it not only enhances work efficiency but also effectively reduces energy consumption. Its unique hydraulic circuit design makes the operation smoother and the response speed faster, enabling it to handle operations such as excavation, loading and crushing with ease. In addition, this excavator has the following significant advantages: - High efficiency and energy saving: Equipped with an intelligent control system, it can automatically adjust the engine speed according to the actual load to achieve the best fuel economy. - Easy maintenance: Compact and reasonable structure, daily inspection and maintenance points ar
| Specifications | Value |
|---|---|
| No. | 974209 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 52.5 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.8/3.7 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 3105 |
| Total track length (mm) | 4635 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
