Sany SY305H

2019 Sany SY305H

1/9
Used Sany SY305H Excavator 2019 Model / 1
Used Sany SY305H Excavator 2019 Model / 2
Used Sany SY305H Excavator 2019 Model / 3
Used Sany SY305H Excavator 2019 Model / 4

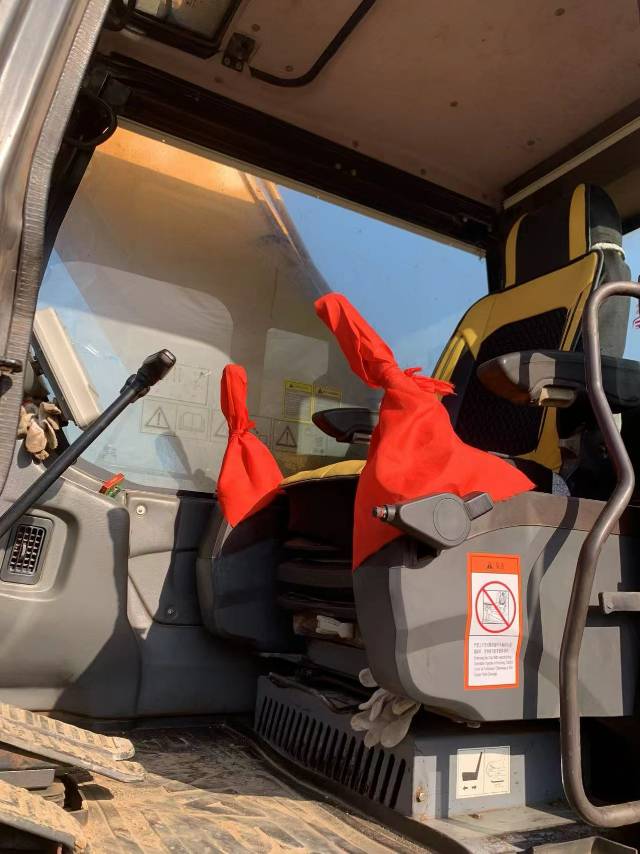

Used Sany SY305H Excavator 2019 Model / 5

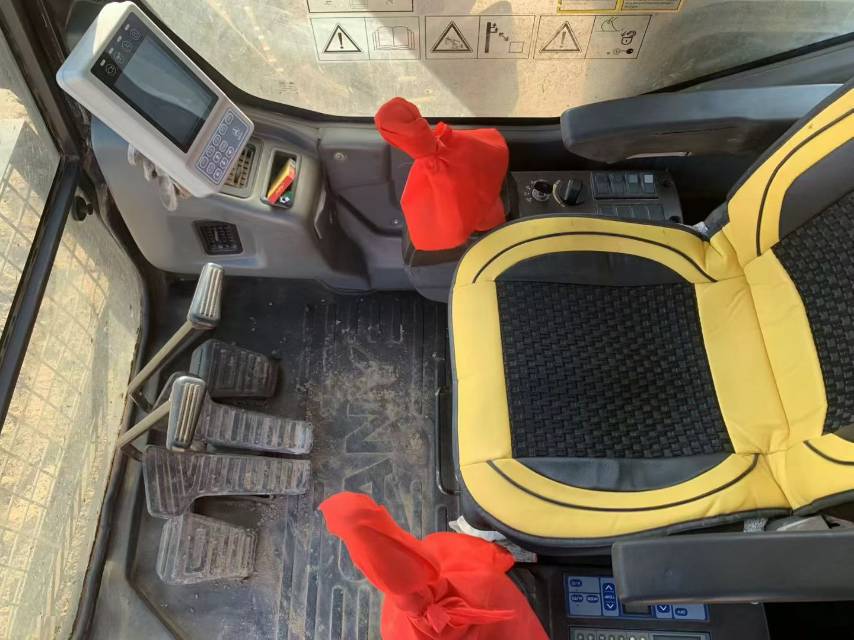

Used Sany SY305H Excavator 2019 Model / 6

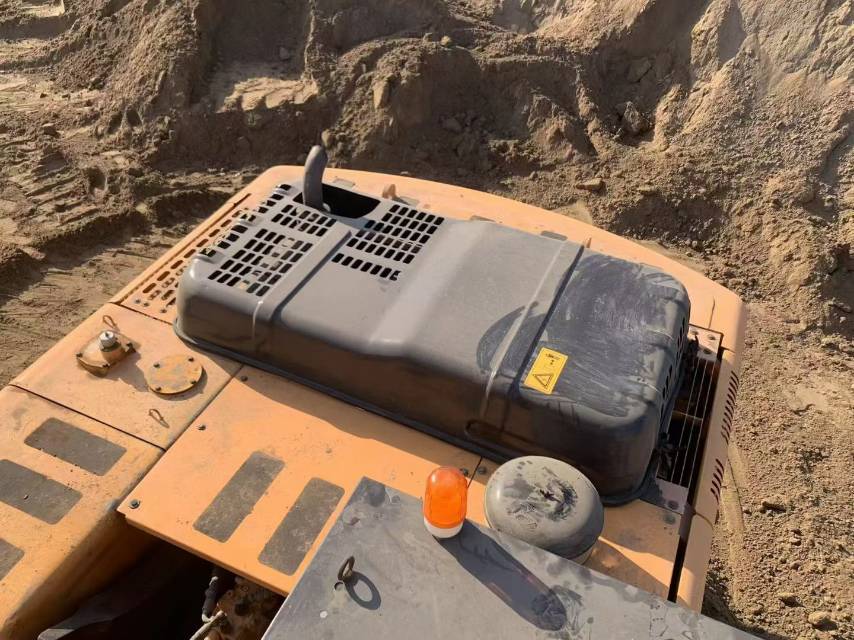

Used Sany SY305H Excavator 2019 Model / 7

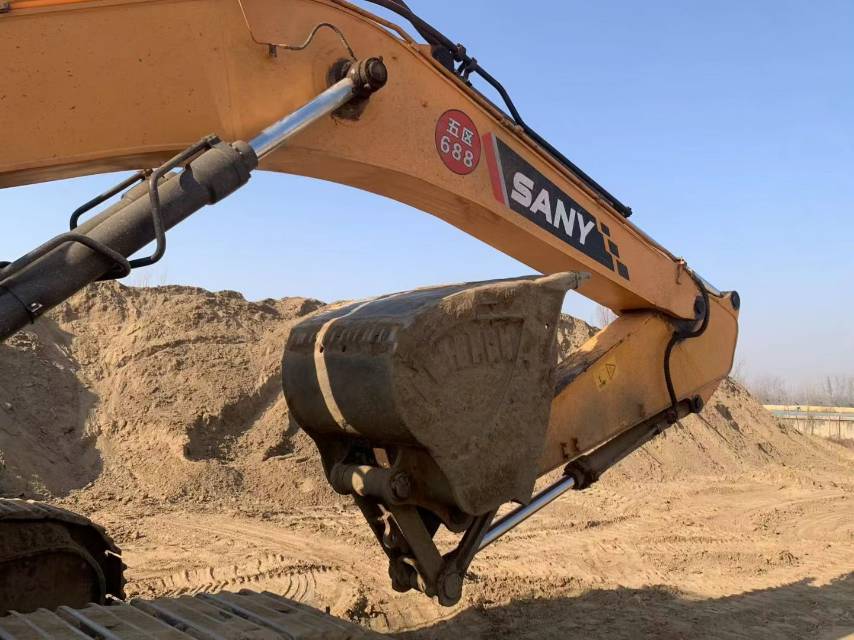

Used Sany SY305H Excavator 2019 Model / 8

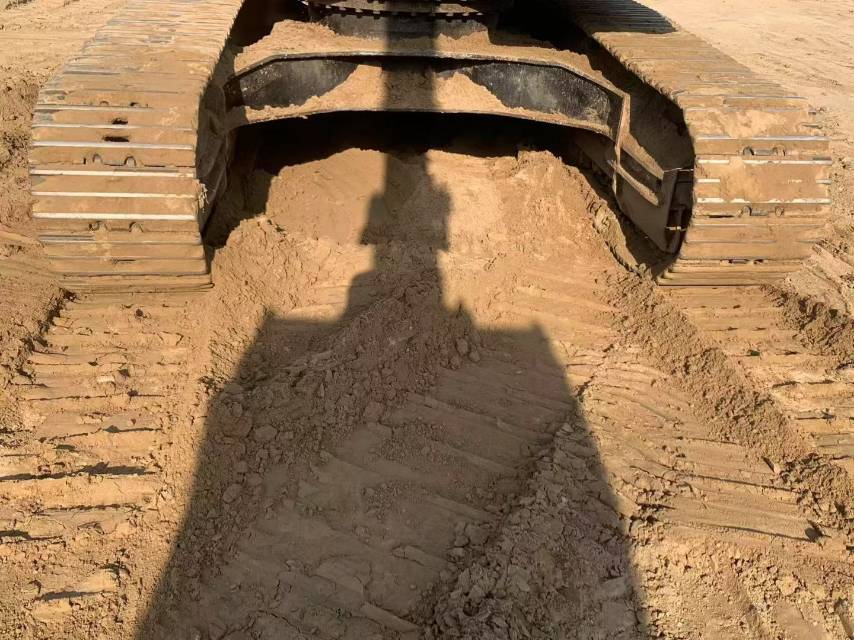

Used Sany SY305H Excavator 2019 Model / 9
Product Description
SpecificationsValue
No.963974
Tonnage (tons)30
Working weight (kg)31500
Bucket capacity (m³)1.65~2.0(1.65)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu GH-6HK1
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Ground specific pressure (Kpa)62.3
Rotation speed (rpm)9.0
Climbing ability (%)70% (35°)
Bucket digging force (kN)204
Rod digging force (kN)153
Travel speed (km/h)5.4/3.2
Fuel Tank (L)540
Hydraulic Tank (L)380
Engine Oil changes (L)2*4.0
Coolant (L)35
Total transport length (mm)10667
Total transport width (mm)3190
Total transport height (mm)3470
Full cab height (mm)3280
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4000
Back end turning radius (mm)3315
Onboard width (mm)3175
Total track length (mm)4840
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3916
Maximum height at minimum turning radius (mm)8405
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10870
Maximum digging depth (mm)6815
Maximum excavation height (mm)10497
Maximum unloading height (mm)7359
Maximum vertical digging depth (mm)6170
see more

Description

【 Premium Recommendation 】 The new eight-wheel pure Sany 305H-9 excavator is now in nearly new condition, with outstanding overall performance, making it an ideal choice for your engineering operations. Since its manufacture, this excavator has been in operation for only 1,200 hours, which is far shorter than the average usage time of the same model, ensuring the high efficiency and durability of the equipment. In terms of the power system, this machine is equipped with an original imported engine from Sany, which features strong power output and smooth operation characteristics. Even in complex and harsh working environments, it can maintain stable and efficient performance. In addition, this engine also features excellent fuel economy, effectively reducing operating costs. The hydraulic system adopts advanced load sensing technology, which can automatically adjust the oil pressure and flow rate according to the actual working conditions. This not only improves the operational accuracy and flexibility but also significantly extends the service life of the hydraulic components. Whether it is tasks such as excavation, loading or land leveling, they can all be handled with ease, demonstrating outstanding work efficiency. It is worth m

Overview

No.963974

Brand Name:

Sany

Model Number:

SY305H

Year:

2019

Location:

Hebei China

Are you interested in this machine?

Please contact us

Why should you cooperate with us?

With over 7 years of experience in the construction machinery industry, you can say that we are professional practitioners in the machinery industry. Why cooperate with Global Used Excavator? Because we are only focused on the machinery industry. We have a large amount of first-hand equipment information. We contact direct sellers and there are no middlemen.

How do we work?

Tell us the brand, model, year, and operating hours of the equipment you need. Then we will start looking for the suitable equipment for you globally. It's as simple as that. Once we find the equipment that suits you, we will contact you and we can discuss any further steps.

Advantages when cooperating with us!

You can continue with your work without having to spend time and money traveling around and/or asking dealers and traders for quotes on your own. You don't need to visit multiple web portals to compare, evaluate, and find the mechanical equipment you need. We will do all of this for you! And jointly decide on any further steps.

Providing quality service for our customers!

We can offer a wide range of "additional" quality services. We can help you arrange equipment inspections, repairs, overhauls, painting, hydraulic pump and arm operations, and more.

Here are the ways you can purchase from Global Used Excavator!

Option 1: You can find a machine on our website and tell us which machine it is. We will contact the owner of the machine to obtain more information, pictures, and prices. We will send you a quotation and jointly decide on any further steps.
Option 2: We conduct a search for you. You tell us the brand, model, year, and maximum hours of the machine you need, and we will start serving you. We will send you a quotation and jointly decide on any further steps.
