2016 Sany SY485H

1/9
Used Sany SY485H Excavator 2016 Model / 1

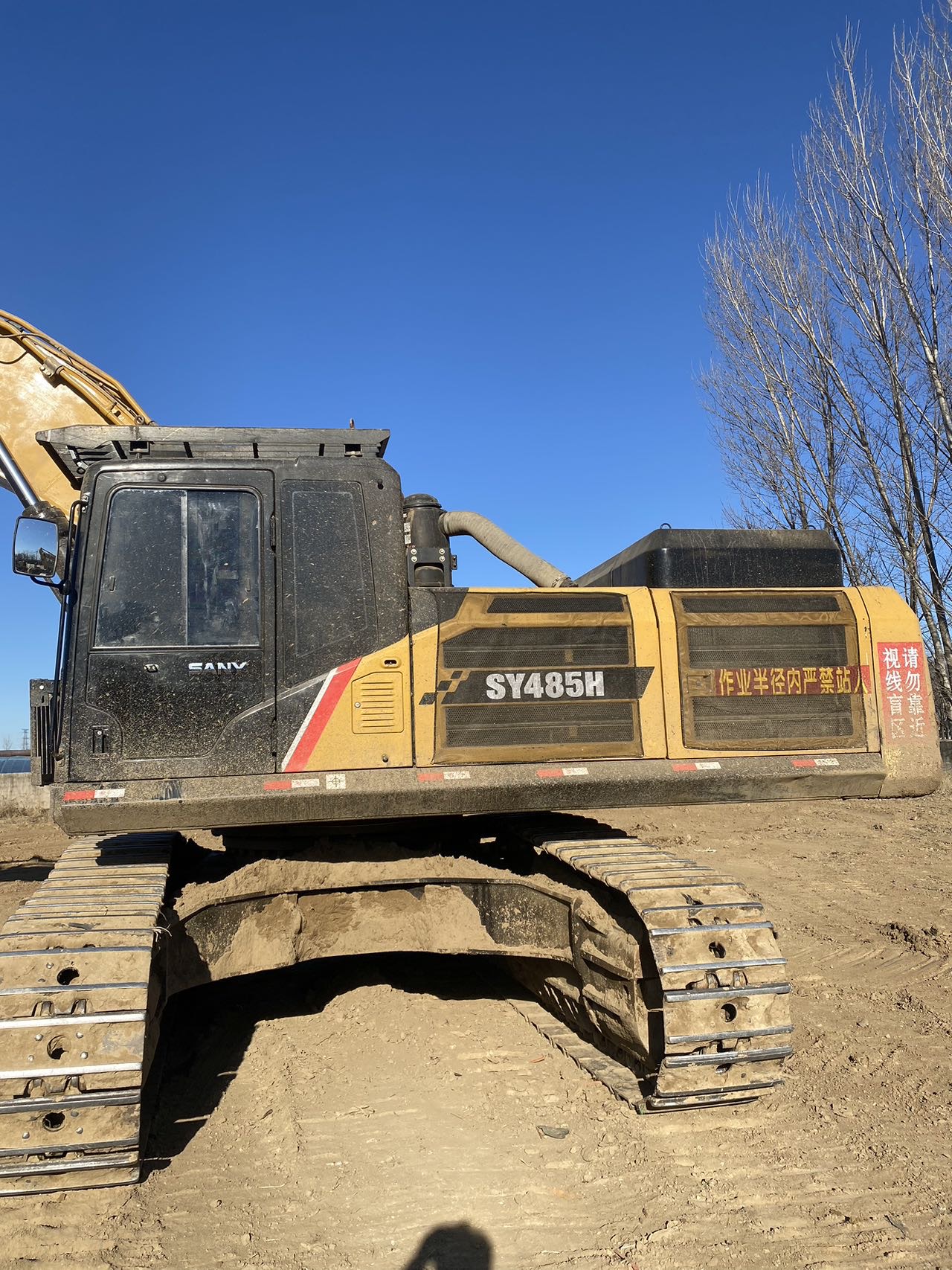

Used Sany SY485H Excavator 2016 Model / 2

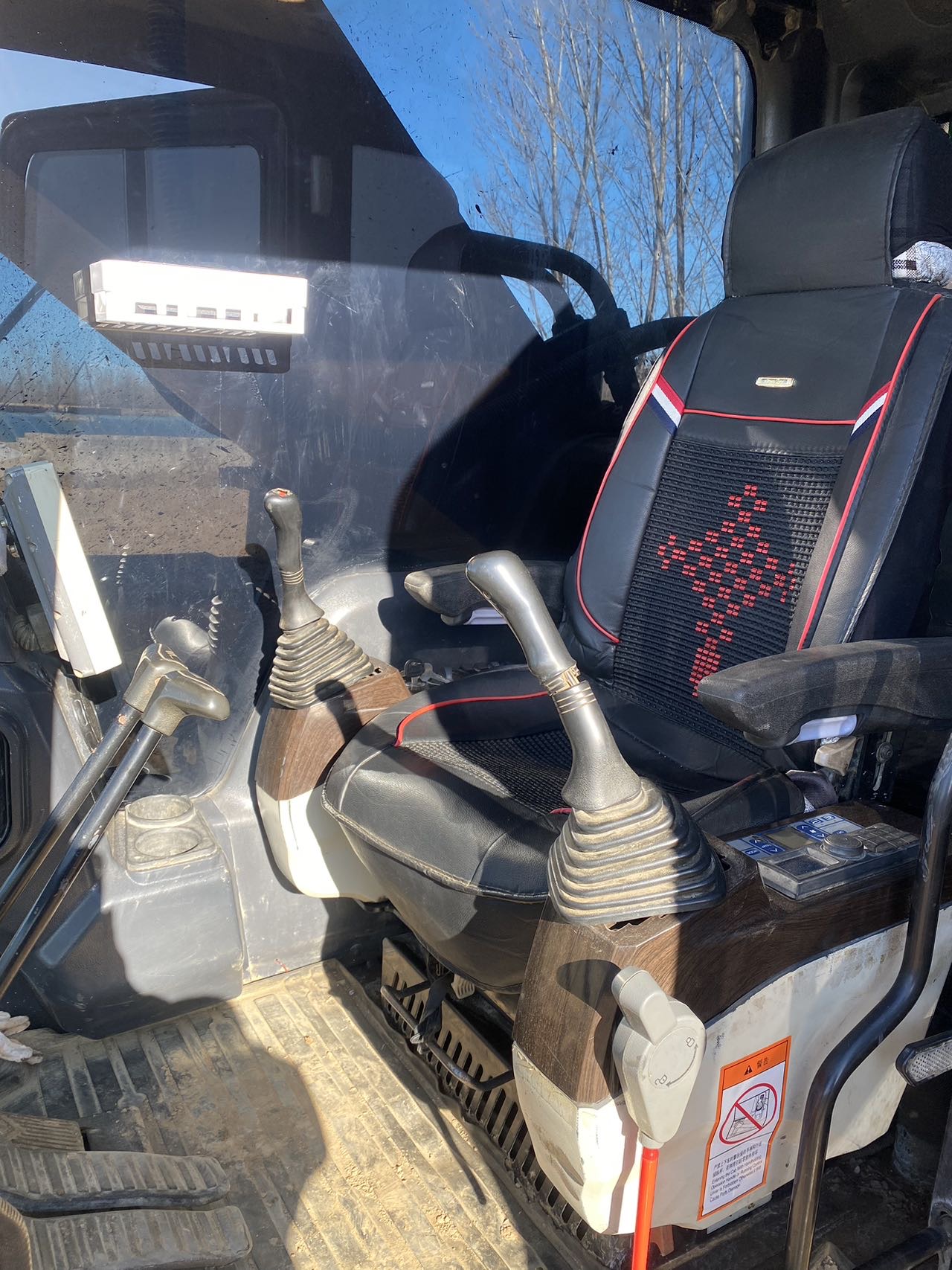

Used Sany SY485H Excavator 2016 Model / 3

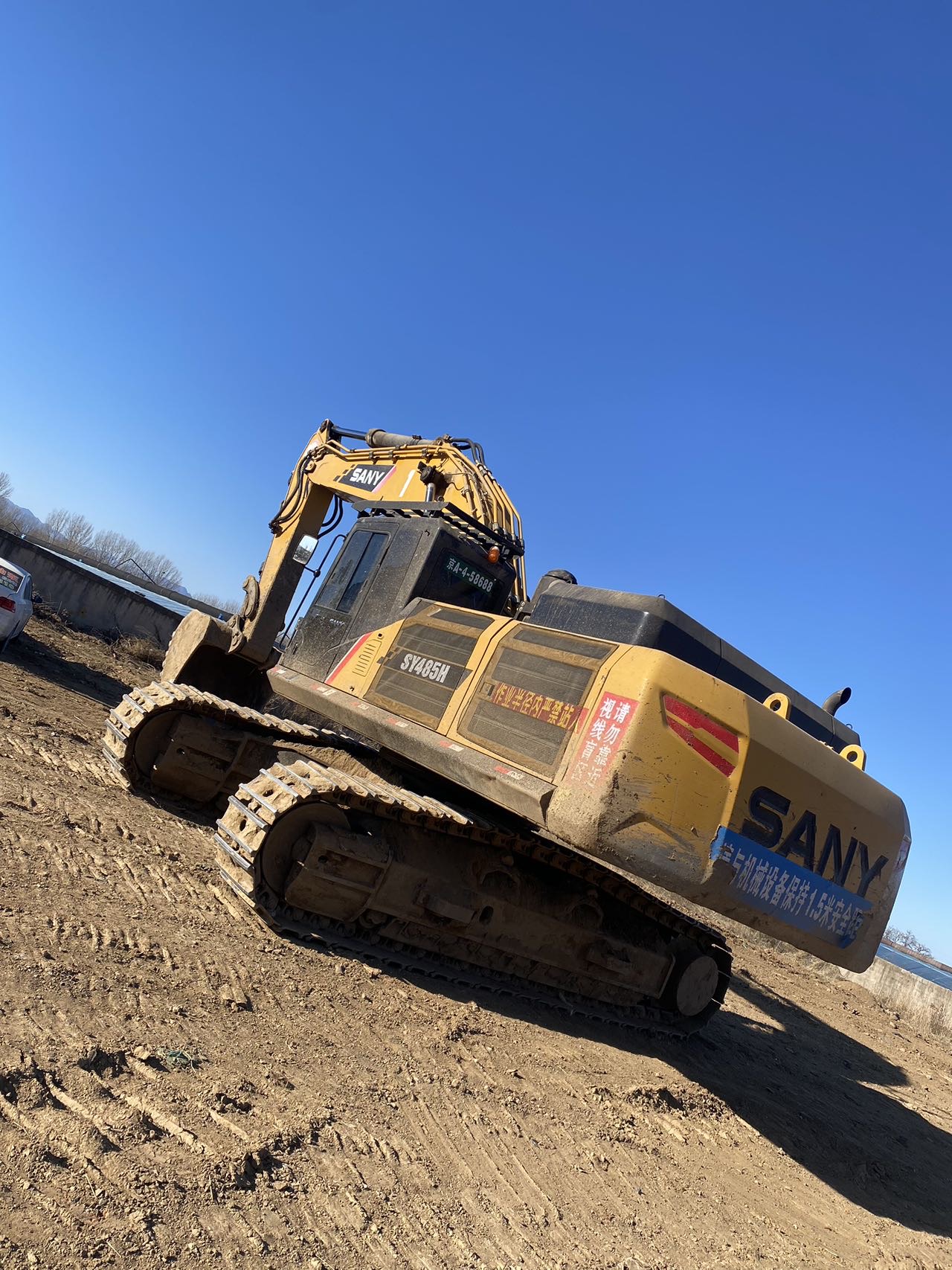

Used Sany SY485H Excavator 2016 Model / 4

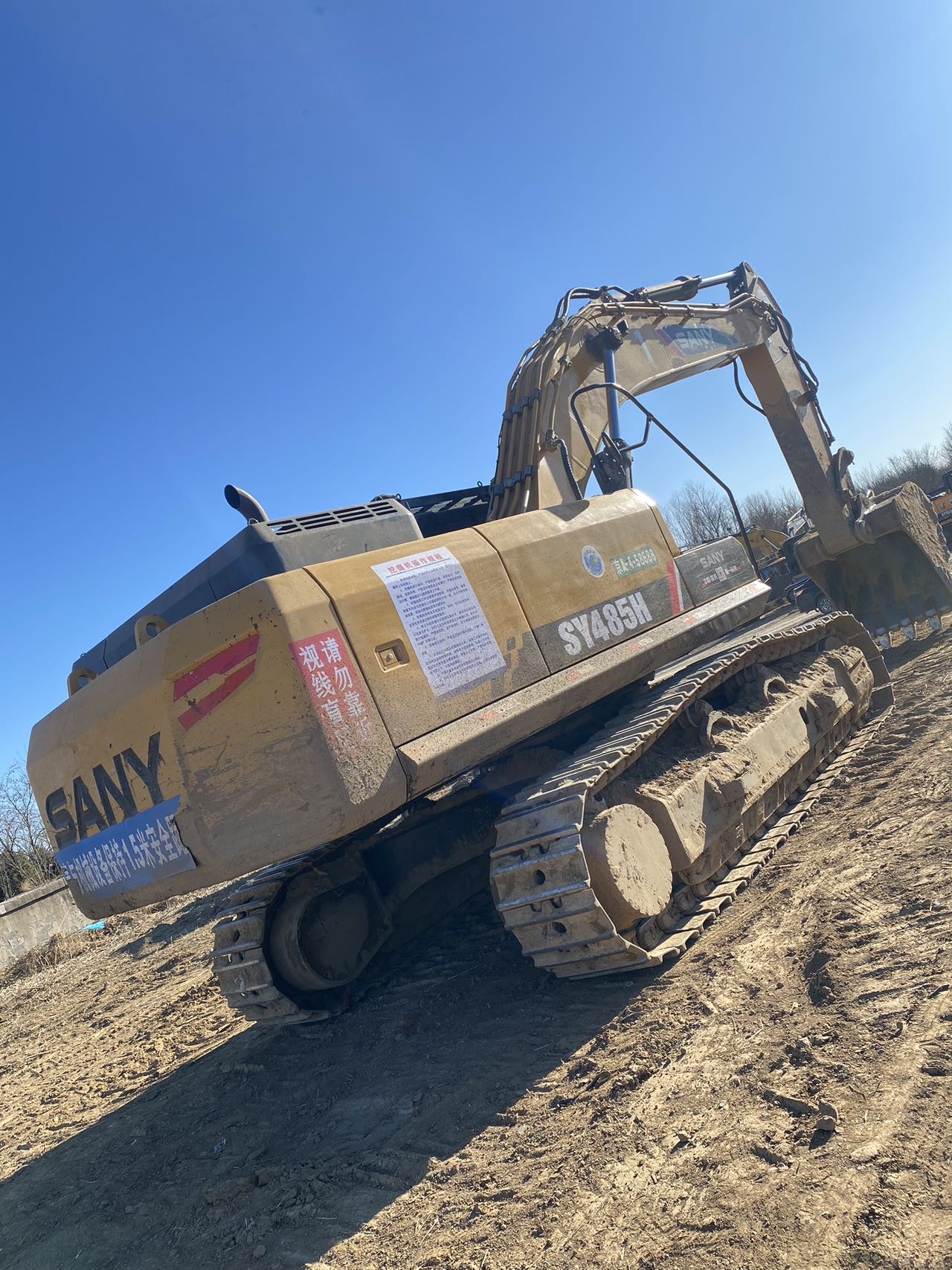

Used Sany SY485H Excavator 2016 Model / 5

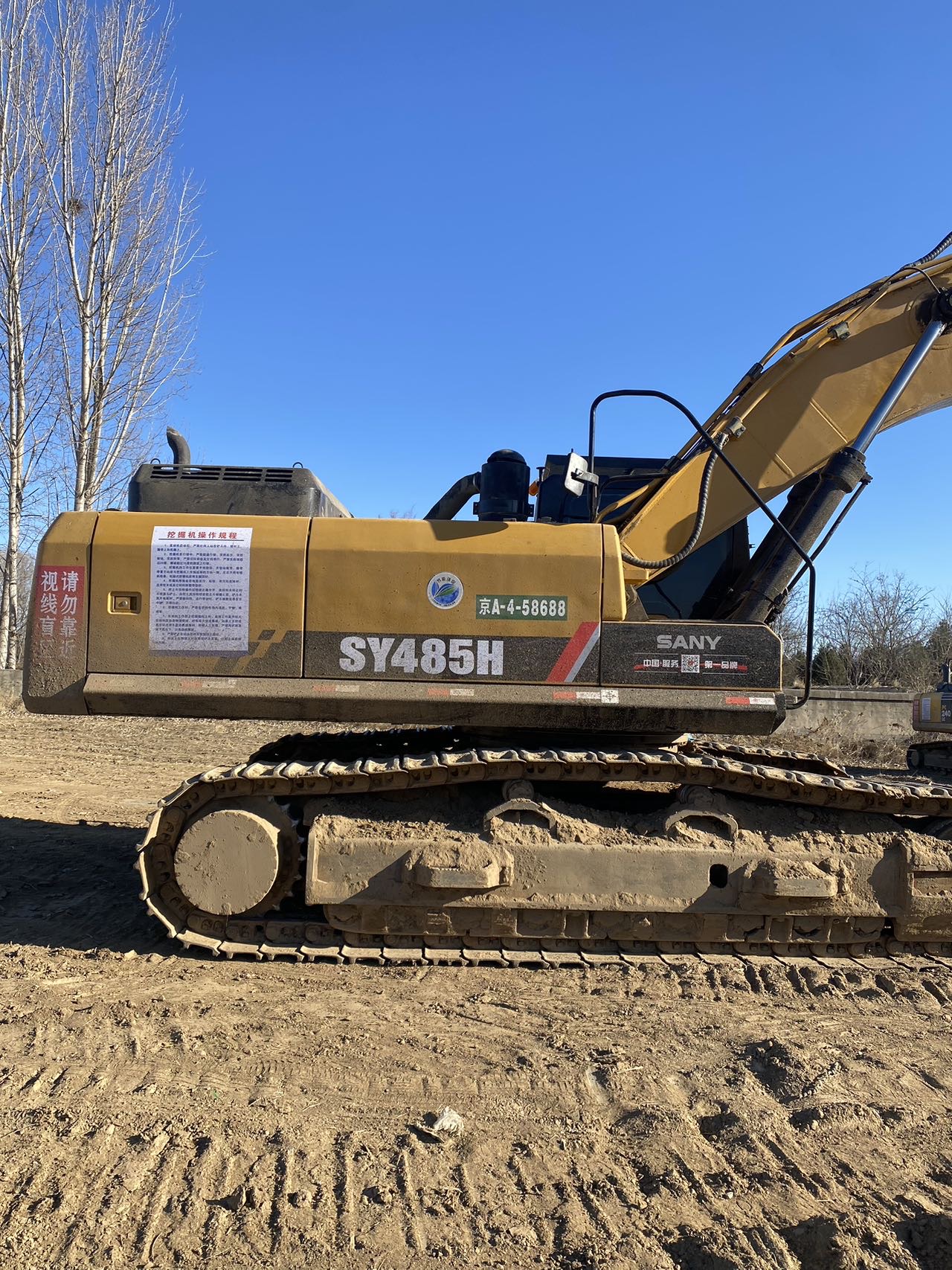

Used Sany SY485H Excavator 2016 Model / 6

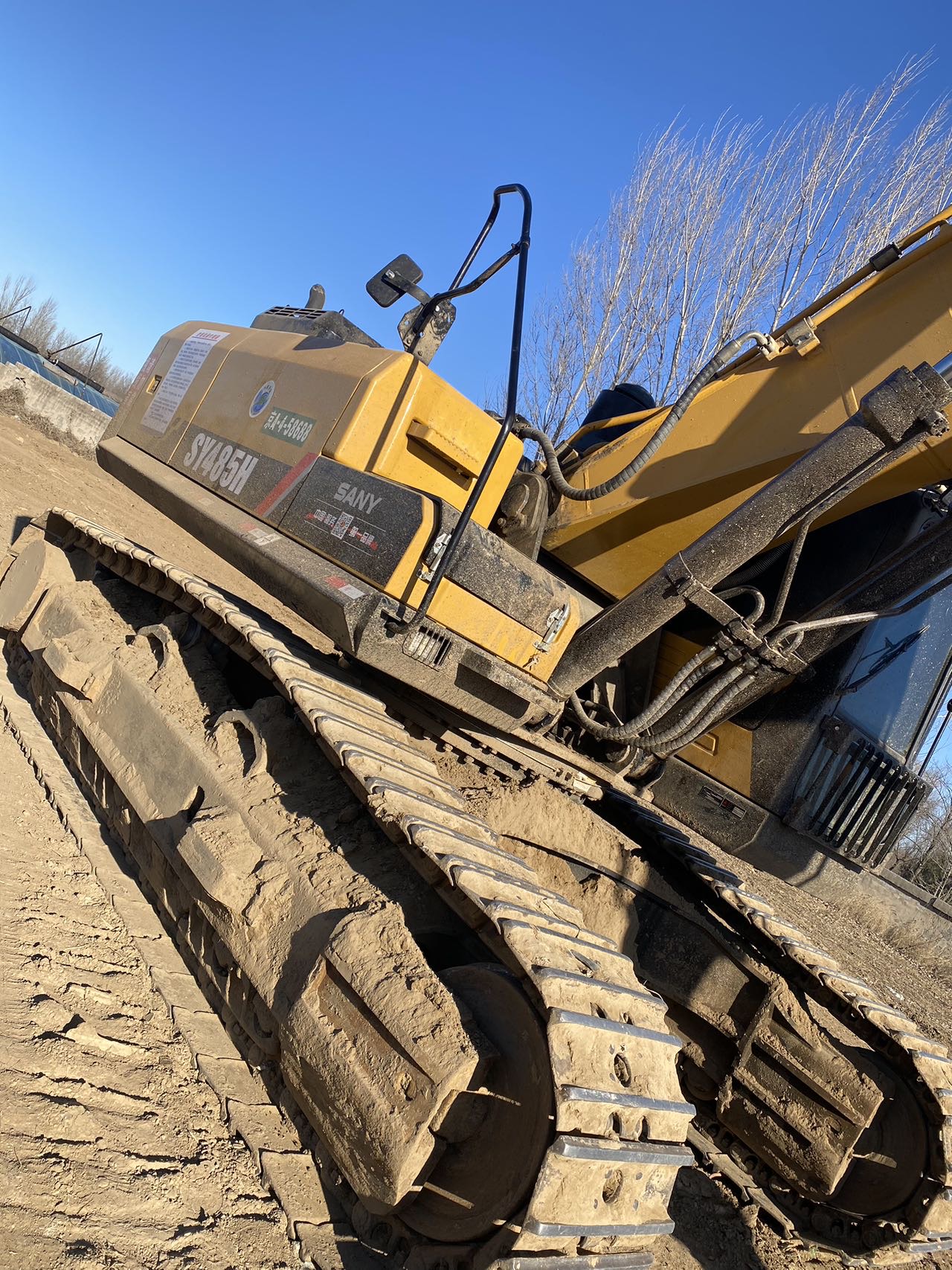

Used Sany SY485H Excavator 2016 Model / 7

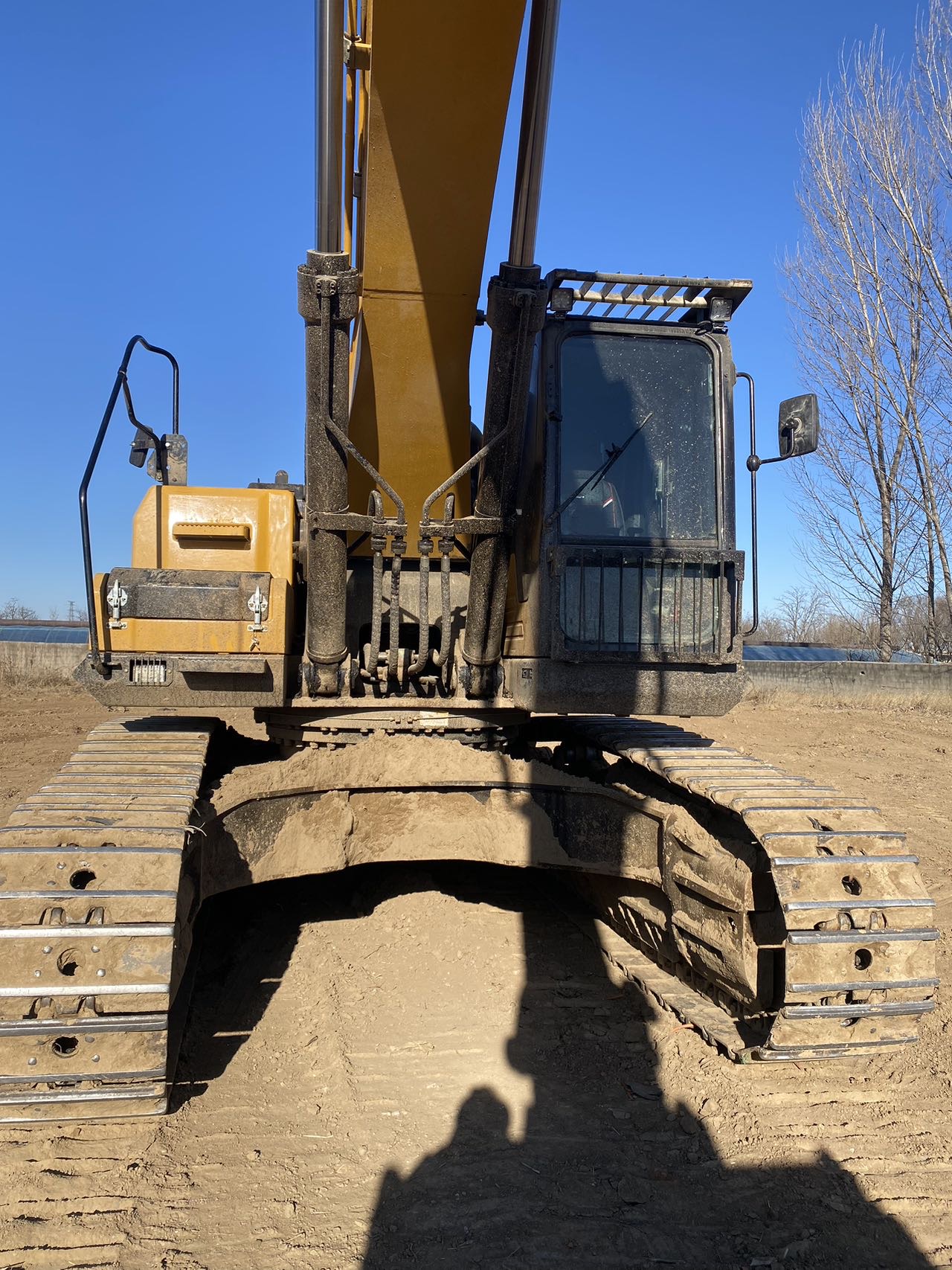

Used Sany SY485H Excavator 2016 Model / 8

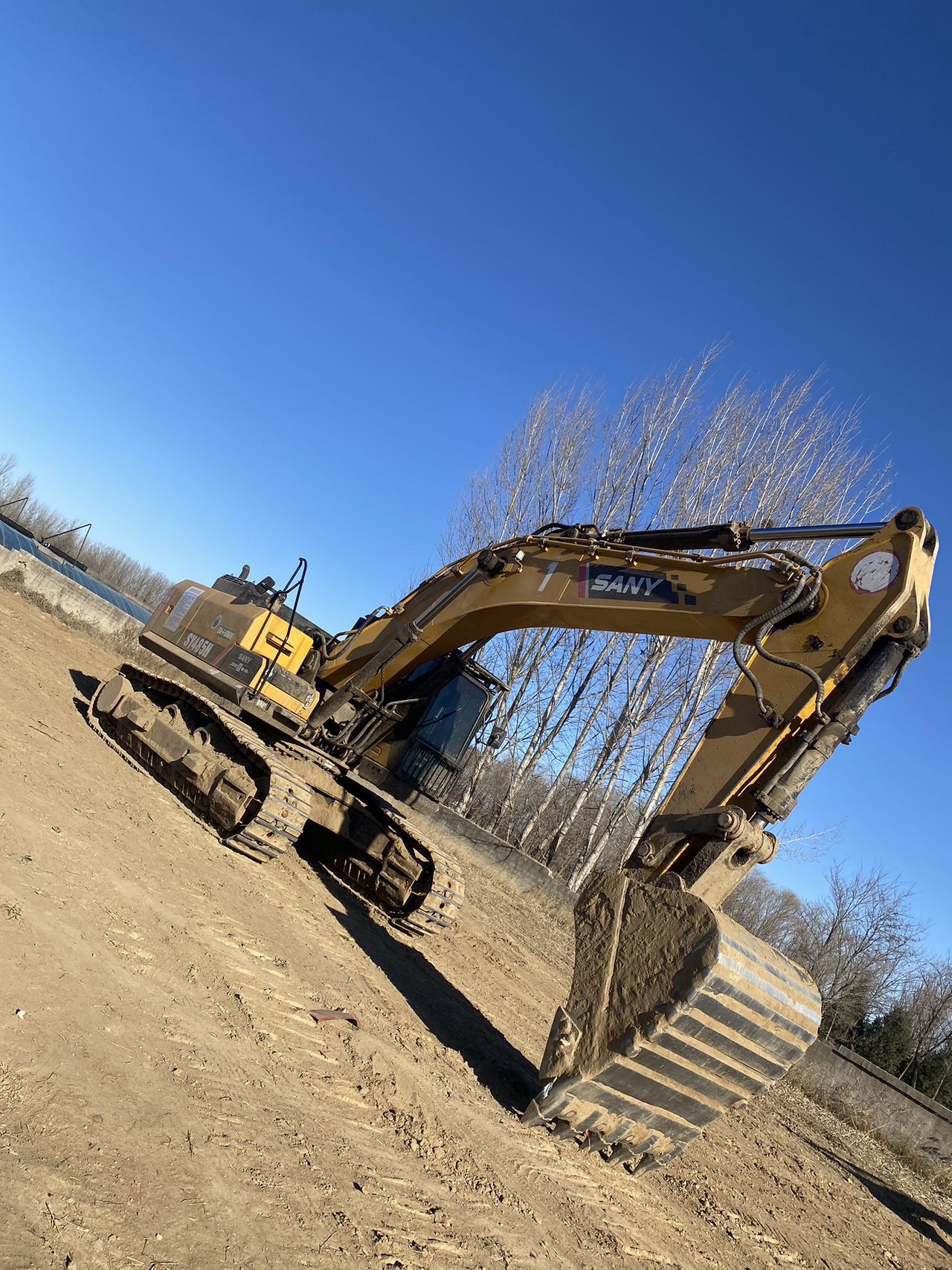

Used Sany SY485H Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Sany 485H second-hand excavator, original installed machine after construction site completion, with outstanding performance and trustworthy! This Sany 485H excavator is an original imported high-quality device and has been in good condition since it left the factory. This equipment has been taken off the construction site for use, but the earthmoving truck has never been hit with a hammer, and the mine chassis has not undergone any major repairs, ensuring the integrity and durability of its mechanical structure. The working time is only 3,000 hours, which is far lower than the average service life of similar equipment. This means that it still has a long service life and good value retention space. In terms of the power system, it adopts a high-performance engine specially designed by Sany for heavy-duty operations. It not only has strong power and quick response, but also has excellent fuel economy, which can effectively reduce operating costs. The hydraulic system adopts an advanced load-sensitive control system, ensuring the accuracy and smoothness of operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, this machine is equipped with an intellige

SpecificationsValue
No.971292
Tonnage (tons)48
Working weight (kg)49500
Bucket capacity (m³)2.2-3.1
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type6WG1X
Rated power (kw/rpm)300/1800
Cooling modewater-cooling
Maximum torque (N.m)1950/1400
Number of cylinders (PCS)6
Displacement (L)15.681
Ground specific pressure (Kpa)87.1
Rotation speed (rpm)8
Climbing ability (%)70
Bucket digging force (kN)287
Rod digging force (kN)245
Travel speed (km/h)5.4/3.1
Fuel Tank (L)680
Hydraulic Tank (L)480
Engine Oil changes (L)50
Total transport length (mm)12095
Total transport width (mm)3360
Total transport height (mm)3790
Full cab height (mm)3470
Counterweight ground clearance (mm)1355
Minimum ground clearance (mm)560
Minimum turning radius of front working device (mm)5240
Back end turning radius (mm)3765
Onboard width (mm)3290
Total track length (mm)5440
Track gauge (mm)2740
Track plate width (mm)600
Track ground length (mm)4415
Maximum height at minimum turning radius (mm)9100
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)50
Maximum digging radius (mm)11860
Maximum digging depth (mm)7490
Maximum excavation height (mm)10950
Maximum unloading height (mm)7450
Maximum vertical digging depth (mm)5660
see more

Overview

No.971292

Brand Name:

Sany

Model Number:

SY485H

Year:

2016

Location:

Peking China
