| Specifications | Value |
|---|---|
| No. | 968417 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.25 (optional 0.16 ~ 0.32) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

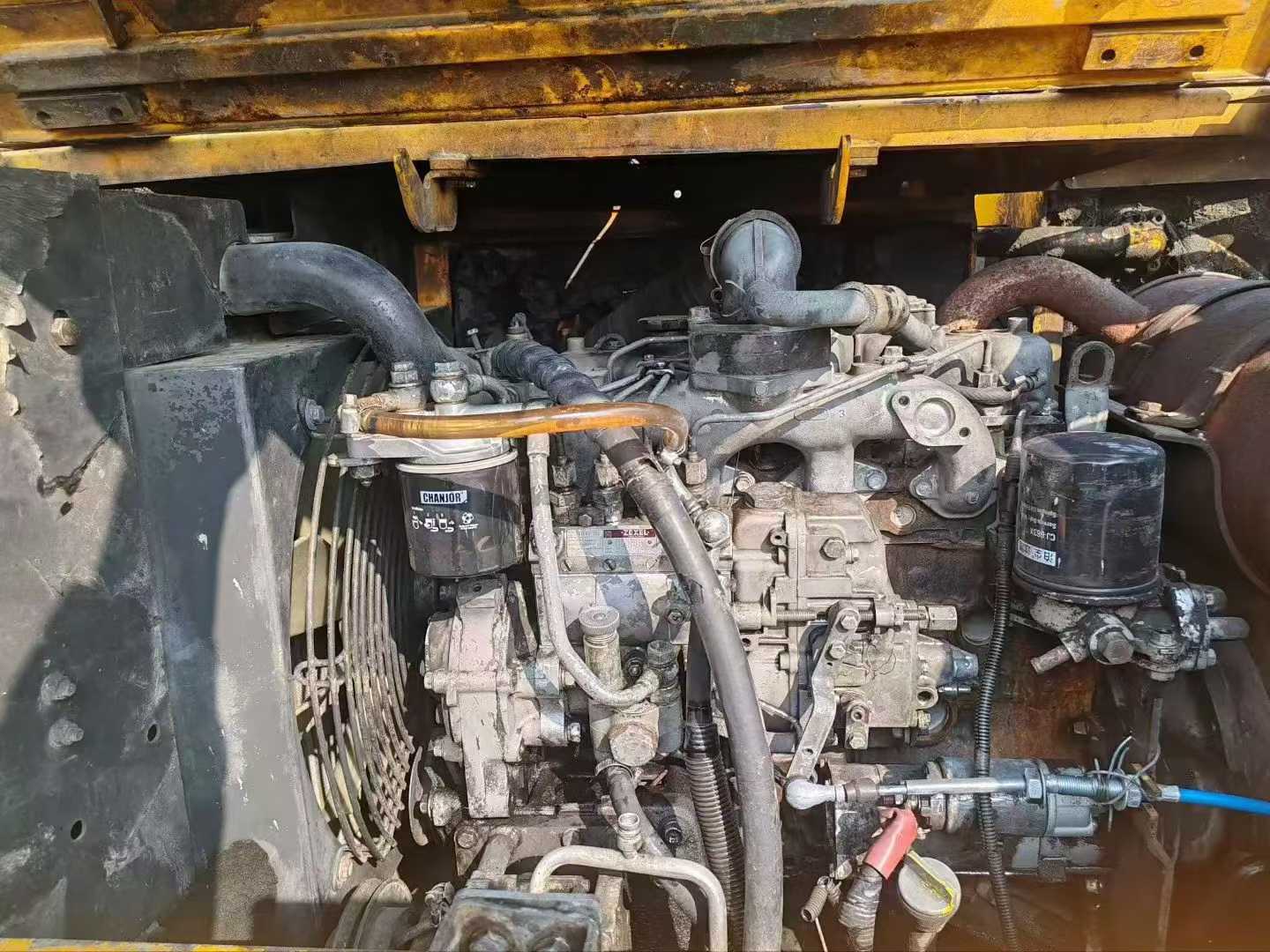

| Engine type | Isuzu AJ-4JG1 |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 35.6 |
| Travel speed (km/h) | 4.2/2.4 |
| Main overflow set pressure (Mpa) | 26 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |

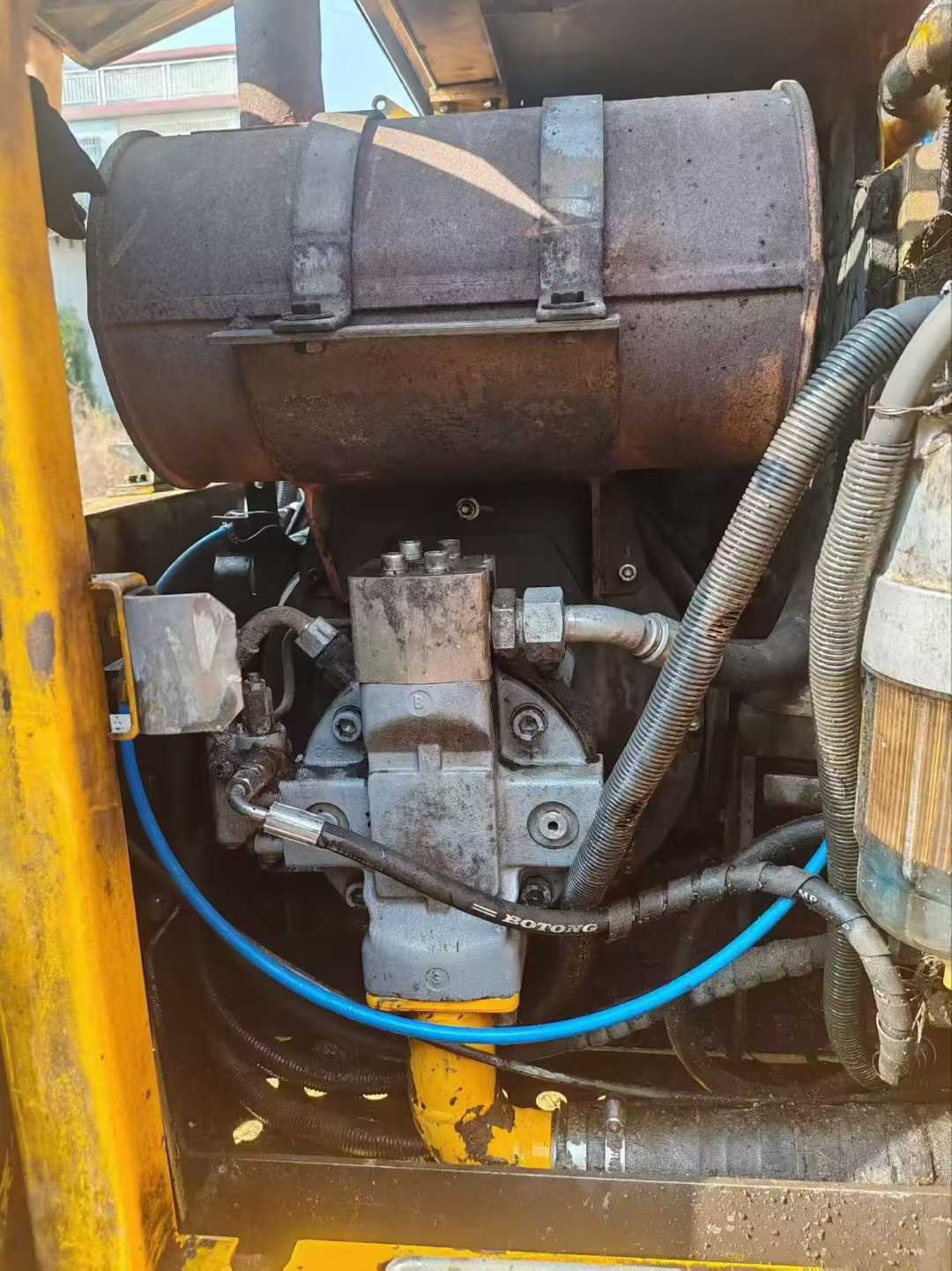

| Main pump type | Variable swashplate plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 80 x 730 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 900 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 885 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 12 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2040 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2160 |
| Track ground length (mm) | 2180 |
| Maximum digging radius (mm) | 6235 |
| Maximum digging depth (mm) | 4065 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Bulldozer lift or depth (mm) | Lift 300/ push 405 |
| Dodging plate width × height (mm) | Altitude 405 |
Description

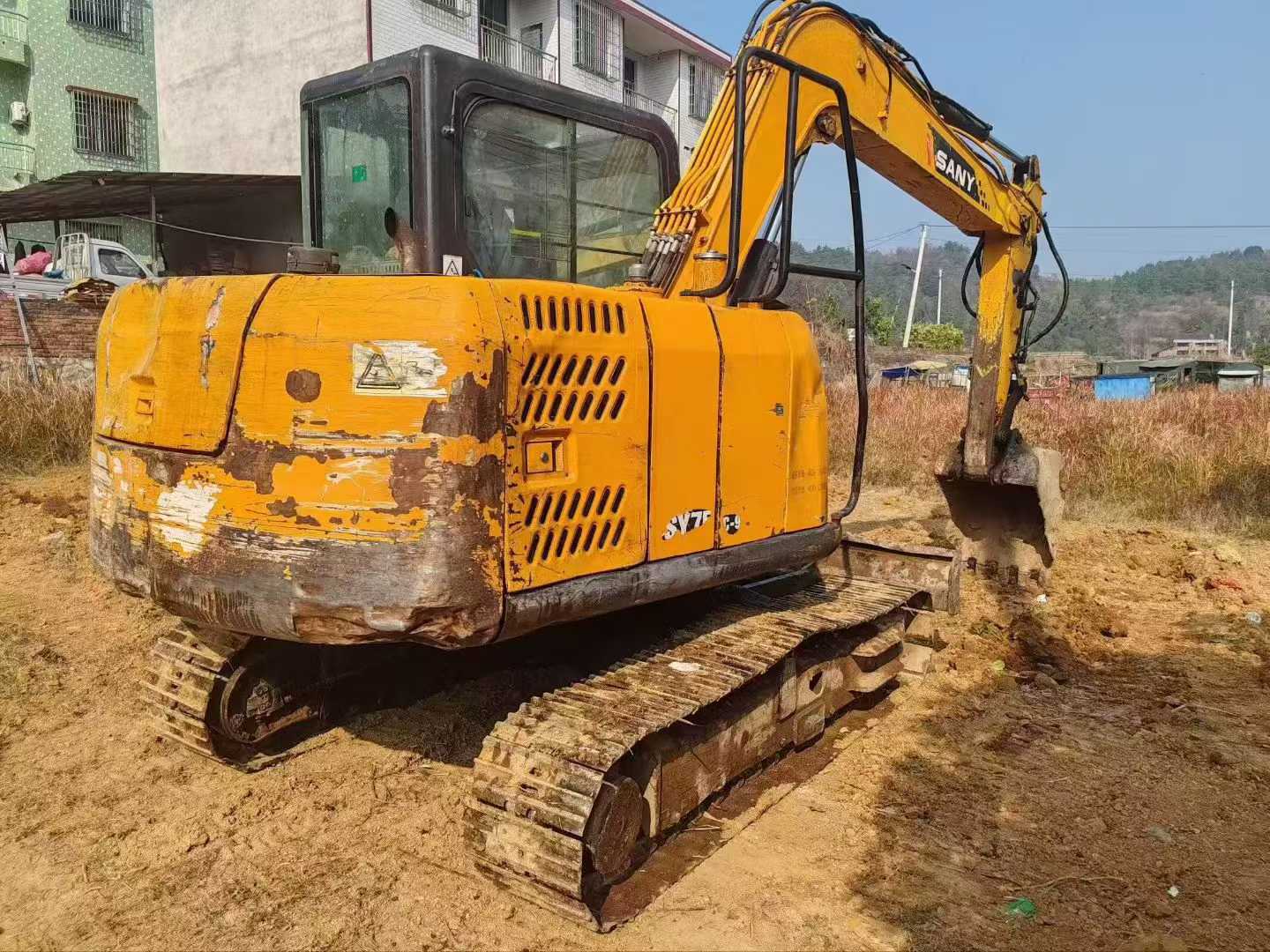

"Sany SY65-9 Second-hand excavator This Sany SY65-9 mini excavator is a very popular device in the market, especially suitable for urban construction, landscaping, farmland water conservancy and other engineering operations. The current price of this device is only a few tens of thousands of yuan, offering an extremely high cost performance. 【 Basic Information - ** Working hours ** : The cumulative working time of this machine is approximately 2000 hours, and it is in good working condition with stable performance in all aspects. - ** Power System ** : Equipped with well-known brand engines, it features strong power and high fuel efficiency, ensuring efficient operation even in harsh working conditions. After professional maintenance and care, the engine runs smoothly, with low noise and quick start-up. - ** Hydraulic System ** : Equipped with an advanced hydraulic control system, it operates flexibly and precisely, and has strong digging force. Whether it is meticulous operation or heavy-load excavation, it can handle it with ease. The hydraulic oil circuit has undergone a comprehensive inspection and cleaning to ensure there is no leakage, guaranteeing the reliability of long-term operation. - "Summary of Advantages" : - ** Econom
