Product Description

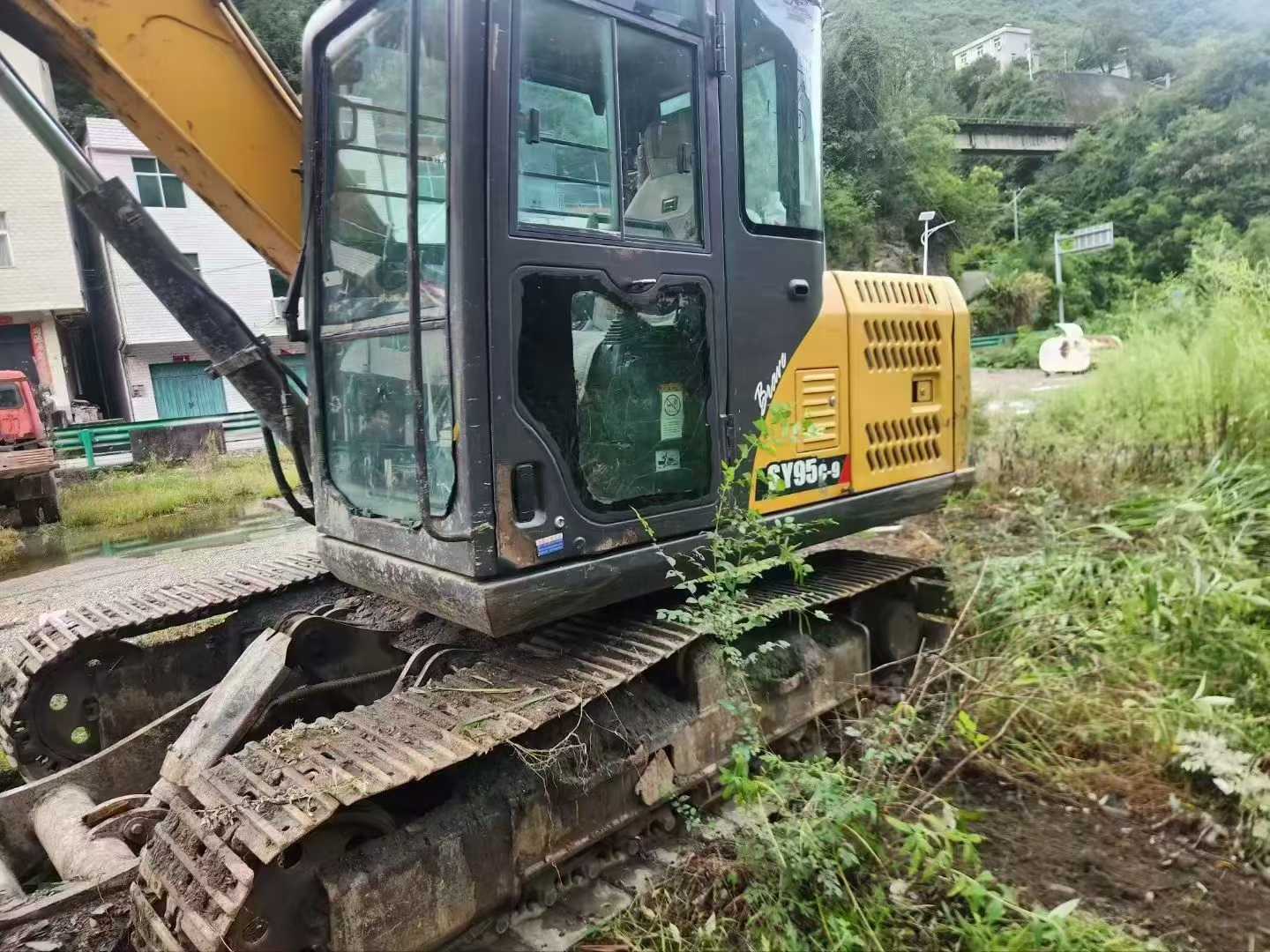

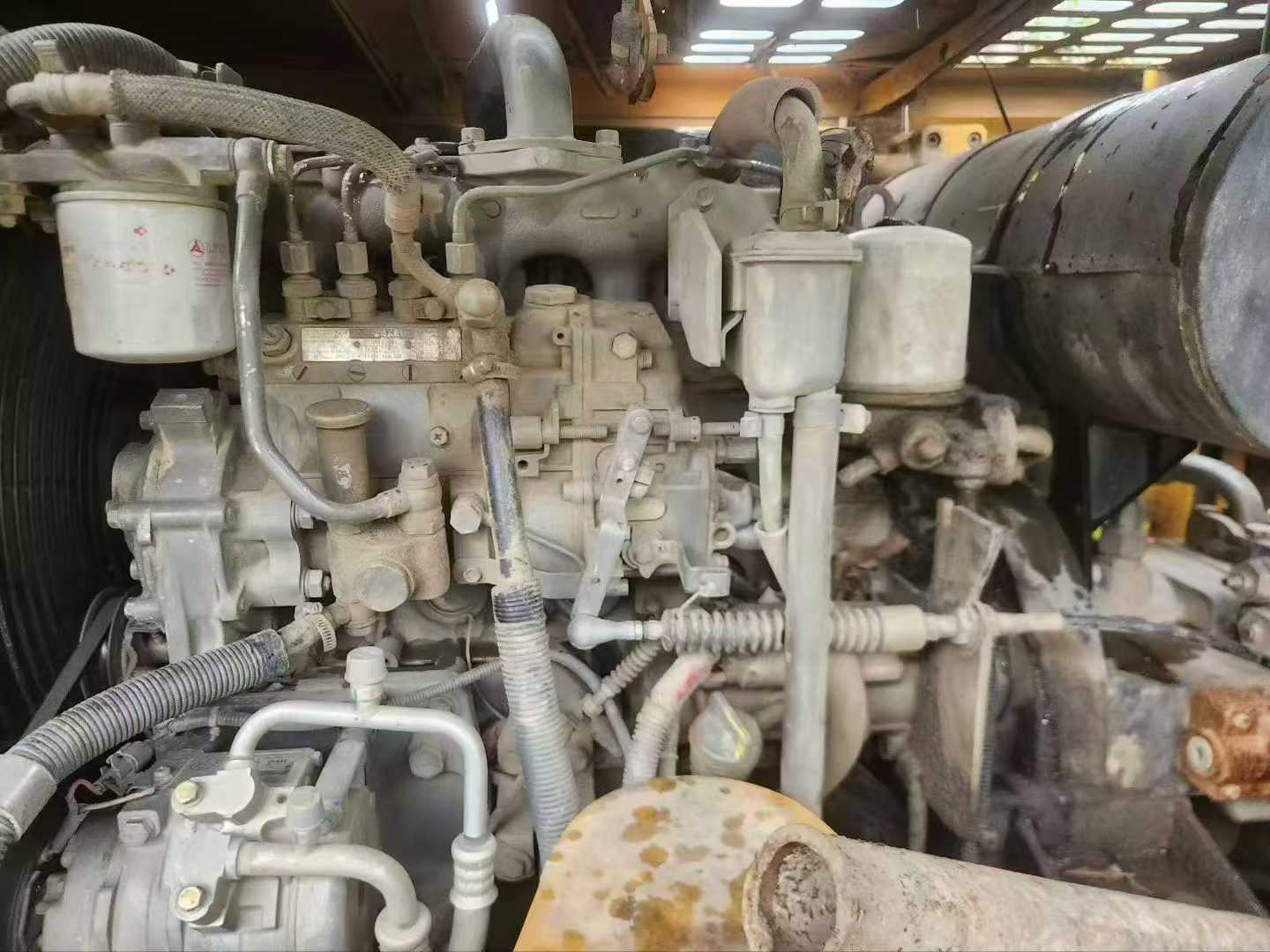

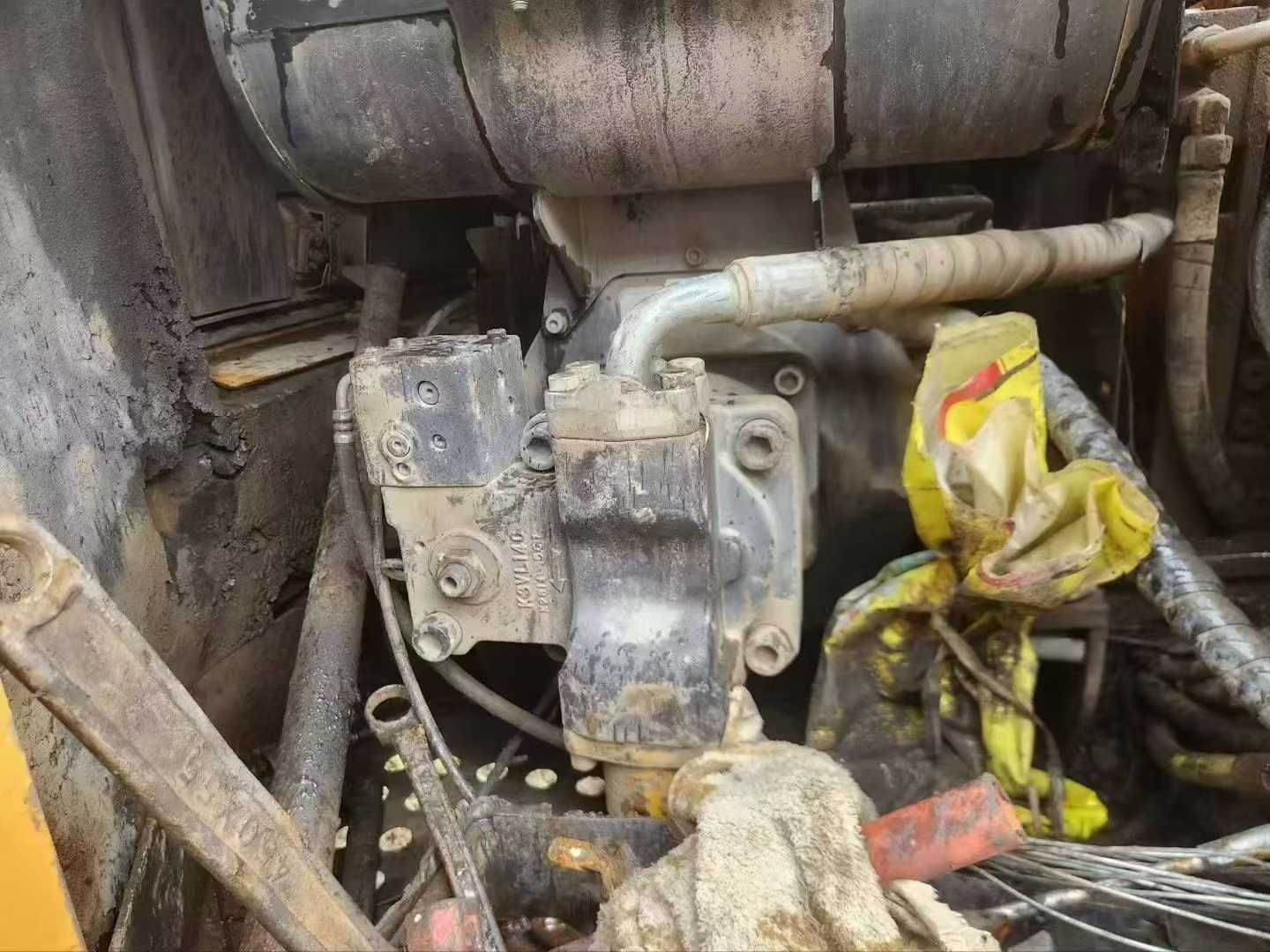

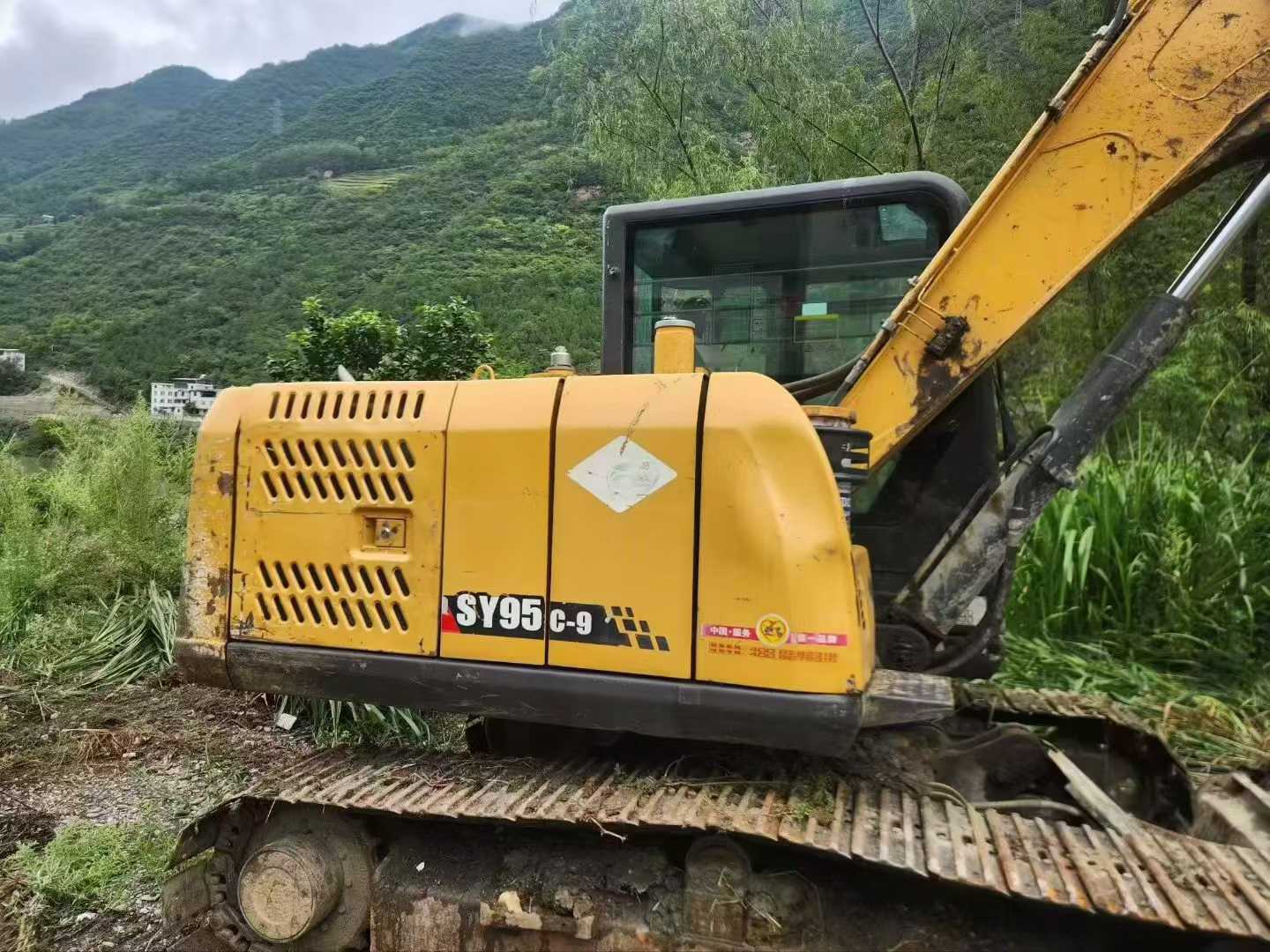

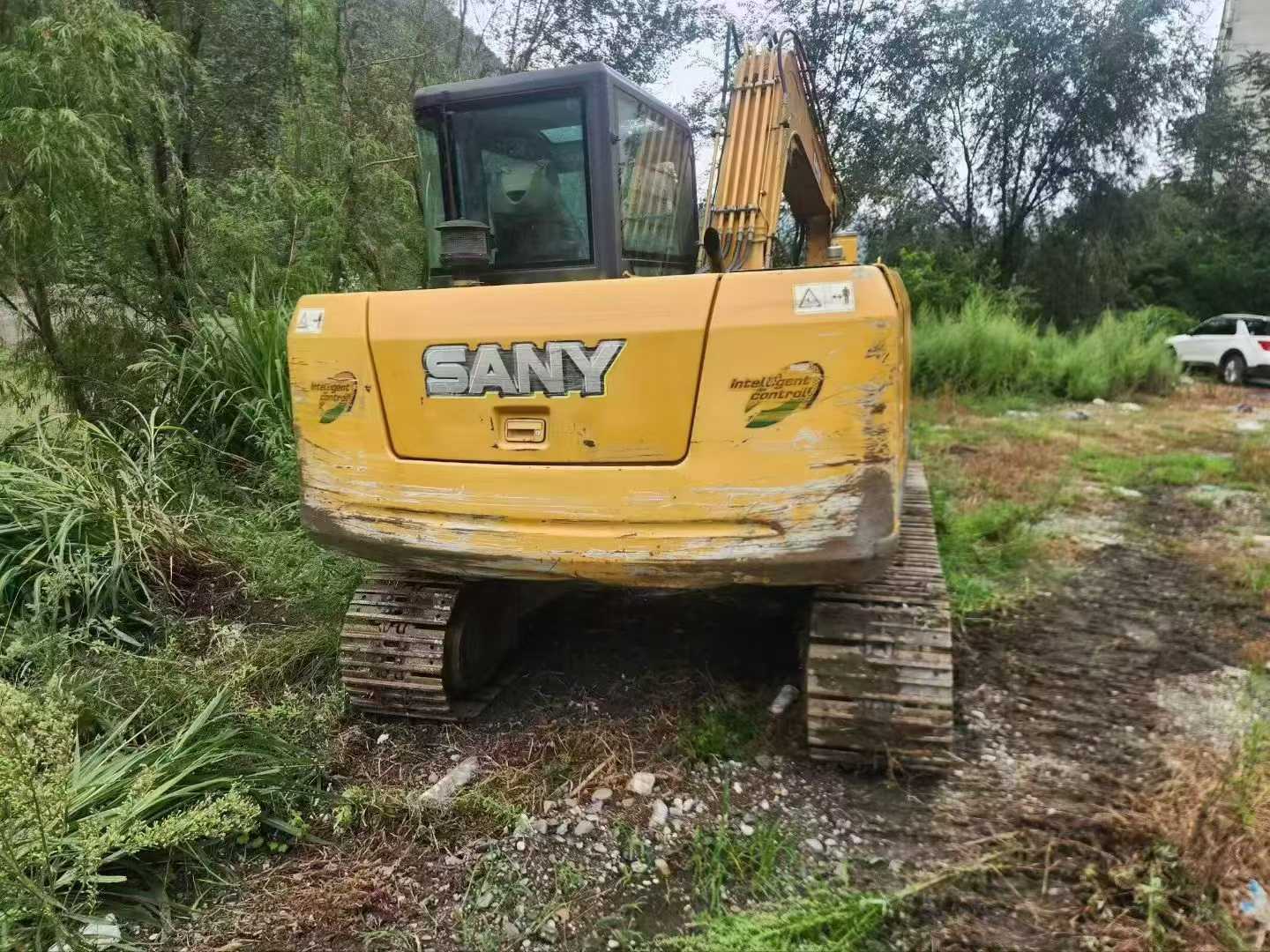

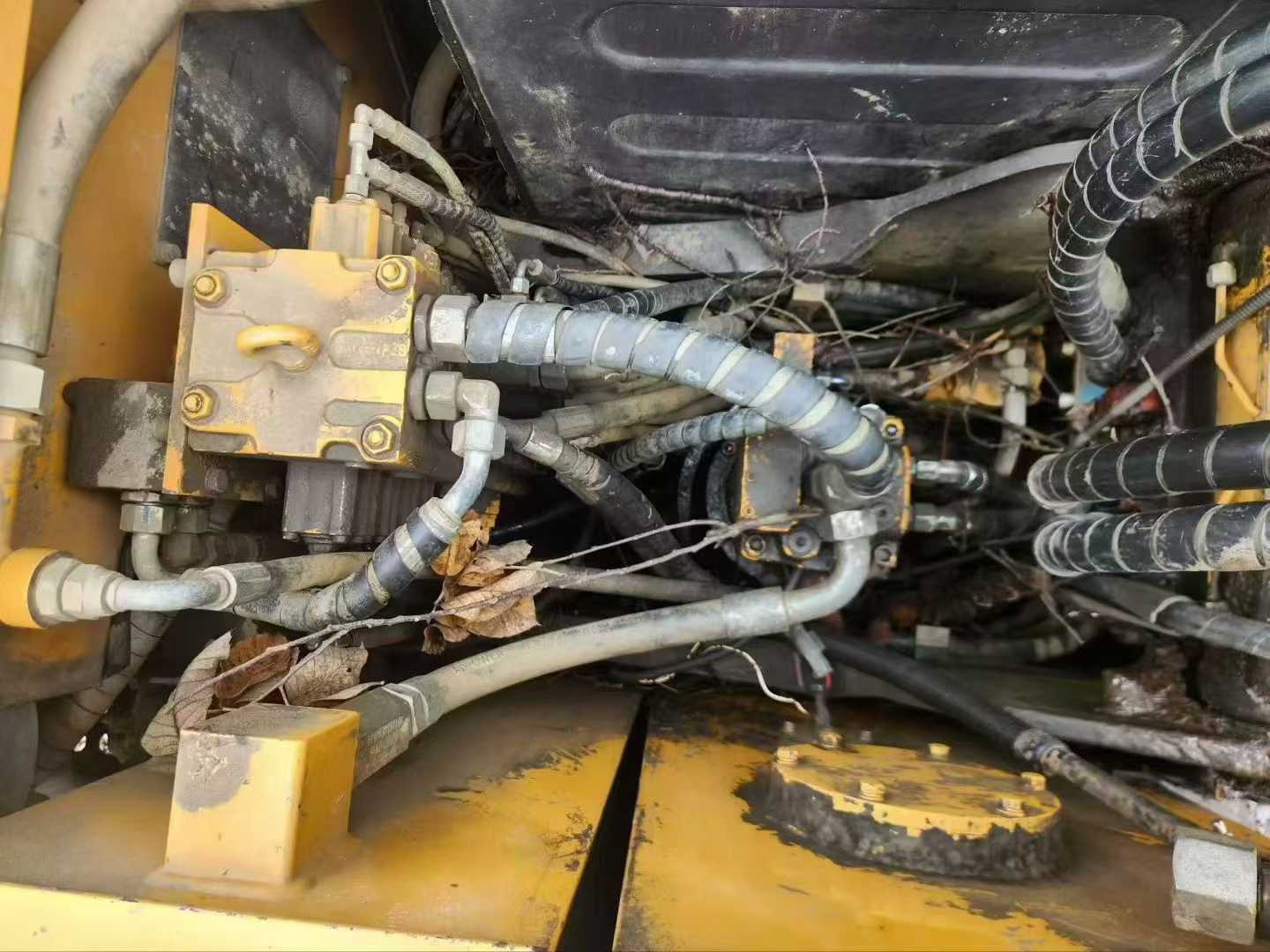

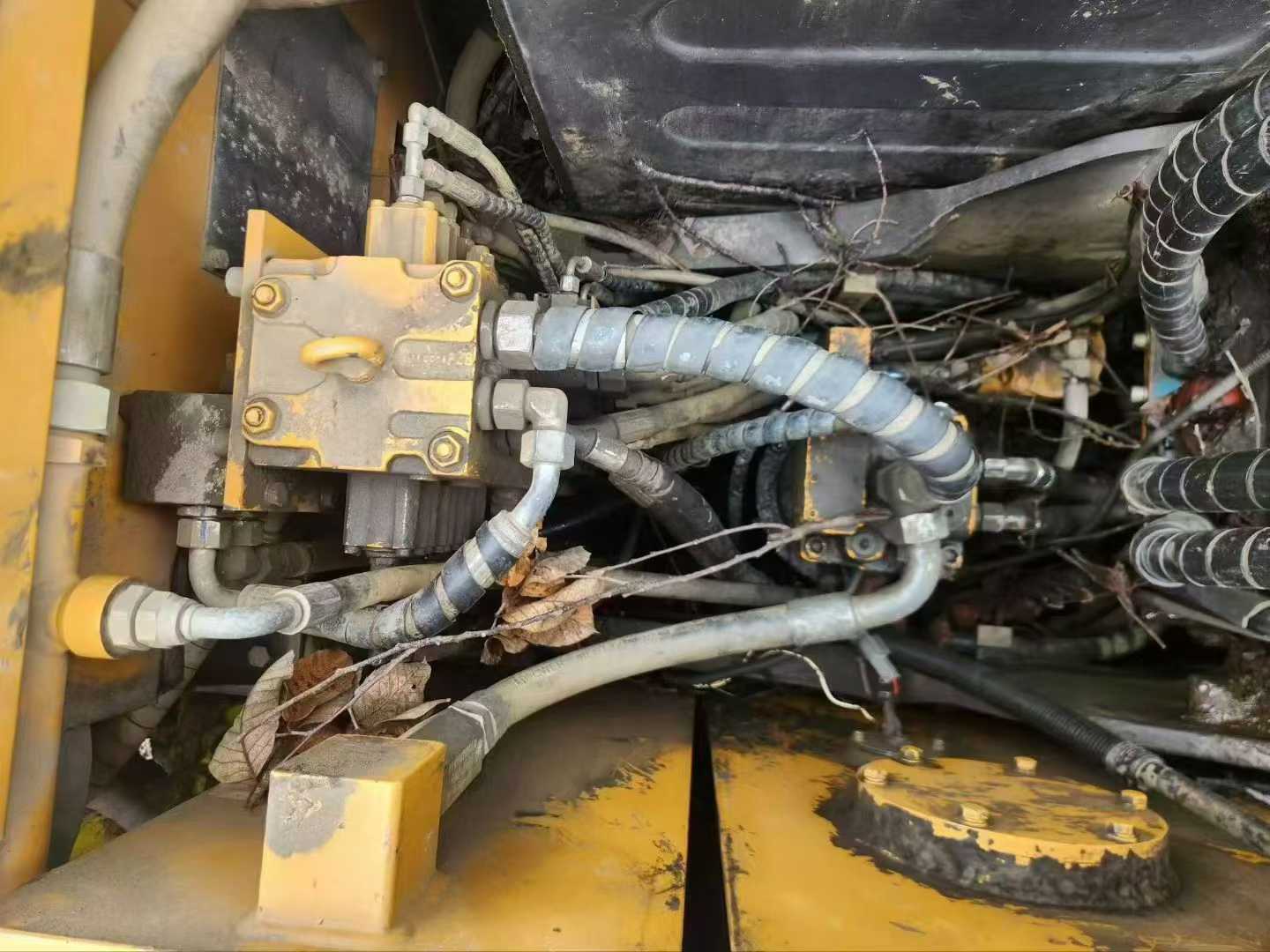

There is currently a Sany SY95 excavator produced in 2016, with a cumulative working time of approximately 100,000 hours. This device stands out among numerous second-hand construction machinery with its outstanding performance and reliability. In terms of the power system, this excavator is equipped with an efficient and durable engine (the specific model may be a Sany dedicated diesel engine), with an expected power of 40 to 50 kilowatts, ensuring its strong performance in various complex working conditions. Whether it is flat excavation or slope operation, it can handle it with ease, demonstrating excellent power output and fuel economy. The hydraulic system is a major highlight of this Sany SY95. It is equipped with a high-quality variable piston pump and an advanced hydraulic motor combination, providing a stable and precise operating experience. This hydraulic configuration not only enhances the overall working efficiency of the machine, but also reduces energy consumption and extends its service life. In addition, this excavator also has the following significant advantages: - Compact structure and high flexibility: Suitable for precise operations in confined Spaces; - Spacious and comfortable cab: Ergonomically designed, you
| Specifications | Value |
|---|---|
| No. | 978845 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 9180 |
| Bucket capacity (m³) | 0.2-0.45 (0.39) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Kubota V3800DI-T-E3B |
| Rated power (kw/rpm) | 60.7/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 305.4/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.769 |
| Ground specific pressure (Kpa) | 38.6 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 63.6 |
| Rod digging force (kN) | 46.8 |
| Travel speed (km/h) | 5.0/2.9 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6560 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1990 |
| Back end turning radius (mm) | 1885 |
| Onboard width (mm) | 2160 |
| Total track length (mm) | 2980 |
| Track gauge (mm) | 1810 |
| Track plate width (mm) | 450 |
| Maximum height at minimum turning radius (mm) | 5700 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 6660 |
| Maximum digging depth (mm) | 4330 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 330/330 |
| Dodging plate width × height (mm) | 420 (height) |
