HOME>>Brands>>Sumitomo SH130-3

2015 Sumitomo SH130-3

1/4
Used Sumitomo SH130-3 Excavator 2015 Model / 1
Used Sumitomo SH130-3 Excavator 2015 Model / 2

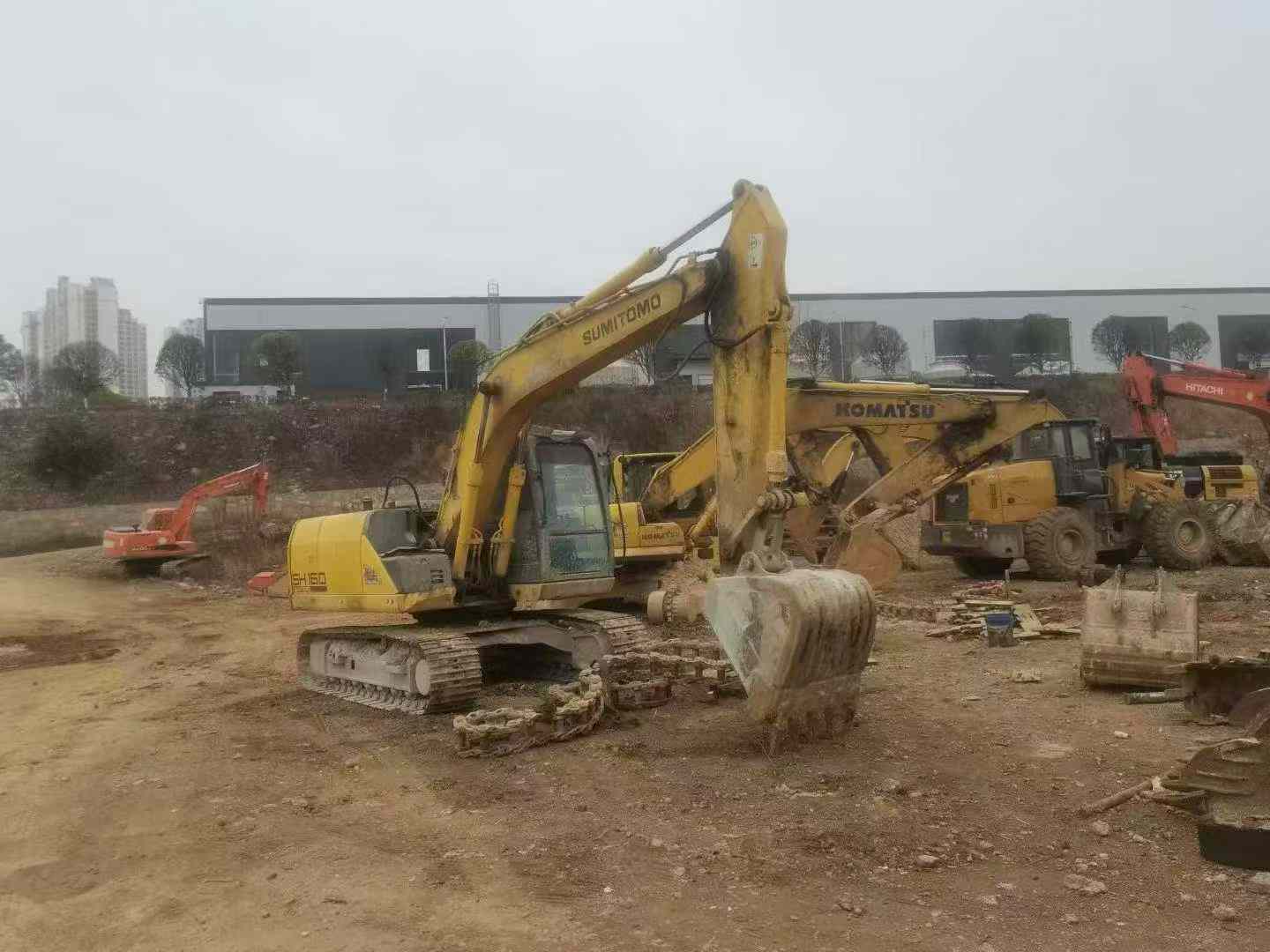

Used Sumitomo SH130-3 Excavator 2015 Model / 3

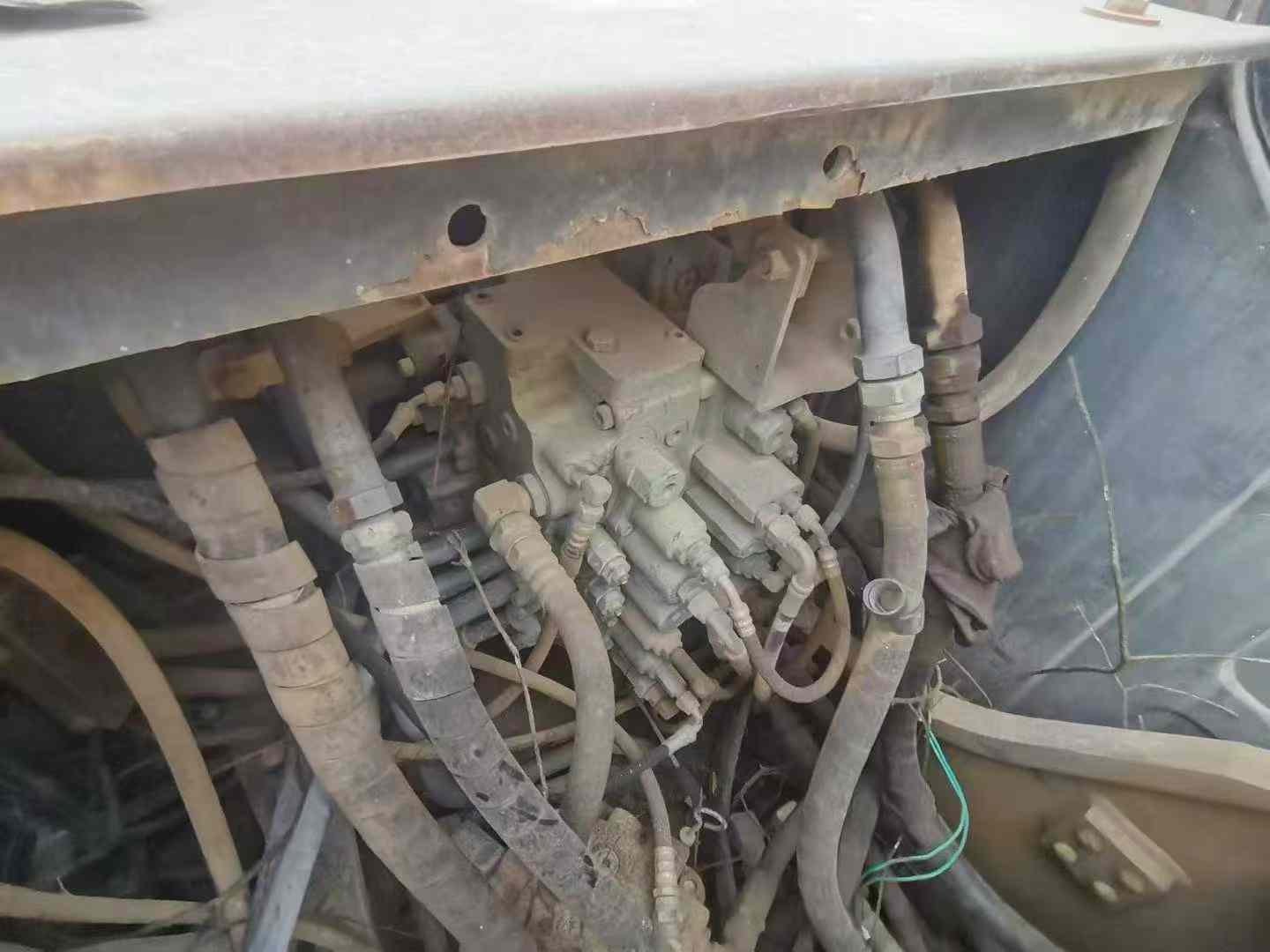

Used Sumitomo SH130-3 Excavator 2015 Model / 4

Product Description

We are selling a second-hand Sumitomo SH130 excavator of top quality from 2015. With a total usage time of less than 6,000 hours, it has outstanding performance and no oil leakage. It is your ideal choice for engineering operations. This excavator is equipped with the well-tested Isuzu 4HK1-TCG engine, with a rated power of 75 kilowatts. It is powerful and has excellent fuel economy, ensuring efficient operation under all working conditions. In terms of the hydraulic system, this Sumitomo SH130 is equipped with advanced Kawasaki K3V series variable piston pumps and matching high-performance hydraulic motors, which can provide stable and sensitive operational responses. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, its unique hydraulic circuit design enables the equipment to maintain good heat dissipation even after long-term operation, significantly extending its service life. This excavator also features several humanized designs: The spacious and comfortable cab provides an excellent operating view; The sturdy and durable chassis structure ensures smooth movement even under harsh conditions. The layout of maintenance and service points is reasonable, facilitating daily inspecti

SpecificationsValue
No.976497
Tonnage (tons)13
Working weight (kg)12300
Bucket capacity (m³)0.5
Boom length (mm)5850
Rod length (mm)2500
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AJ-4JJ1X
Rated power (kw/rpm)70.9/2000
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)2.999
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)40
Rotation speed (rpm)14.3
Climbing ability (%)70
Bucket digging force (kN)
Rod digging force (kN)
Travel speed (km/h)3.4/5.6
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Hydraulic crushing pipeline is standardno
Main pump typeVariable axial piston pump ×2+ gear pump
Fuel Tank (L)260
Hydraulic Tank (L)157
Total transport length (mm)7620
Total transport width (mm)2540
Total transport height (mm)2790
Full cab height (mm)2790
Counterweight ground clearance (mm)895
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)2340
Back end turning radius (mm)2130
Total track length (mm)3500
Track gauge (mm)1990
Track plate width (mm)500
Total track width (mm)2490
Track ground length (mm)2790
Maximum digging radius (mm)8310
Maximum digging depth (mm)5540
Maximum excavation height (mm)8770
Maximum unloading height (mm)6390
Maximum vertical digging depth (mm)4950
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
see more

Overview

No.976497

Brand Name:

Sumitomo

Model Number:

SH130-3

Year:

2015

Location:

Fujian China
