Product Description

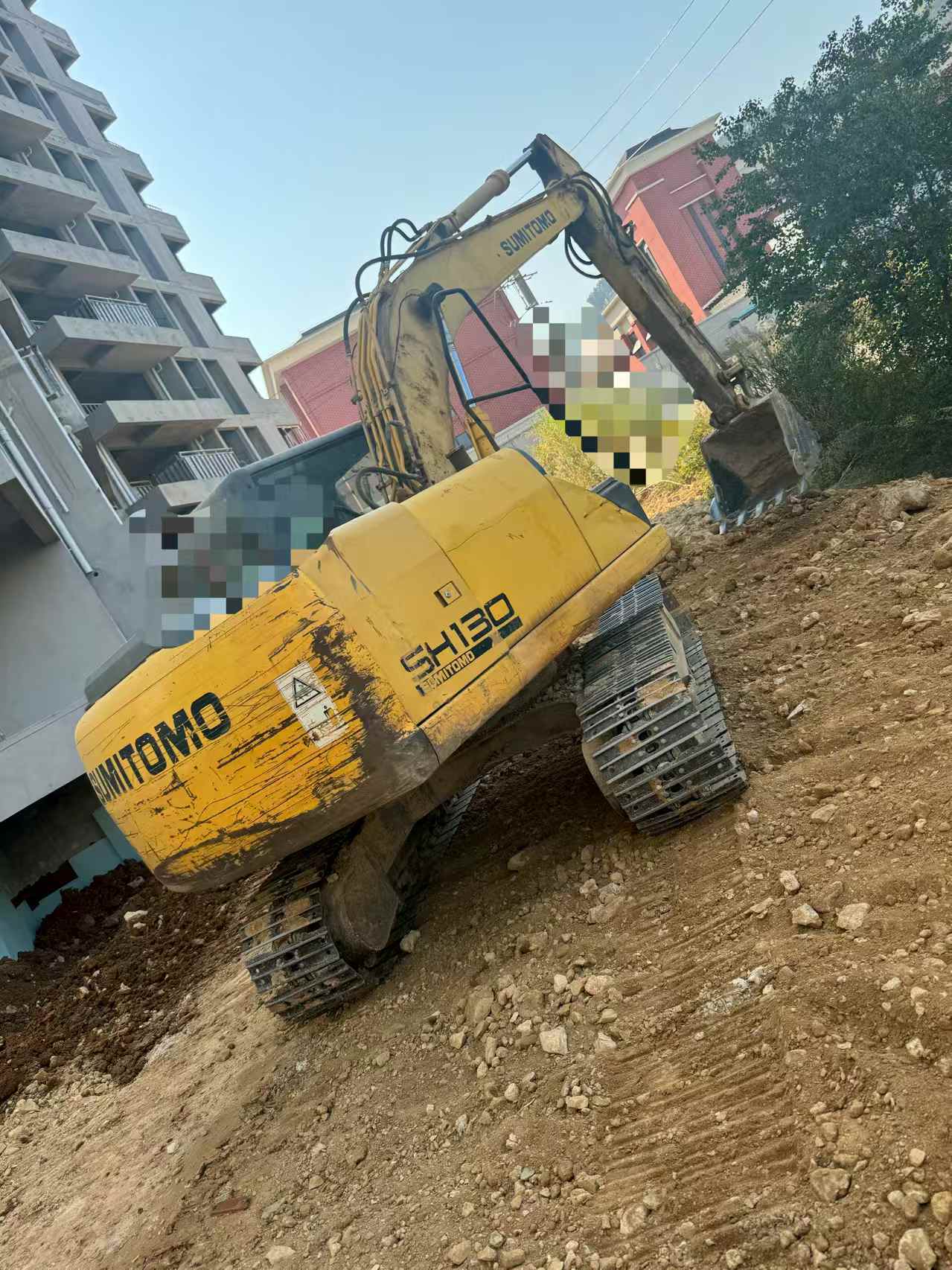

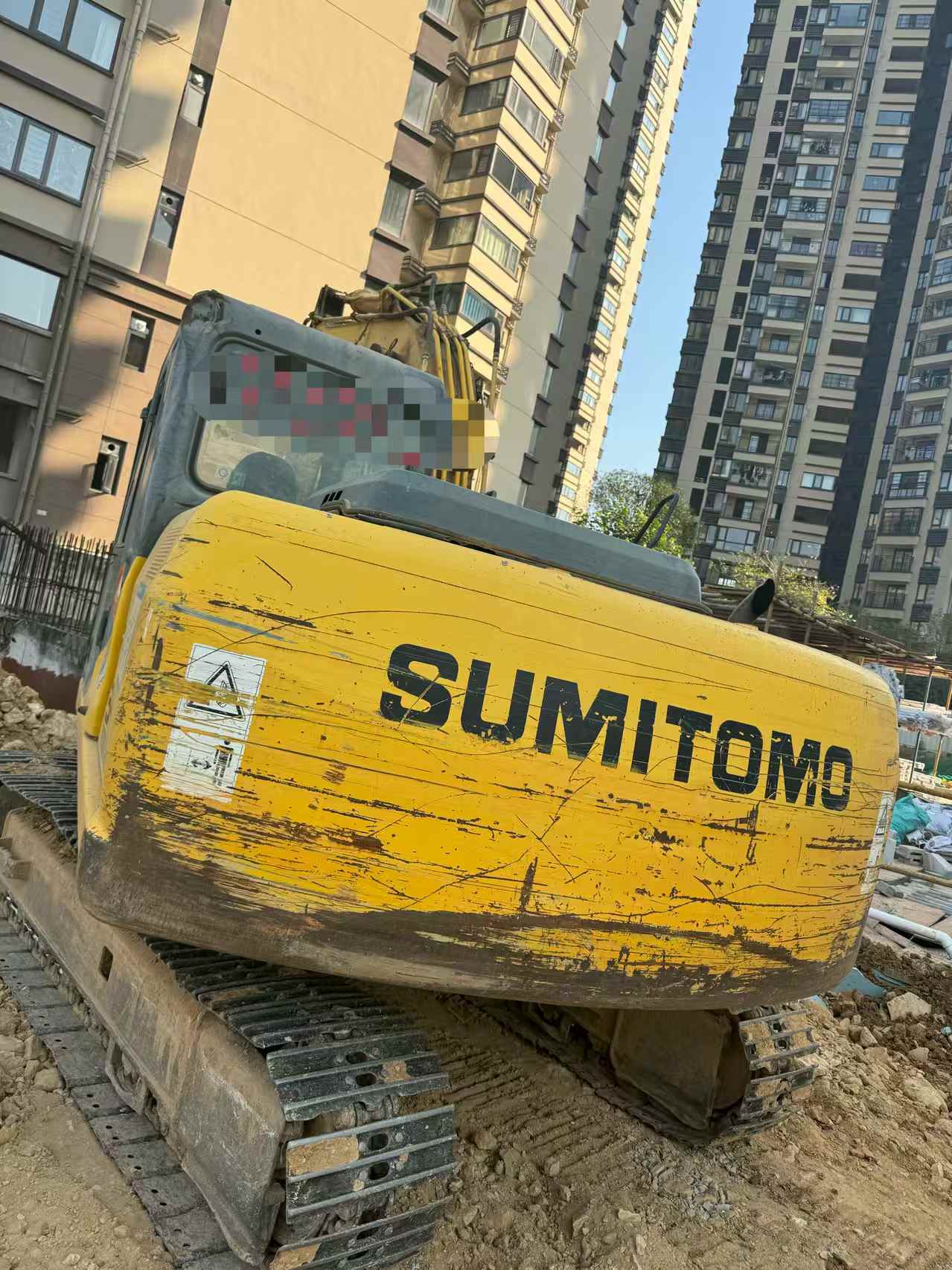

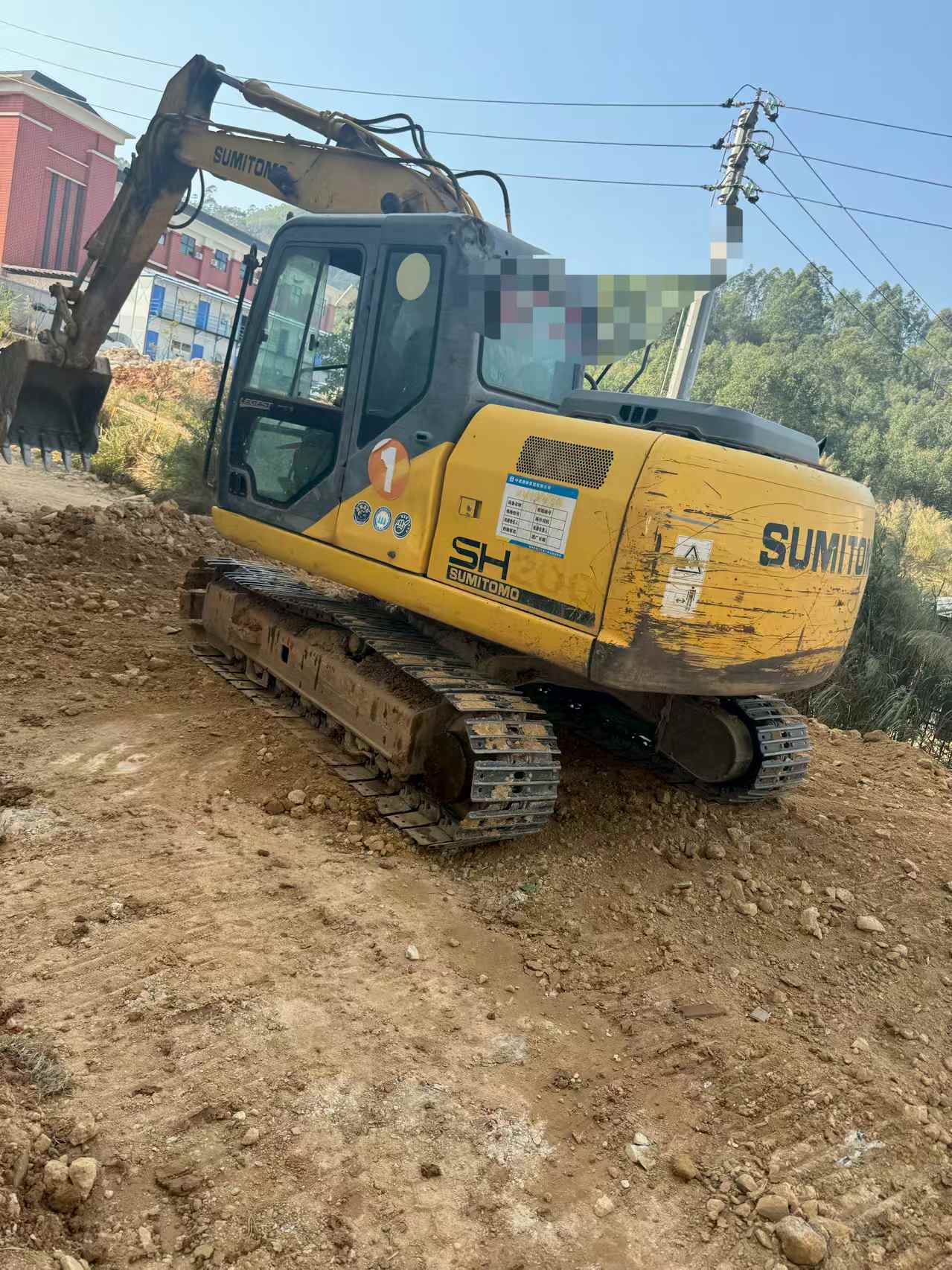

Built for reliability and engineered to last, this 2016 Sumitomo SH130-3 excavator delivers proven performance with 13-ton capacity and robust Isuzu AJ-4JJ1X engine producing 70.9kW of power. Currently located in Nanning, Guangxi, this machine features a 0.5m³ bucket capacity and impressive 8.31m maximum digging radius, making it ideal for medium-scale construction and earthmoving operations.
Sumitomo's reputation for durability translates directly into superior resale value and readily available parts through established dealer networks across China. With 12,300kg working weight and advanced hydraulic systems including dual variable axial piston pumps, this excavator maintains the brand's signature balance of power and fuel efficiency that contractors depend on.
- Maximum digging depth: 5.54m with 8.77m reach height

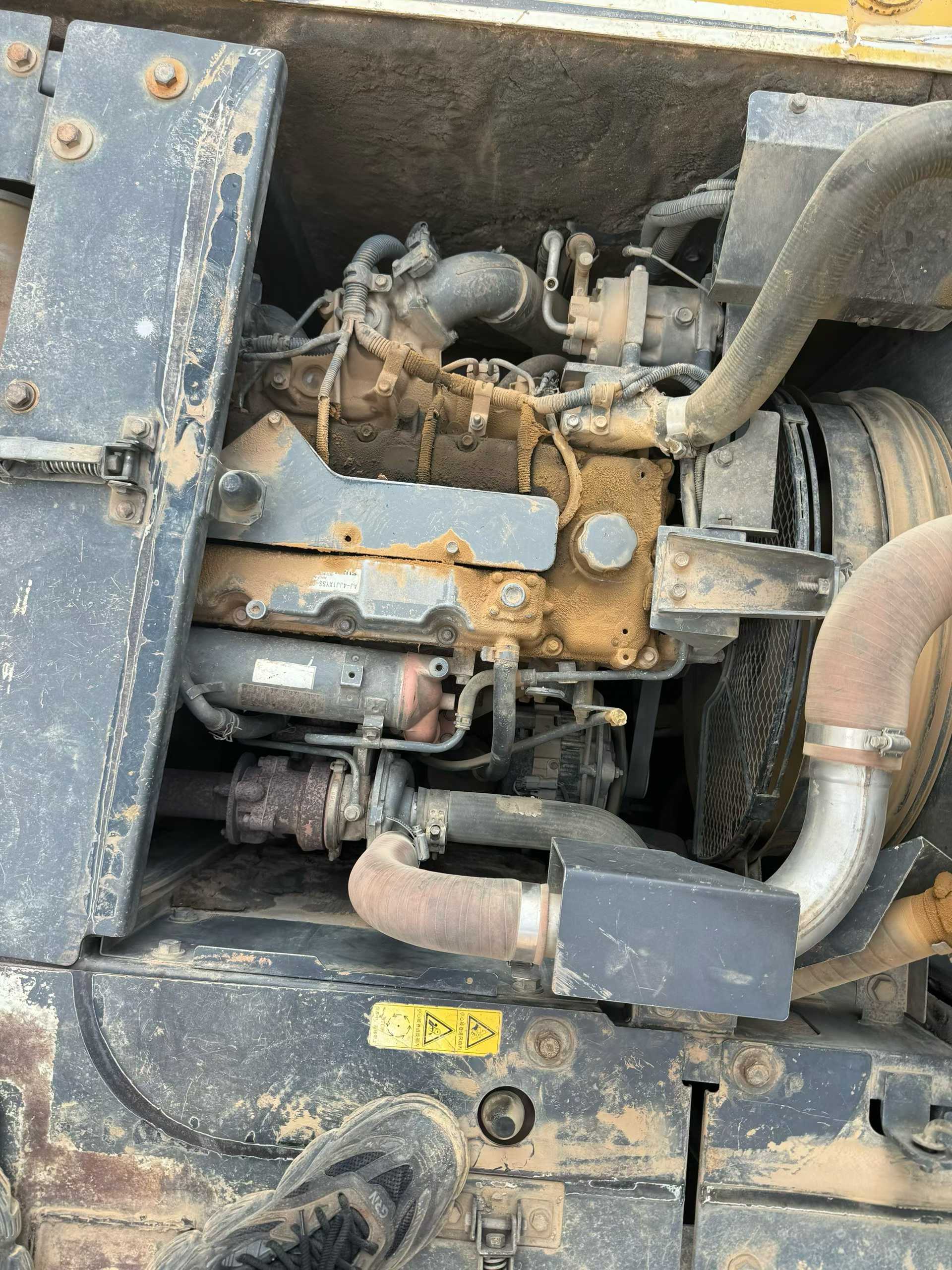

- Proven Isuzu 4-cylinder turbocharged diesel engine
- 260L fuel capacity for extended operation cycles

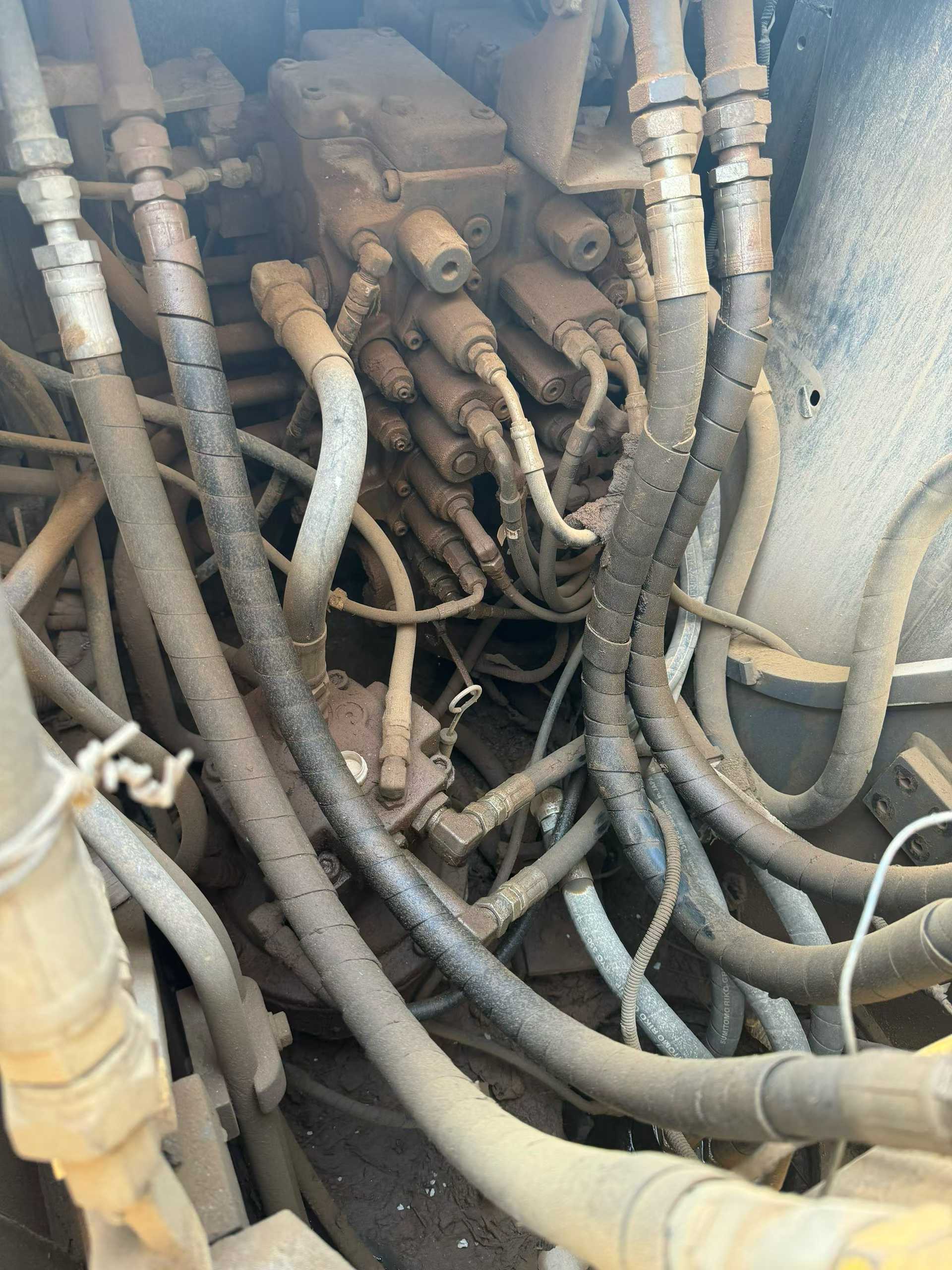

- Comprehensive hydraulic system with 34.3MPa main pressure
- Established parts availability through Sumitomo's service network
| Specifications | Value |
|---|---|
| No. | 985368 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12300 |
| Bucket capacity (m³) | 0.5 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2500 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AJ-4JJ1X |
| Rated power (kw/rpm) | 70.9/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 14.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.4/5.6 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Hydraulic crushing pipeline is standard | no |

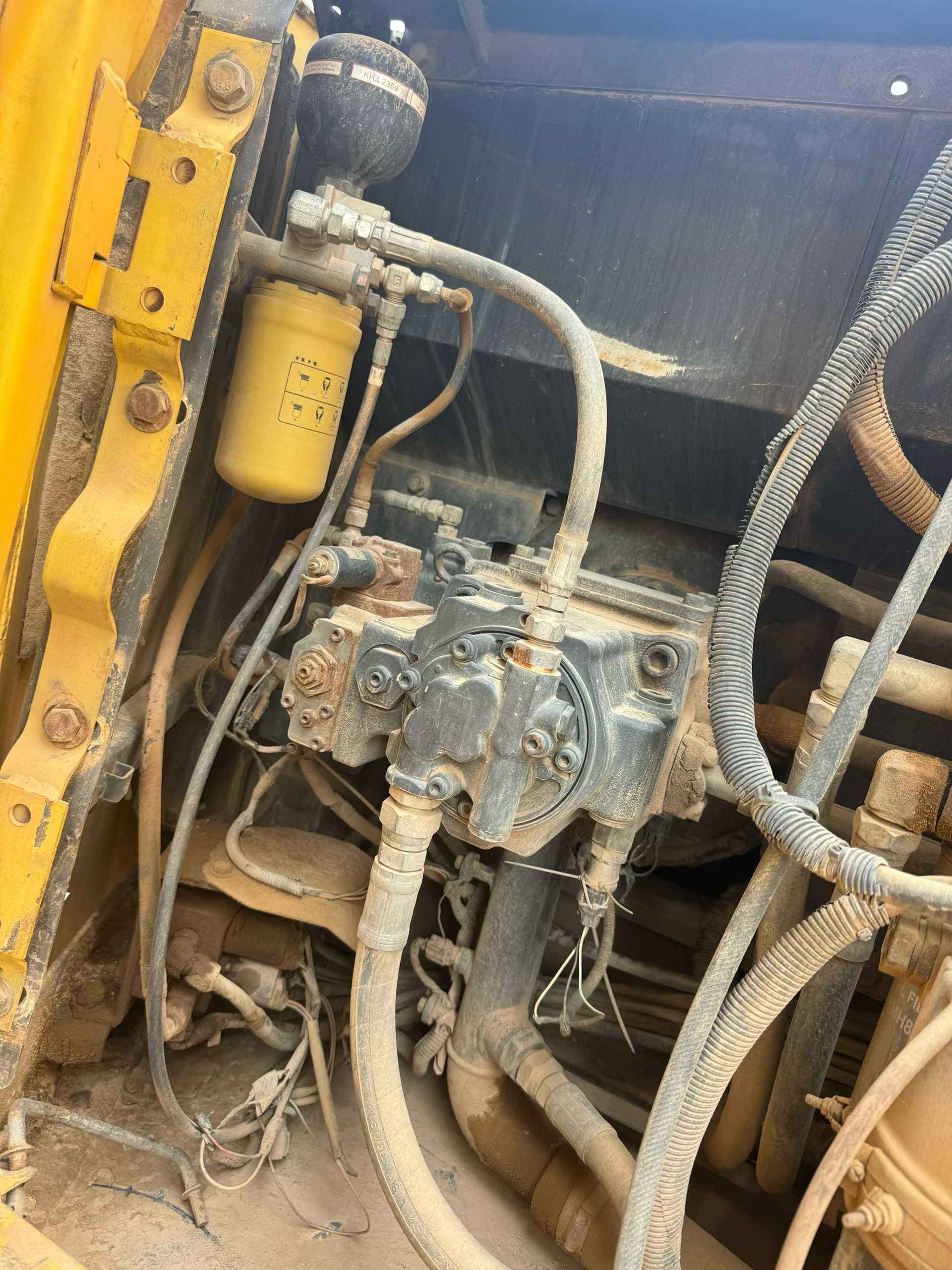

| Main pump type | Variable axial piston pump ×2+ gear pump |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2790 |
| Full cab height (mm) | 2790 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2790 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4950 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
