| Specifications | Value |
|---|---|
| No. | 966357 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4630 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 70.9//2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 14.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 3.4/5.6 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 82 |
| Hydraulic System (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 2820 |
| Full cab height (mm) | 2820 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 8320 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8780 |
| Maximum unloading height (mm) | 6380 |
| Maximum vertical digging depth (mm) | 4960 |
Description

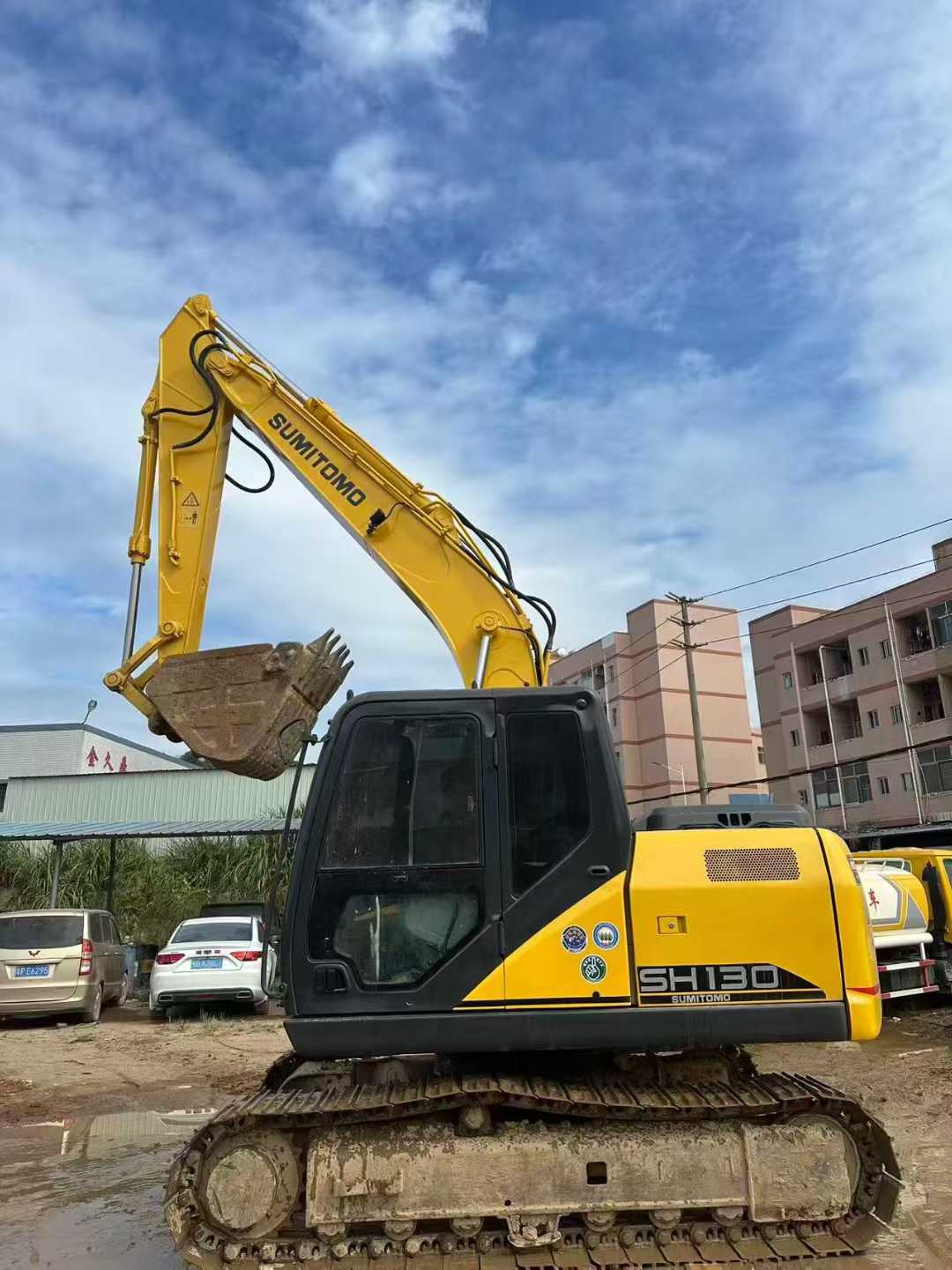

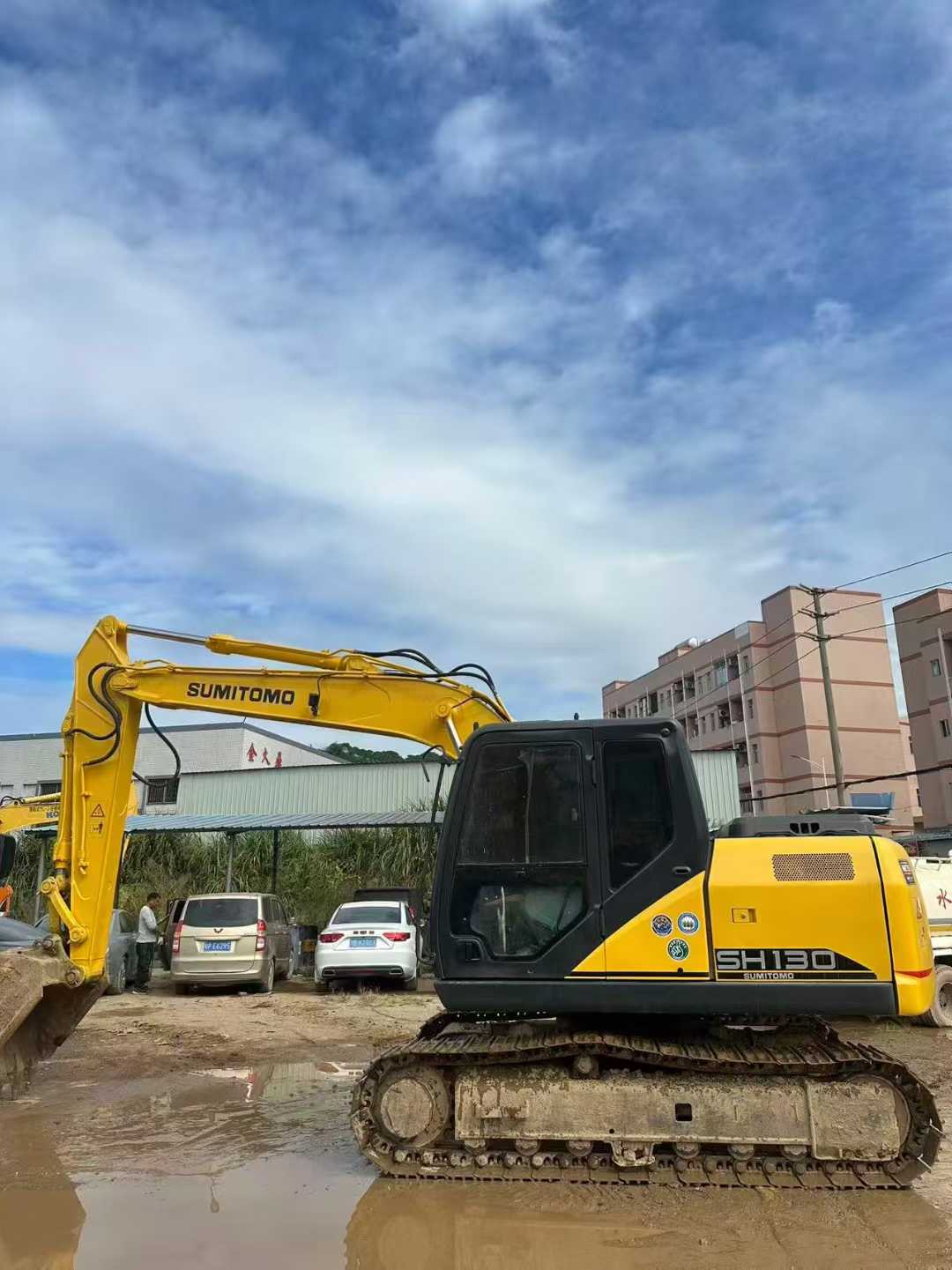

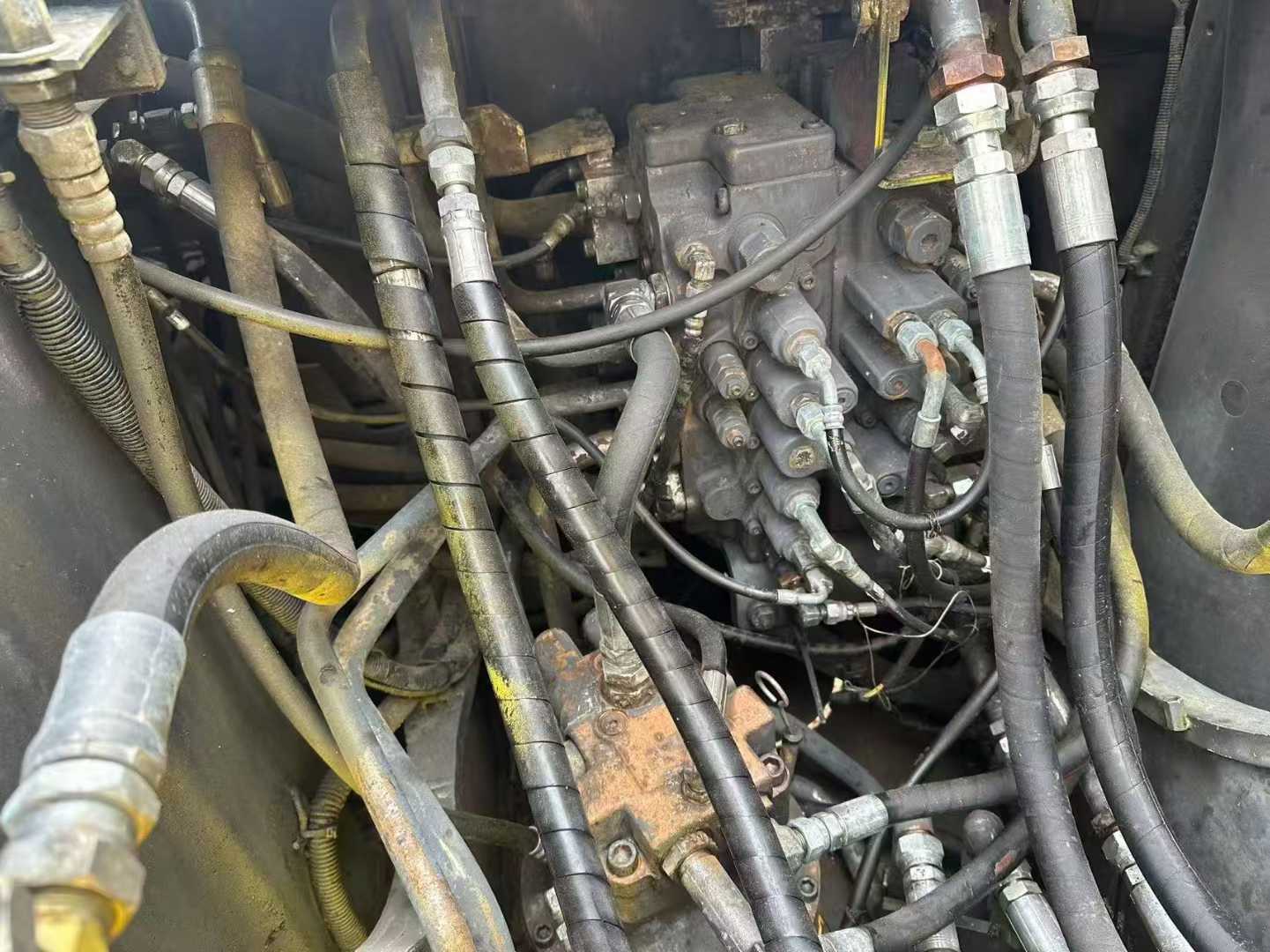

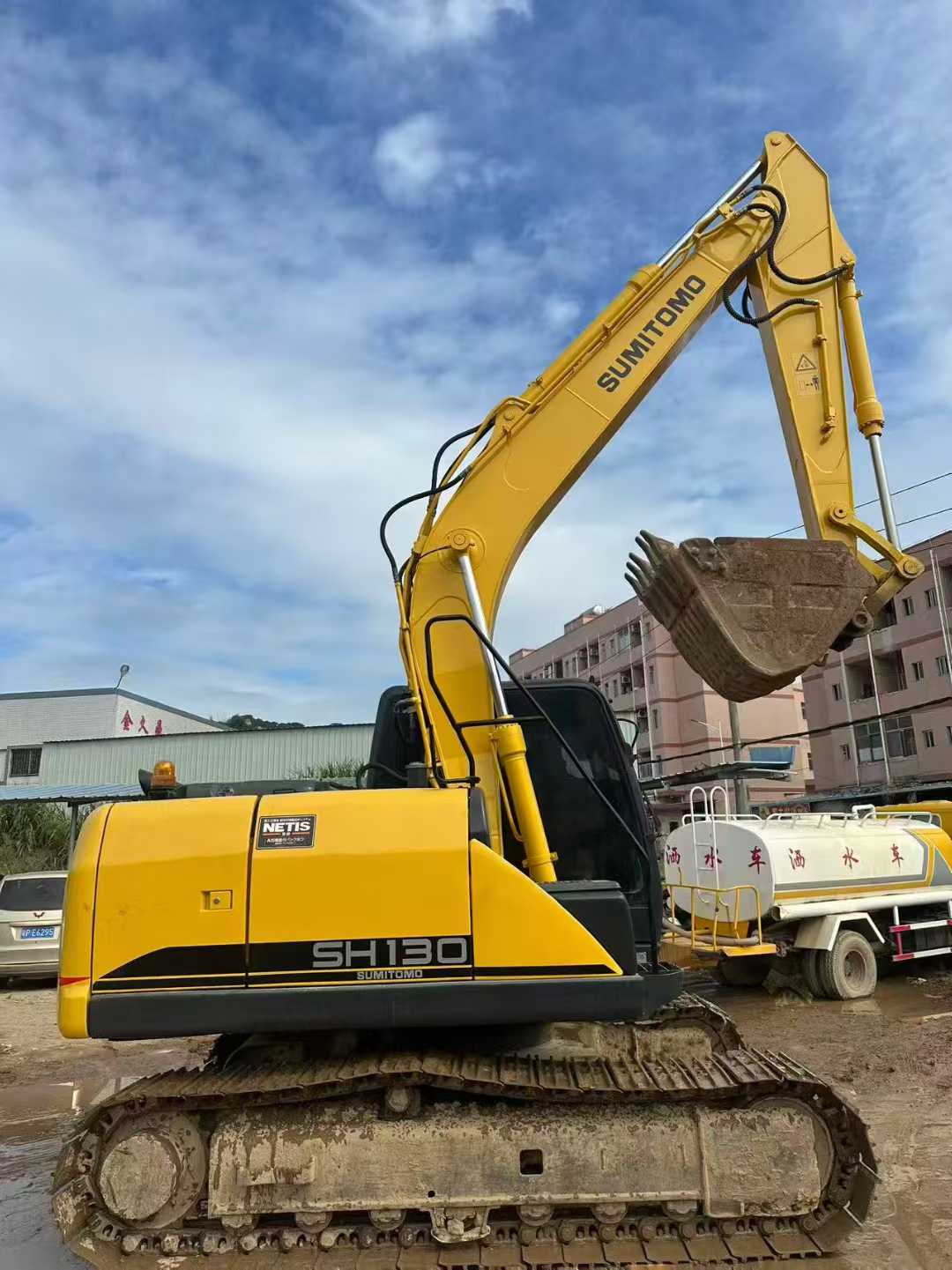

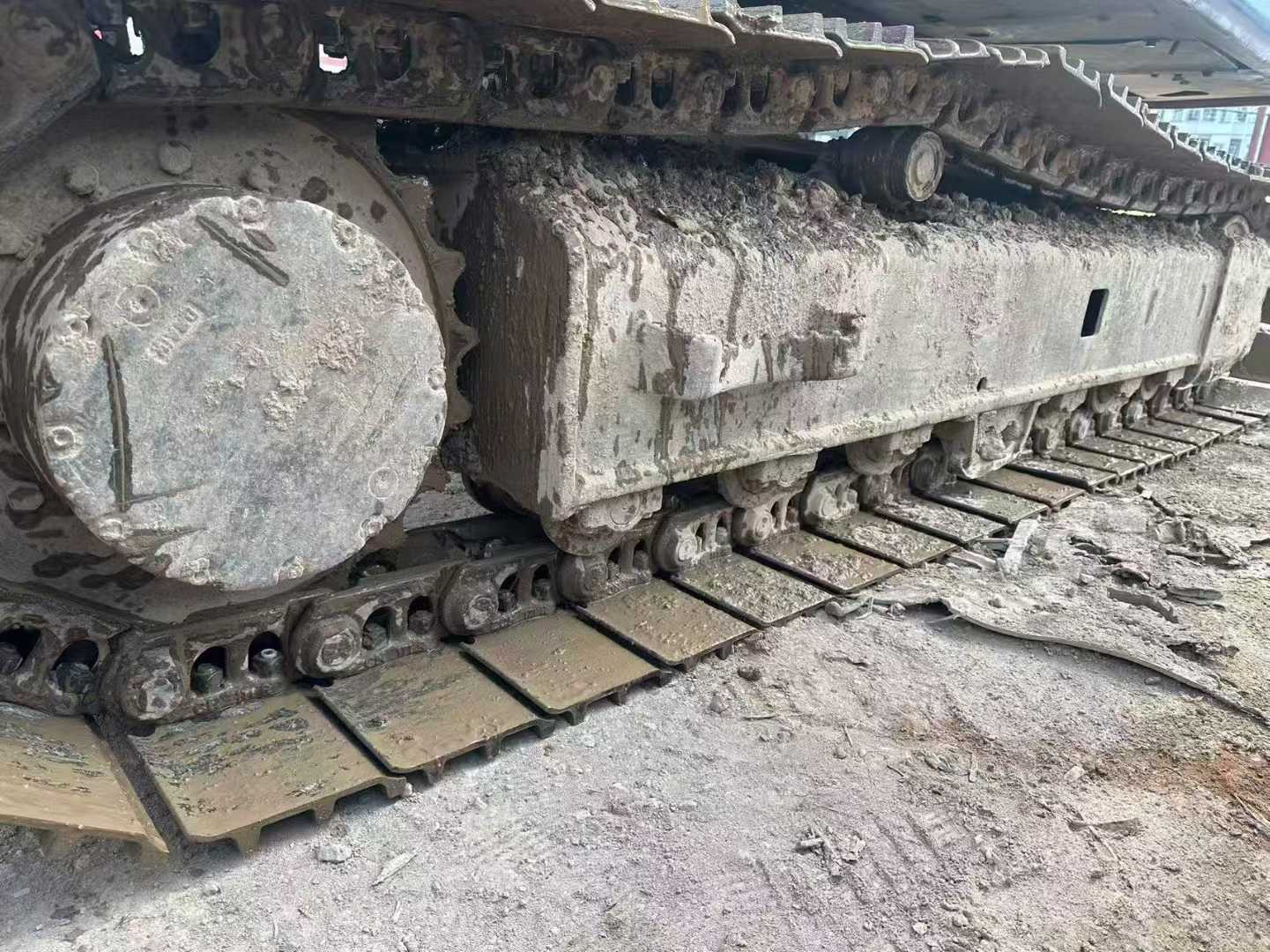

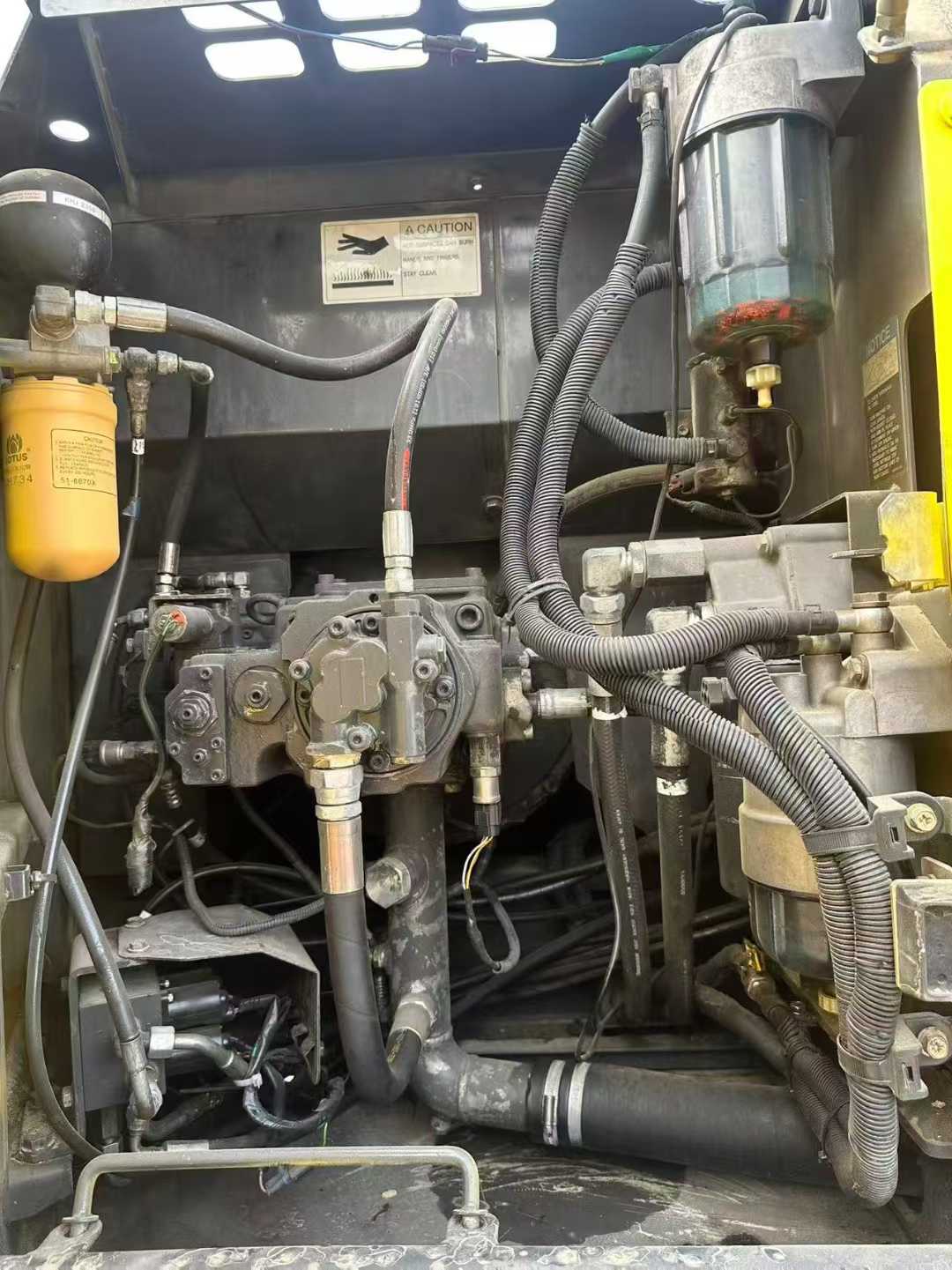

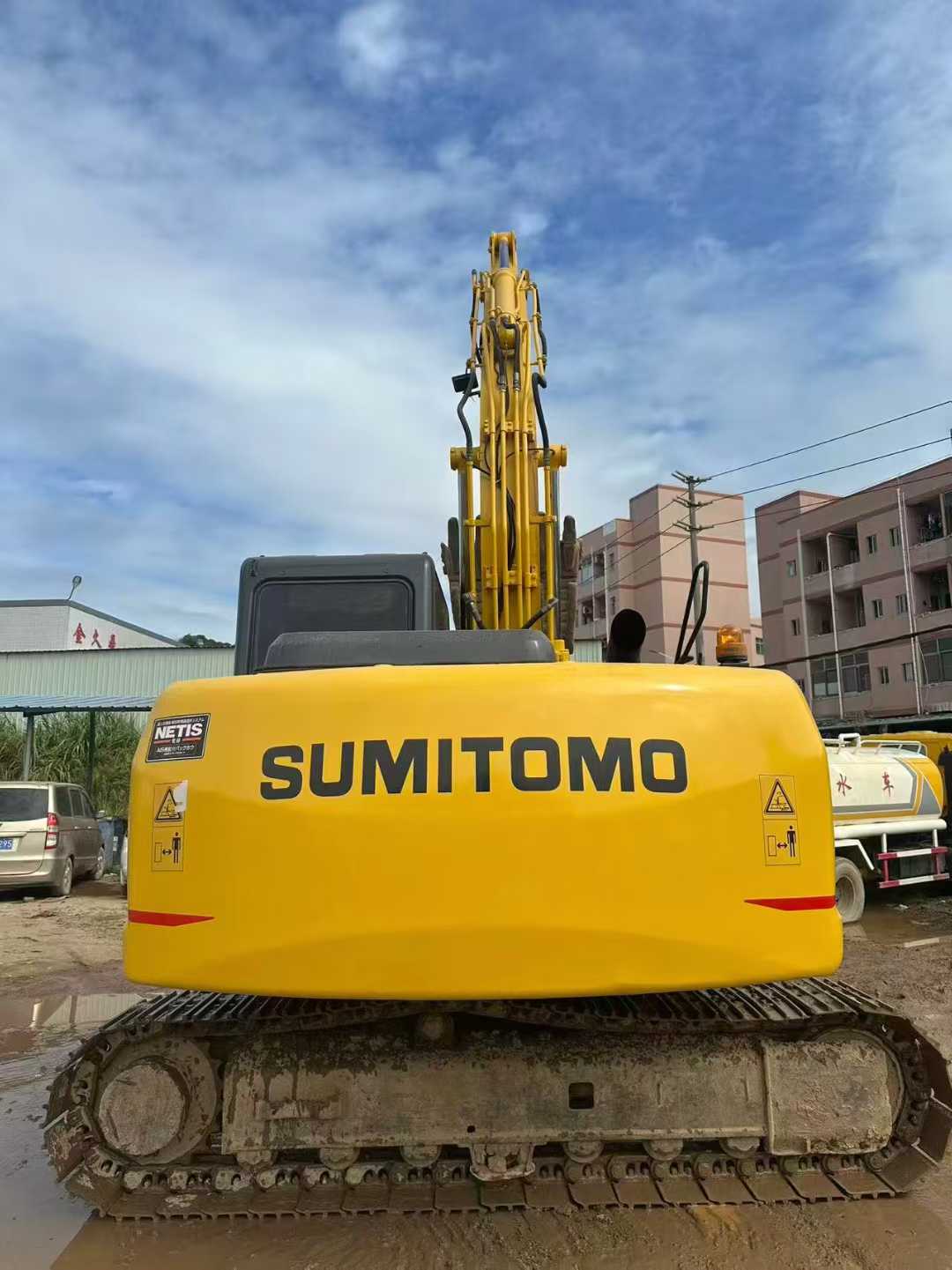

【 Premium Recommendation 】 The top-quality Sumitomo SH130-5 excavator from 2014, with outstanding quality and stable performance, is your reliable assistant for engineering operations. Since its manufacture in 2014, this machine has accumulated a total working time of only 3,000 hours. With proper maintenance, the machine condition is exempt from inspection. It is definitely worth more than its price! "Power System This excavator is equipped with an original imported Sumitomo engine, which is powerful and has excellent fuel economy. It can maintain efficient operation even under complex working conditions. The engine has undergone professional inspection and maintenance to ensure there are no potential faults, allowing you to use it without worries. "Hydraulic System By adopting advanced negative flow control technology, the operation becomes more precise and smooth, with a rapid and sensitive response. The hydraulic pump and pipelines are all in good condition, with no leakage observed. The entire system operates smoothly and reliably, significantly enhancing work efficiency. "Chassis condition The chassis is 90% new with almost no signs of wear and tear. The walking mechanism is sturdy and durable, and the track plates are intact.
