| Specifications | Value |
|---|---|
| No. | 970180 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12700 |
| Bucket capacity (m³) | 0.5-0.55 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 70.9/2000 |
| Displacement (L) | 2.999 |
| Rotation speed (rpm) | 14.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 91 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 5.6/3.4 |
| Main overflow set pressure (Mpa) | 34.3/36.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/36.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 82 |
| Hydraulic System (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2820 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4590 |
Description

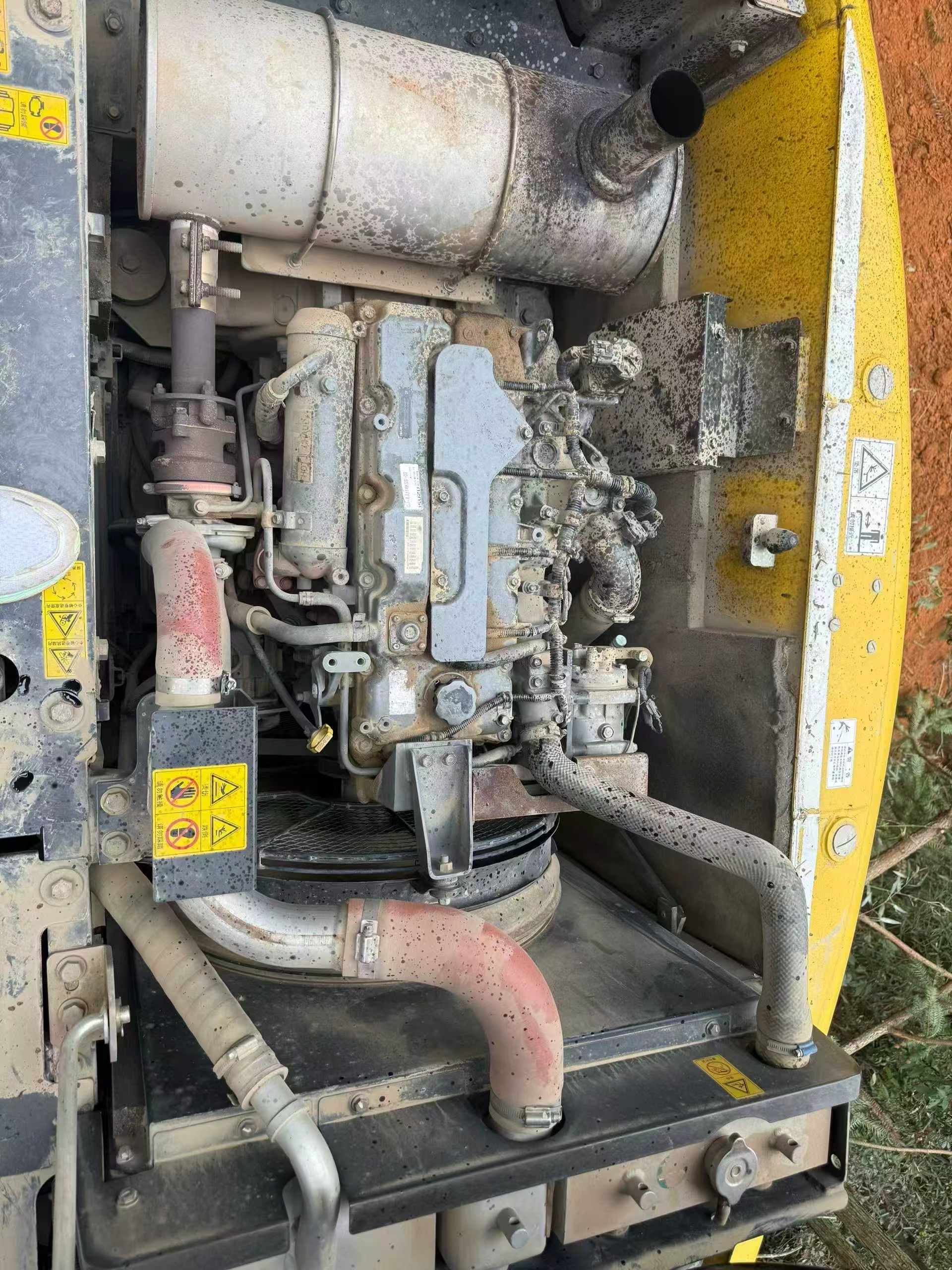

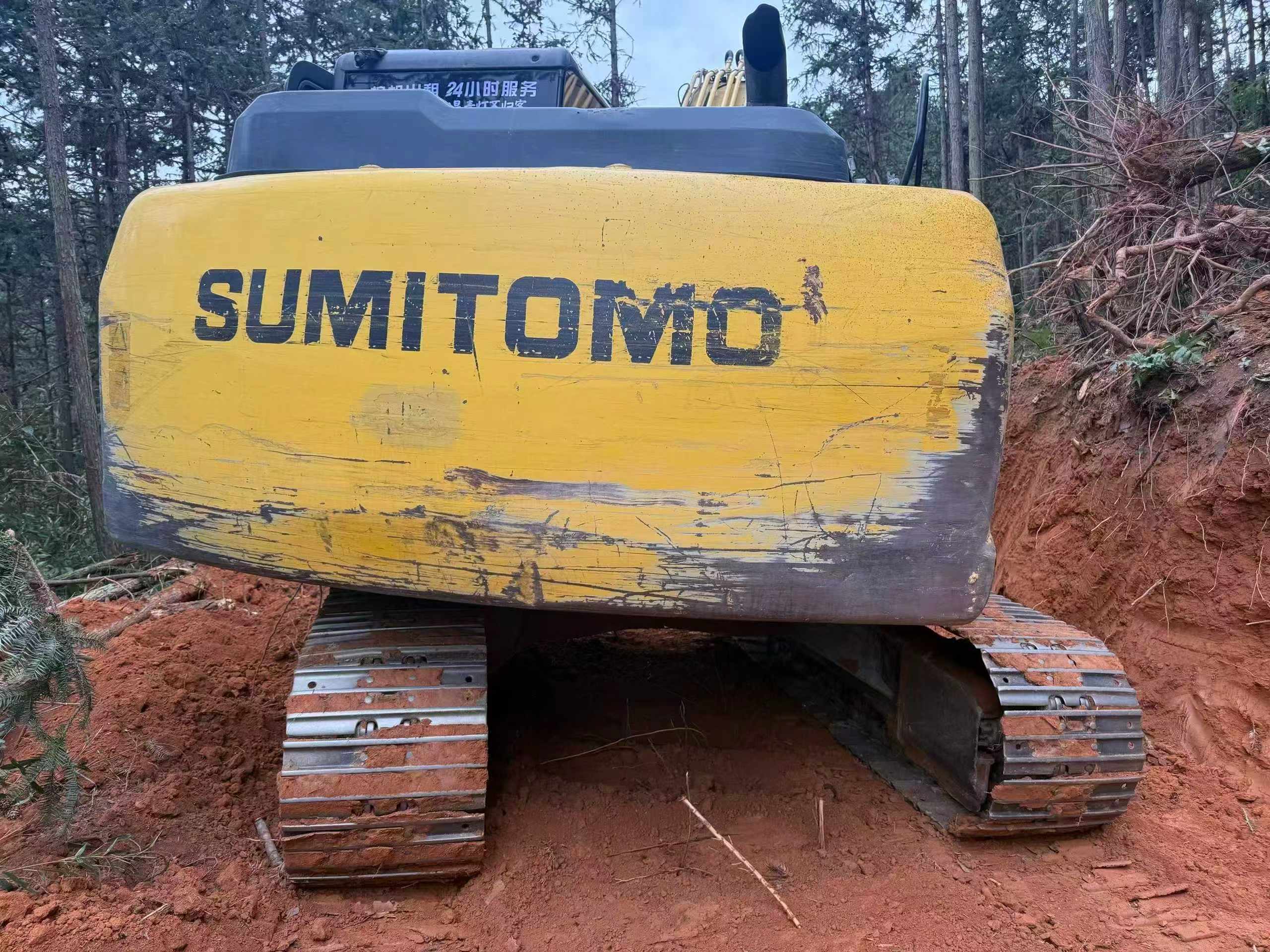

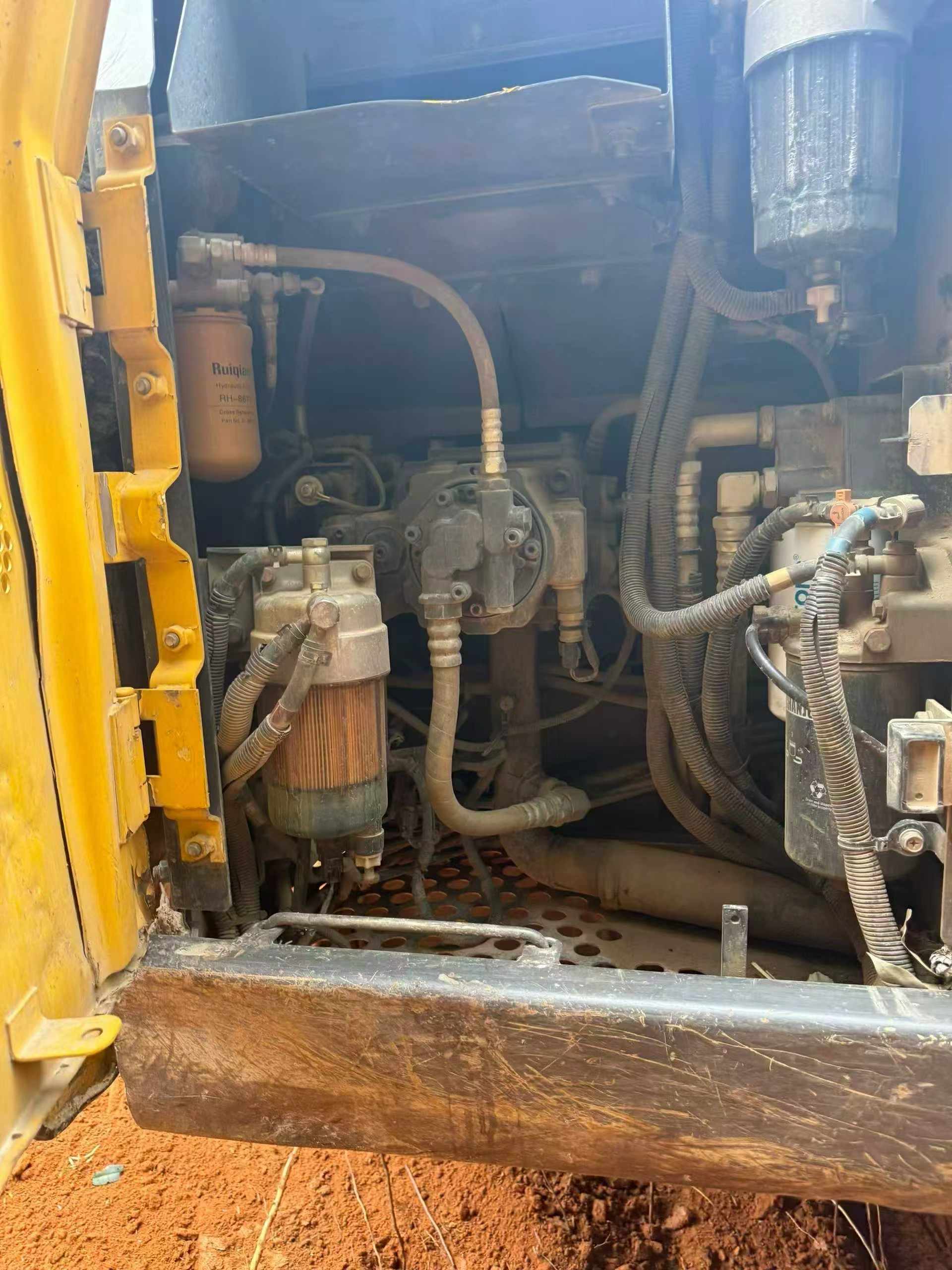

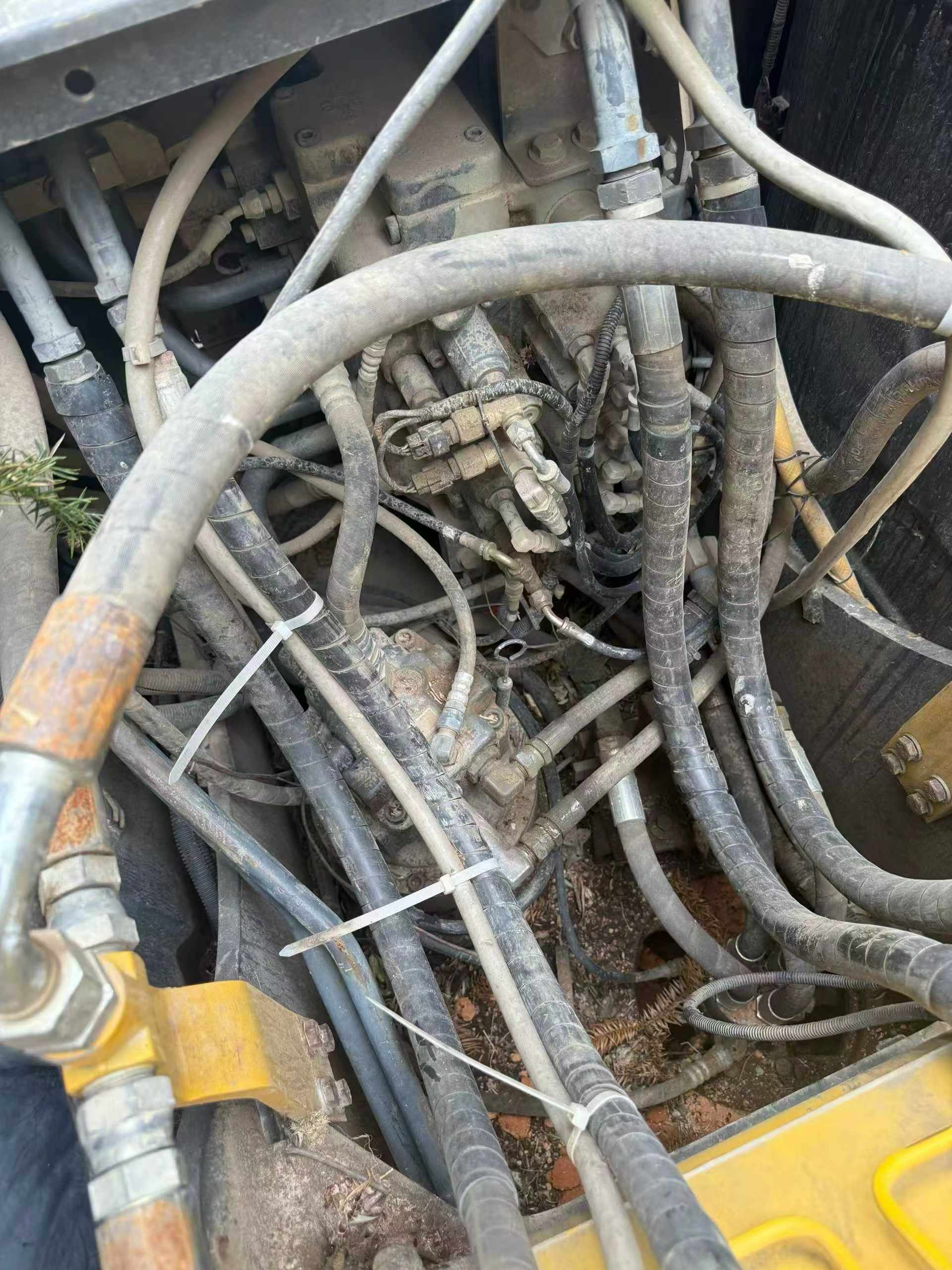

Sure. The following is a detailed description of this second-hand Sumitomo 130-6 excavator: --- Sumitomo SH130-6 excavator (2016) This Sumitomo SH130-6 excavator from 2016 is a highly praised medium-sized excavator in the market. Its working time is only 5,000 hours. For a machine that has been in use for seven years, this working duration is very ideal, indicating that it has received good maintenance and care. "Power System: This excavator is equipped with a high-performance Isuzu engine, which features excellent fuel efficiency and reliability. The engine operates smoothly with low noise, providing strong power output and ensuring efficient operation under various working conditions. "Hydraulic system: Sumitomo SH130-6 adopts an advanced hydraulic system, equipped with highly efficient hydraulic pumps and control valves. This design not only enhances the digging force and operational accuracy, but also significantly reduces energy loss, enabling the machine to maintain stable performance even during long-term operation. In addition, the hydraulic system has a fast response speed and flexible operation, making it suitable for various complex terrains and operational requirements. ** Advantage: ** 1. ** Minimum working hours **
