2019 Sumitomo SH180LC-6

1/9

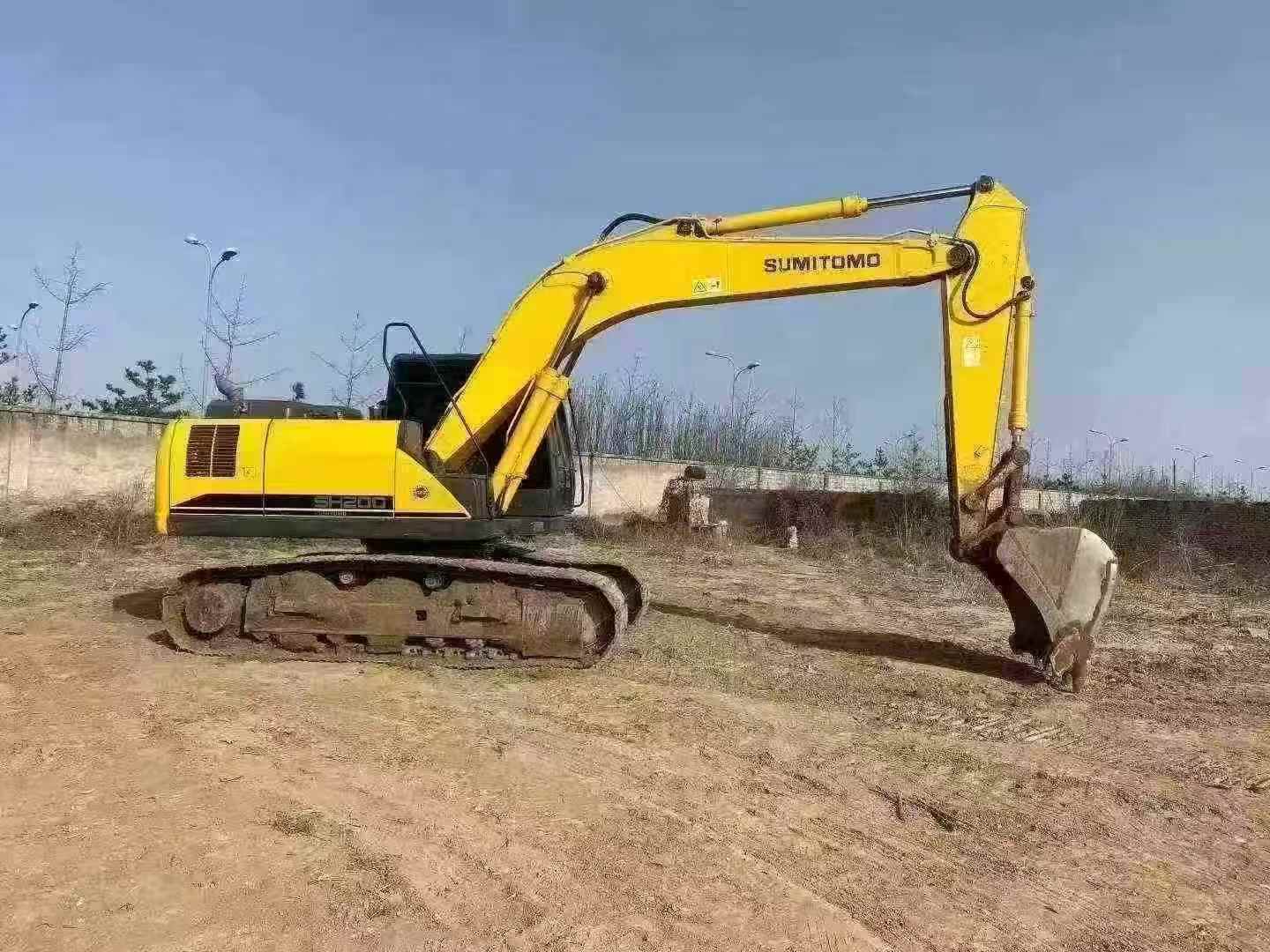

Used Sumitomo SH180LC-6 Excavator 2019 Model / 1
Used Sumitomo SH180LC-6 Excavator 2019 Model / 2

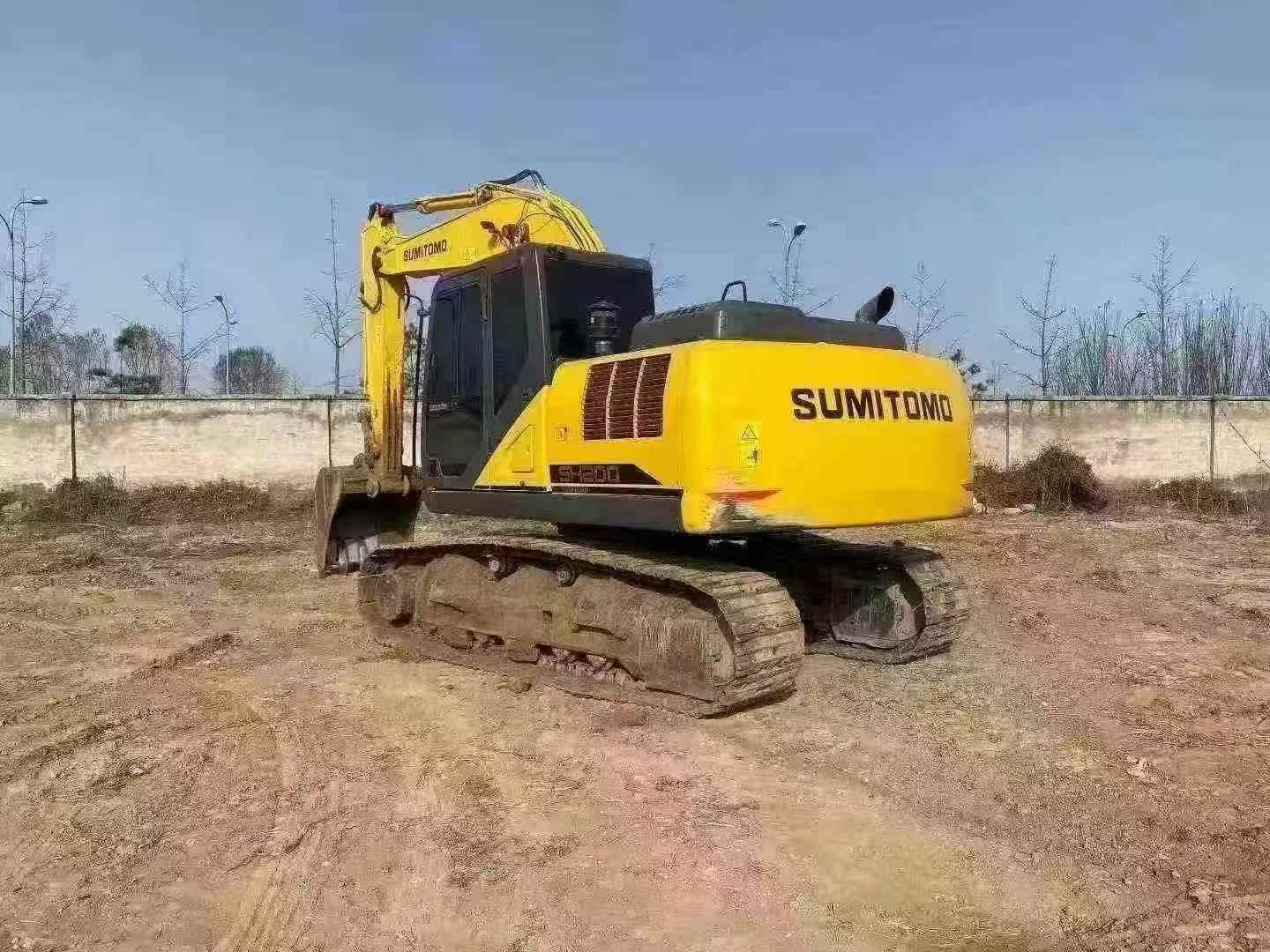

Used Sumitomo SH180LC-6 Excavator 2019 Model / 3
Used Sumitomo SH180LC-6 Excavator 2019 Model / 4
Used Sumitomo SH180LC-6 Excavator 2019 Model / 5

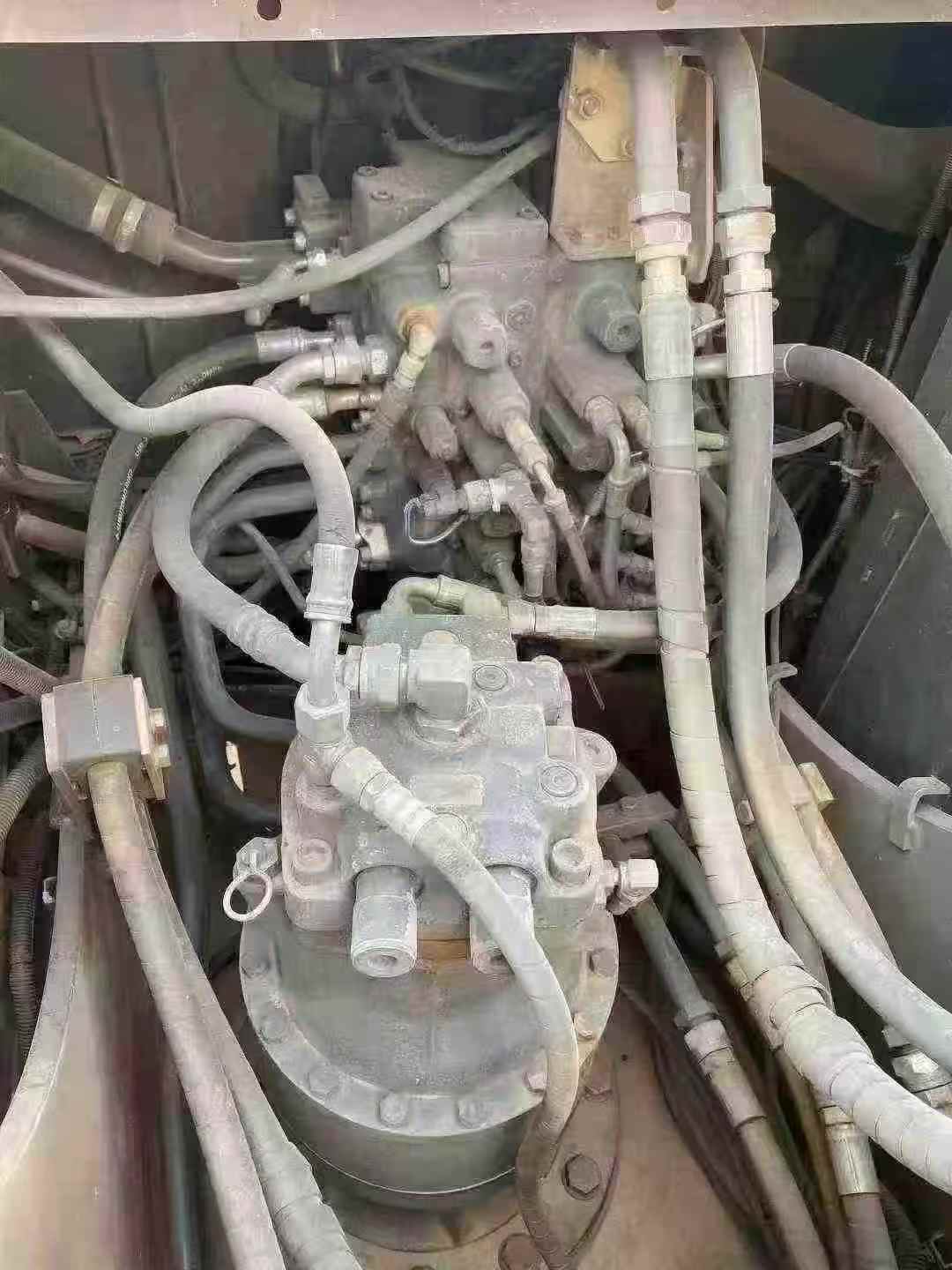

Used Sumitomo SH180LC-6 Excavator 2019 Model / 6

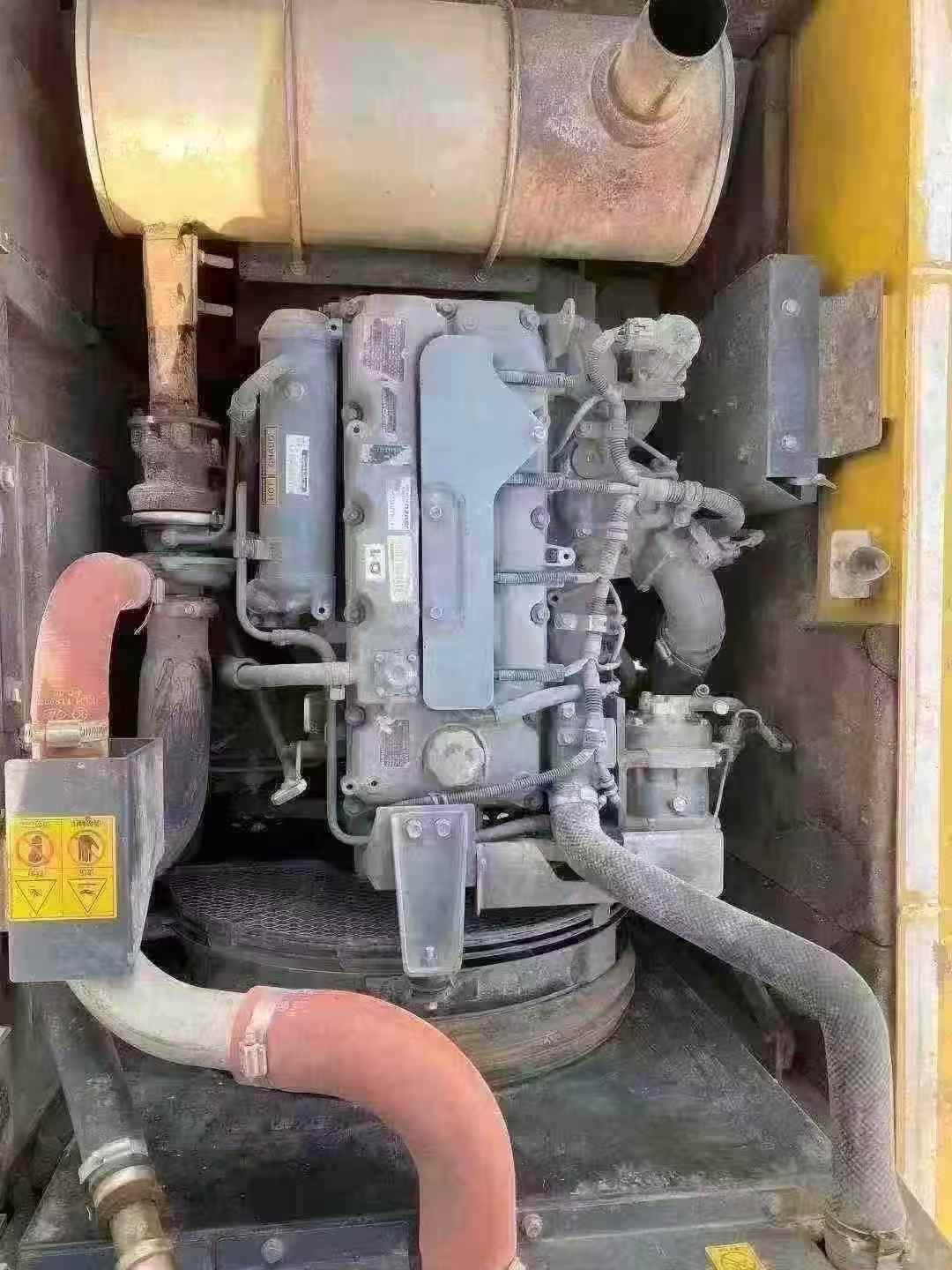

Used Sumitomo SH180LC-6 Excavator 2019 Model / 7

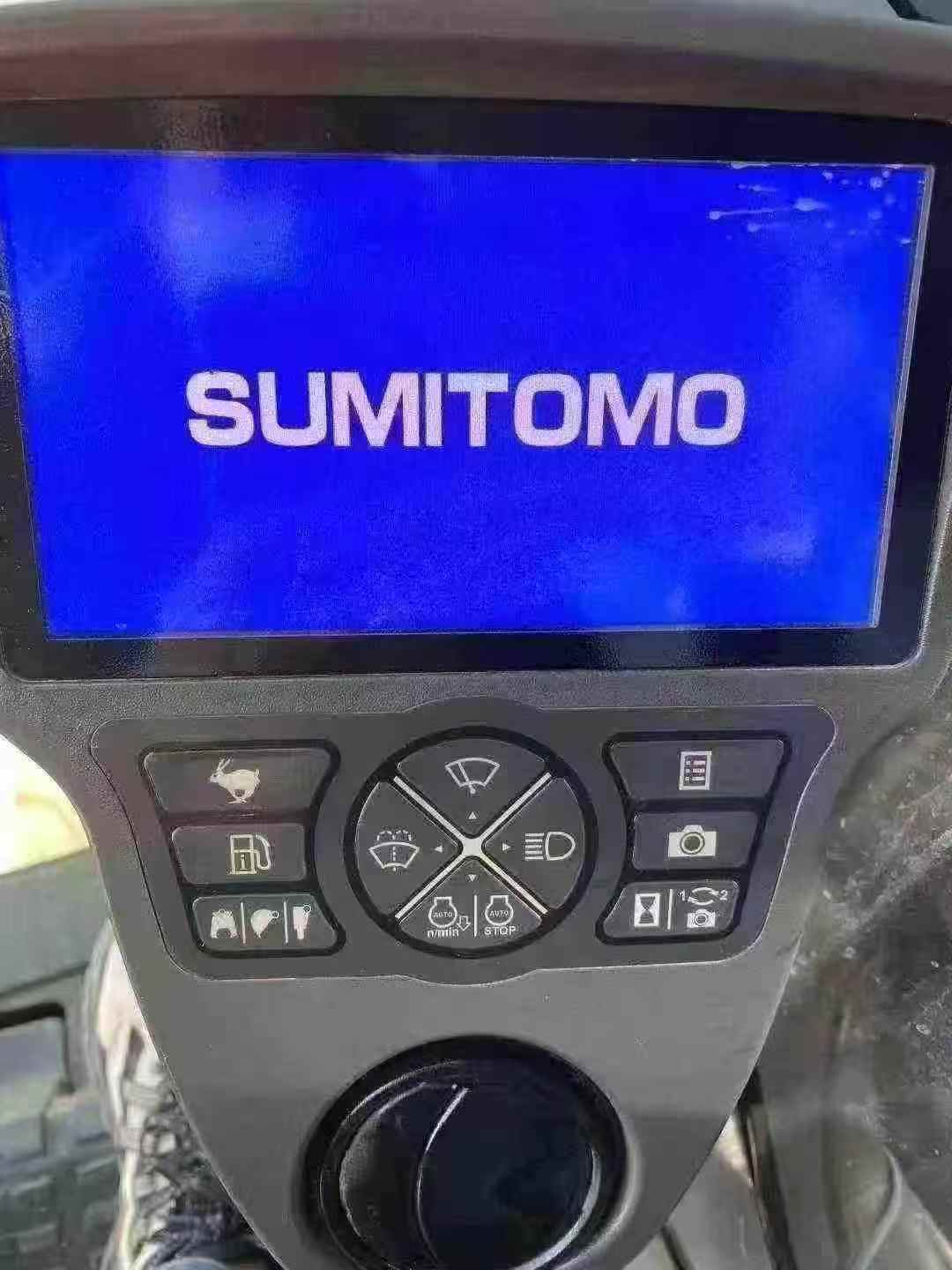

Used Sumitomo SH180LC-6 Excavator 2019 Model / 8

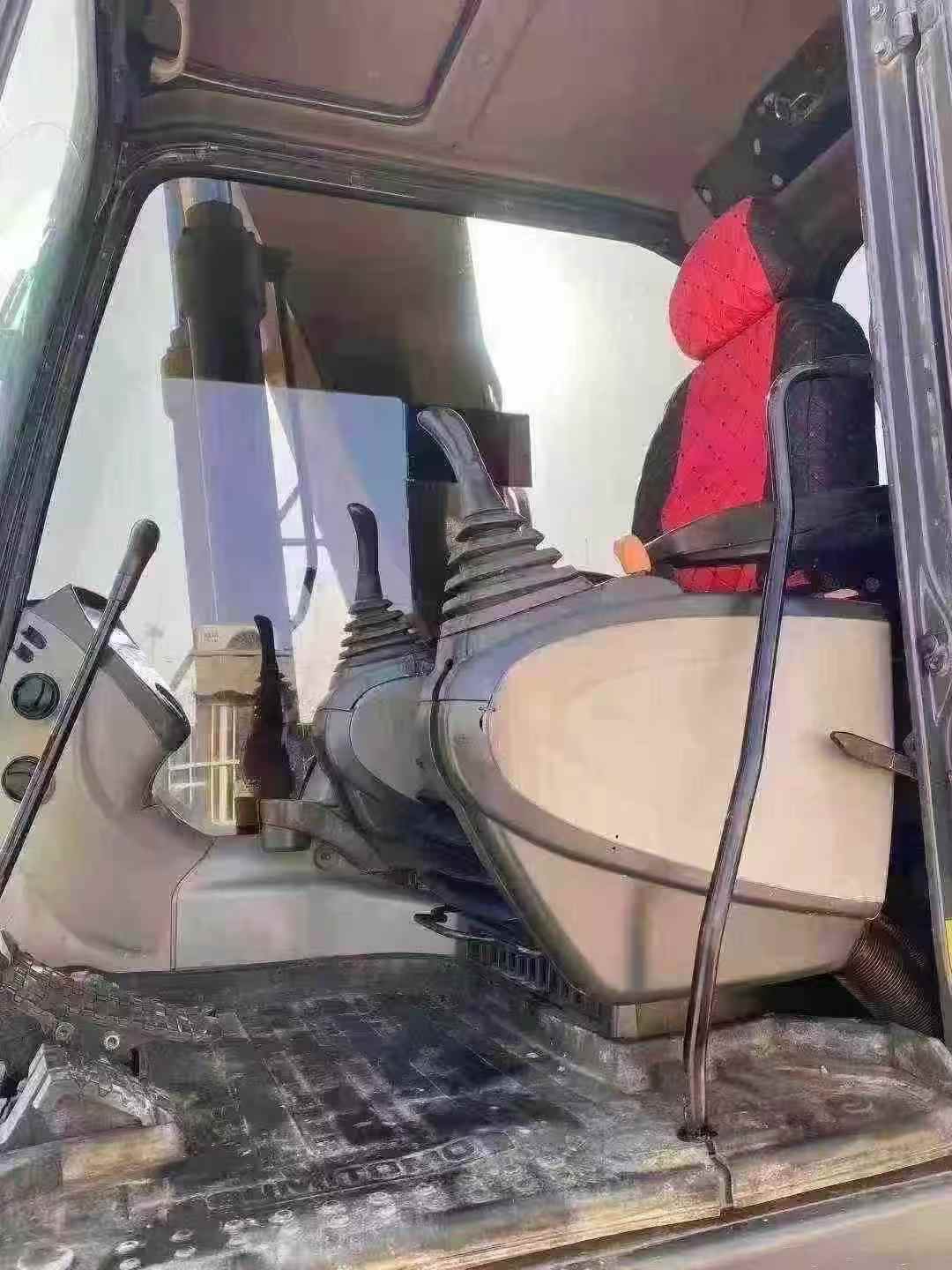

Used Sumitomo SH180LC-6 Excavator 2019 Model / 9

Product Description

【 Premium Recommendation 】 A second-hand Sumitomo SH180LC-6 excavator from 2019. This machine has only been used by one individual user from beginning to end and has never been transferred. It is well maintained. The current working hours are 4,500 hours and it is in the best usage condition. The overall appearance of the machine remains in good condition, with no obvious bumps or scratches. The original factory paint surface is still as bright as new. The major components have not undergone any disassembly or maintenance, ensuring its original stability and reliability. This excavator is equipped with an efficient Isuzu engine, which is powerful and has good fuel economy. It can handle both flat ground excavation and slope operations with ease. In addition, it is also equipped with an advanced hydraulic system, ensuring smooth and stable operation, rapid response, and significantly improving work efficiency. It is worth mentioning that this model pays special attention to detailed design, such as the original slat, which performs extremely well in actual work. Even in complex and changeable working conditions, it can maintain good stability and reduce the impact of vibration on the driver. To sum up, this is a second-hand Sumitomo S

SpecificationsValue
No.972261
Tonnage (tons)18
Working weight (kg)17700
Bucket capacity (m³)0.8
Boom length (mm)5150
Rod length (mm)2620
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)89.2 / 2200
Displacement (L)2.999
Ground specific pressure (Kpa)42
Rotation speed (rpm)11.4
Climbing ability (%)70 (35 °)
Bucket digging force (kN)
Rod digging force (kN)
Travel speed (km/h)5.2 / 2.7
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Working Hydraulic Circuit (Mpa)34.3 / 36.3
Fuel Tank (L)300
Hydraulic Tank (L)90
Hydraulic System (L)165
Total transport length (mm)8440
Total transport width (mm)2590
Total transport height (mm)2960
Full cab height (mm)2940
Counterweight ground clearance (mm)1020
Minimum ground clearance (mm)420
Minimum turning radius of front working device (mm)2990
Back end turning radius (mm)2450
Onboard width (mm)2540
Total track length (mm)3990
Track gauge (mm)1990
Track plate width (mm)600
Total track width (mm)2590
Track ground length (mm)3190
Maximum digging radius (mm)9080
Maximum digging depth (mm)6100
Maximum excavation height (mm)9270
Maximum unloading height (mm)6570
Maximum vertical digging depth (mm)5100
see more

Overview

No.972261

Brand Name:

Sumitomo

Model Number:

SH180LC-6

Year:

2019

Location:

Hebei China
