| Specifications | Value |
|---|---|
| No. | 965234 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
Description

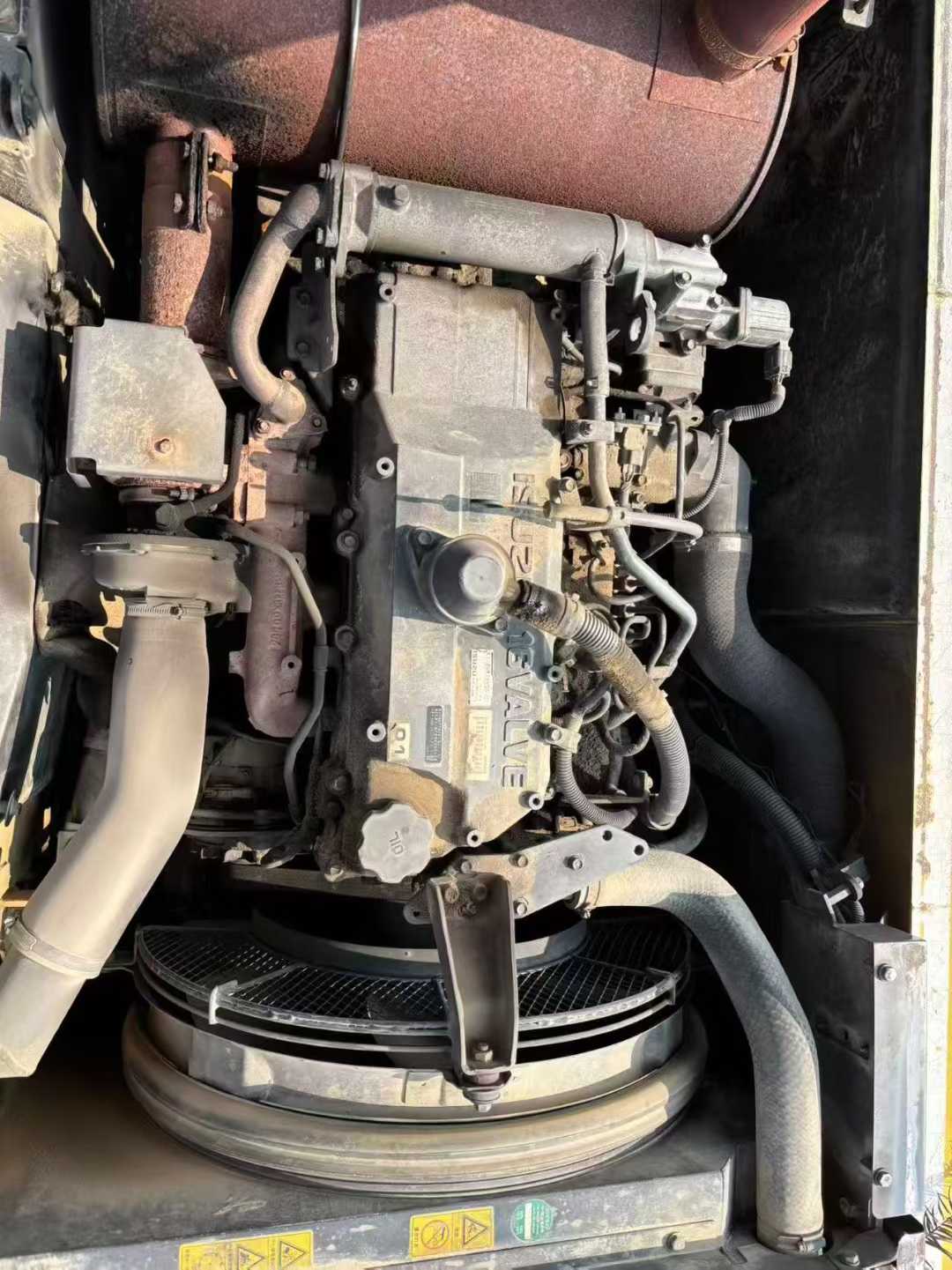

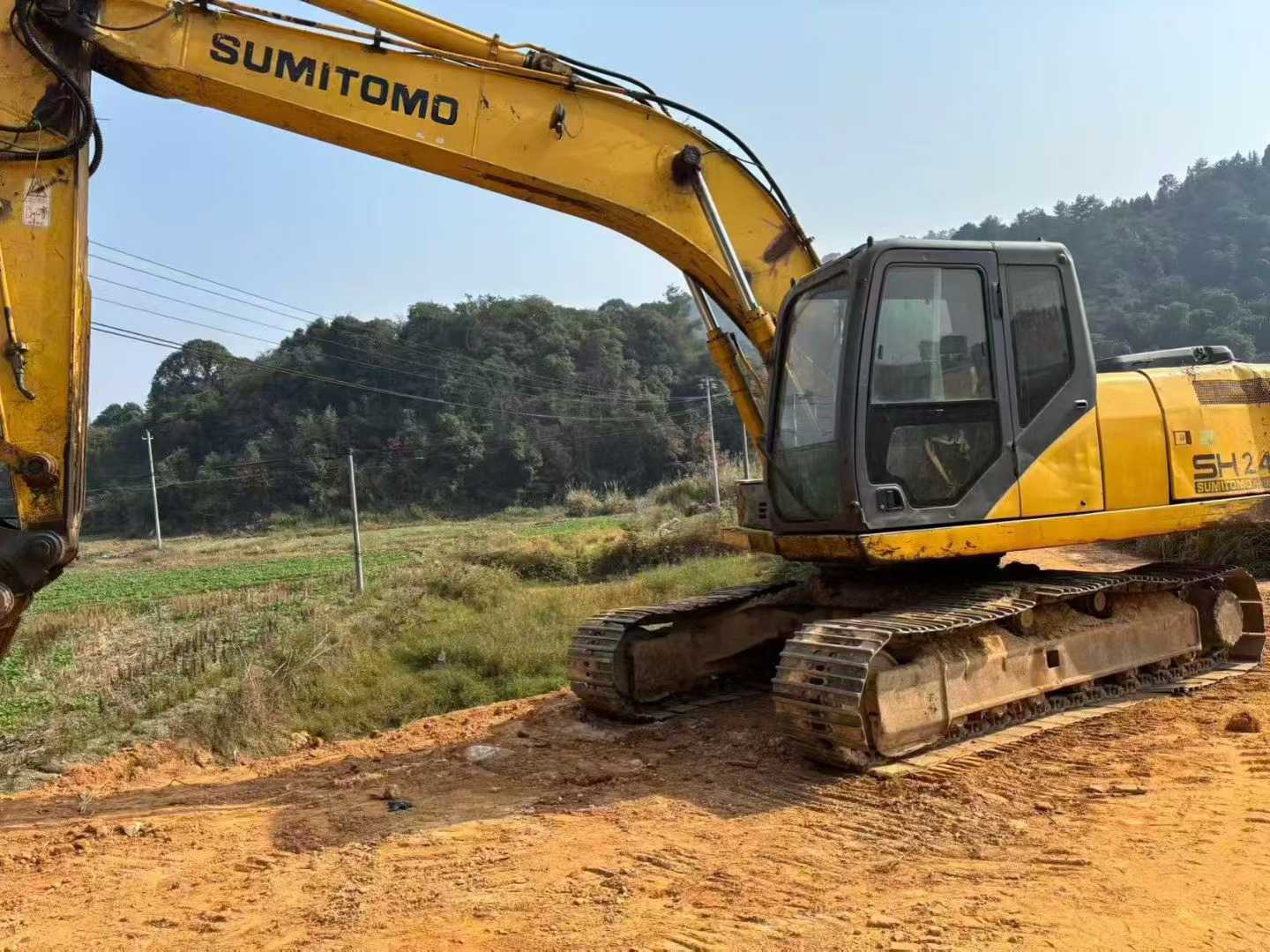

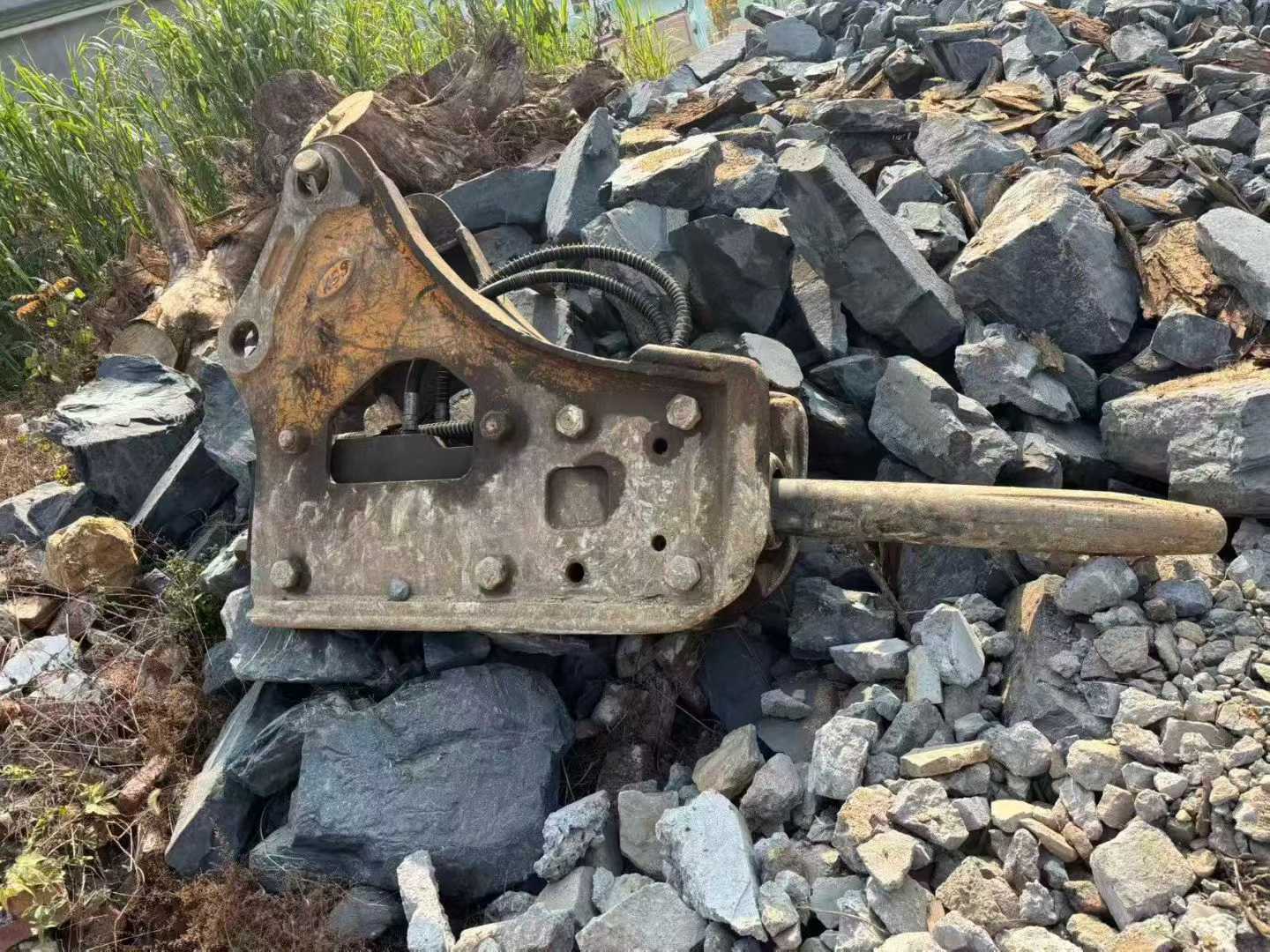

Detailed description of second-hand excavators We recommend to you a second-hand excavator with outstanding performance and extremely high cost performance - the 2011 Sumitomo SH210-5. This machine is not only equipped with a breaker but also has a good working condition. Its price is only 96,000 yuan. For users who need to work efficiently while also paying attention to cost control, this device is undoubtedly an ideal choice. 【 Basic Information - Brand: Sumitomo Model: SH210-5 - Production year: 2011 - Price: 96,000 RMB - Configuration highlights: Comes with a breaker 【 Working Hours The cumulative working time of this machine is approximately 7,000 hours. After professional inspection and maintenance, the overall mechanical condition is good and can meet the daily construction requirements. "Power System Equipped with a powerful and reliable Isuzu 4HK1-X engine, it can deliver a maximum power of 123kW (approximately 165 horsepower), making it capable of handling complex terrains or heavy tasks with ease. In addition, this engine features low fuel consumption and high efficiency, effectively reducing operating costs while ensuring powerful output. "Hydraulic System The adoption of an advanced negative flow control system ensure
