Sumitomo SH210-5

2020 Sumitomo SH210-5

1/9

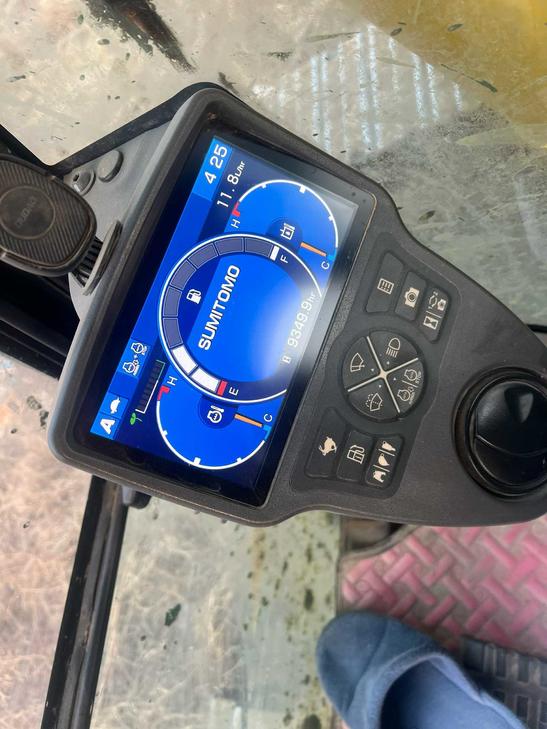

Used Sumitomo SH210-5 Excavator 2020 Model / 1
Used Sumitomo SH210-5 Excavator 2020 Model / 2

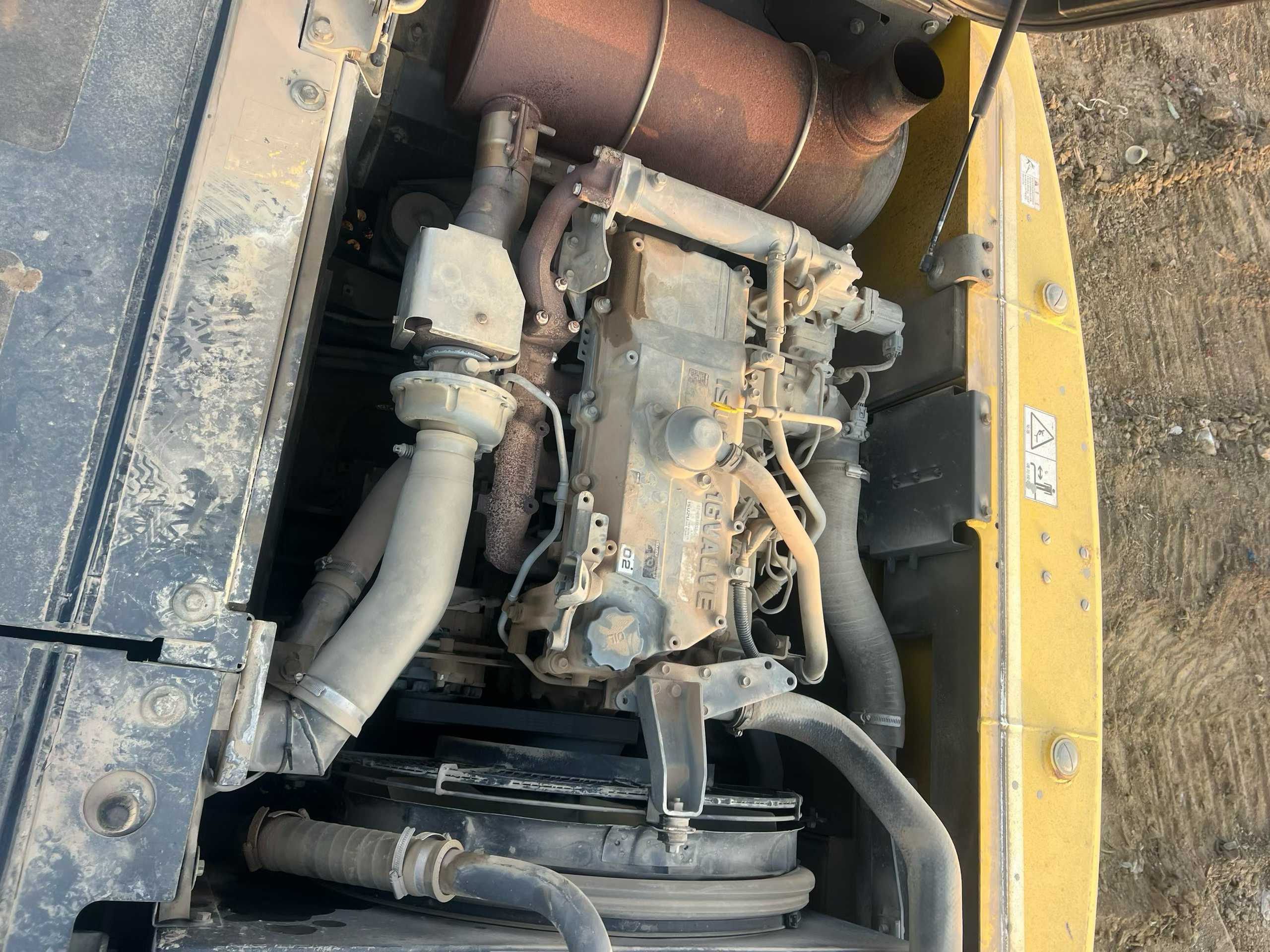

Used Sumitomo SH210-5 Excavator 2020 Model / 3

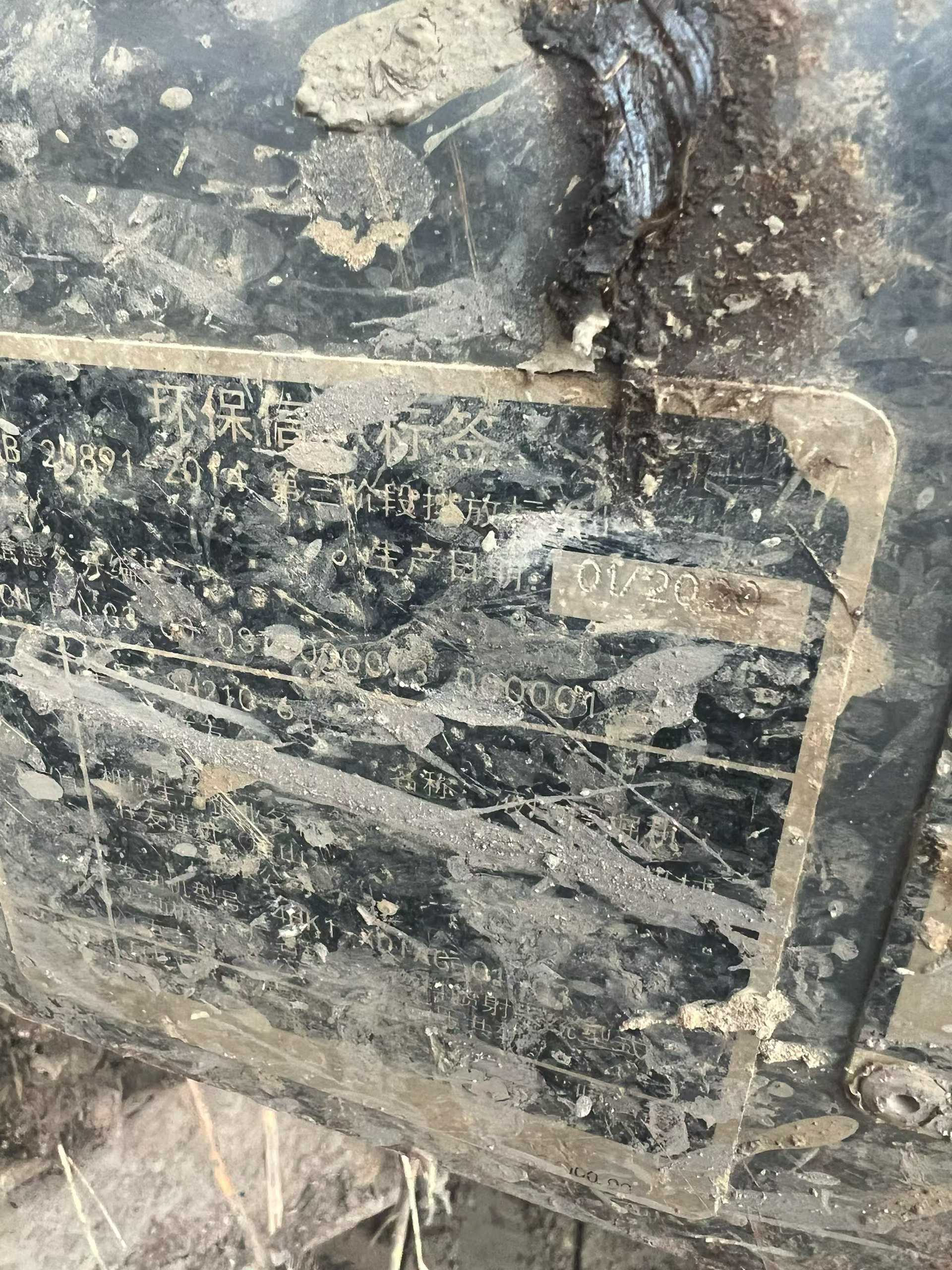

Used Sumitomo SH210-5 Excavator 2020 Model / 4
Used Sumitomo SH210-5 Excavator 2020 Model / 5
Used Sumitomo SH210-5 Excavator 2020 Model / 6

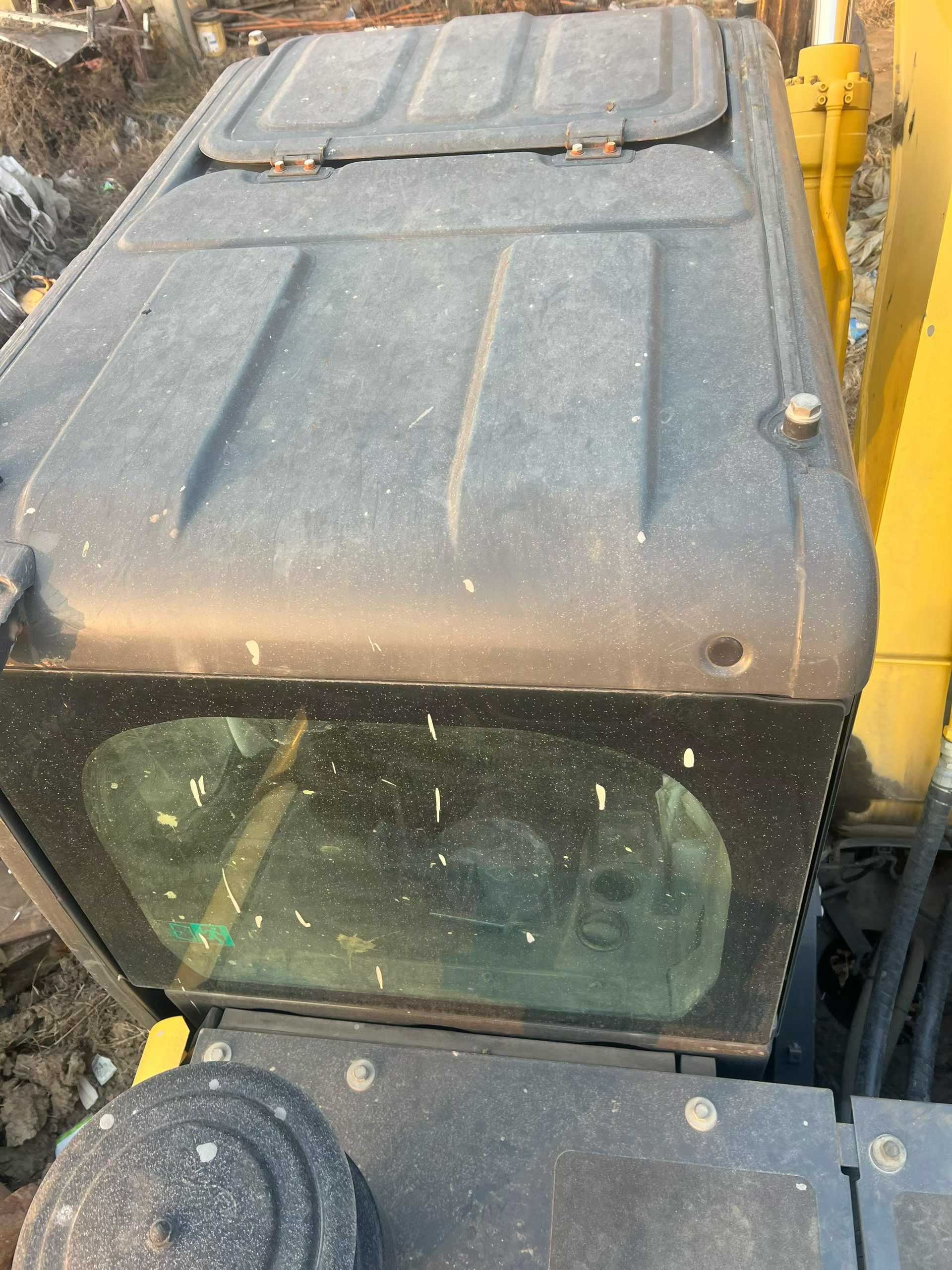

Used Sumitomo SH210-5 Excavator 2020 Model / 7
Used Sumitomo SH210-5 Excavator 2020 Model / 8
Used Sumitomo SH210-5 Excavator 2020 Model / 9
Product Description
SpecificationsValue
No.967824
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.9-1.0
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142
Rod digging force (kN)103
Travel speed (km/h)3.4/5.6
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1460
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
see more

Description

【 Sumitomo SH210-6 Second-hand excavator from 2020 】 We are delighted to recommend to you this second-hand Sumitomo SH210-6 excavator from 2020. It not only boasts outstanding performance but also maintains an excellent condition in both appearance and internal mechanical structure. This excavator has only been in operation for 3,500 hours since it left the factory. For a medium-sized excavator, such a usage period is very reasonable, indicating that its core components are still in good working condition. In terms of power, this aircraft is equipped with the well-tested Isuzu 4HK1X engine, which is renowned for its high efficiency and durability. It can provide strong power output while also offering excellent fuel economy. Whether facing complex construction environments or high-intensity tasks, it can handle them with ease, ensuring the best balance between operational efficiency and cost control. The hydraulic system is a major highlight of Sumitomo excavators. It adopts advanced CLSS (Closed Center Load Sensing) technology, ensuring rapid response and smooth operation. Even under variable working conditions, it can maintain stable and reliable performance. In addition, this model is also equipped with a variety of safety protec

Overview

No.967824

Brand Name:

Sumitomo

Model Number:

SH210-5

Year:

2020

Location:

Jiangsu China

Are you interested in this machine?

Please contact us

Why should you cooperate with us?

With over 7 years of experience in the construction machinery industry, you can say that we are professional practitioners in the machinery industry. Why cooperate with Global Used Excavator? Because we are only focused on the machinery industry. We have a large amount of first-hand equipment information. We contact direct sellers and there are no middlemen.

How do we work?

Tell us the brand, model, year, and operating hours of the equipment you need. Then we will start looking for the suitable equipment for you globally. It's as simple as that. Once we find the equipment that suits you, we will contact you and we can discuss any further steps.

Advantages when cooperating with us!

You can continue with your work without having to spend time and money traveling around and/or asking dealers and traders for quotes on your own. You don't need to visit multiple web portals to compare, evaluate, and find the mechanical equipment you need. We will do all of this for you! And jointly decide on any further steps.

Providing quality service for our customers!

We can offer a wide range of "additional" quality services. We can help you arrange equipment inspections, repairs, overhauls, painting, hydraulic pump and arm operations, and more.

Here are the ways you can purchase from Global Used Excavator!

Option 1: You can find a machine on our website and tell us which machine it is. We will contact the owner of the machine to obtain more information, pictures, and prices. We will send you a quotation and jointly decide on any further steps.
Option 2: We conduct a search for you. You tell us the brand, model, year, and maximum hours of the machine you need, and we will start serving you. We will send you a quotation and jointly decide on any further steps.
