| Specifications | Value |
|---|---|
| No. | 970518 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
Description

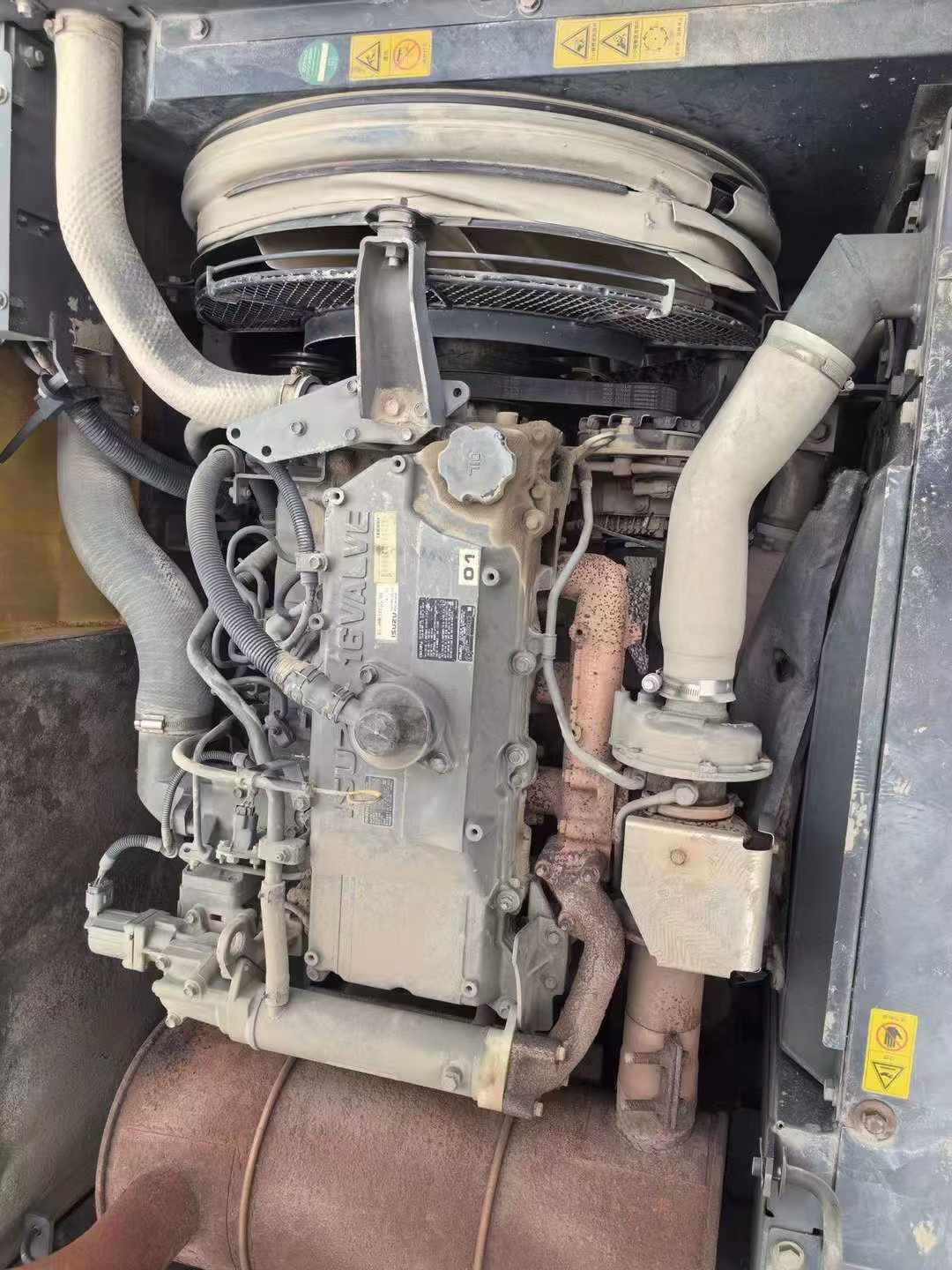

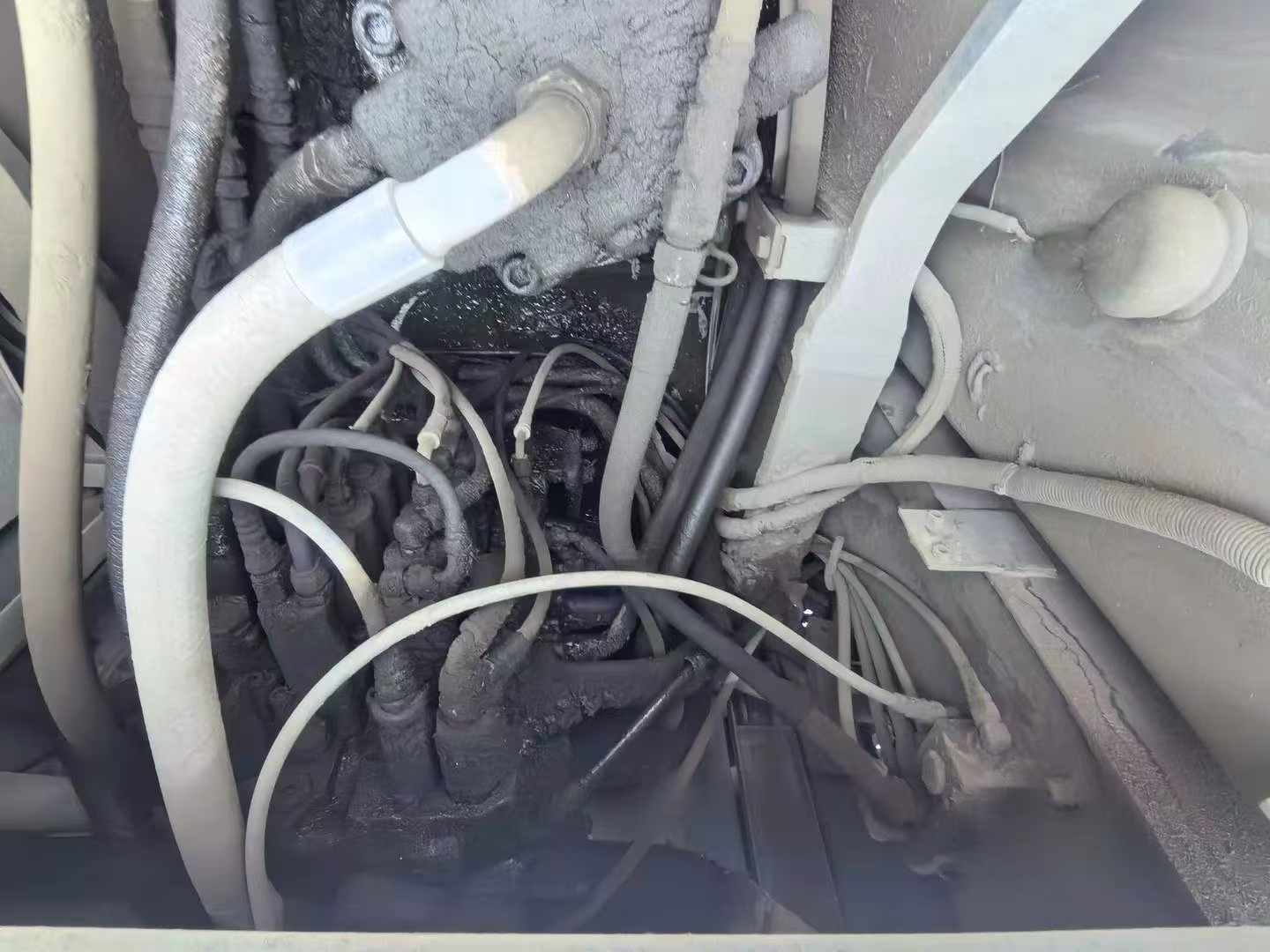

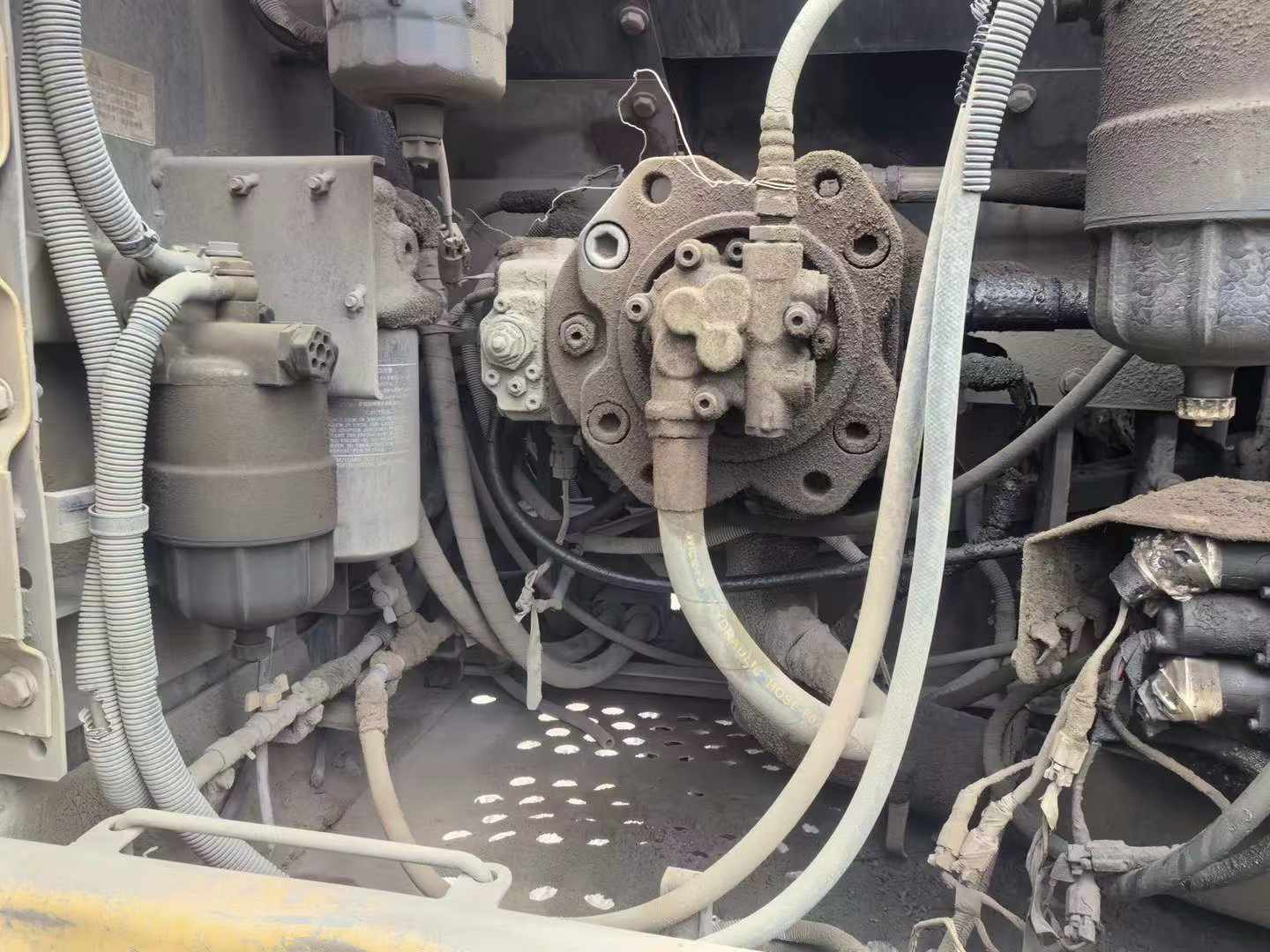

【 Premium Recommendation 】 Second-hand Sumitomo SH210-5 excavator from 2015, now priced at just over 100,000 yuan! This equipment is not only affordable but also has excellent performance, making it an ideal choice for your construction site. This excavator has a moderate working time, with a total working hour of approximately 4,000 hours. This means it still has a long service life and can create more value for you. In terms of the power system, this machine is equipped with an efficient and energy-saving engine, ensuring strong power output and excellent fuel economy. Even in harsh working environments, it can maintain a stable and reliable operating state. In addition, after meticulous maintenance and upkeep by professional technicians, the engine is in good condition, starts quickly, has low noise and minimal vibration, significantly enhancing the operational comfort. The hydraulic system is designed with advanced technology, featuring sensitive response and smooth operation. Both the digging force and control accuracy have reached the leading level in the industry. Meanwhile, the hydraulic oil circuit is clean and free of impurities, and key components such as pumps and valves are all in the best working condition, ensuring sta
