Product Description

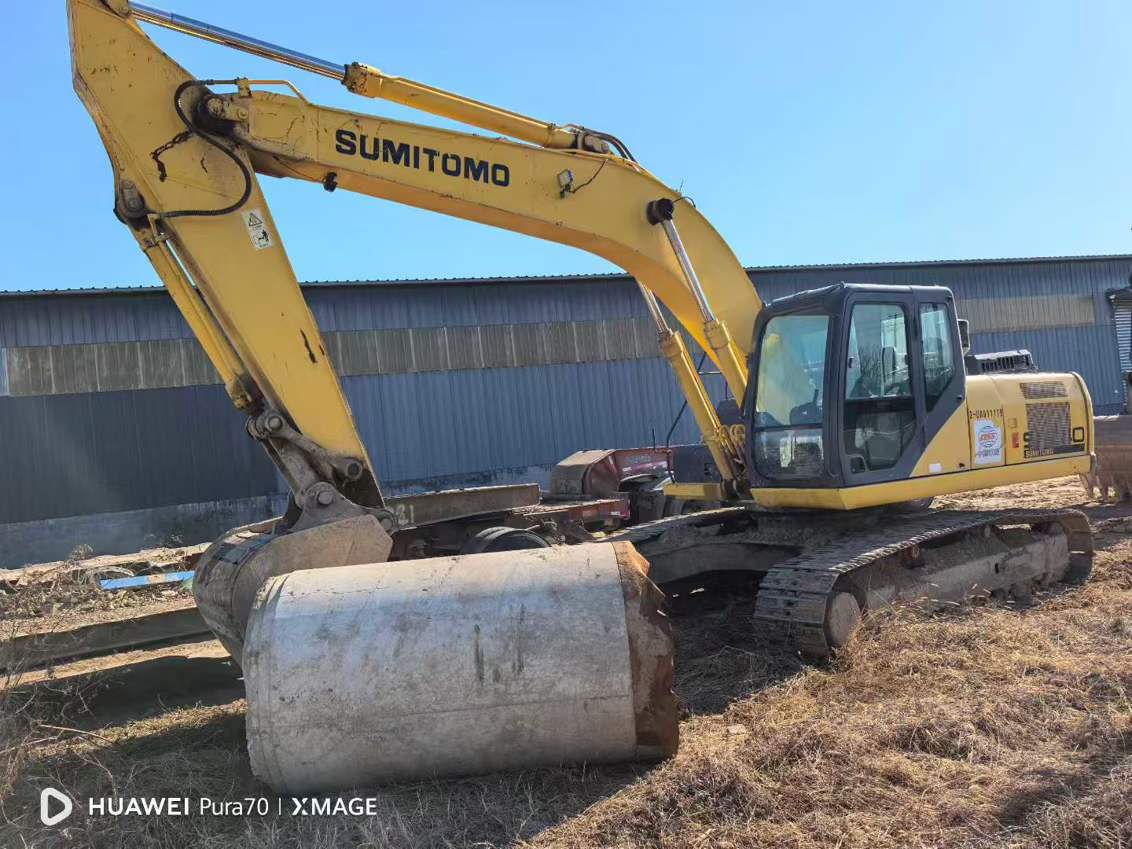

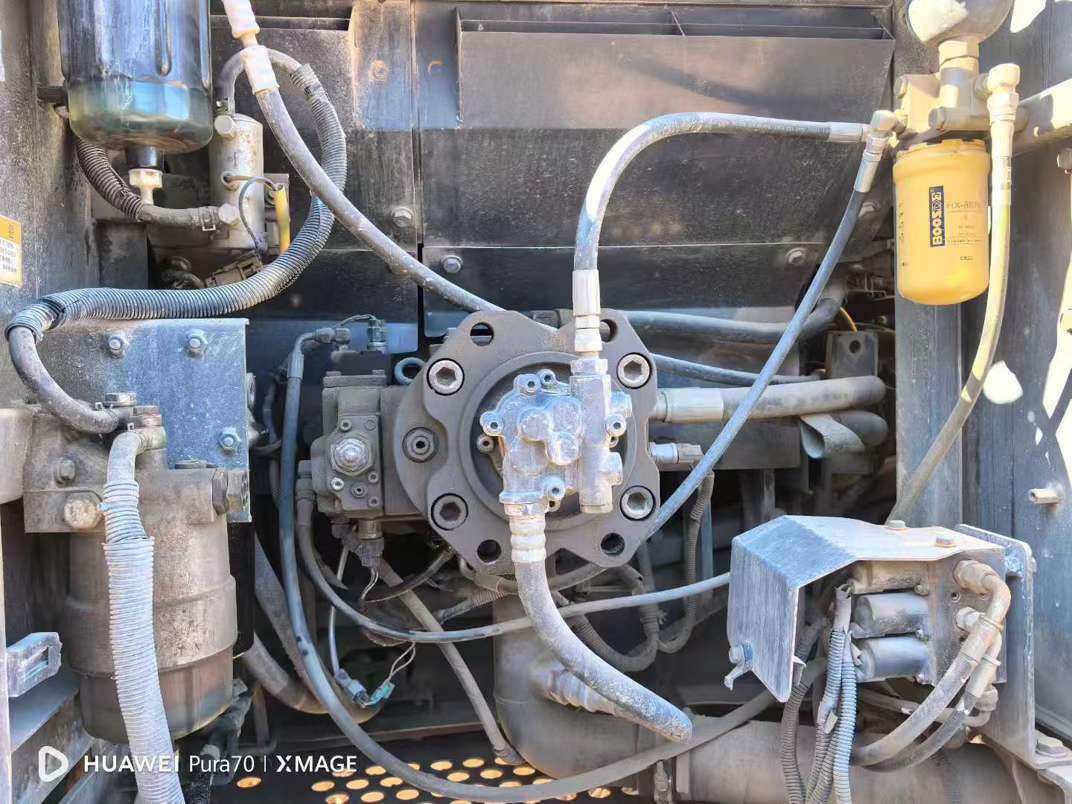

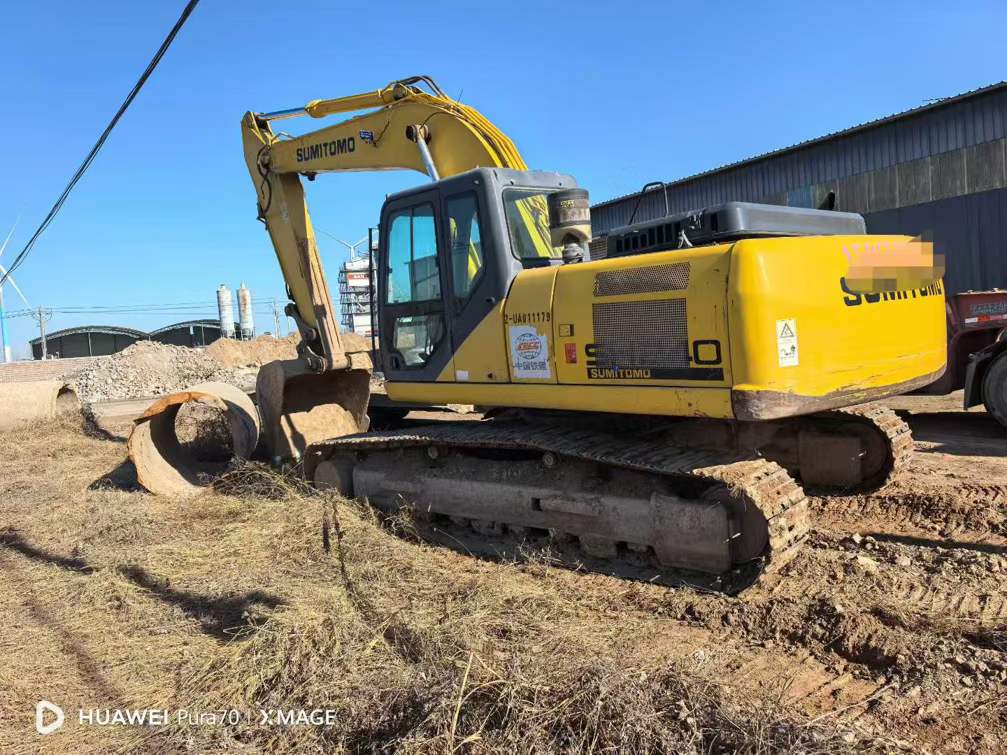

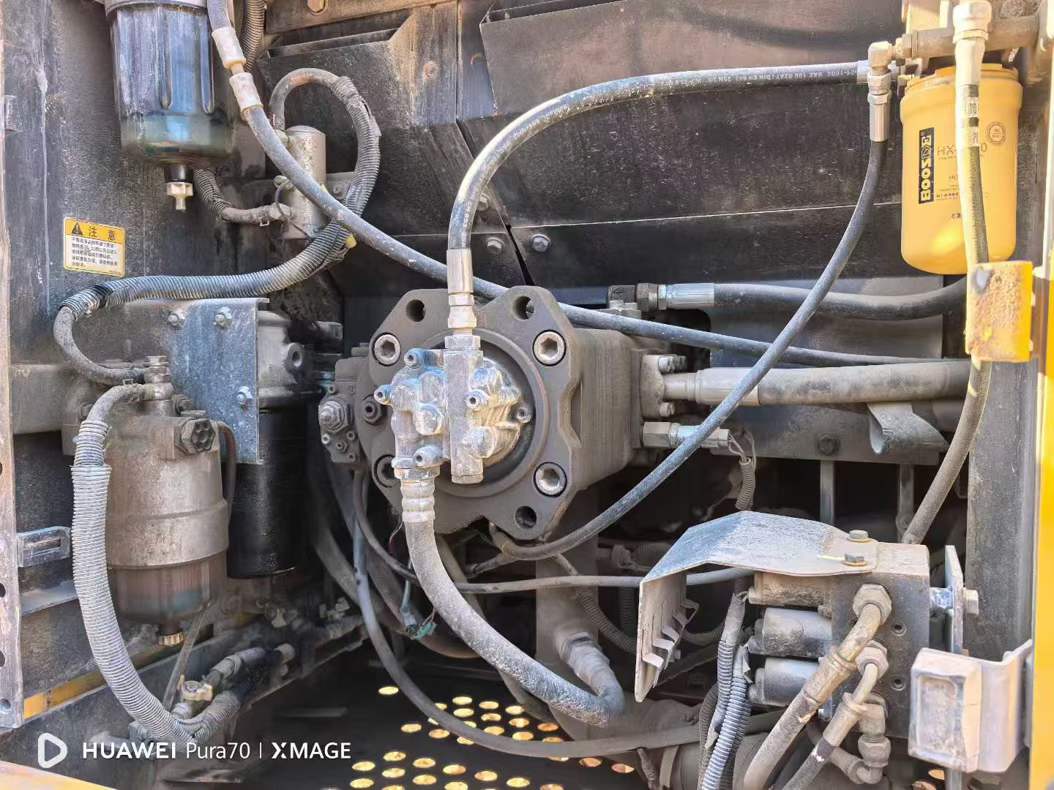

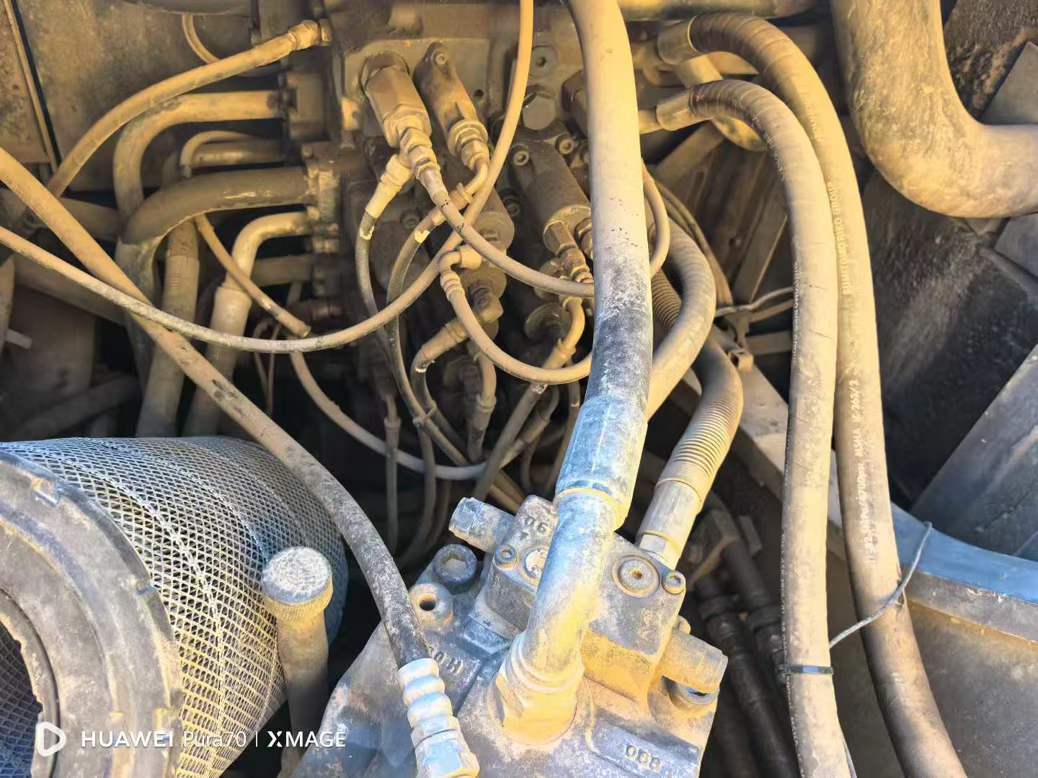

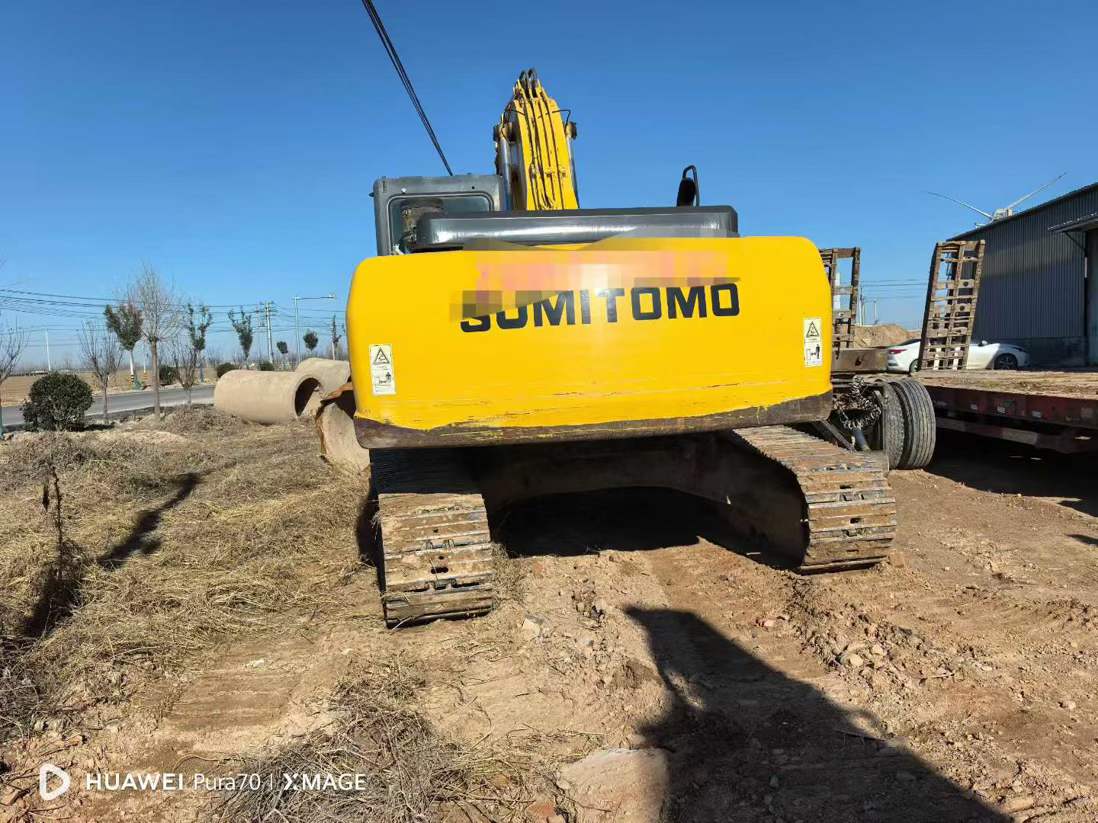

This second-hand Sumitomo 210-5 excavator has a working time of only 210 hours and is almost in brand new condition, making it highly suitable for customers who have strict requirements for the service life of their equipment. This model is equipped with an efficient engine system, the Cummins QSB6.7, with a power output of 129 kilowatts, ensuring strong power output and excellent fuel economy. In terms of the hydraulic system, this machine is equipped with a high-flow and high-efficiency main pump and motor combination, which not only improves the operation efficiency but also significantly reduces the maintenance cost. The Sumitomo 210-5 excavator is renowned for its outstanding operational performance and durability. Its design fully takes into account users' demands for comfort and safety. The spacious and comfortable cab offers a good view and is equipped with an advanced air conditioning system, ensuring optimal working condition even in harsh environments. In addition, the key components of this machine are made of high-strength steel, ensuring the reliability of long-term use. Given its relatively low usage hours and the consistently good reputation of the Sumitomo brand, this second-hand excavator is undoubtedly a highly cos
| Specifications | Value |
|---|---|
| No. | 973139 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
