HOME>>Brands>>Sumitomo SH210-5

2016 Sumitomo SH210-5

1/4
Used Sumitomo SH210-5 Excavator 2016 Model / 1

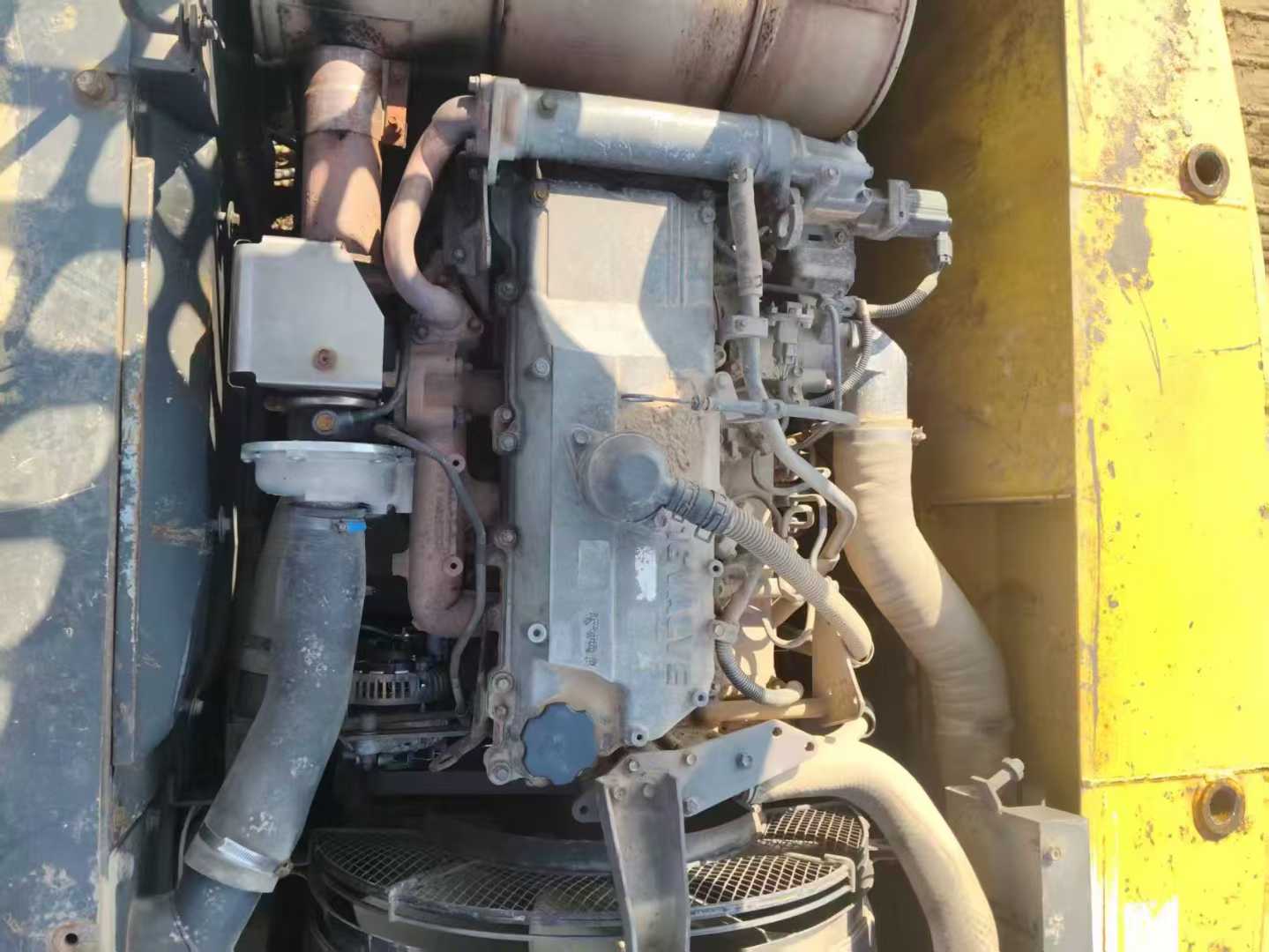

Used Sumitomo SH210-5 Excavator 2016 Model / 2
Used Sumitomo SH210-5 Excavator 2016 Model / 3

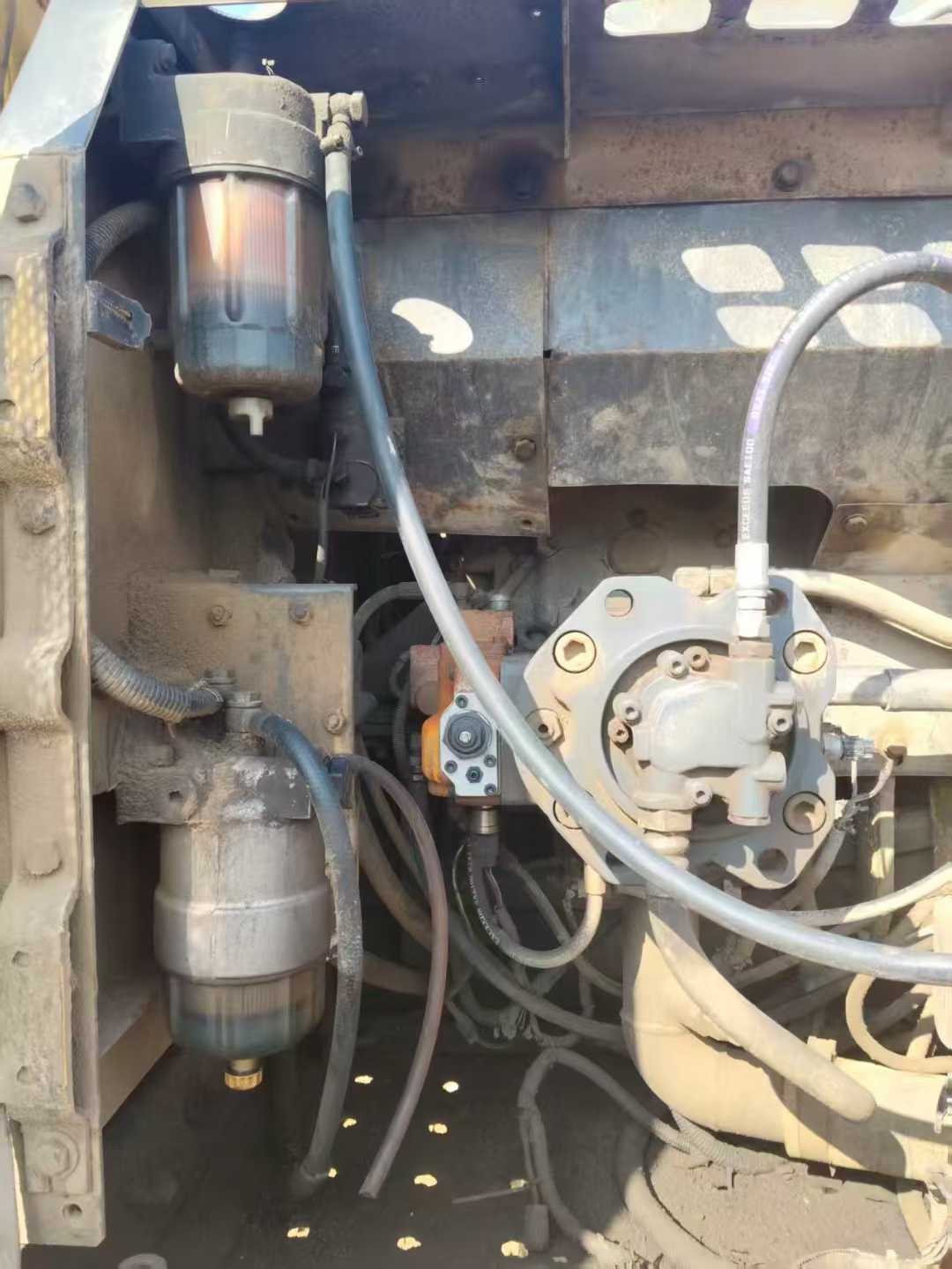

Used Sumitomo SH210-5 Excavator 2016 Model / 4

Product Description

The Sumitomo 210 excavator is a highly efficient device with a good reputation in the market. It has won the favor of a large number of users with its outstanding performance and reliability. This second-hand excavator has a working time of approximately 5,000 hours, demonstrating its stability and durability in practical operation. In terms of the power system, this excavator is equipped with a high-performance Isuzu engine, with an estimated power output of approximately 140 kilowatts, ensuring strong power output and a smooth operating experience. This engine not only features excellent fuel economy but also has good low-noise characteristics, providing users with a more comfortable working environment. The hydraulic system is a major highlight of the Sumitomo 210 excavator. It adopts a design scheme that combines an advanced variable piston pump with an efficient hydraulic motor, enabling the entire machine to achieve rapid response while maintaining extremely high precision control. This design not only enhances work efficiency but also reduces energy consumption and prolongs the service life of the machine. In addition, the Sumitomo 210 excavator also features a number of humanized designs, such as a spacious and comfortable c

SpecificationsValue
No.976411
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.9-1.0
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142
Rod digging force (kN)103
Travel speed (km/h)3.4/5.6
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1460
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
see more

Overview

No.976411

Brand Name:

Sumitomo

Model Number:

SH210-5

Year:

2016

Location:

Shandong China
