Product Description

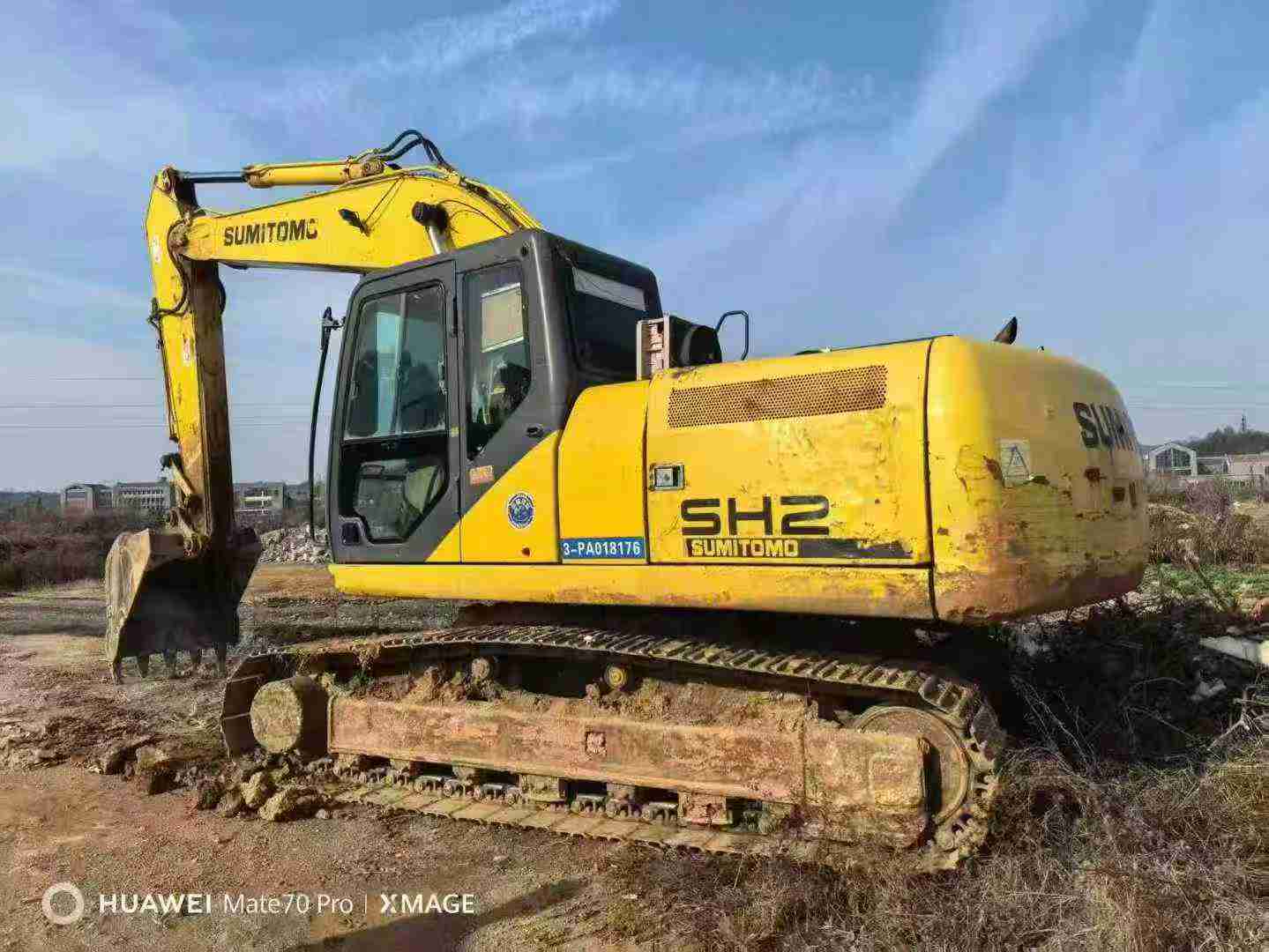

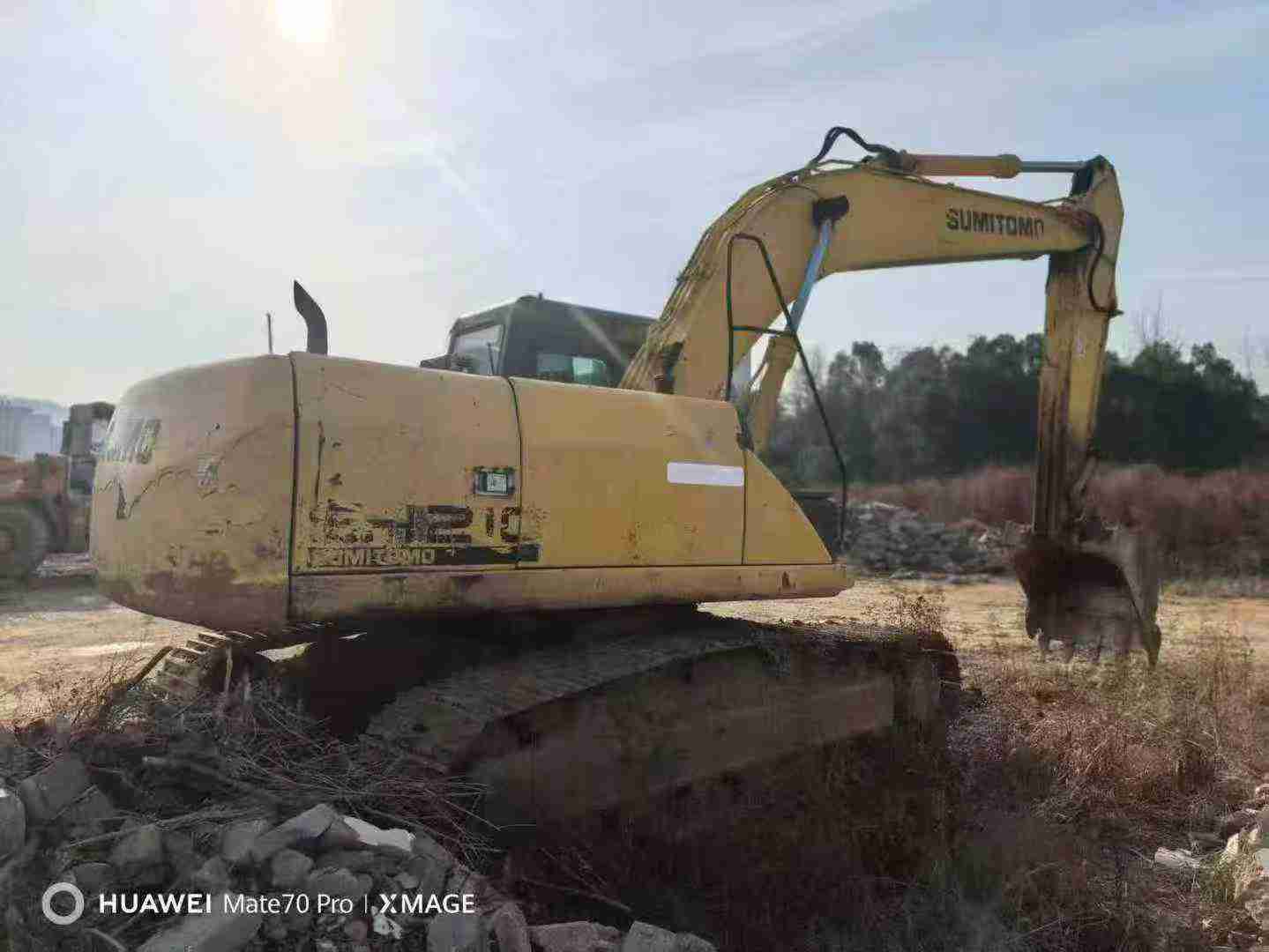

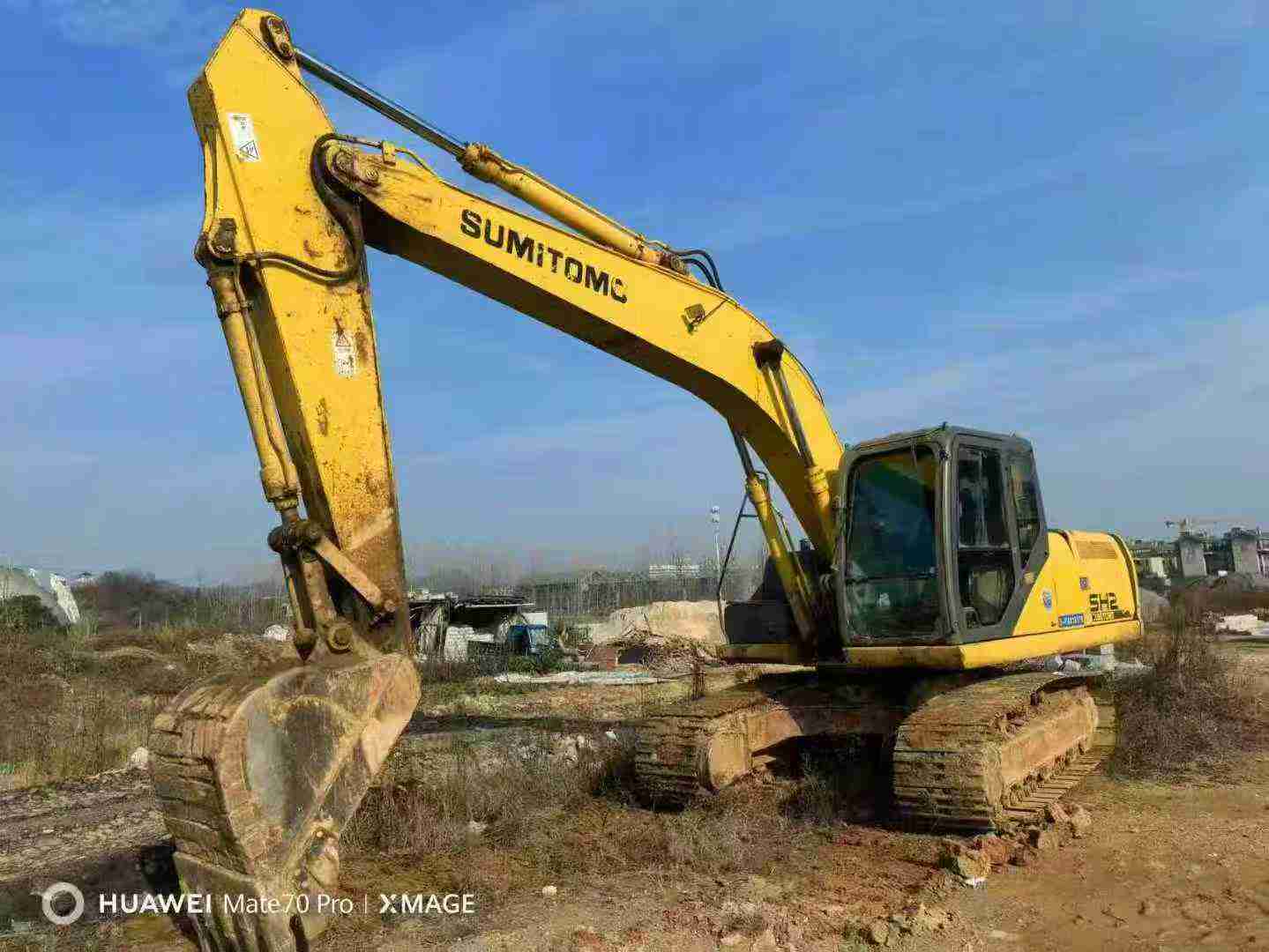

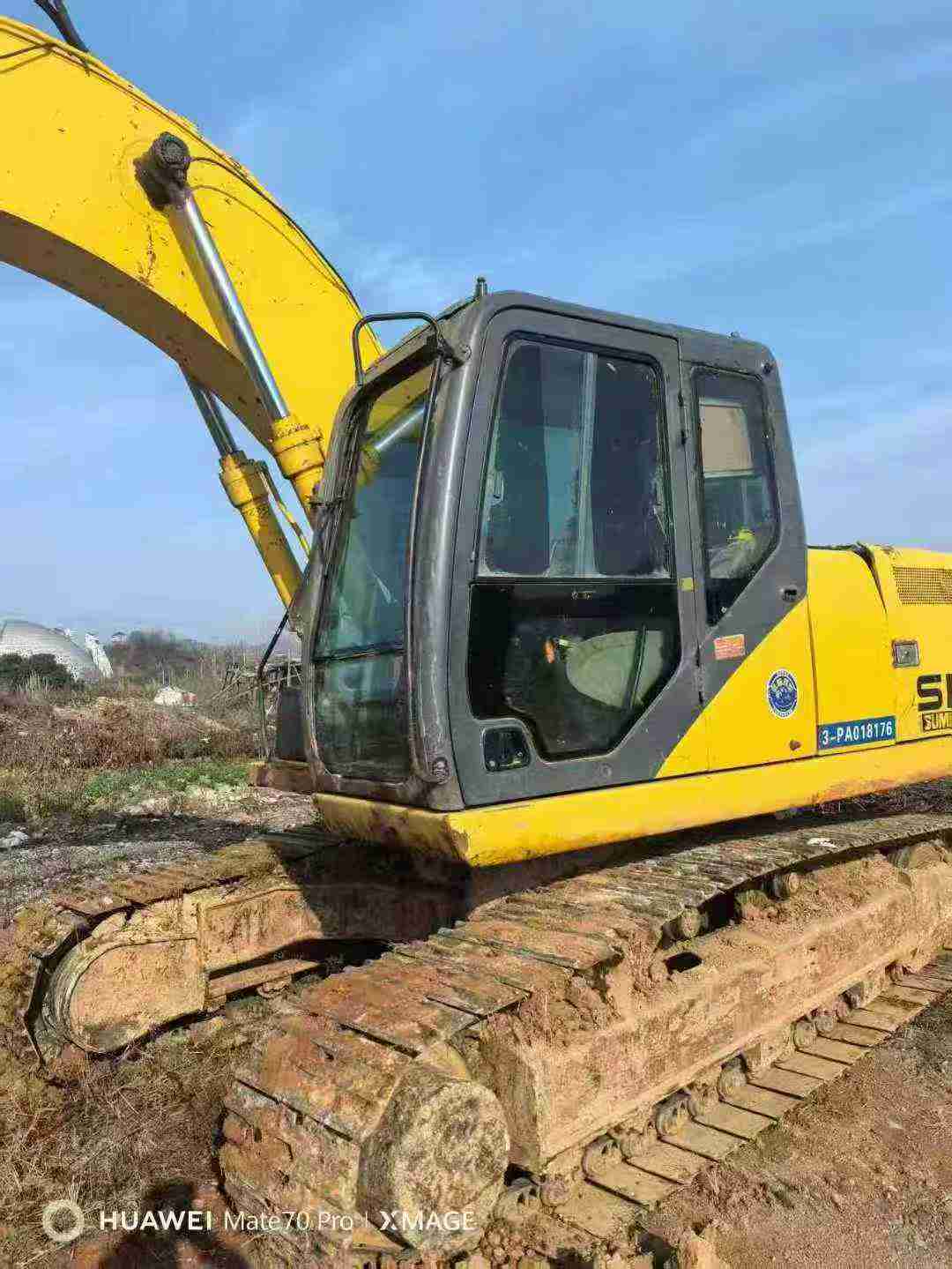

Skip the factory lead times with this ready-to-deploy 2013 Sumitomo SH210-5 excavator, available now from 浙江绍兴. Operating at 21 tons with 117.3kW of proven power, this machine delivers immediate productivity for your construction or demolition projects.
Built for demanding applications, this unit features a 0.9-1.0m³ bucket capacity and reaches 9.9m maximum digging radius. With 142kN bucket digging force and 103kN rod digging force, it handles heavy-duty excavation tasks efficiently. The variable axial piston motor and 422 l/min main pump flow ensure responsive hydraulic performance.
- 21-ton working weight with 5700mm boom reach
- Dual travel speeds: 3.4/5.6 km/h for site flexibility
- 410L fuel capacity for extended operation
- 2800mm transport width fits standard trailers
- Located in 浙江绍兴 for fast deployment
Available now for immediate delivery. Fast deployment to your site eliminates project delays and keeps your operations moving forward.
| Specifications | Value |
|---|---|
| No. | 982126 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
