2016 Sumitomo SH210A5

1/9
Used Sumitomo SH210A5 Excavator 2016 Model / 1

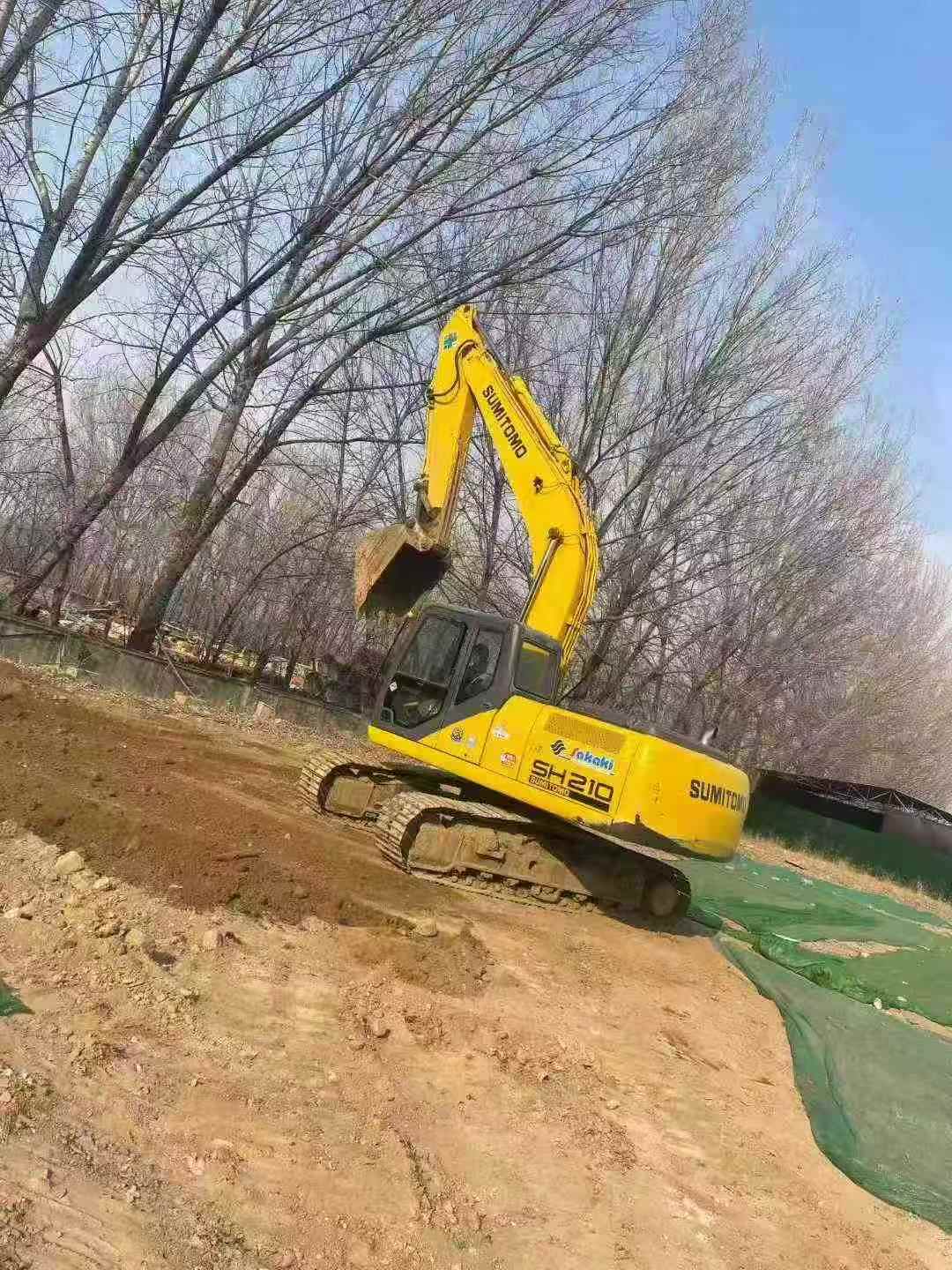

Used Sumitomo SH210A5 Excavator 2016 Model / 2

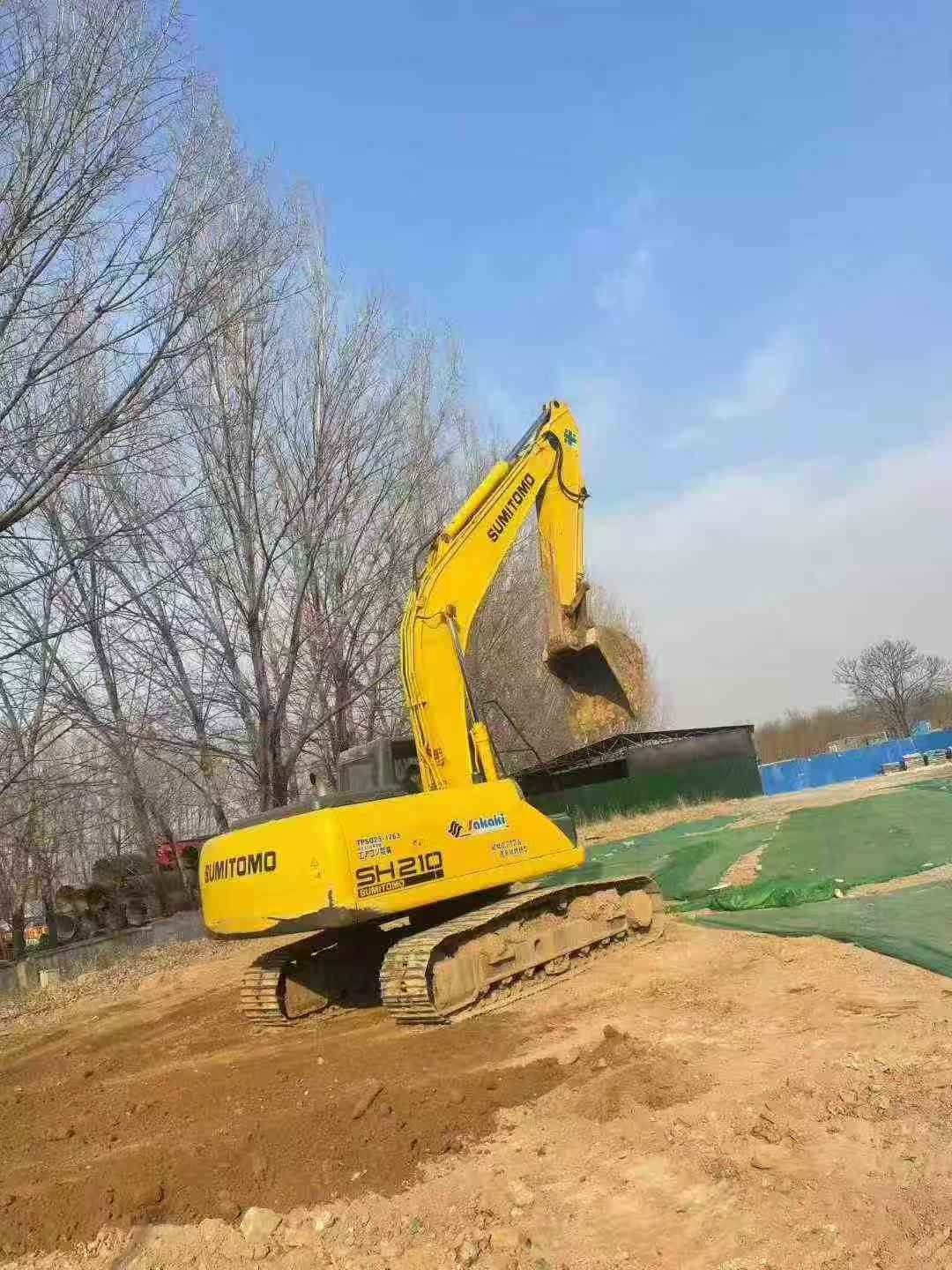

Used Sumitomo SH210A5 Excavator 2016 Model / 3

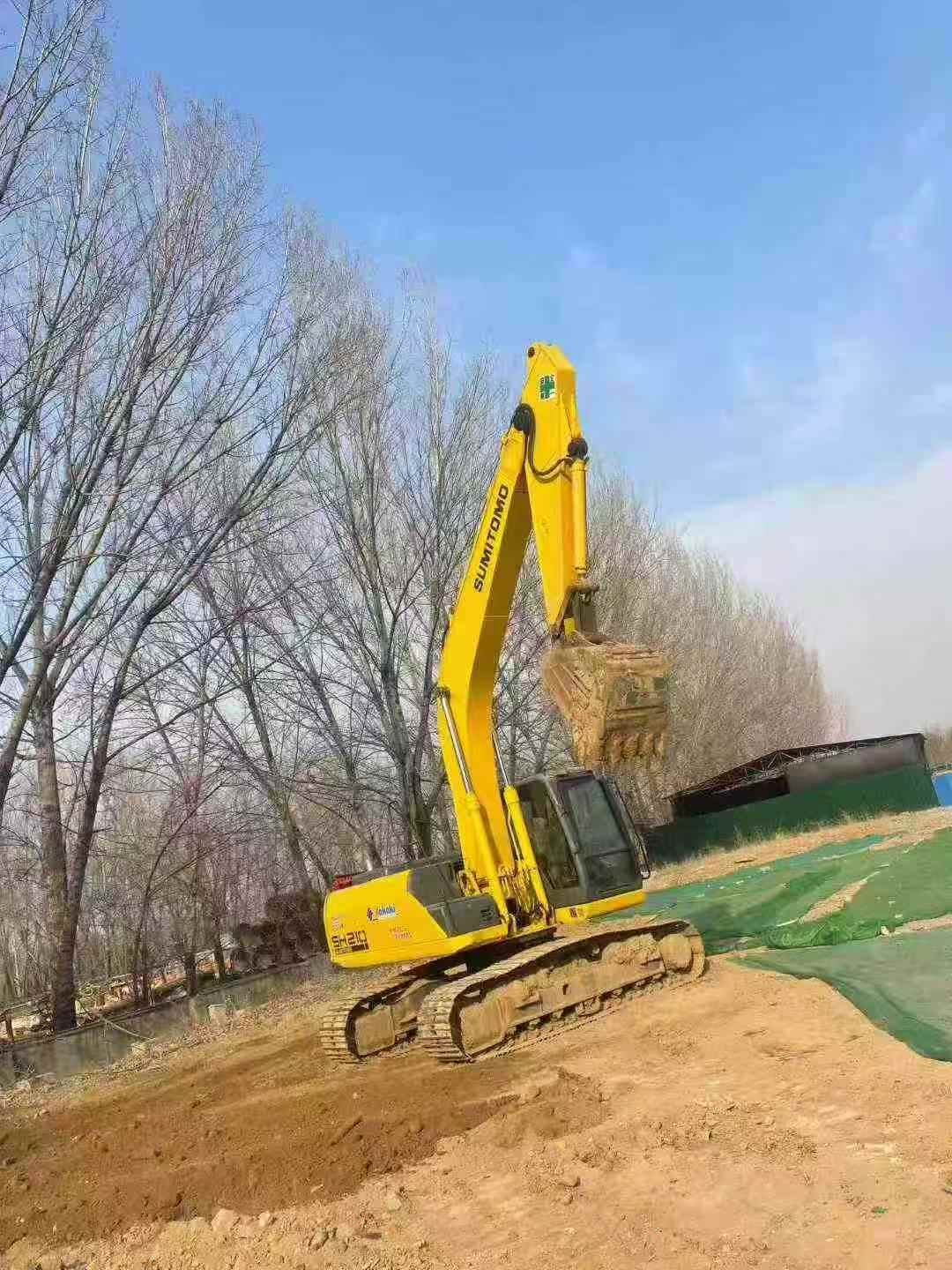

Used Sumitomo SH210A5 Excavator 2016 Model / 4

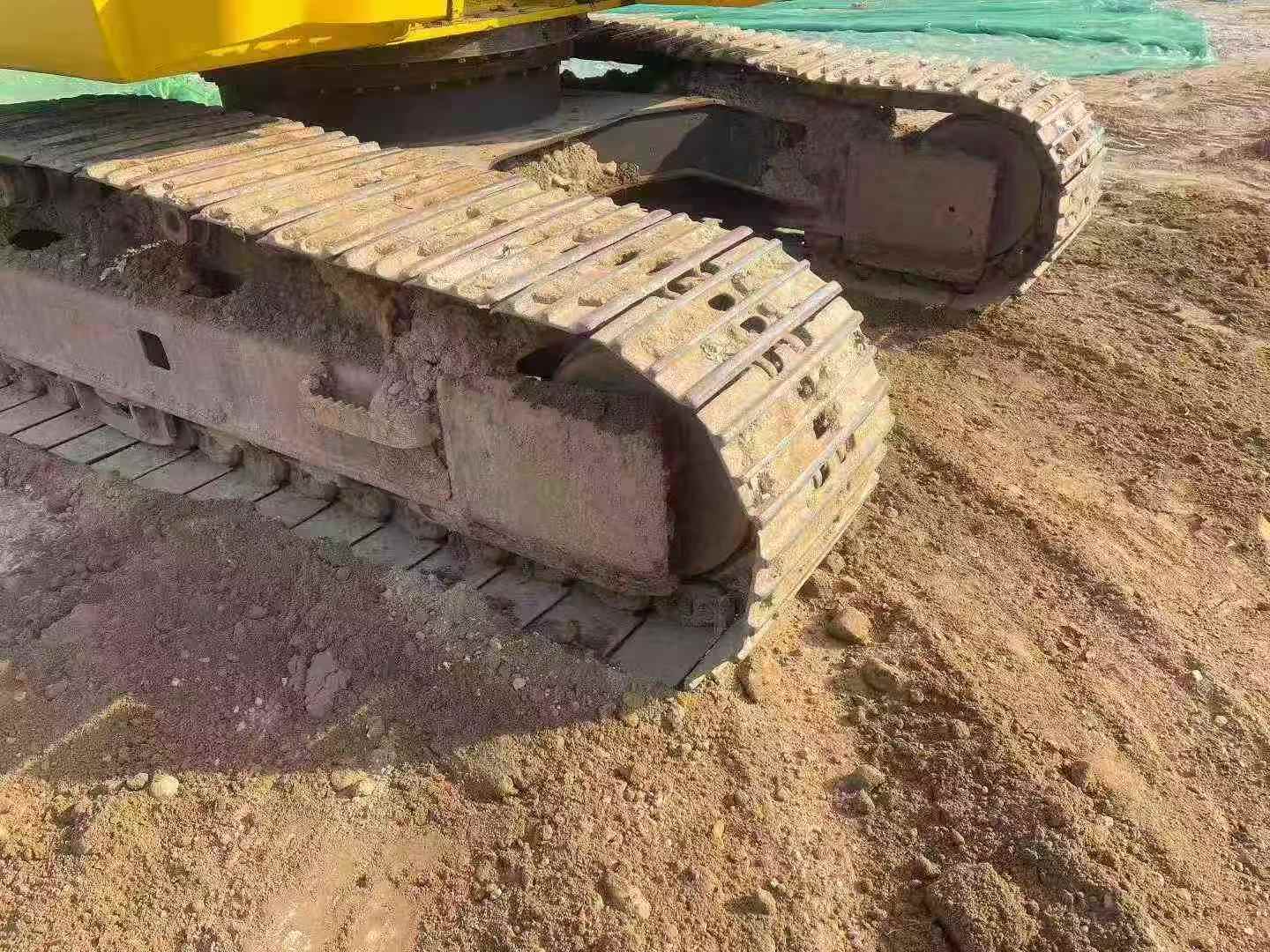

Used Sumitomo SH210A5 Excavator 2016 Model / 5

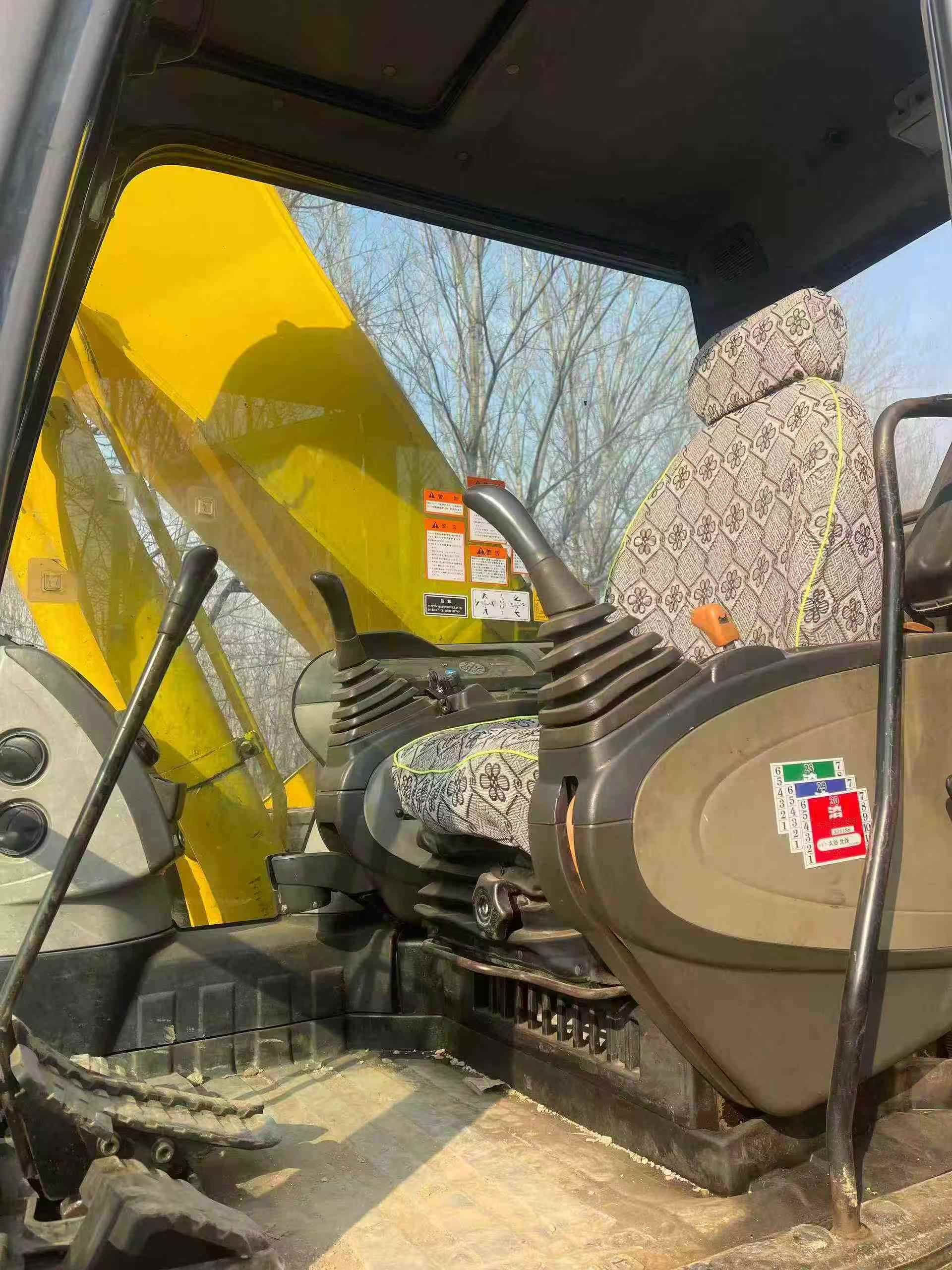

Used Sumitomo SH210A5 Excavator 2016 Model / 6

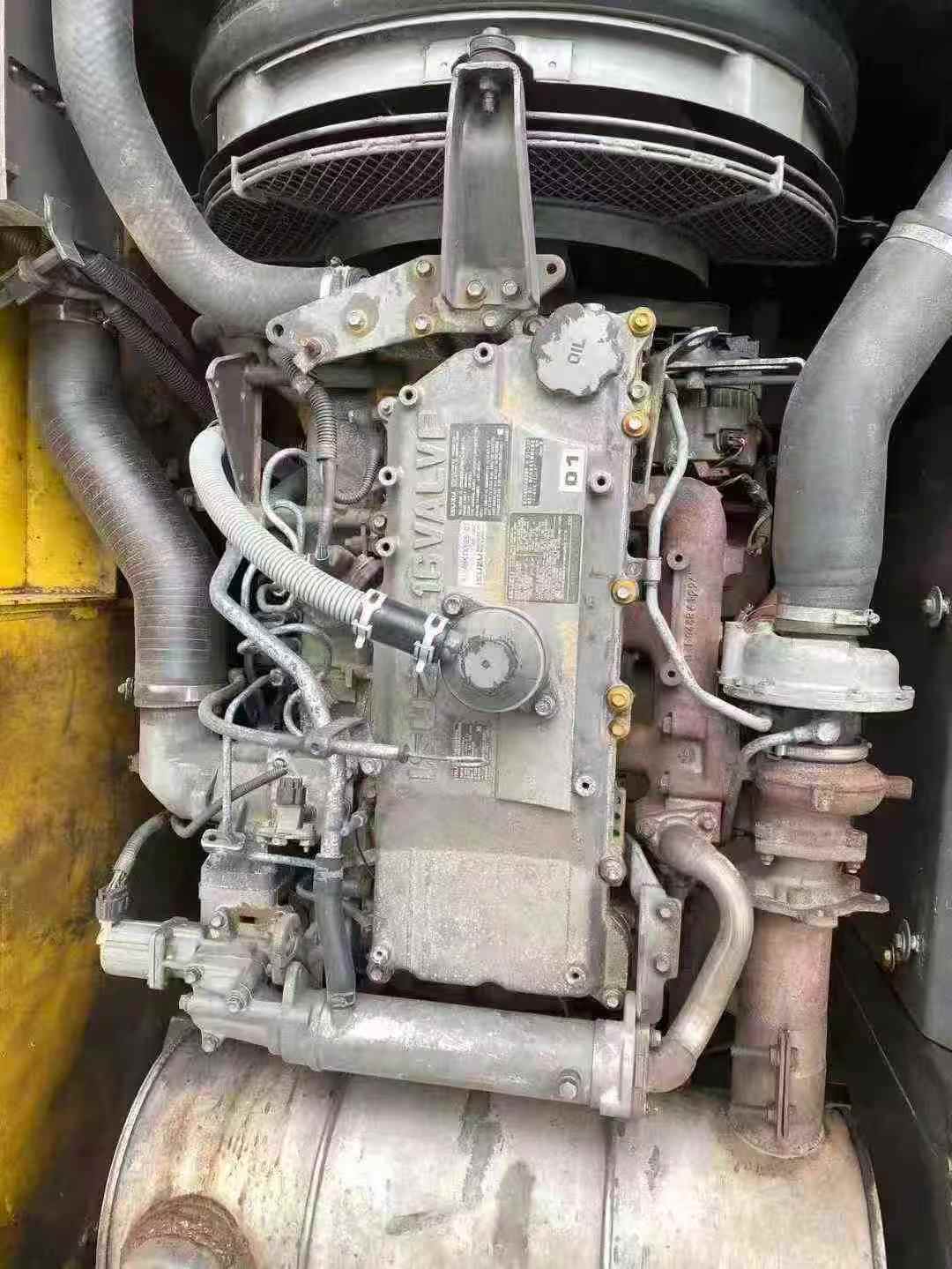

Used Sumitomo SH210A5 Excavator 2016 Model / 7

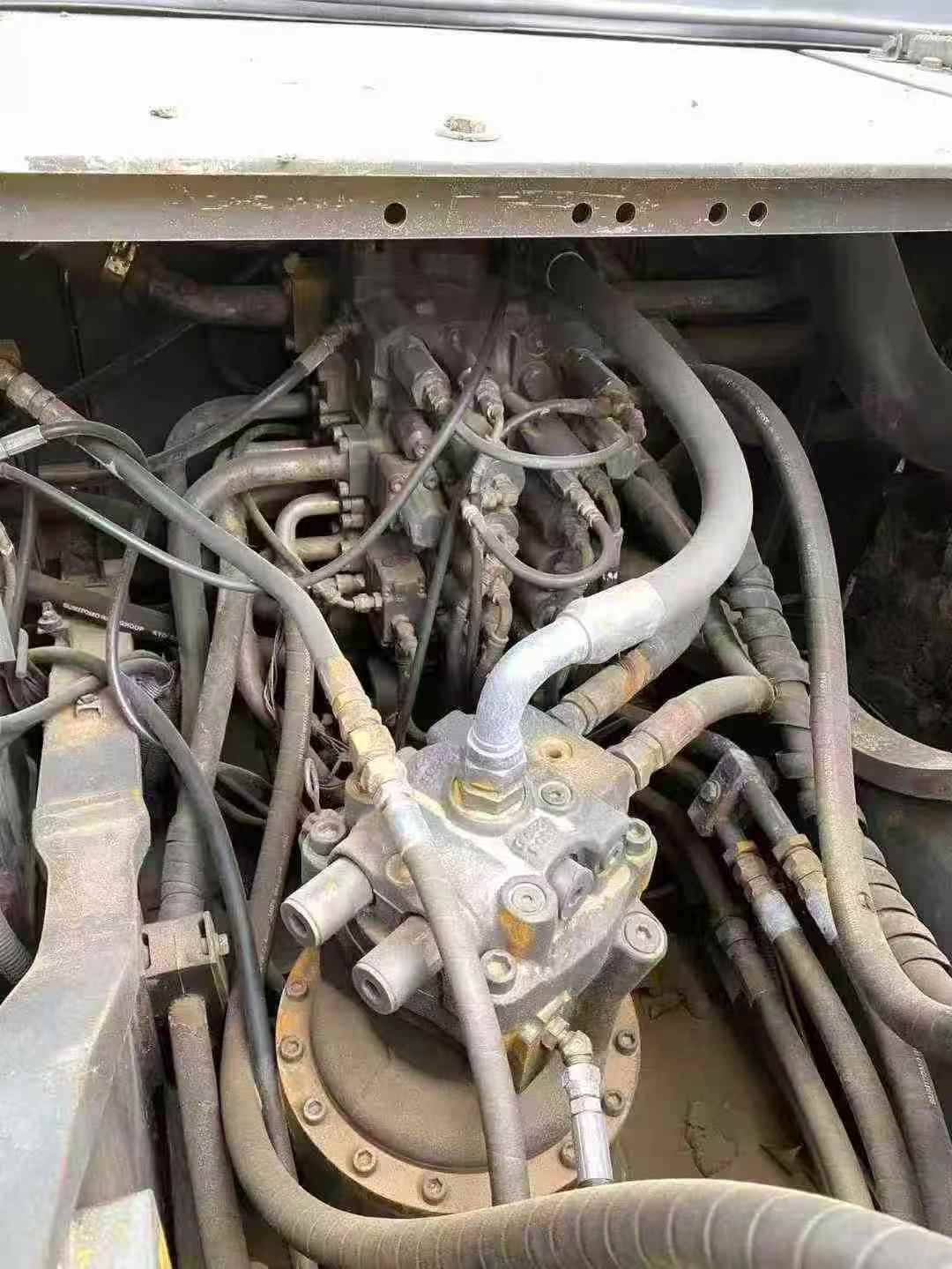

Used Sumitomo SH210A5 Excavator 2016 Model / 8

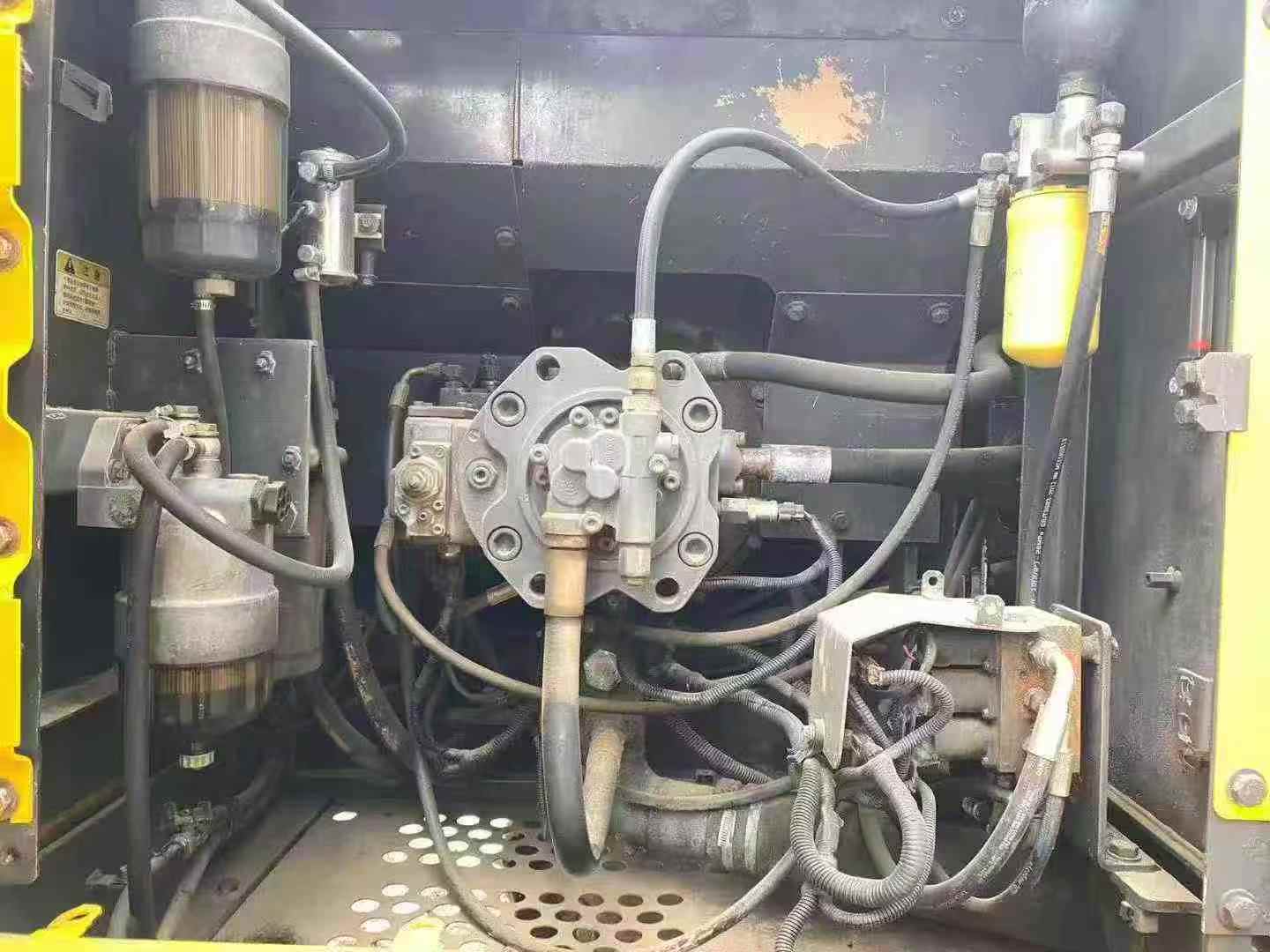

Used Sumitomo SH210A5 Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Imported Sumitomo 210A5 second-hand excavator through customs declaration. The vehicle is in perfect condition and has outstanding performance, making it a perfect choice for earthwork construction. Since its commissioning, this device has accumulated a working time of only 4,500 hours, which is far lower than the average service life of similar devices. This indicates that it still maintains an excellent working condition and a relatively long service life. In terms of the power system, the Sumitomo 210A5 is equipped with an efficient and energy-saving engine, which not only has strong power but also good fuel economy. It can maintain stable output under various working conditions and handle both hard soil excavation and rock crushing with ease. In addition, its advanced hydraulic system has been meticulously tuned to ensure smooth operation and prompt response, especially when rapidly switching working modes, significantly enhancing work efficiency. It is worth mentioning that there is no leakage at all in the major components of this machine (such as the main pump, motor, etc.), which to a certain extent reflects its excellent manufacturing process and proper daily maintenance. To sum up, this second-han

SpecificationsValue
No.971665
Tonnage (tons)21
Working weight (kg)19900
Bucket capacity (m³)0.5-1.1
Boom length (mm)5700
Rod length (mm)2900
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AI-4HK1X (Tier 3)
Rated power (kw/rpm)117.3/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)
Rod digging force (kN)
Travel speed (km/h)3.4/5.6
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29.4
Main pump type2× variable axial piston pump
Working Hydraulic Circuit (Mpa)36.8
Bucket cylinders - Number × diameter × stroke (mm)1-120-1010
Bucket rod cylinders - Number × diameter × stroke (mm)1-140-1460
Boom cylinders - Number × diameter × stroke (mm)2-120-1255
Fuel Tank (L)410
Hydraulic Tank (L)
Engine Oil changes (L)23.1
Coolant (L)26
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Full cab height (mm)2940
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6470
see more

Overview

No.971665

Brand Name:

Sumitomo

Model Number:

SH210A5

Year:

2016

Location:

Hebei China
