2016 Sumitomo SH210A5

1/9
Used Sumitomo SH210A5 Excavator 2016 Model / 1

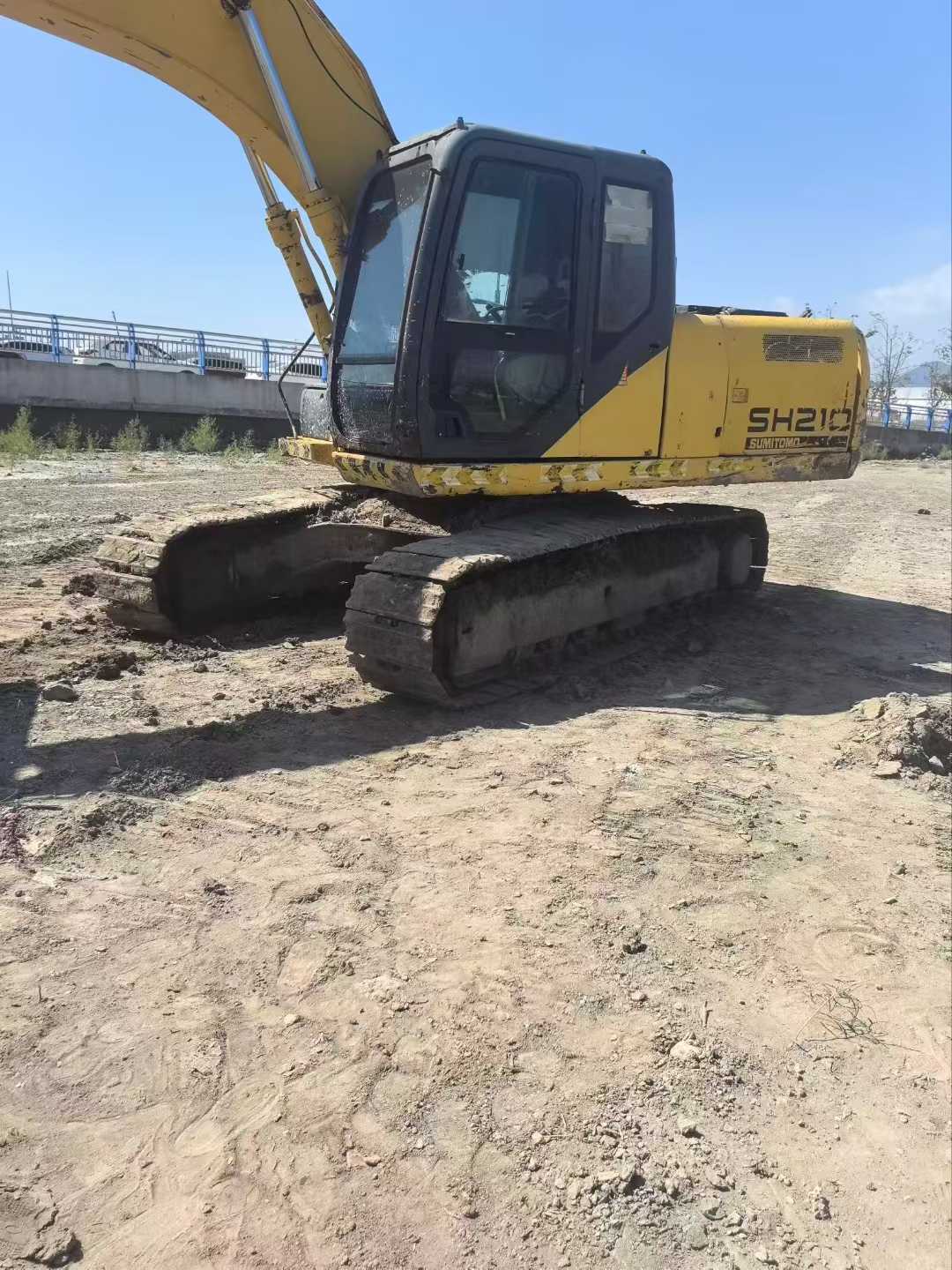

Used Sumitomo SH210A5 Excavator 2016 Model / 2

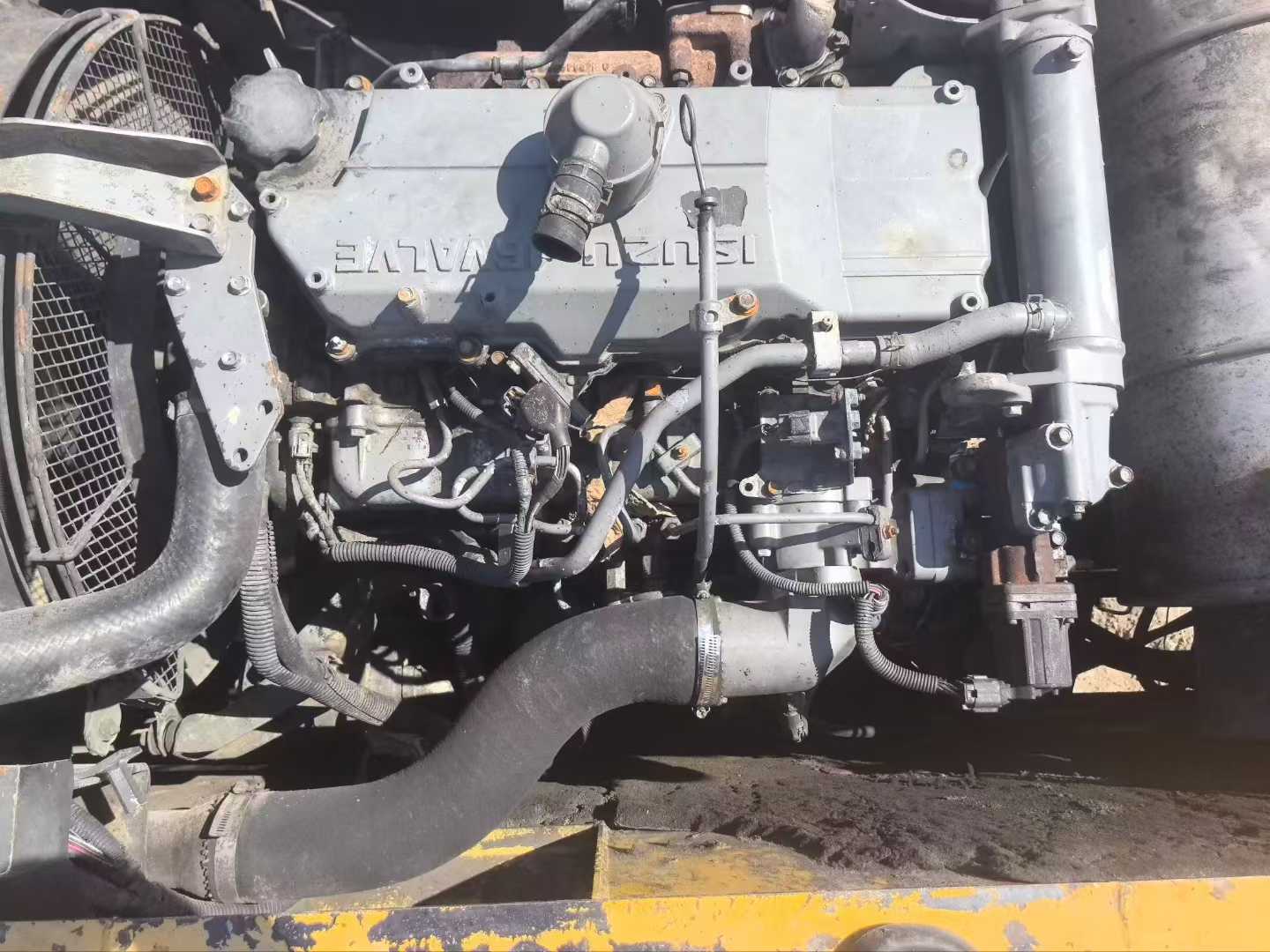

Used Sumitomo SH210A5 Excavator 2016 Model / 3

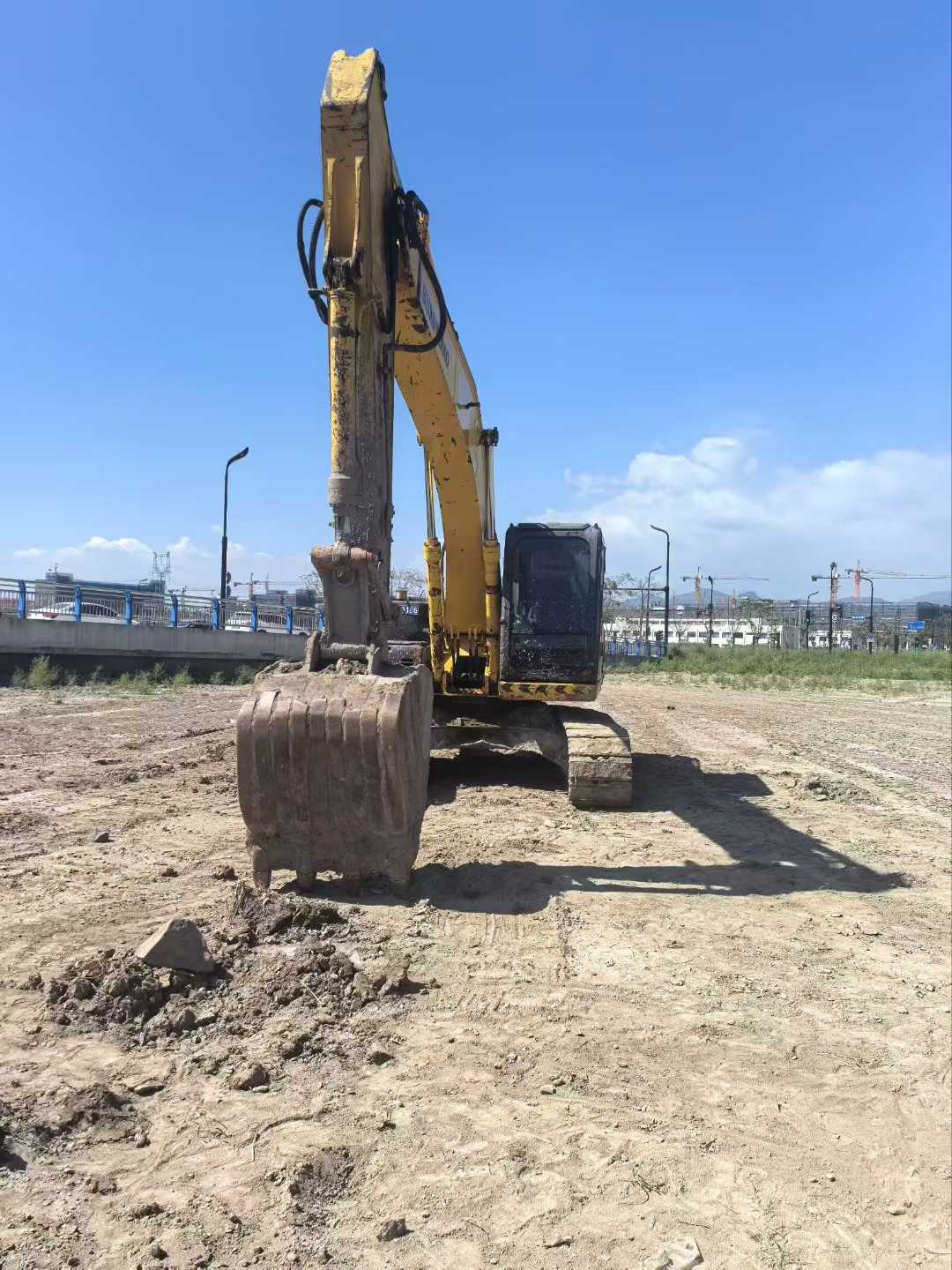

Used Sumitomo SH210A5 Excavator 2016 Model / 4

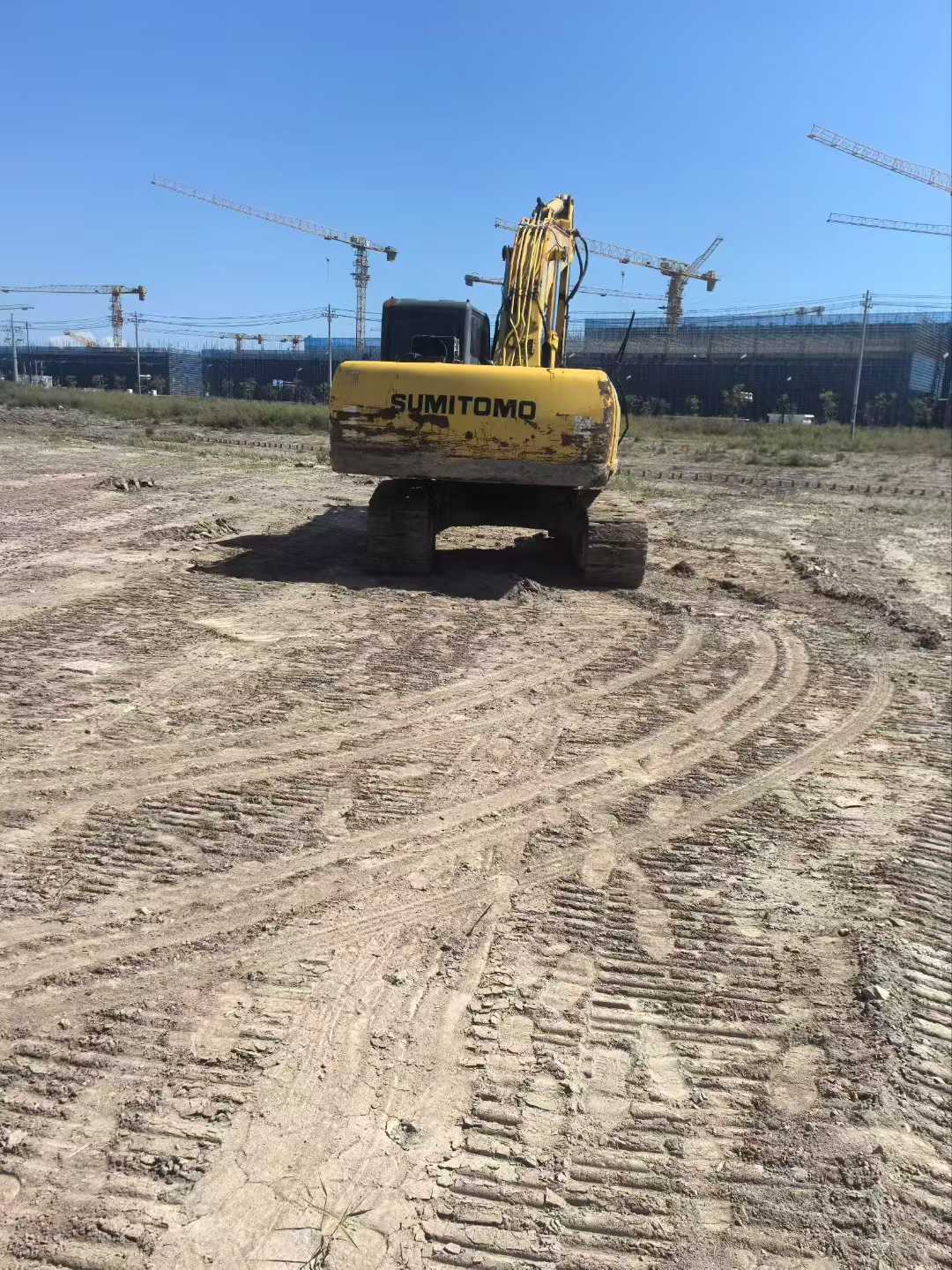

Used Sumitomo SH210A5 Excavator 2016 Model / 5

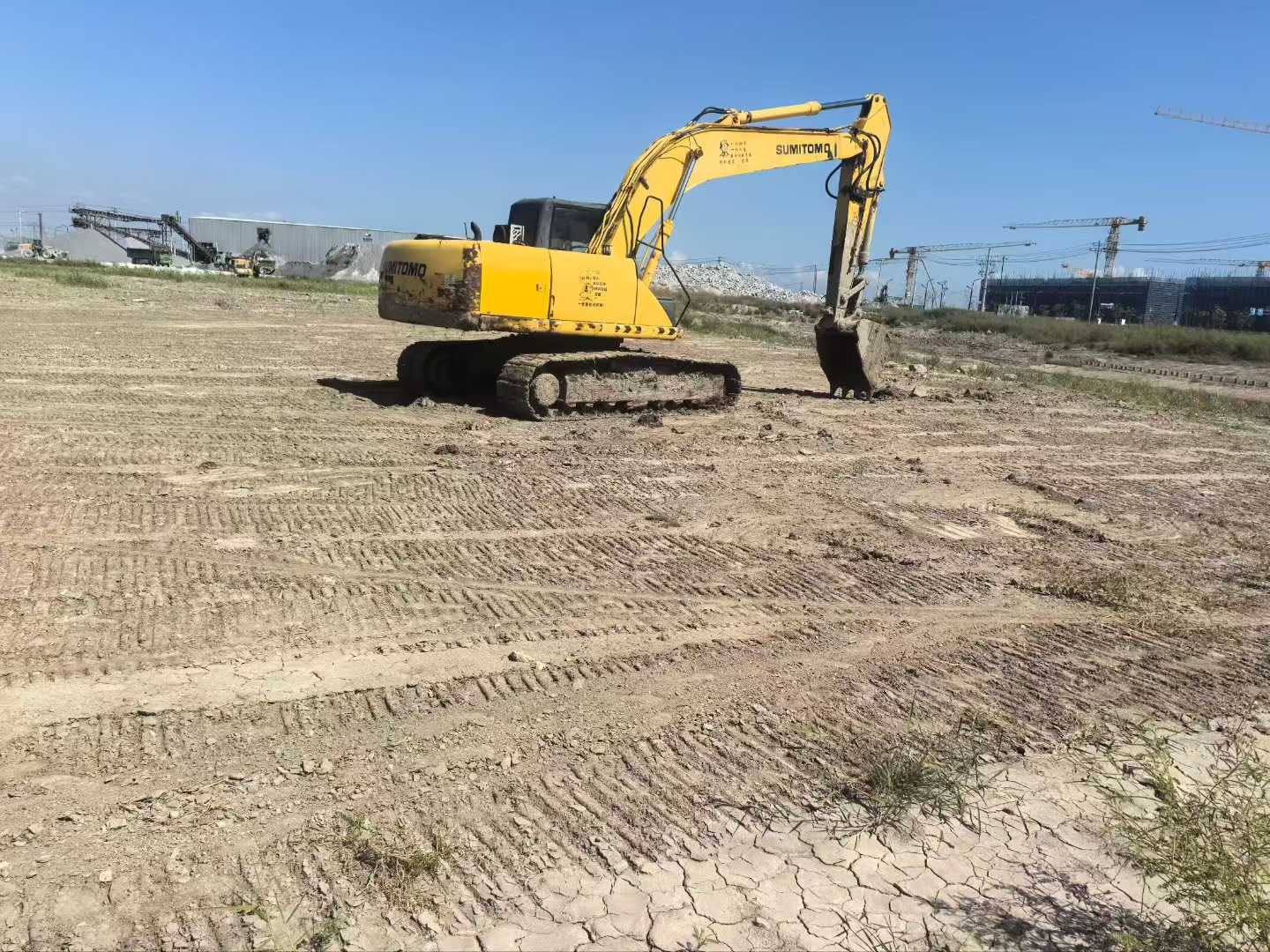

Used Sumitomo SH210A5 Excavator 2016 Model / 6

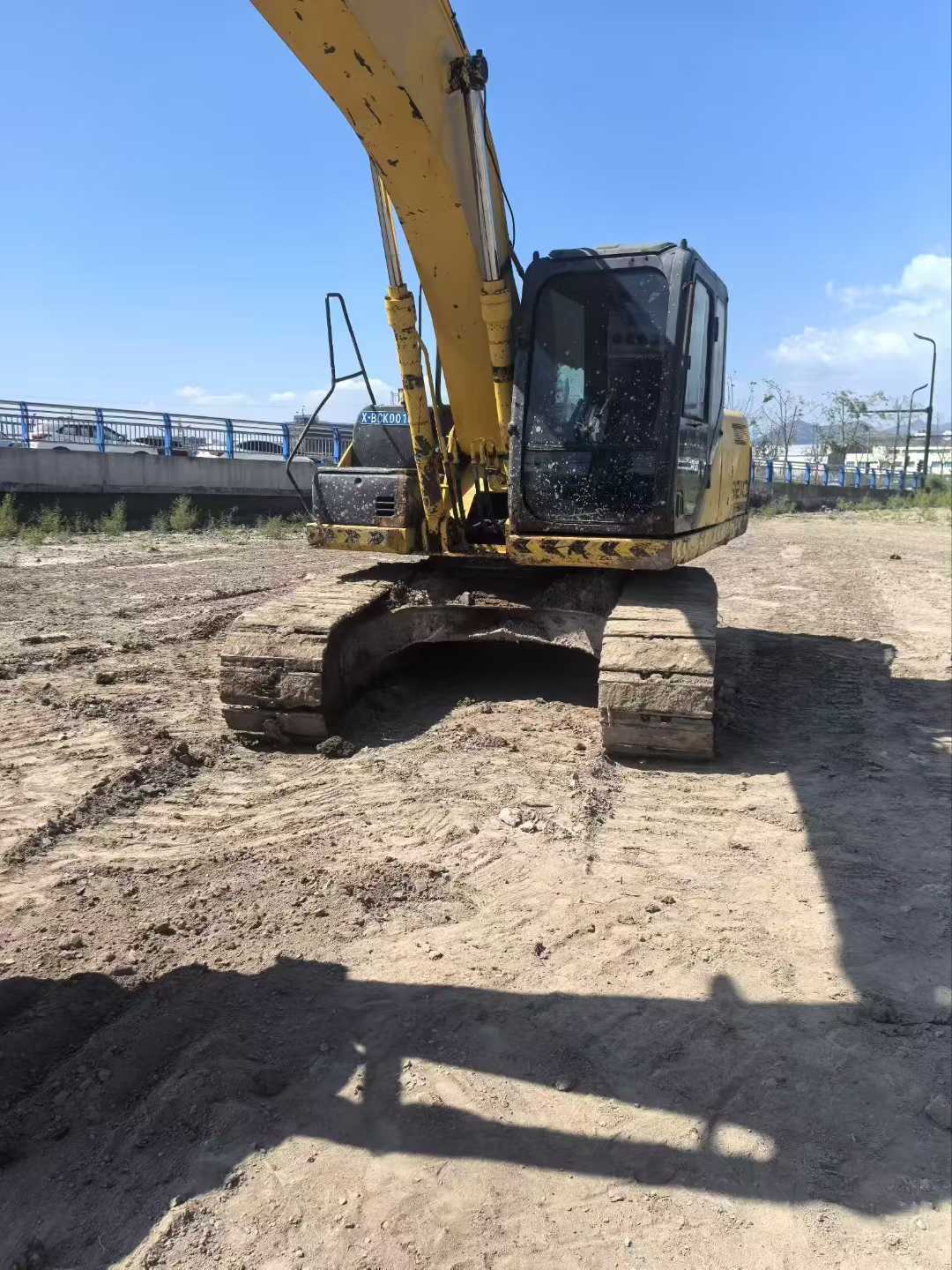

Used Sumitomo SH210A5 Excavator 2016 Model / 7

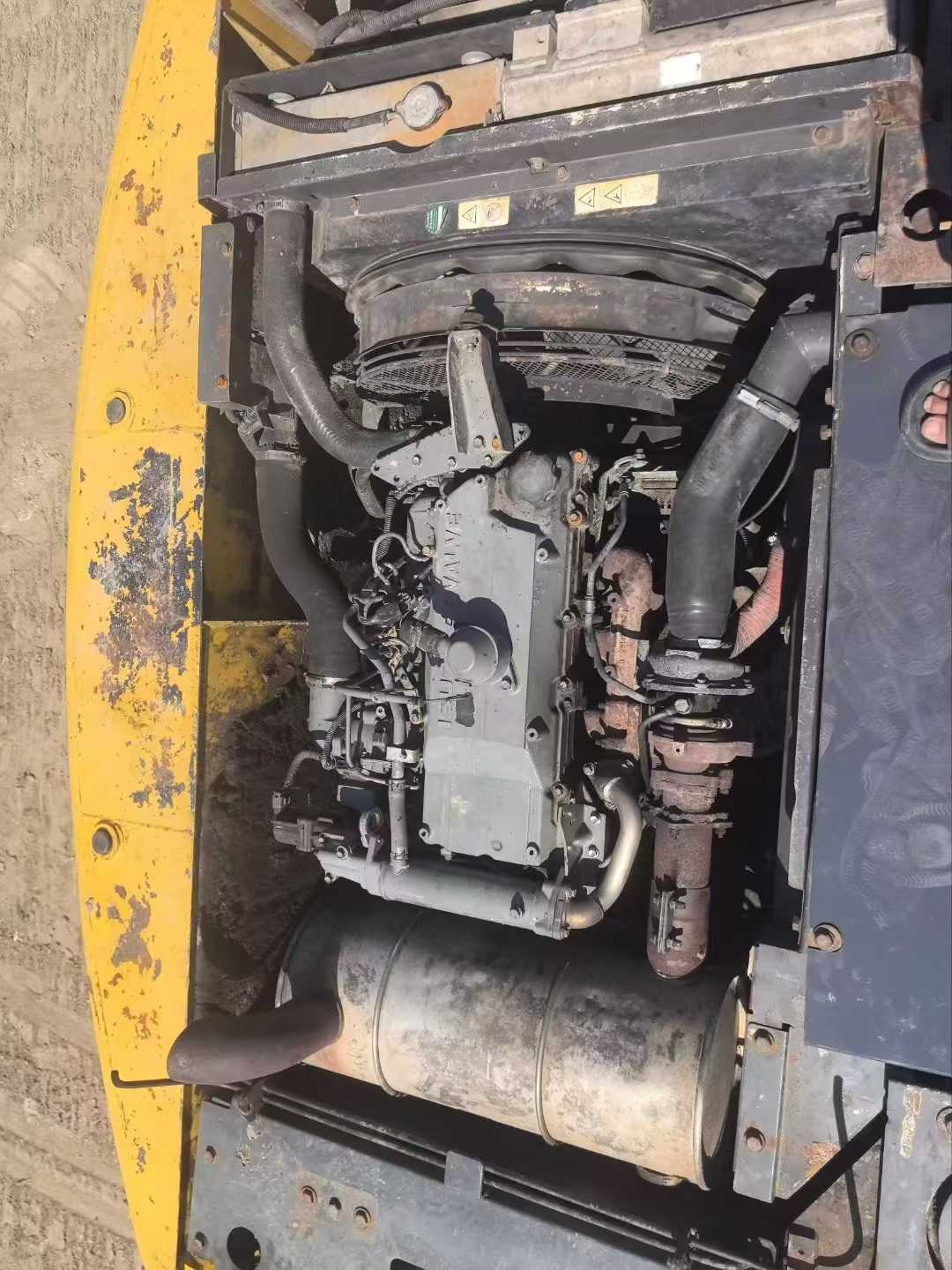

Used Sumitomo SH210A5 Excavator 2016 Model / 8

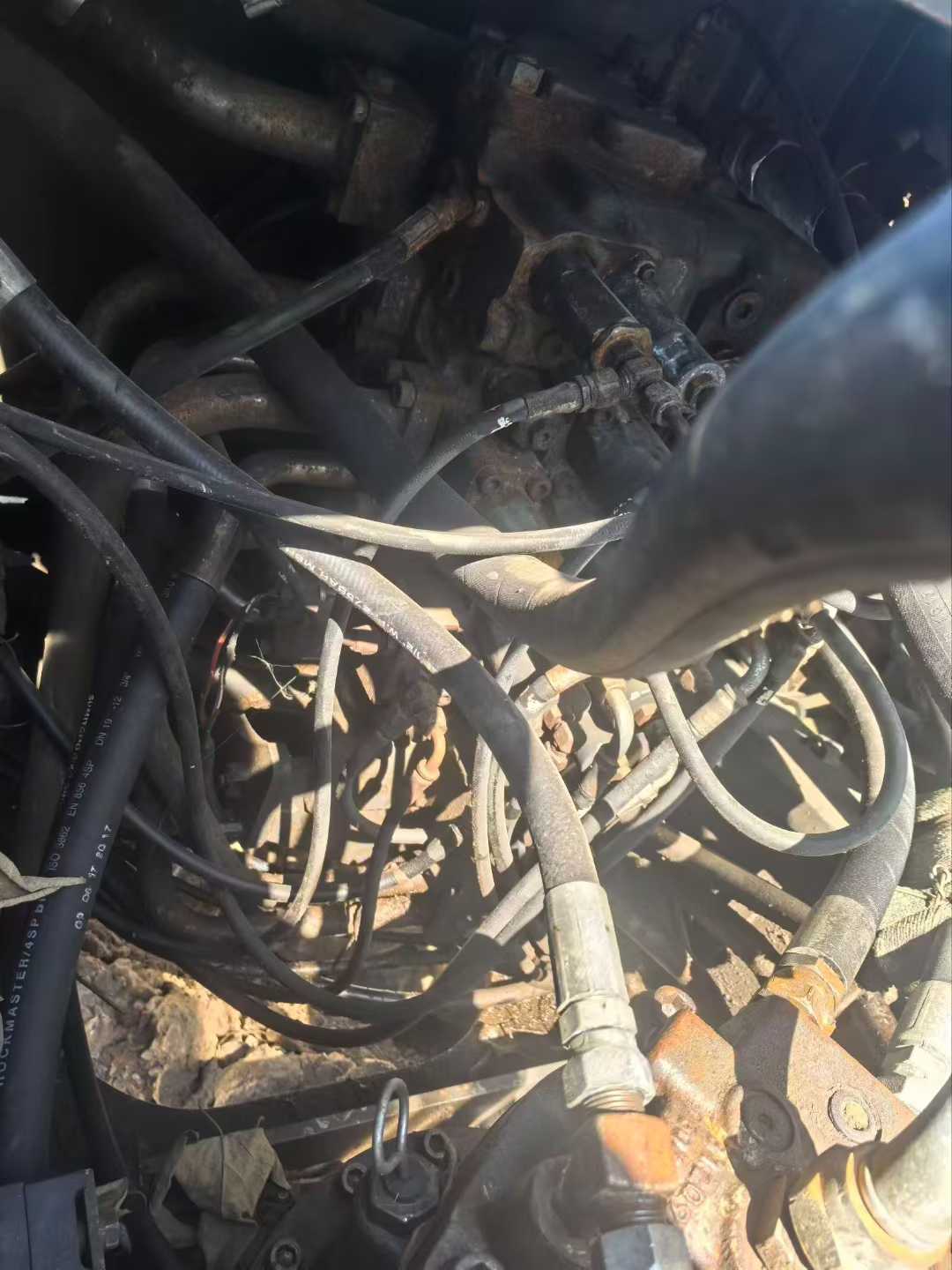

Used Sumitomo SH210A5 Excavator 2016 Model / 9

Product Description

Detailed description of the second-hand Sumitomo SH210-5 excavator Dear customer, hello! We currently have a second-hand Sumitomo SH210-5 excavator with outstanding performance and extremely high cost performance on sale, priced at only 79,000 yuan. This device is not only affordable but also in good condition, making it highly suitable for the usage requirements of medium and small-sized engineering projects. The working time of this excavator is 4,500 hours, which is a medium to low working duration, indicating that it still has a long service life and good mechanical condition. The Sumitomo SH210-5 is equipped with an efficient engine system, which is powerful and has good fuel economy, capable of maintaining stable operation under various complex working conditions. The direct injection diesel engine it adopts is technologically advanced, which can effectively reduce emission pollution. It not only meets the current environmental protection requirements but also saves operating costs. In terms of the hydraulic system, this machine is equipped with an advanced negative flow control system, ensuring smoothness and accuracy during operation. Whether it is excavation, loading or leveling operations, they can all be handled with ease

SpecificationsValue
No.972237
Tonnage (tons)21
Working weight (kg)19900
Bucket capacity (m³)0.5-1.1
Boom length (mm)5700
Rod length (mm)2900
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AI-4HK1X (Tier 3)
Rated power (kw/rpm)117.3/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)
Rod digging force (kN)
Travel speed (km/h)3.4/5.6
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29.4
Main pump type2× variable axial piston pump
Working Hydraulic Circuit (Mpa)36.8
Bucket cylinders - Number × diameter × stroke (mm)1-120-1010
Bucket rod cylinders - Number × diameter × stroke (mm)1-140-1460
Boom cylinders - Number × diameter × stroke (mm)2-120-1255
Fuel Tank (L)410
Hydraulic Tank (L)
Engine Oil changes (L)23.1
Coolant (L)26
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Full cab height (mm)2940
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6470
see more

Overview

No.972237

Brand Name:

Sumitomo

Model Number:

SH210A5

Year:

2016

Location:

Zhejiang China
