2016 Sumitomo SH210A5

1/9
Used Sumitomo SH210A5 Excavator 2016 Model / 1

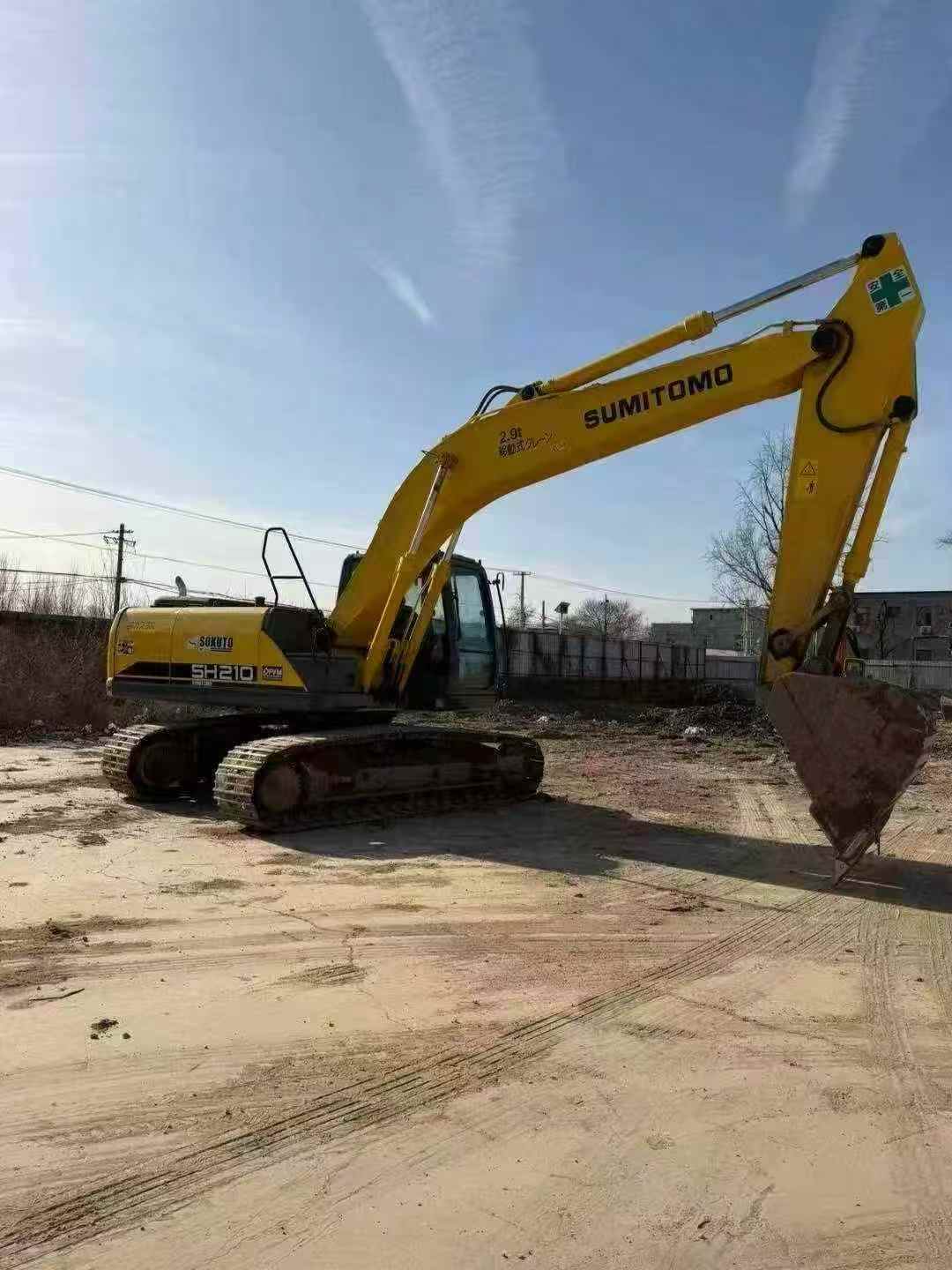

Used Sumitomo SH210A5 Excavator 2016 Model / 2

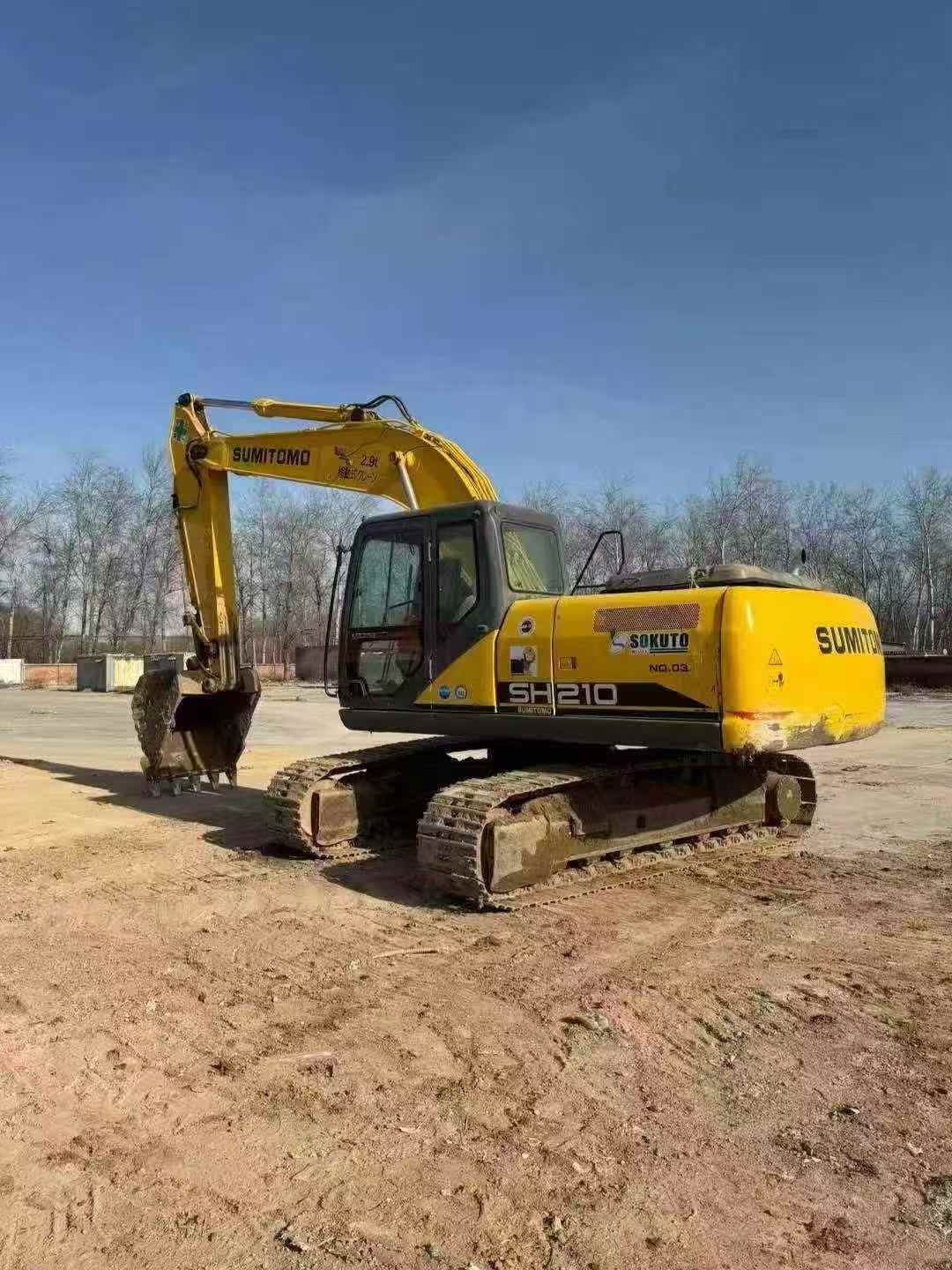

Used Sumitomo SH210A5 Excavator 2016 Model / 3

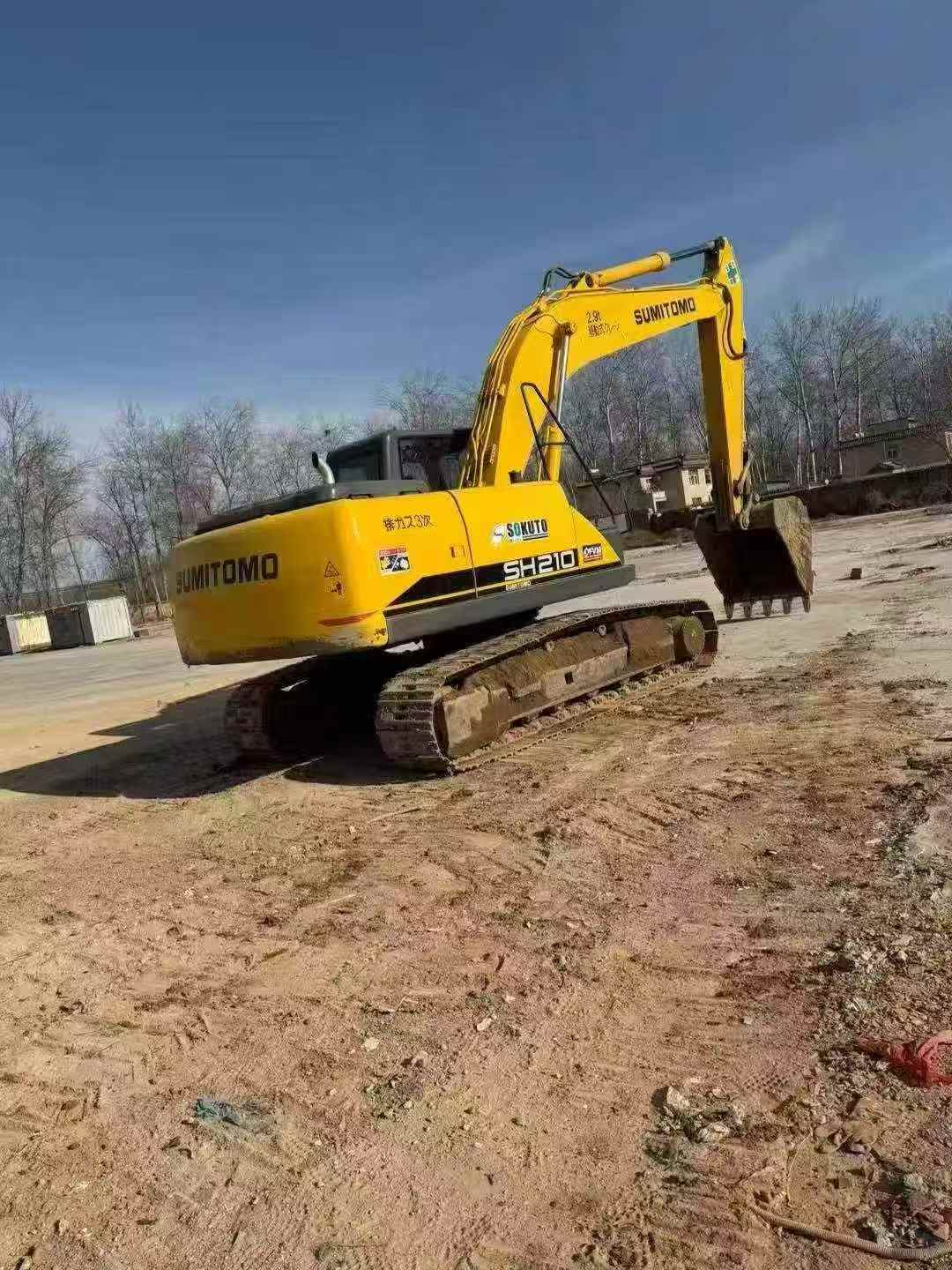

Used Sumitomo SH210A5 Excavator 2016 Model / 4

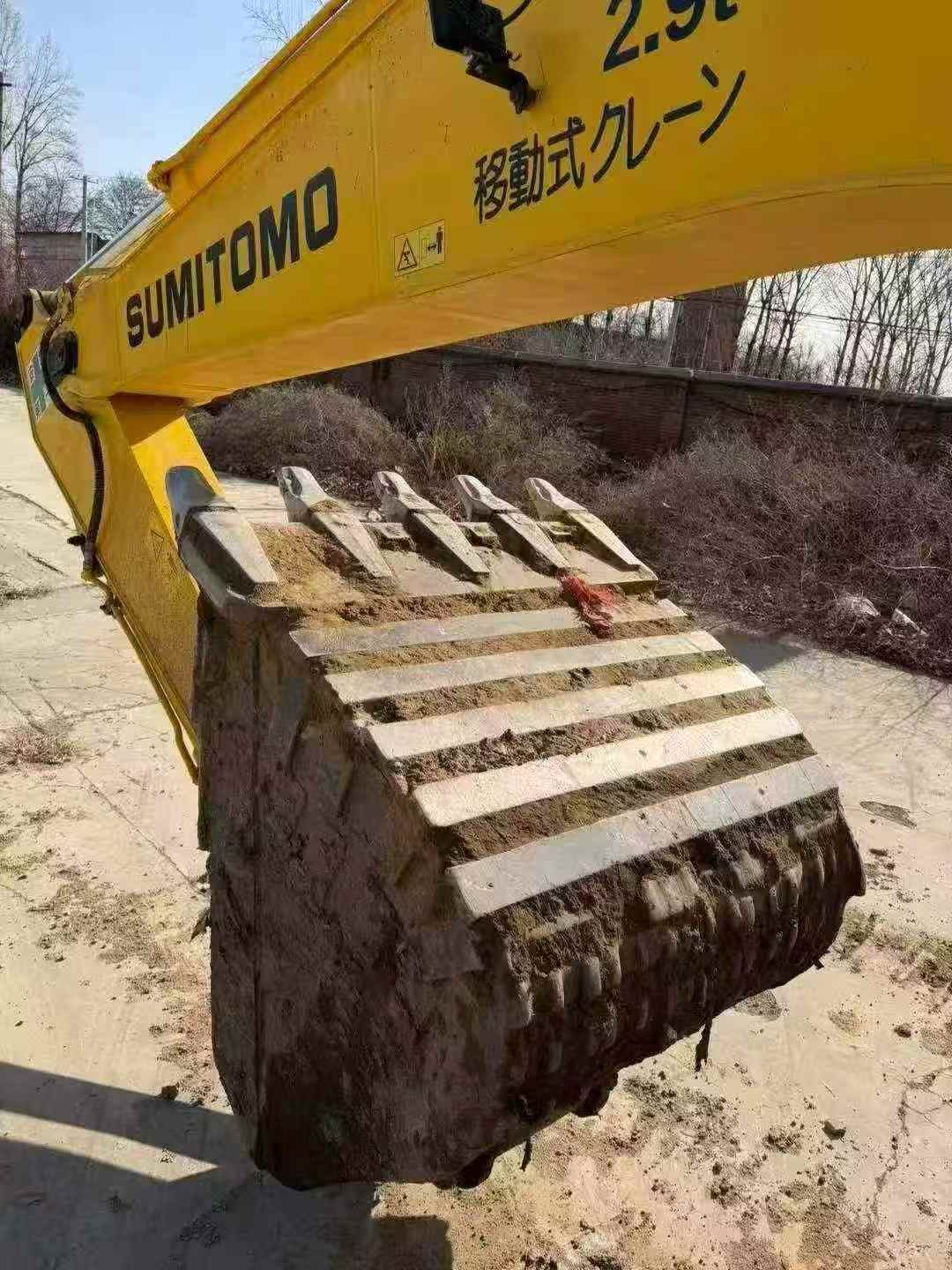

Used Sumitomo SH210A5 Excavator 2016 Model / 5

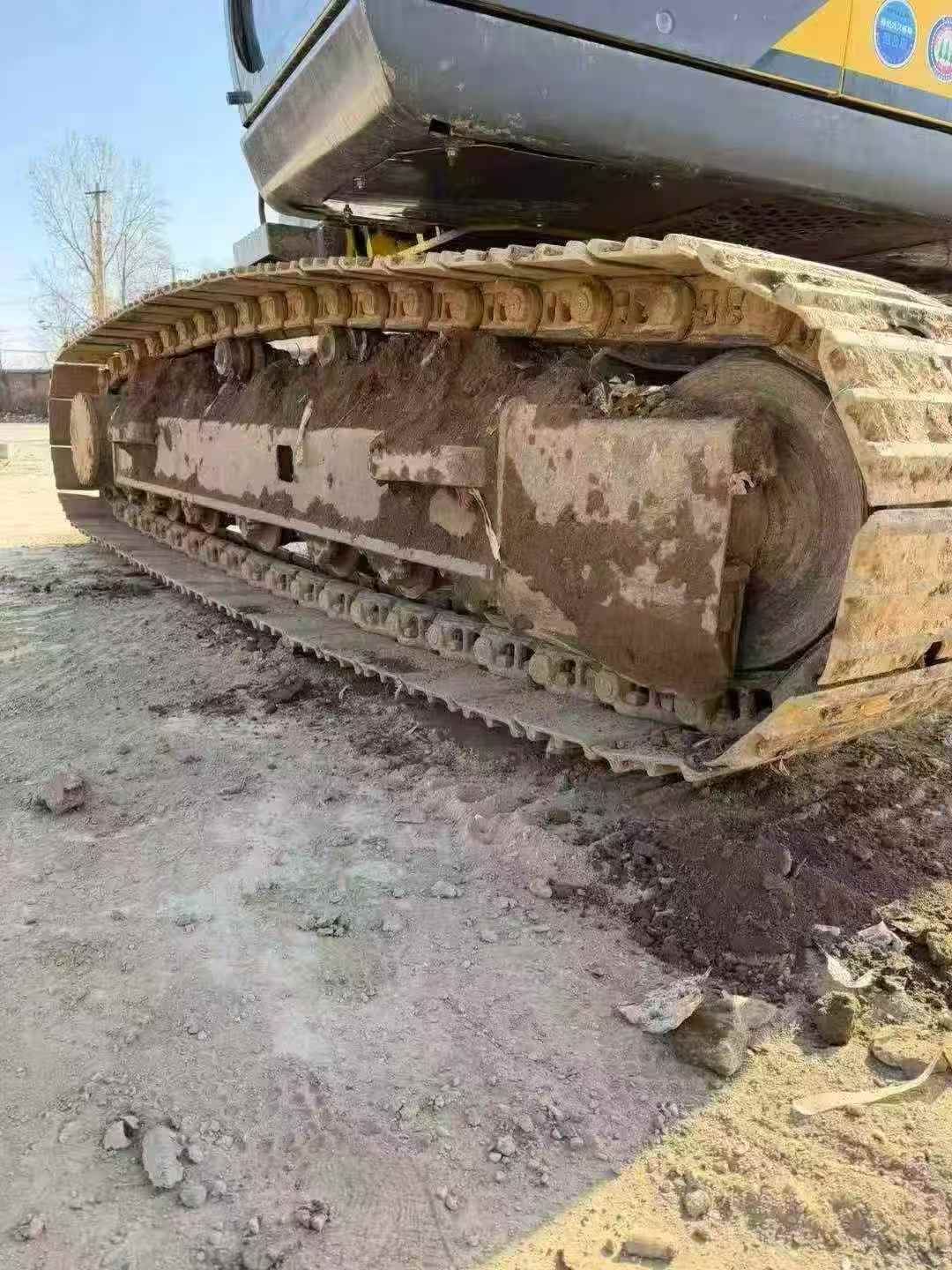

Used Sumitomo SH210A5 Excavator 2016 Model / 6

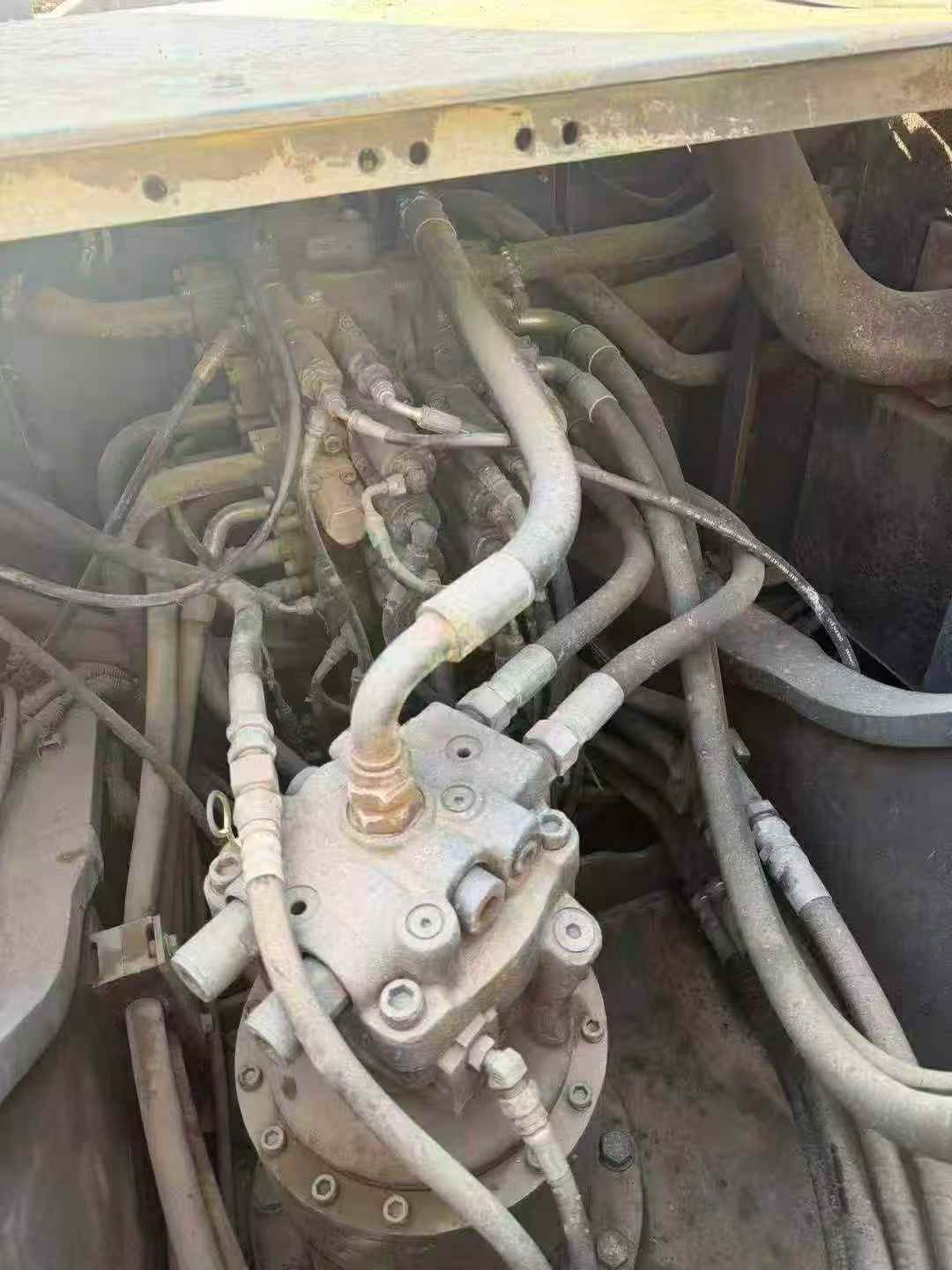

Used Sumitomo SH210A5 Excavator 2016 Model / 7

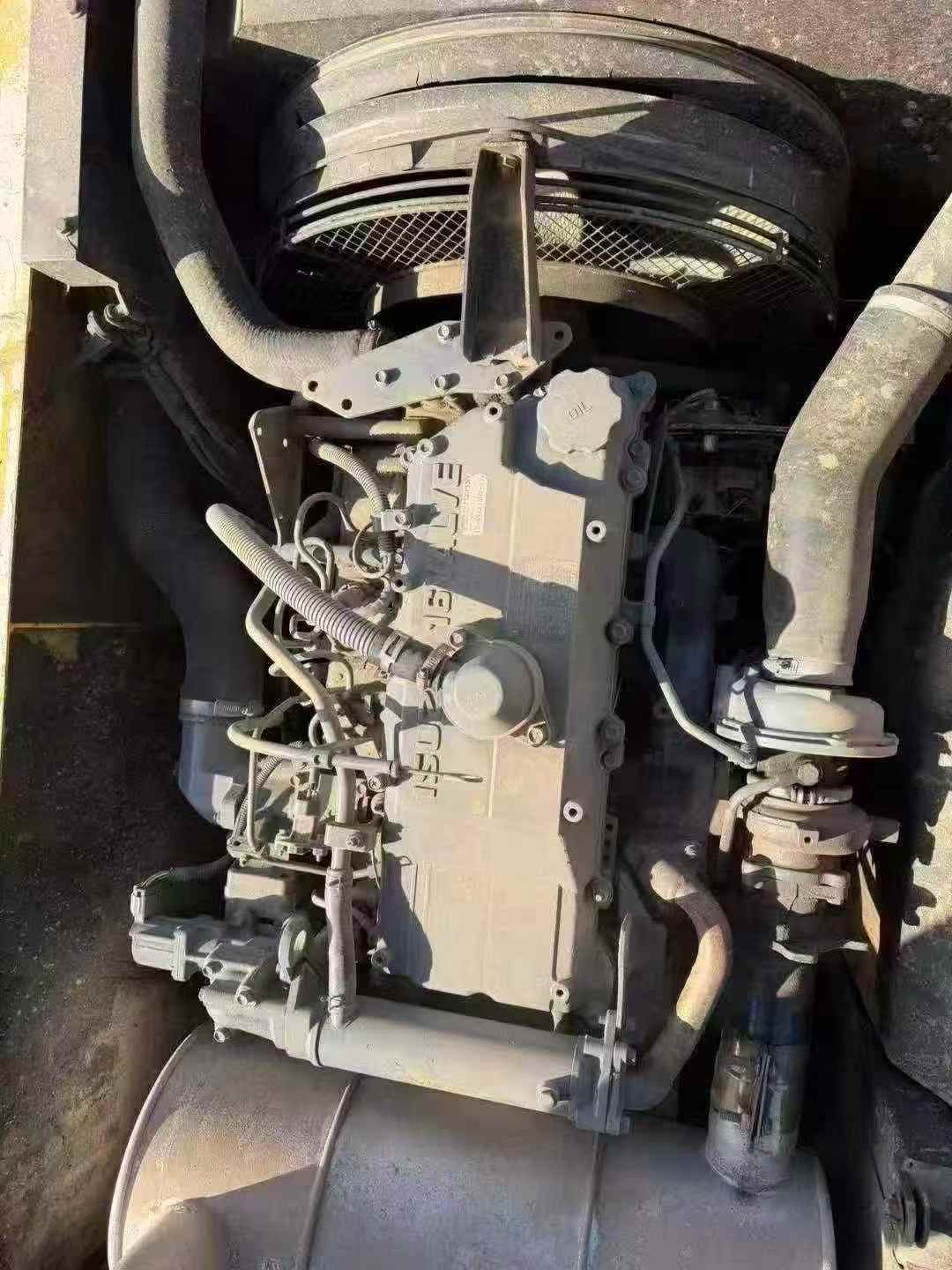

Used Sumitomo SH210A5 Excavator 2016 Model / 8

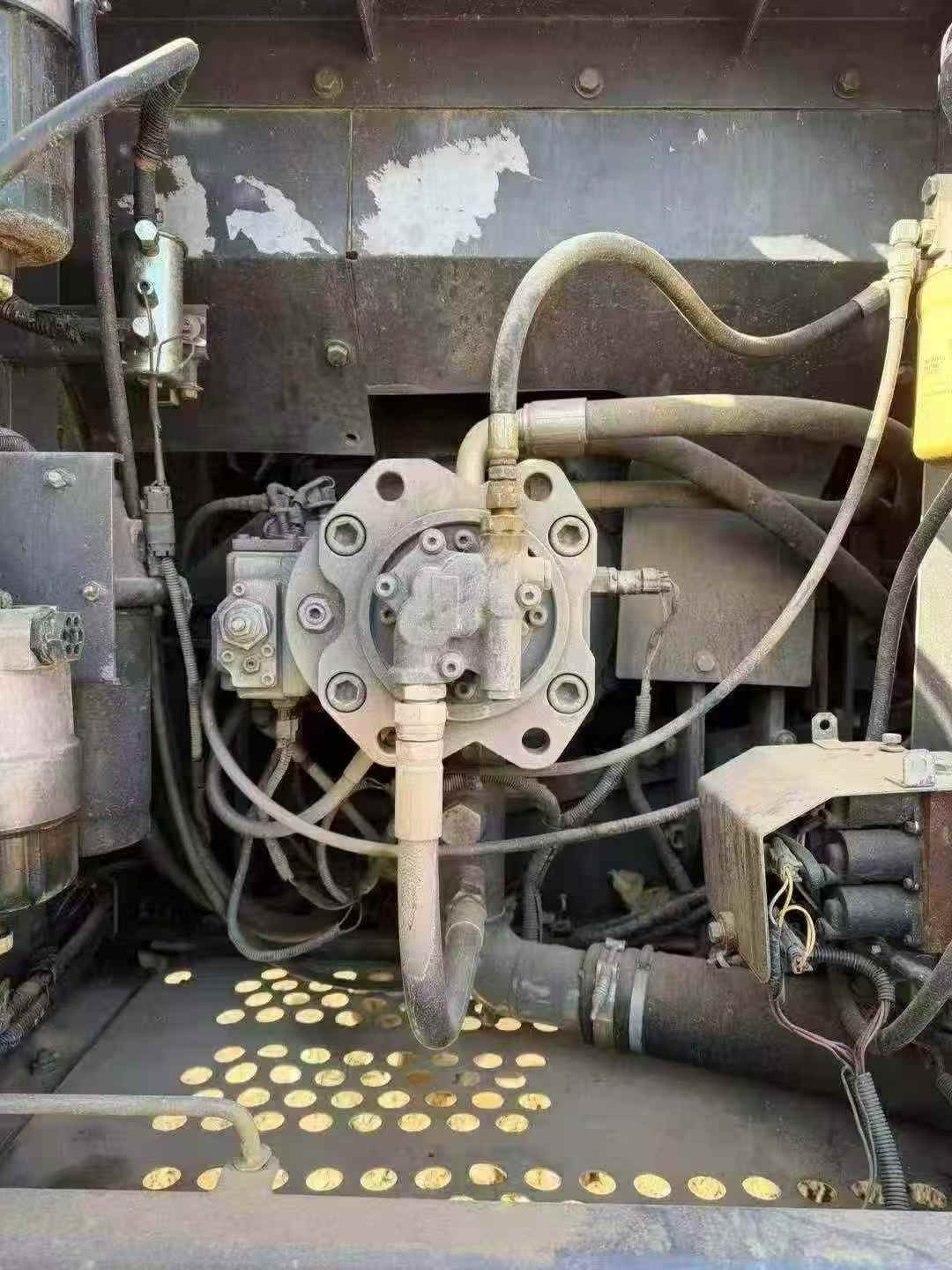

Used Sumitomo SH210A5 Excavator 2016 Model / 9

Product Description

【 Premium Second-hand Sumitomo 210A5 Excavator 】 This Sumitomo 210A5 excavator is a high-quality second-hand device carefully selected by us. It not only has outstanding working performance, but also is in excellent condition and has passed strict vehicle performance tests, ensuring that buyers can use it with confidence. This excavator has a cumulative working time of only 3,500 hours and is in the best working condition, making it highly suitable for engineering teams that require efficient and stable construction machinery. In terms of the power system, this machine is equipped with an original imported high-performance engine, which runs smoothly and has strong power. After professional maintenance and upkeep, the engine performs exceptionally well, maintaining a good working condition both during startup and long-term operation. At the same time, fuel economy has also been significantly improved, greatly reducing operating costs. The hydraulic system is a major highlight of this excavator. By adopting advanced hydraulic technology, the operation becomes more flexible and precise, with a fast response speed and high work efficiency. The entire hydraulic system has undergone strict testing, with no leakage or malfunction phenomen

SpecificationsValue
No.972256
Tonnage (tons)21
Working weight (kg)19900
Bucket capacity (m³)0.5-1.1
Boom length (mm)5700
Rod length (mm)2900
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AI-4HK1X (Tier 3)
Rated power (kw/rpm)117.3/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)
Rod digging force (kN)
Travel speed (km/h)3.4/5.6
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29.4
Main pump type2× variable axial piston pump
Working Hydraulic Circuit (Mpa)36.8
Bucket cylinders - Number × diameter × stroke (mm)1-120-1010
Bucket rod cylinders - Number × diameter × stroke (mm)1-140-1460
Boom cylinders - Number × diameter × stroke (mm)2-120-1255
Fuel Tank (L)410
Hydraulic Tank (L)
Engine Oil changes (L)23.1
Coolant (L)26
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Full cab height (mm)2940
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6470
see more

Overview

No.972256

Brand Name:

Sumitomo

Model Number:

SH210A5

Year:

2016

Location:

Hebei China
