Product Description

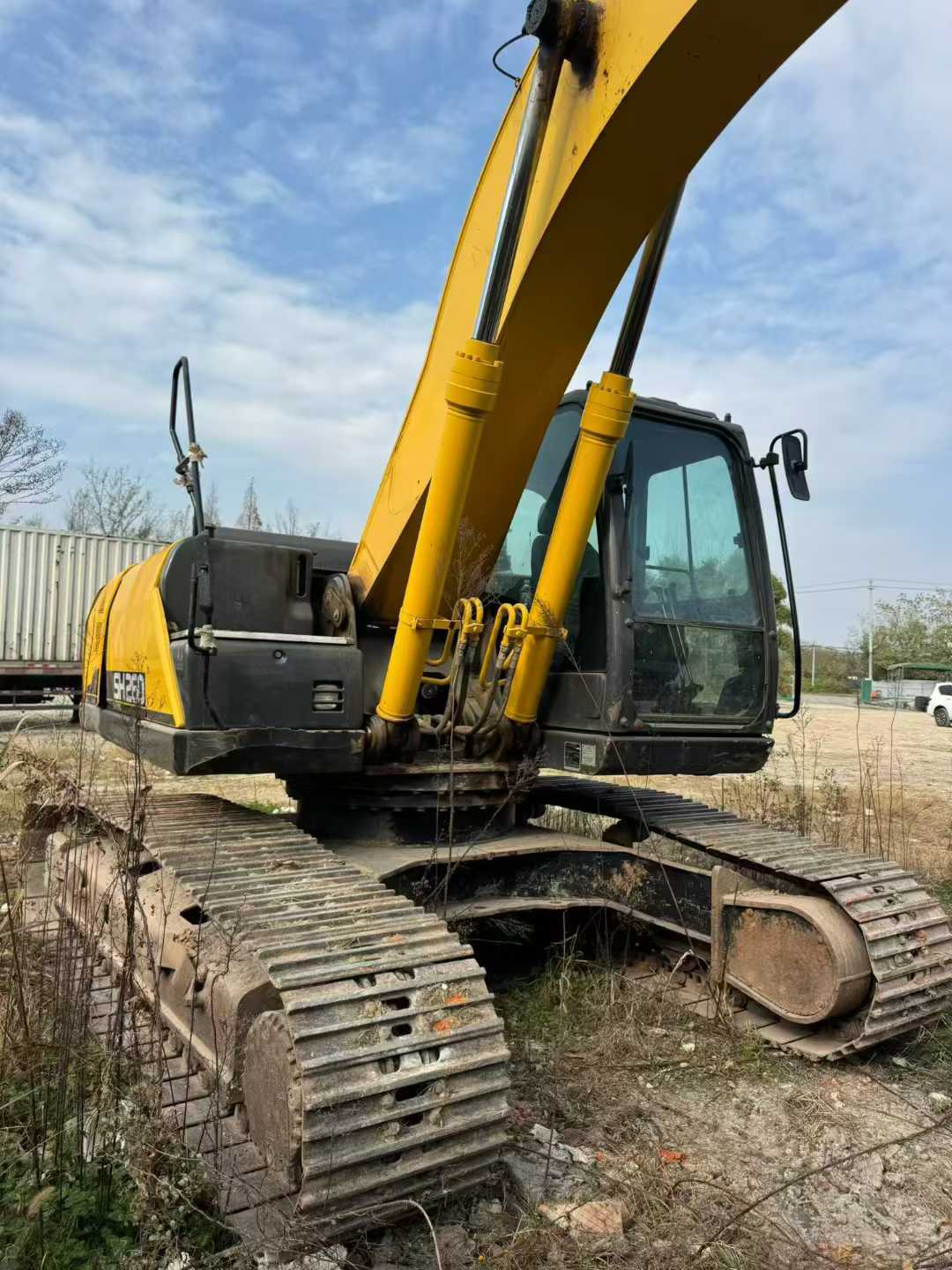

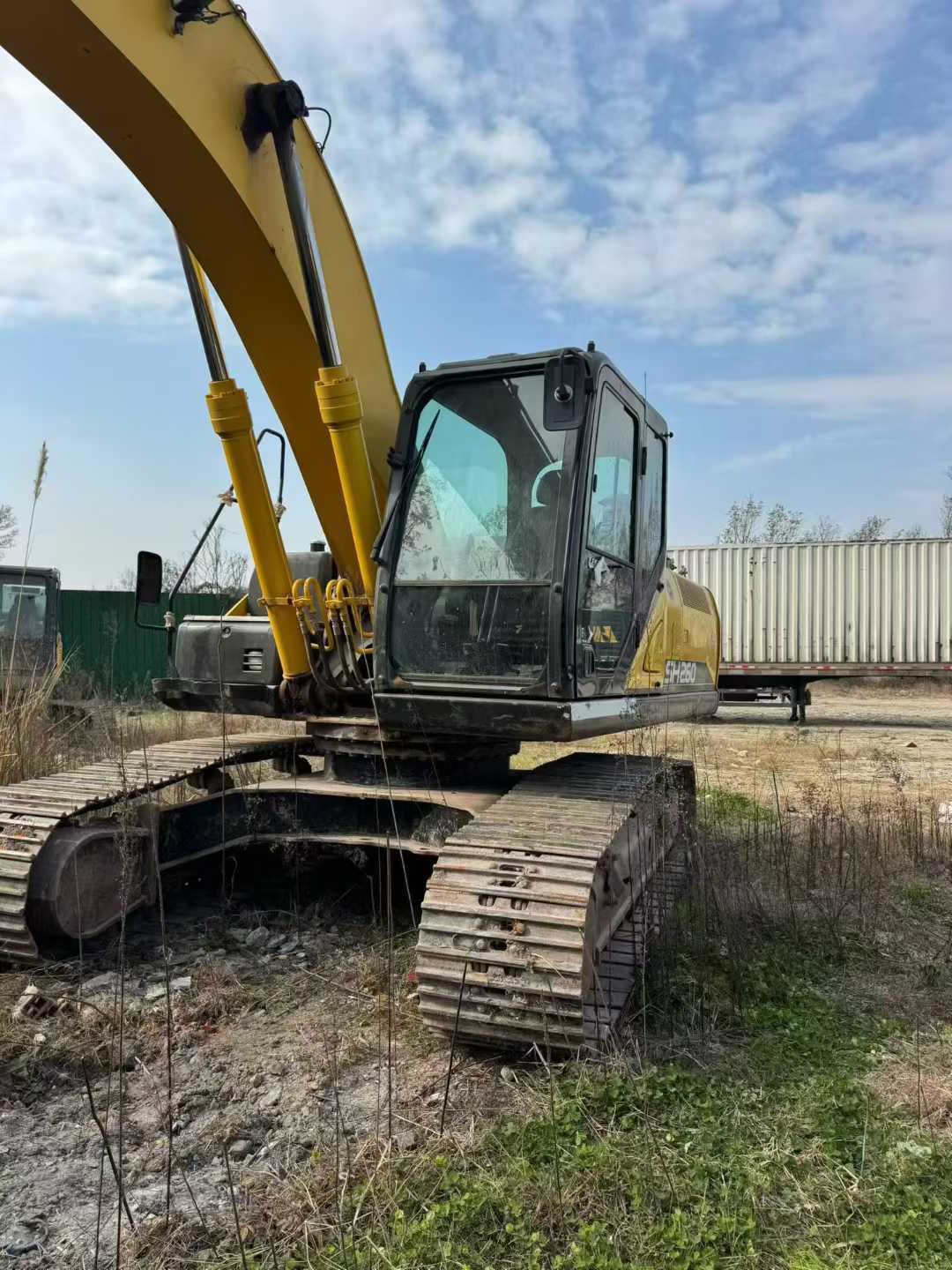

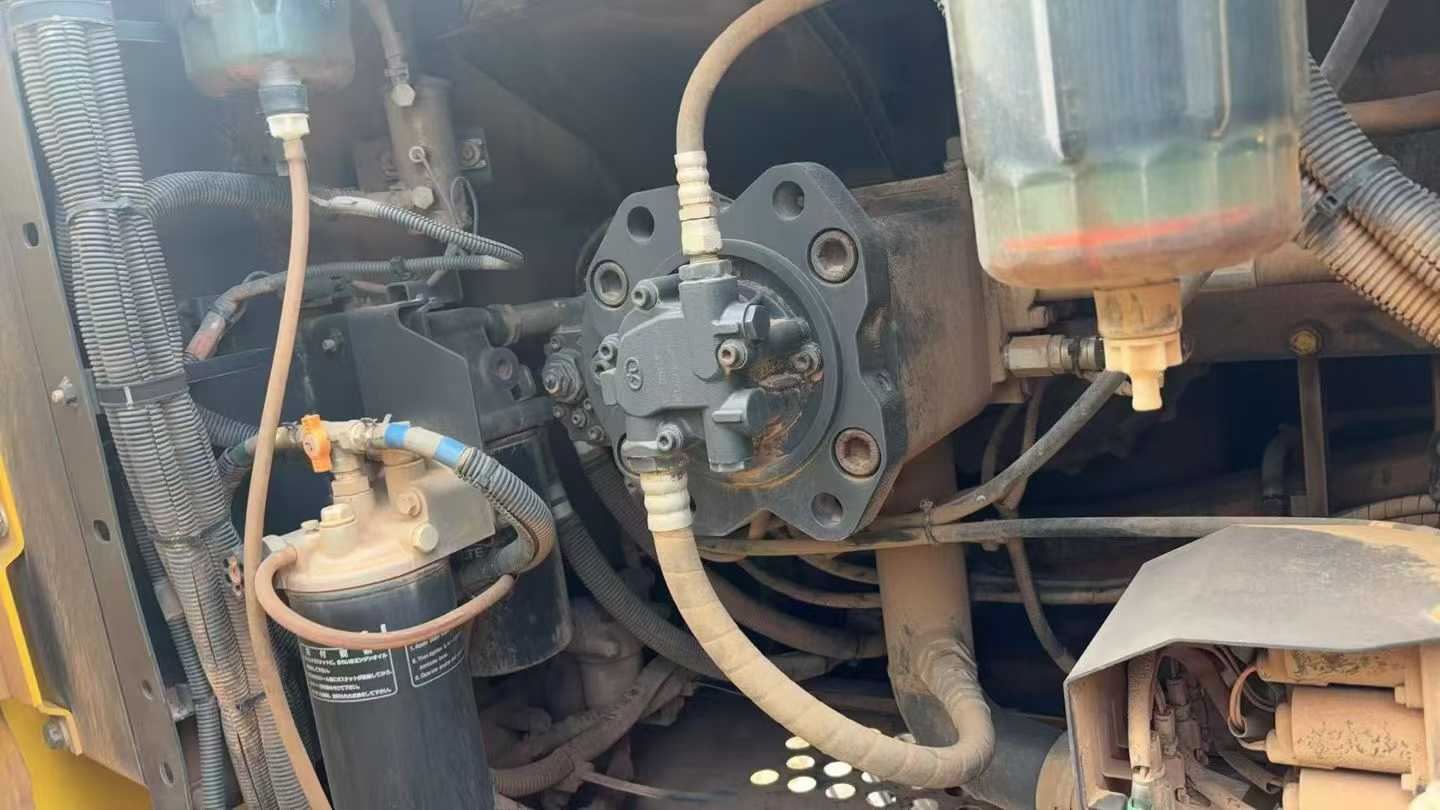

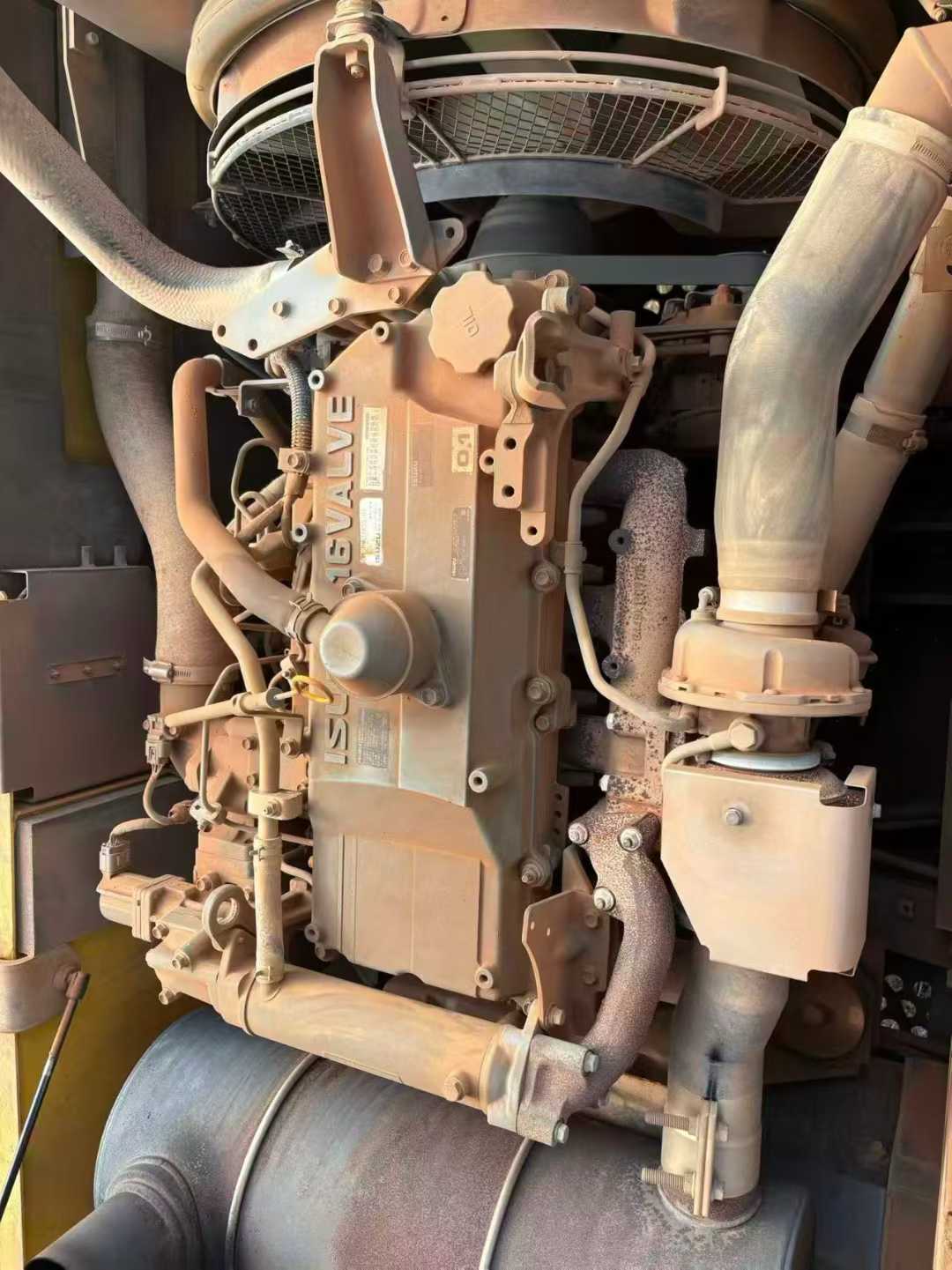

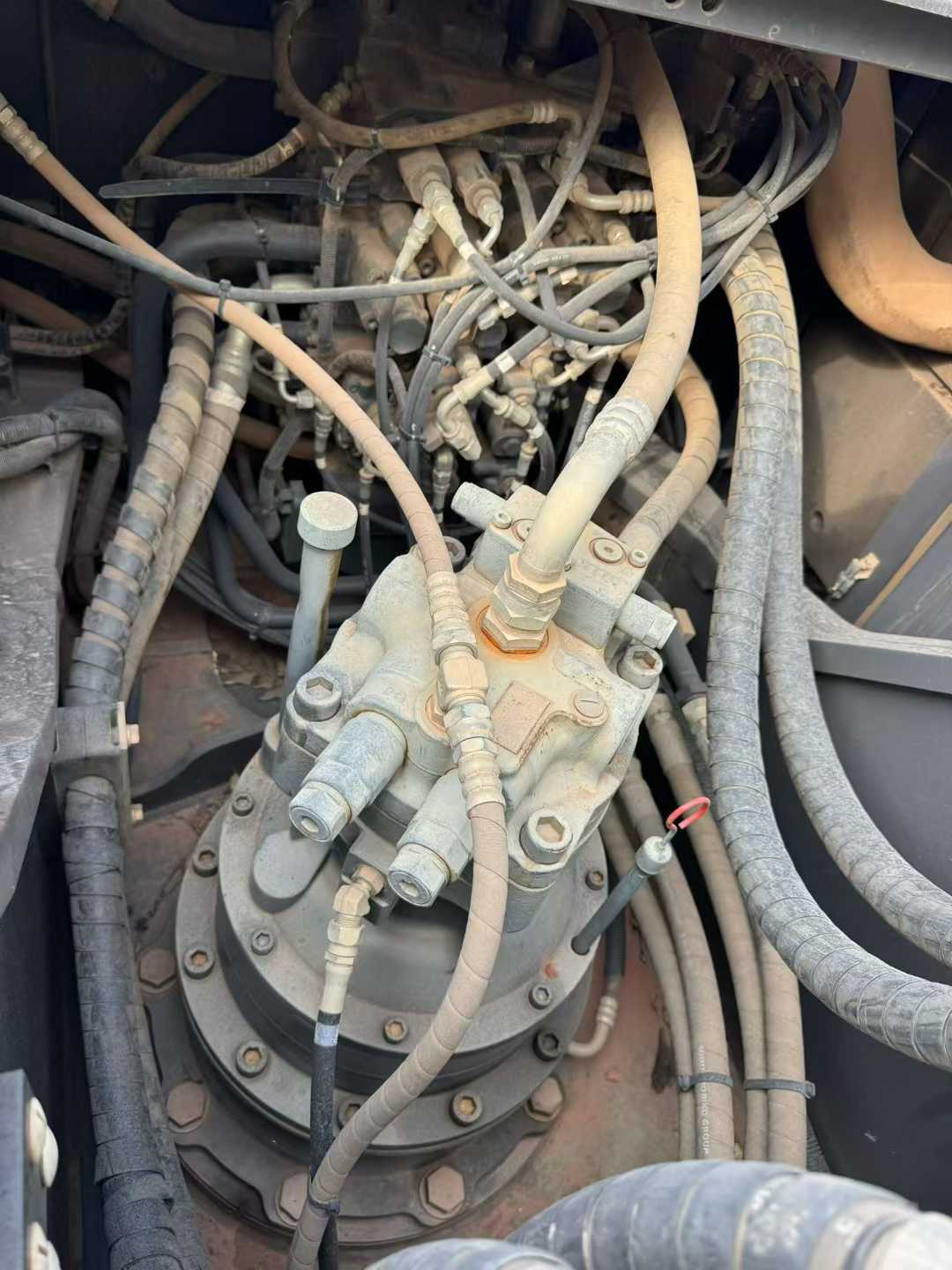

【 Premium Recommendation 】 Two second-hand Sumitomo SH240-6 excavators from 2021 have arrived at the store. The actual working time on the meter is only over 2,000 hours. The machine is in excellent condition and well maintained. It is your ideal choice for engineering operations! "Power System This Sumitomo SH240-6 is equipped with an efficient and energy-saving Isuzu engine, which is powerful and has excellent fuel economy. During over 2,000 hours of actual operation, the engine has run stably with no major overhaul records, ensuring the reliability and durability of the equipment. In addition, this model is also equipped with an advanced electronic control system that can automatically adjust the power output according to the actual working conditions, effectively reducing fuel consumption and improving work efficiency. "Hydraulic System In terms of the hydraulic system, Sumitomo SH240-6 adopts advanced negative flow control technology (LH), ensuring the accuracy and flexibility of operation. Whether it is excavation, loading or crushing operations, they can all be handled with ease. Both its main pump and motor are high-quality imported components that have undergone strict testing and can maintain excellent performance even in h
| Specifications | Value |
|---|---|
| No. | 972437 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.1 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 121/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 10.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 160/173 |
| Rod digging force (kN) | 115/125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 468 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 225 |
| Total transport length (mm) | 9880 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3870 |
| Back end turning radius (mm) | 2910 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10420 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6210 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
