Product Description

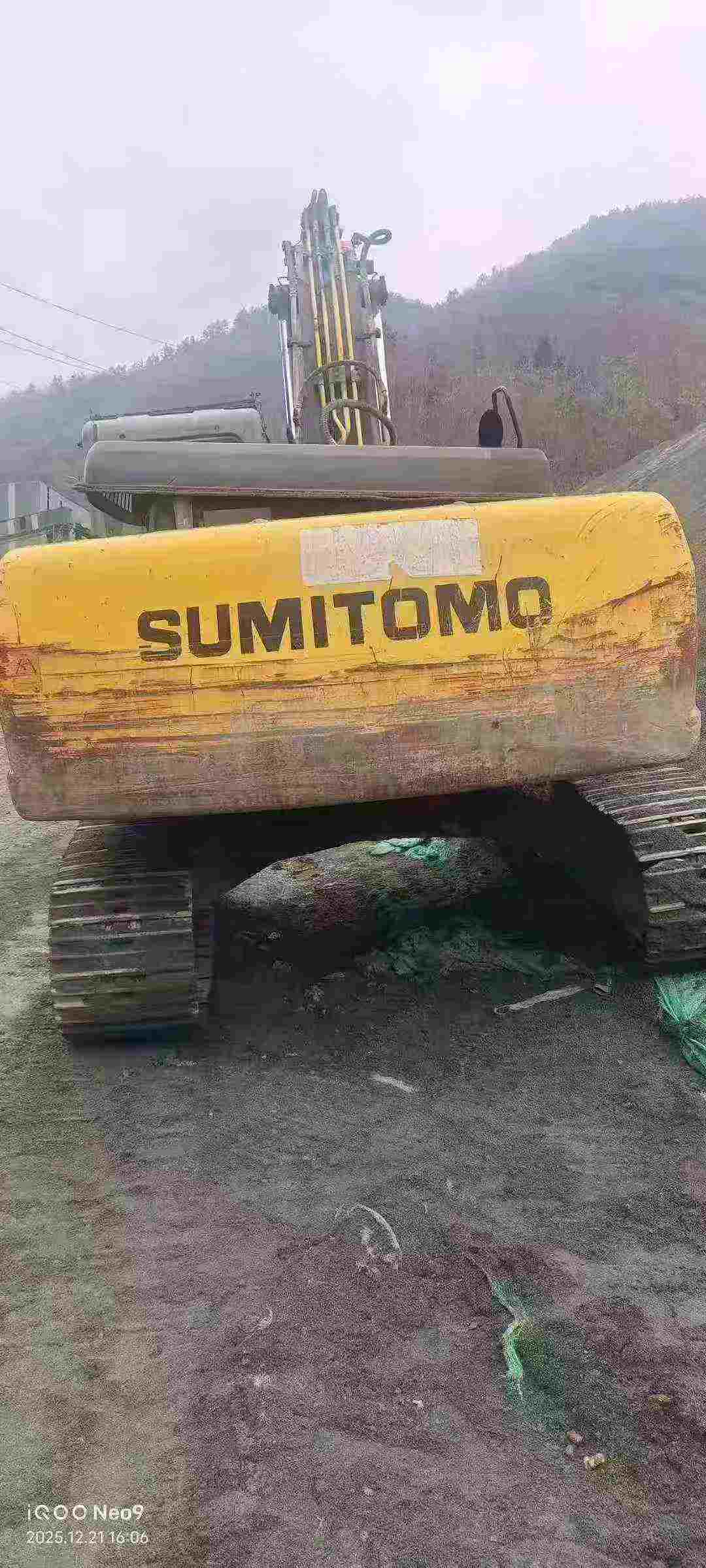

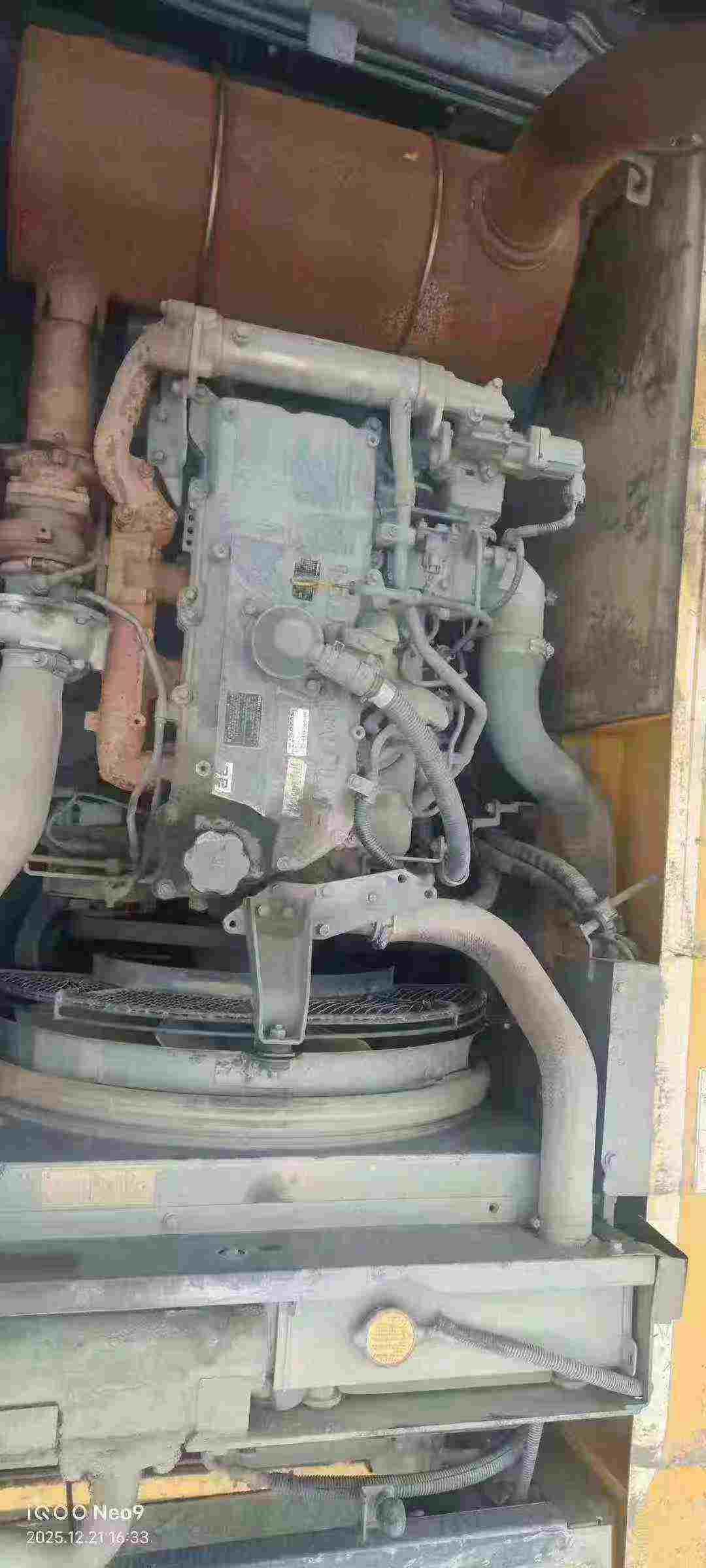

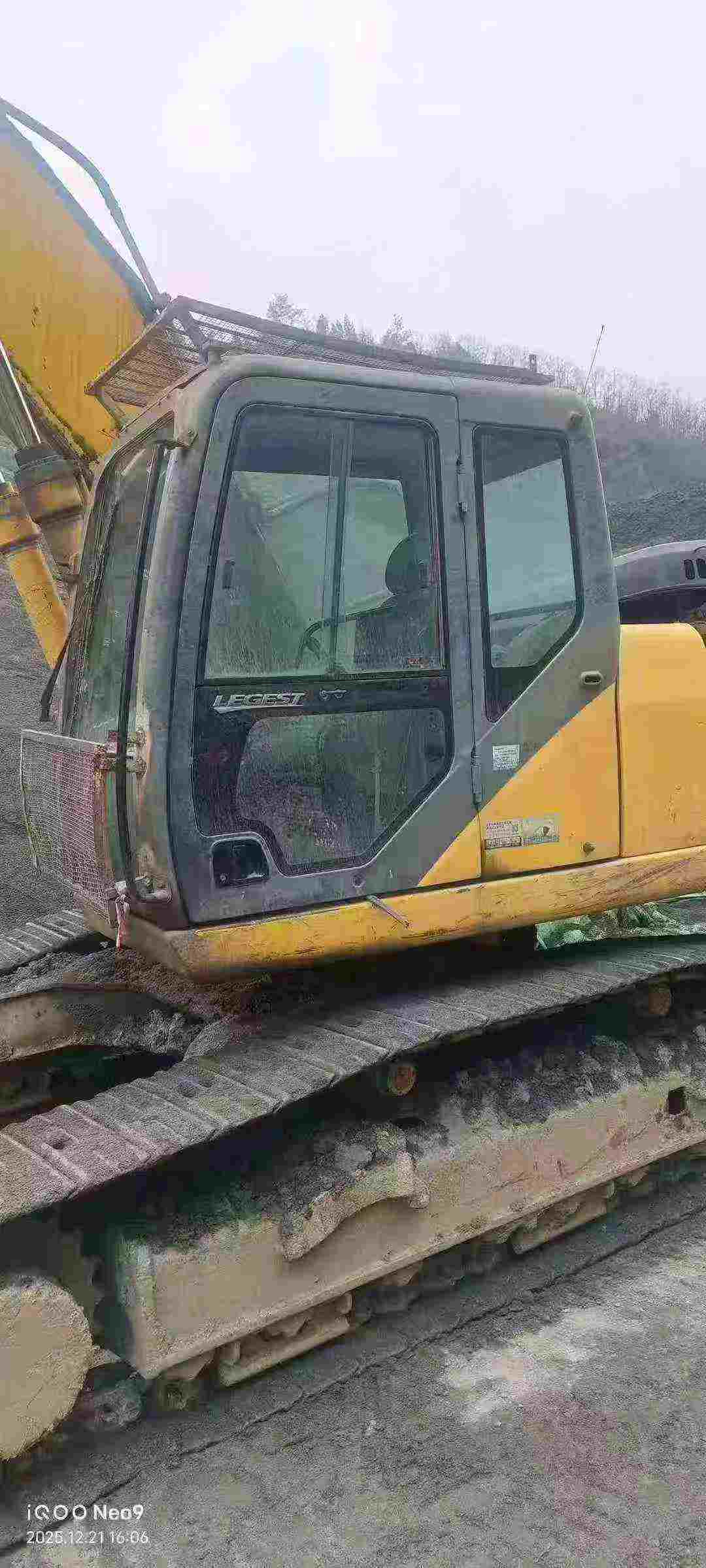

【 Product Name 】 Second-hand Sumitomo SH240-6 excavator from 2015 【 Basic Information This second-hand Sumitomo SH240-6 excavator from 2015 has a working time of approximately 6,000 hours. It is in good overall condition and well maintained. As a medium-sized excavator, it performs outstandingly in various engineering operations. Whether it is earthwork excavation, infrastructure construction or road construction, it can handle them with ease. "Power System This device is equipped with an efficient and energy-saving Isuzu engine, with a maximum power output of 129kW (approximately 173 horsepower). It not only provides strong power output but also ensures fuel economy. The engine operates smoothly with low noise and relatively low maintenance costs, making it one of the ideal choices for many construction units. "Hydraulic System The adoption of advanced negative flow control technology makes the operation of the entire machine more flexible and precise. Its closed-loop central circuit design can effectively reduce energy loss and improve work efficiency. In addition, it is equipped with multiple working modes to choose from. Users can adjust them to the best state according to their actual needs to meet the operation requirements un
| Specifications | Value |
|---|---|
| No. | 972455 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.1 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 121/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 10.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 160/173 |
| Rod digging force (kN) | 115/125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 468 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 225 |
| Total transport length (mm) | 9880 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3870 |
| Back end turning radius (mm) | 2910 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10420 |
| Maximum digging depth (mm) | 6970 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6210 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
