2016 Sumitomo SH240-3

1/6
Used Sumitomo SH240-3 Excavator 2016 Model / 1

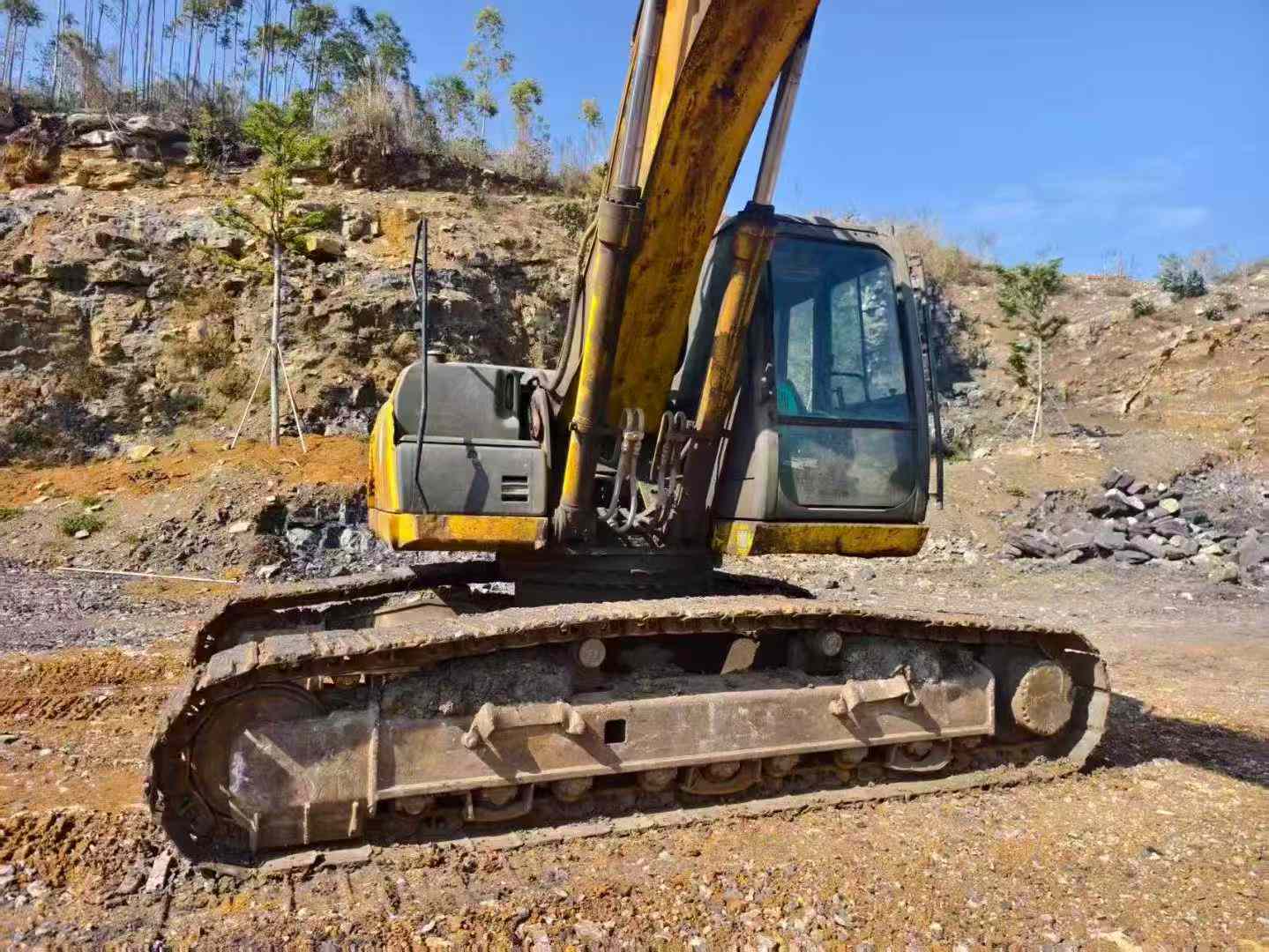

Used Sumitomo SH240-3 Excavator 2016 Model / 2
Used Sumitomo SH240-3 Excavator 2016 Model / 3
Used Sumitomo SH240-3 Excavator 2016 Model / 4

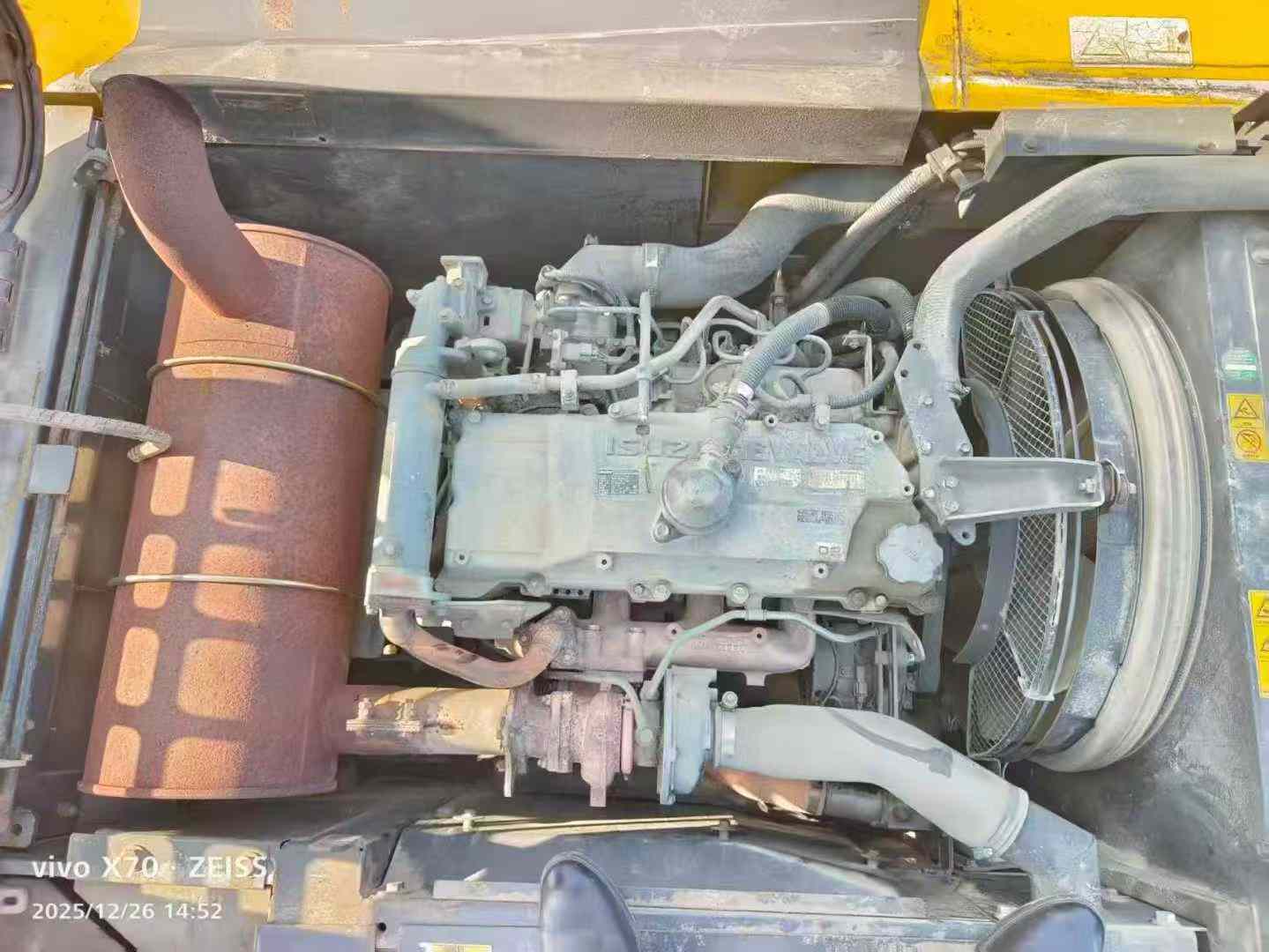

Used Sumitomo SH240-3 Excavator 2016 Model / 5

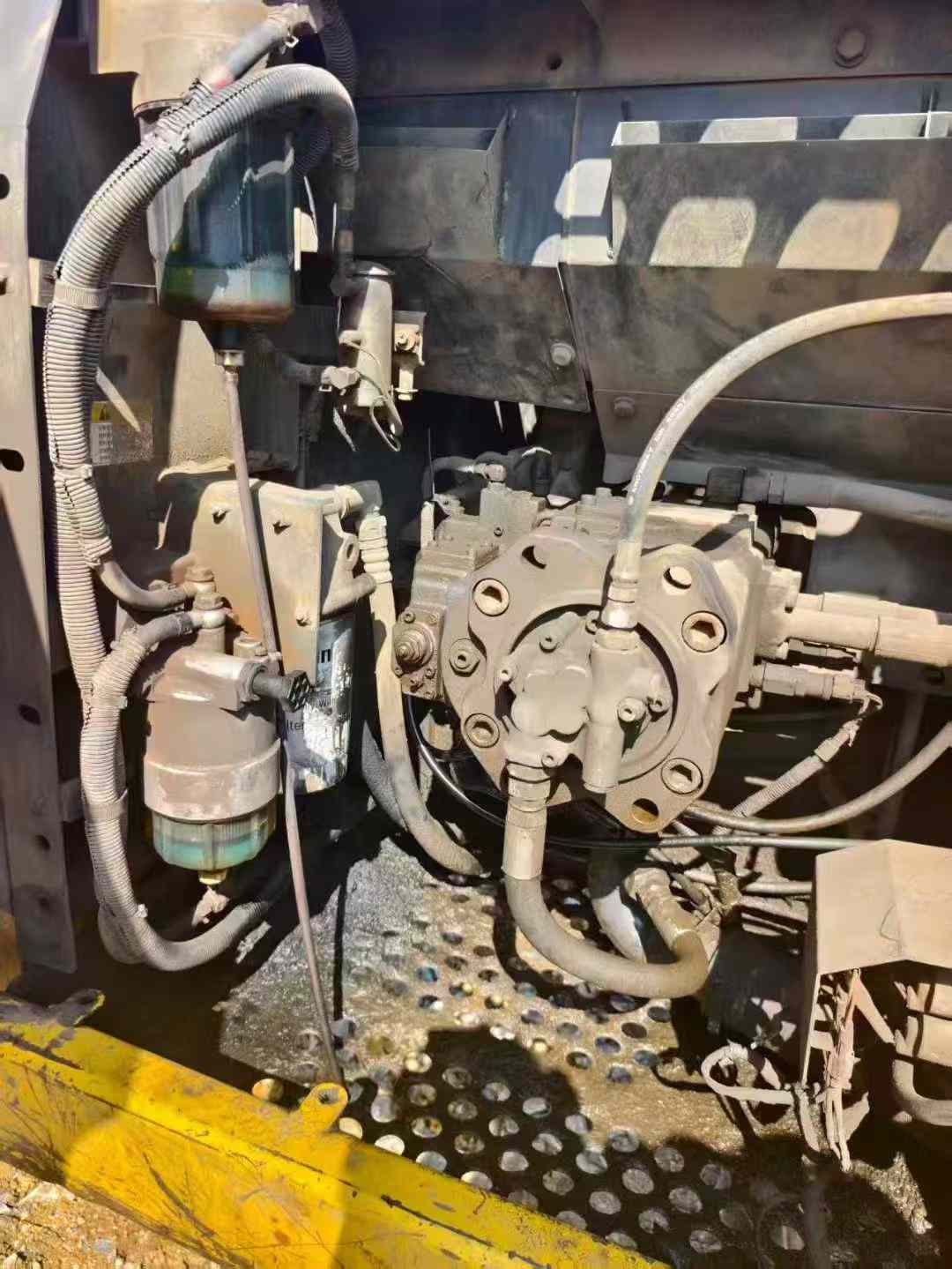

Used Sumitomo SH240-3 Excavator 2016 Model / 6

Product Description

This second-hand Sumitomo 240 excavator features outstanding performance and reliable durability, with a cumulative working time of only 5,000 hours, ensuring it can still perform exceptionally well in future construction projects. This device is equipped with a high-performance Yanmar engine, with a maximum output power of 170 horsepower. It not only ensures strong power output but also has excellent fuel economy, effectively reducing operating costs. In terms of the hydraulic system, this excavator is equipped with a highly efficient Kawasaki hydraulic pump and a well-tested Eaton hydraulic motor combination. This configuration makes the entire machine operate more smoothly and smoothly, with rapid and accurate responses. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, Sumitomo's unique intelligent control system further optimizes power distribution, enhancing work efficiency while also improving the safety and comfort of the machine. As a classic model that has received wide acclaim in the market, the Sumitomo 240 excavator is renowned for its robust and durable design, easy maintenance features, and extensive application range. Whether it is the construction of urban infrastruc

SpecificationsValue
No.973663
Tonnage (tons)24
Working weight (kg)23300
Bucket capacity (m³)1.1
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU BB-6BG1T
Rated power (kw/rpm)121/2150
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)6.494
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)10.4
Climbing ability (%)70/35 °
Bucket digging force (kN)160/173
Rod digging force (kN)115/125
Travel speed (km/h)3.4/5.5
Main overflow set pressure (Mpa)34.3/37.3
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor ×2
Maximum flow of main pump (l/min)468
Hydraulic crushing pipeline is standardno
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)340
Hydraulic Tank (L)225
Total transport length (mm)9880
Total transport width (mm)3190
Total transport height (mm)3080
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3870
Back end turning radius (mm)2910
Total track length (mm)4640
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Maximum digging radius (mm)10420
Maximum digging depth (mm)6970
Maximum excavation height (mm)9810
Maximum unloading height (mm)6760
Maximum vertical digging depth (mm)6210
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
see more

Overview

No.973663

Brand Name:

Sumitomo

Model Number:

SH240-3

Year:

2016

Location:

Guangxi China
