2016 Sumitomo SH240-3

1/5

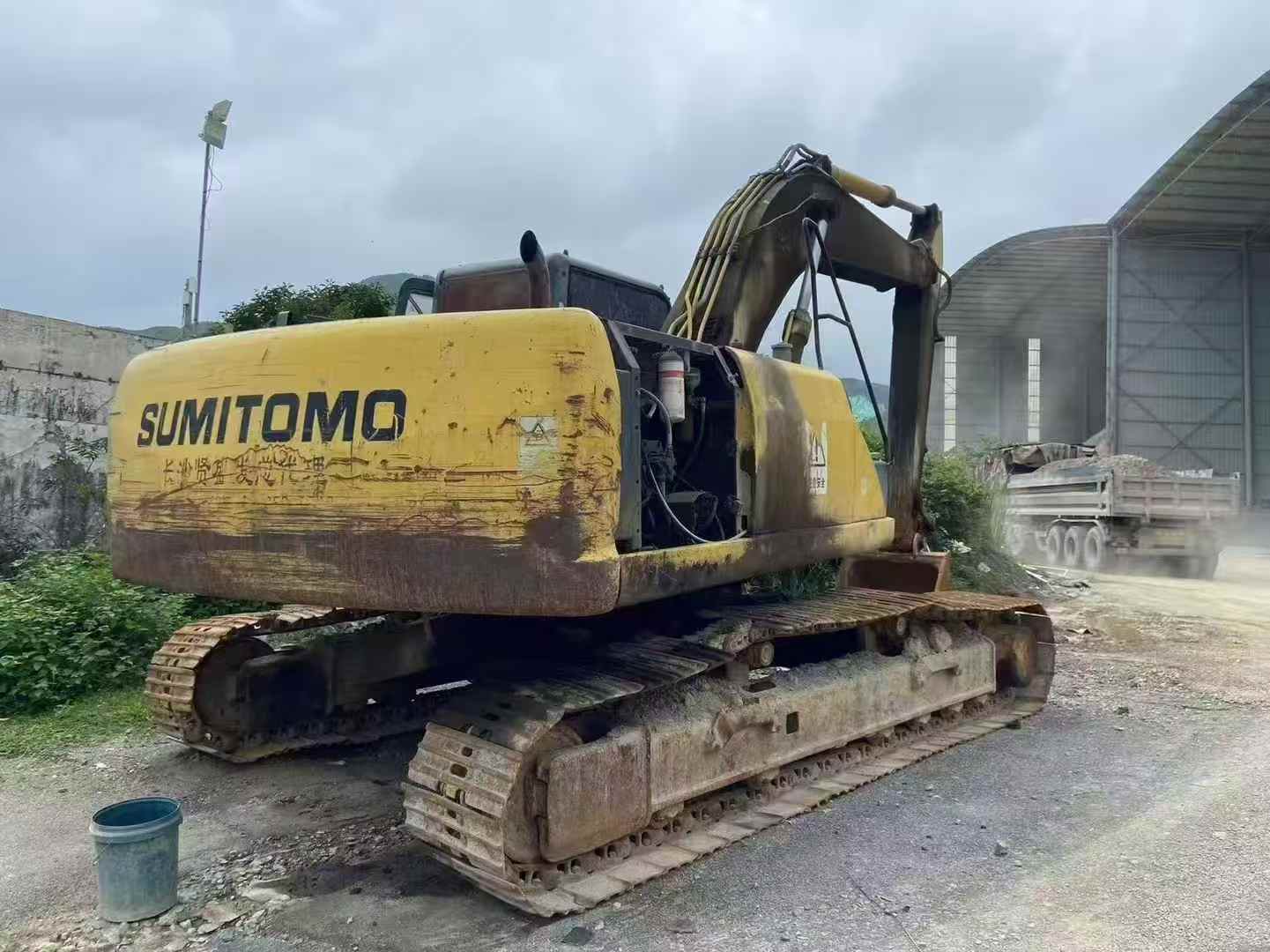

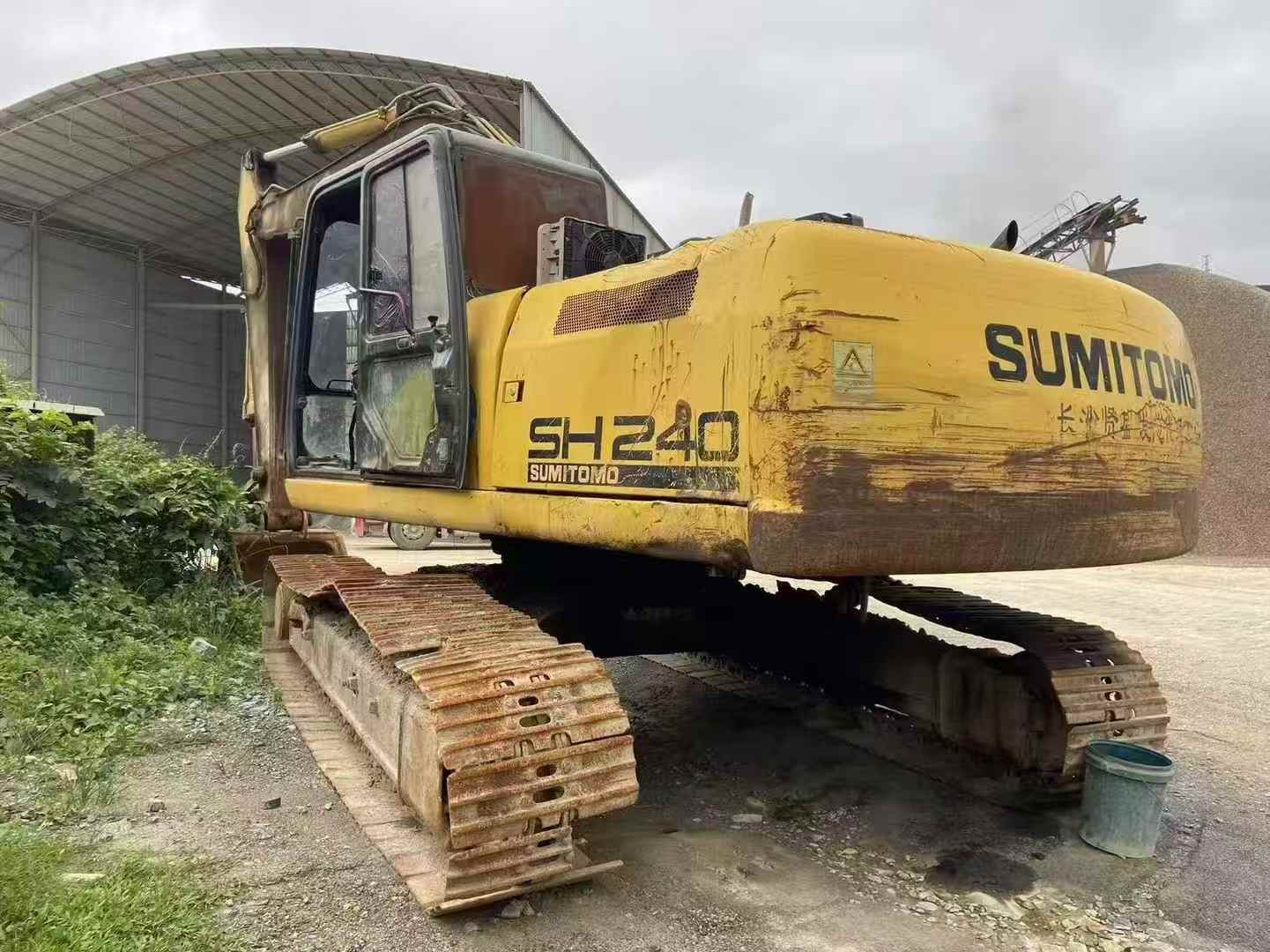

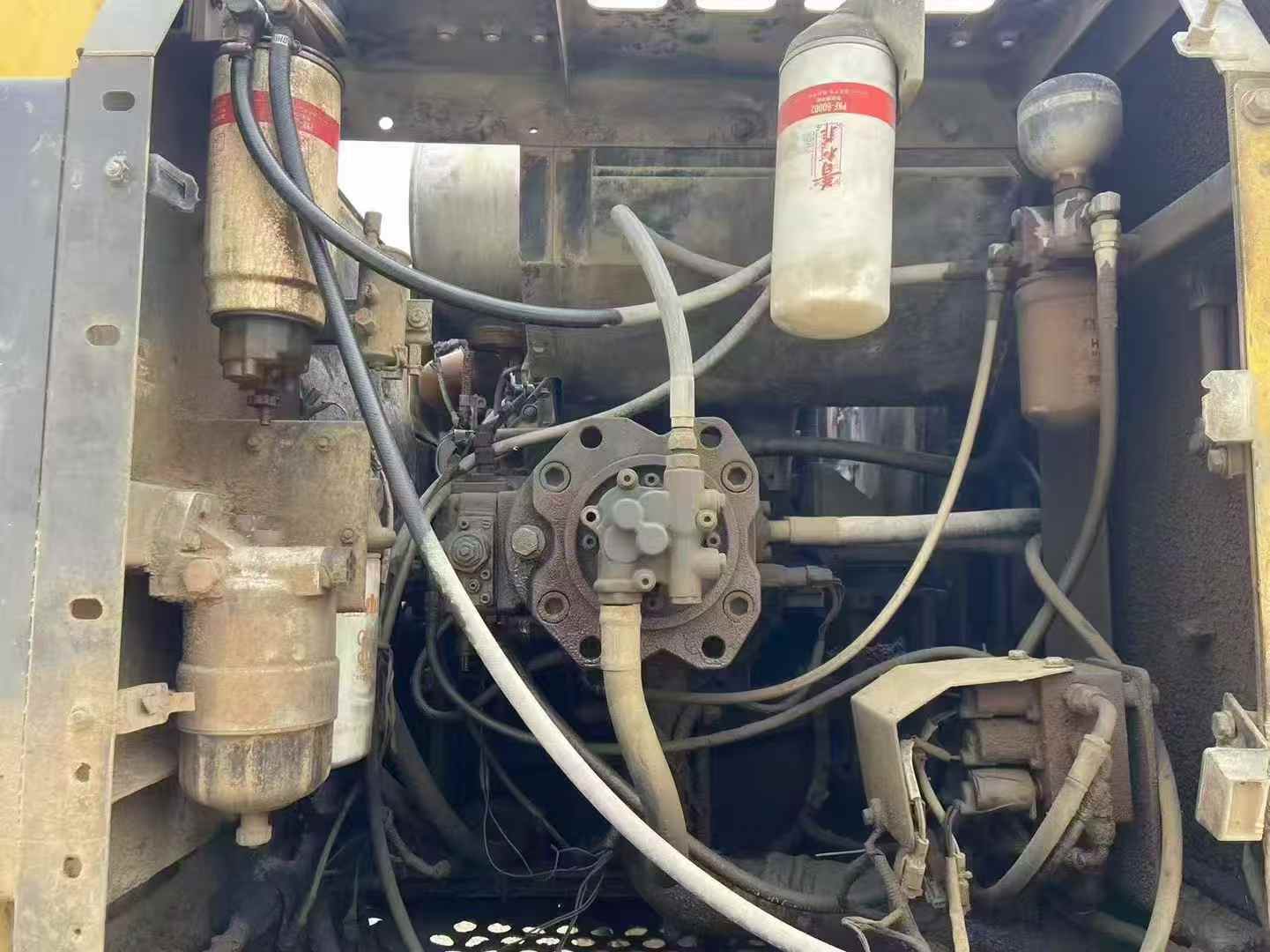

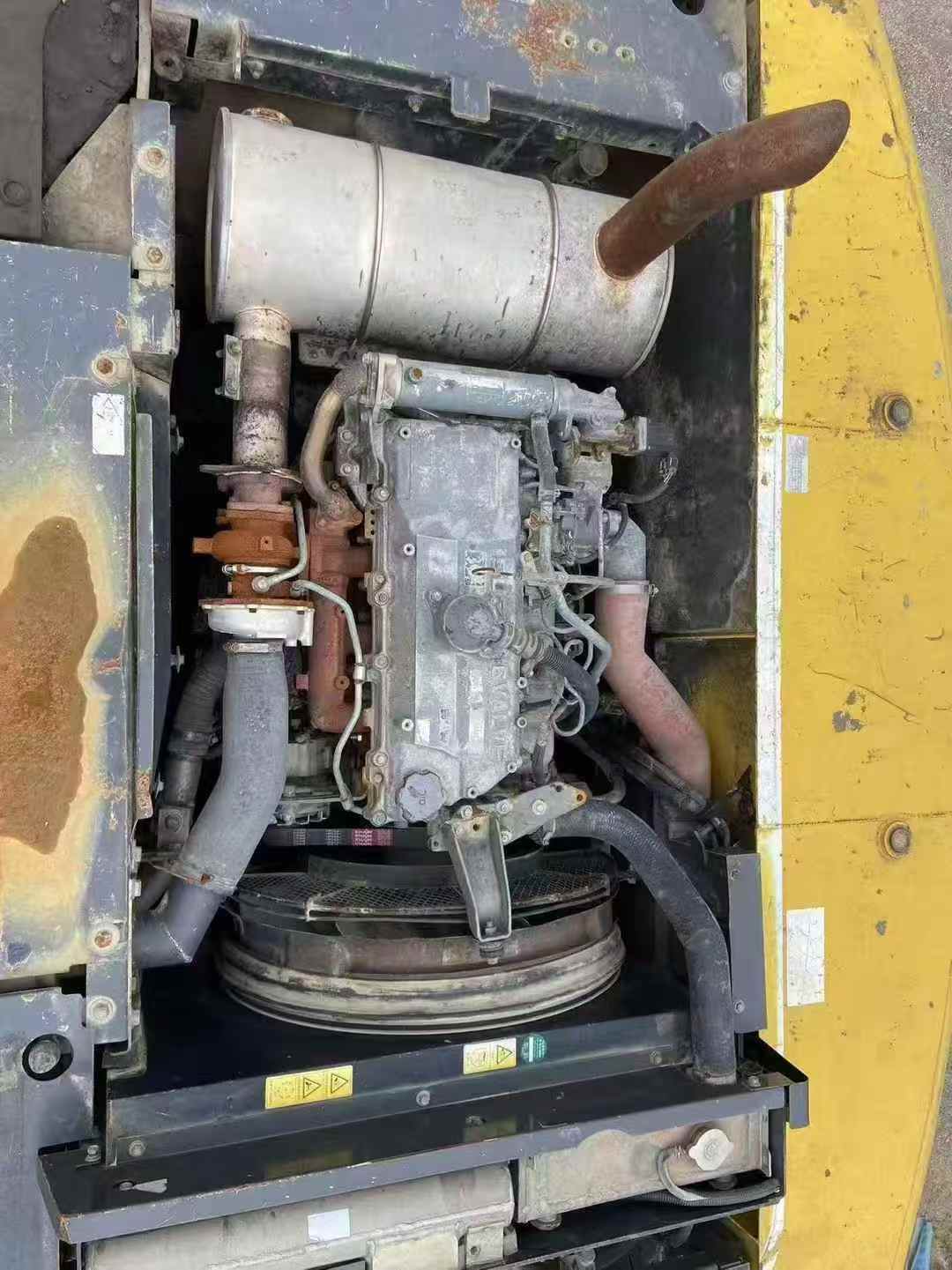

Used Sumitomo SH240-3 Excavator 2016 Model / 1
Used Sumitomo SH240-3 Excavator 2016 Model / 2
Used Sumitomo SH240-3 Excavator 2016 Model / 3
Used Sumitomo SH240-3 Excavator 2016 Model / 4
Used Sumitomo SH240-3 Excavator 2016 Model / 5

Product Description

There is currently a high-quality second-hand Sumitomo 240 excavator with a working time of only 59,000 hours. The equipment is in good condition and has stable performance. This excavator is equipped with an efficient engine system, which is expected to be an original Sumitomo engine that has been proven in the market. It has strong power and can meet the operation requirements under various complex working conditions. The outstanding performance of the power system not only enhances work efficiency but also ensures fuel economy and reduces operating costs. In terms of the hydraulic system, this Sumitomo 240 is equipped with an advanced combination of a hydraulic pump and a hydraulic motor, ensuring smoothness and accuracy during operation. This optimally designed hydraulic configuration not only enhances the digging force but also greatly improves the flexibility and response speed of the entire machine, enabling it to handle both precise operations and heavy-load tasks with ease. In addition, this excavator also features a sturdy and durable structural design as well as a humanized cab layout, providing operators with a more comfortable and safe working environment. Its outstanding stability and reliability make it an ideal choice

SpecificationsValue
No.978469
Tonnage (tons)24
Working weight (kg)23300
Bucket capacity (m³)1.1
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU BB-6BG1T
Rated power (kw/rpm)121/2150
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)6.494
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)10.4
Climbing ability (%)70/35 °
Bucket digging force (kN)160/173
Rod digging force (kN)115/125
Travel speed (km/h)3.4/5.5
Main overflow set pressure (Mpa)34.3/37.3
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor ×2
Maximum flow of main pump (l/min)468
Hydraulic crushing pipeline is standardno
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)340
Hydraulic Tank (L)225
Total transport length (mm)9880
Total transport width (mm)3190
Total transport height (mm)3080
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3870
Back end turning radius (mm)2910
Total track length (mm)4640
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Maximum digging radius (mm)10420
Maximum digging depth (mm)6970
Maximum excavation height (mm)9810
Maximum unloading height (mm)6760
Maximum vertical digging depth (mm)6210
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
see more

Overview

No.978469

Brand Name:

Sumitomo

Model Number:

SH240-3

Year:

2016

Location:

Guizhou China
