Product Description

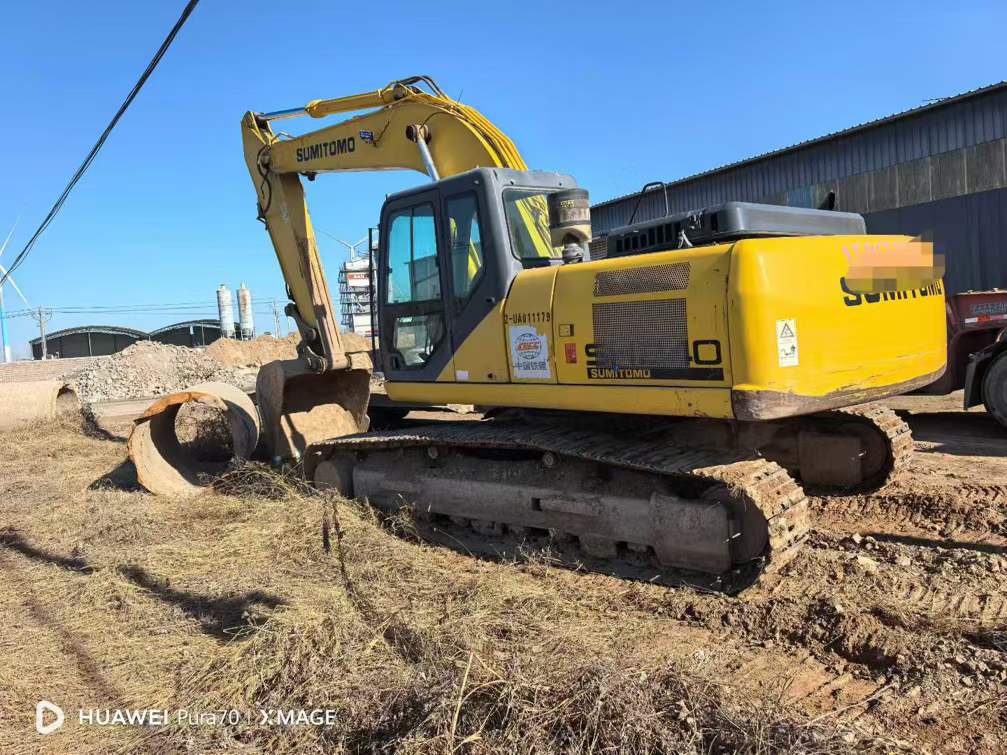

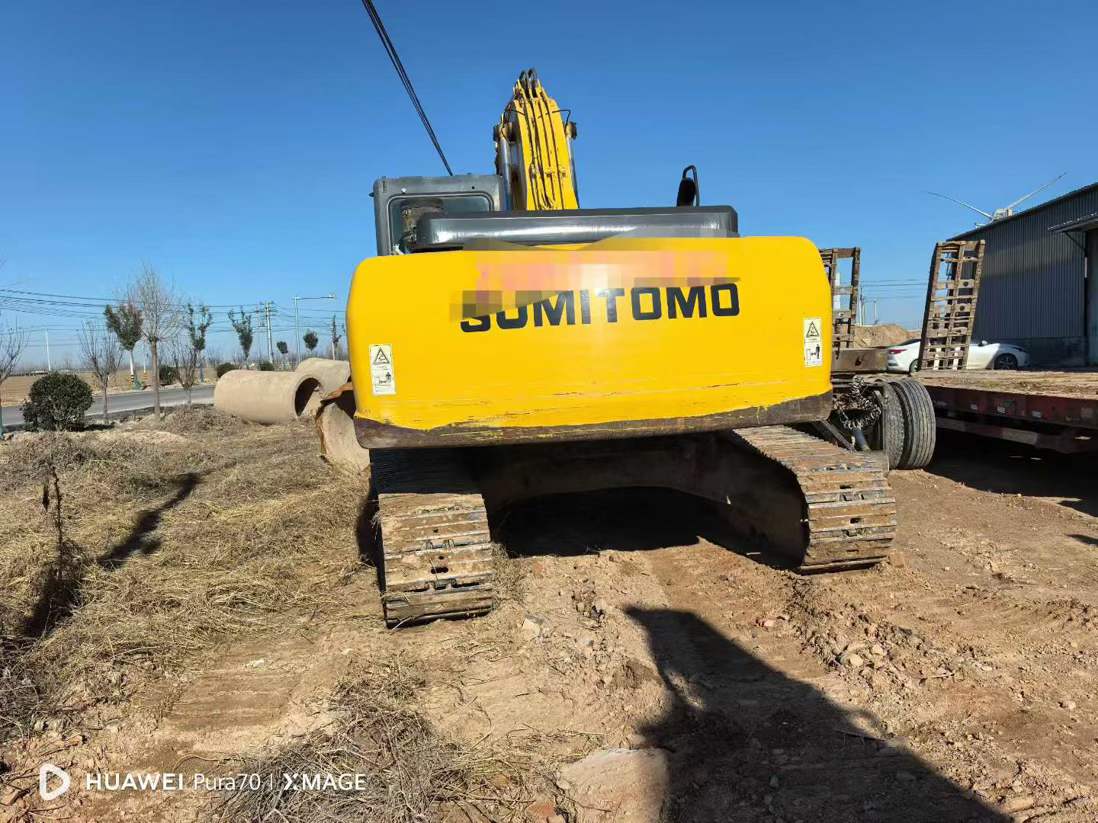

【 Sumitomo SH240-5 Second-hand Excavator 】 - Efficient and stable, the outstanding choice This second-hand Sumitomo SH240-5 excavator has a stable working record of over 10,000 hours, demonstrating its reliability and durability under various complex working conditions. This model is equipped with a powerful Isuzu engine (expected to be 6BG1), with a maximum output power of up to 130 kilowatts, ensuring that the machine has sufficient power support when performing tasks such as excavation and loading. In addition, an efficient fuel injection system not only enhances power performance but also significantly reduces fuel consumption, saving operating costs for users. In terms of the hydraulic system, the Sumitomo SH240-5 adopts advanced negative flow control technology. By combining an optimized hydraulic pump (possibly a dual-pump system) with a high-performance hydraulic motor, it achieves rapid response and precise operation, enabling it to handle both meticulous work and heavy-load excavation with ease. Its unique cooling design effectively extends the service life of hydraulic components and reduces maintenance frequency. The Sumitomo SH240-5 is renowned for its outstanding operational comfort. Its spacious and bright cab offers
| Specifications | Value |
|---|---|
| No. | 979032 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24600 |
| Bucket capacity (m³) | 1.1-1.3 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

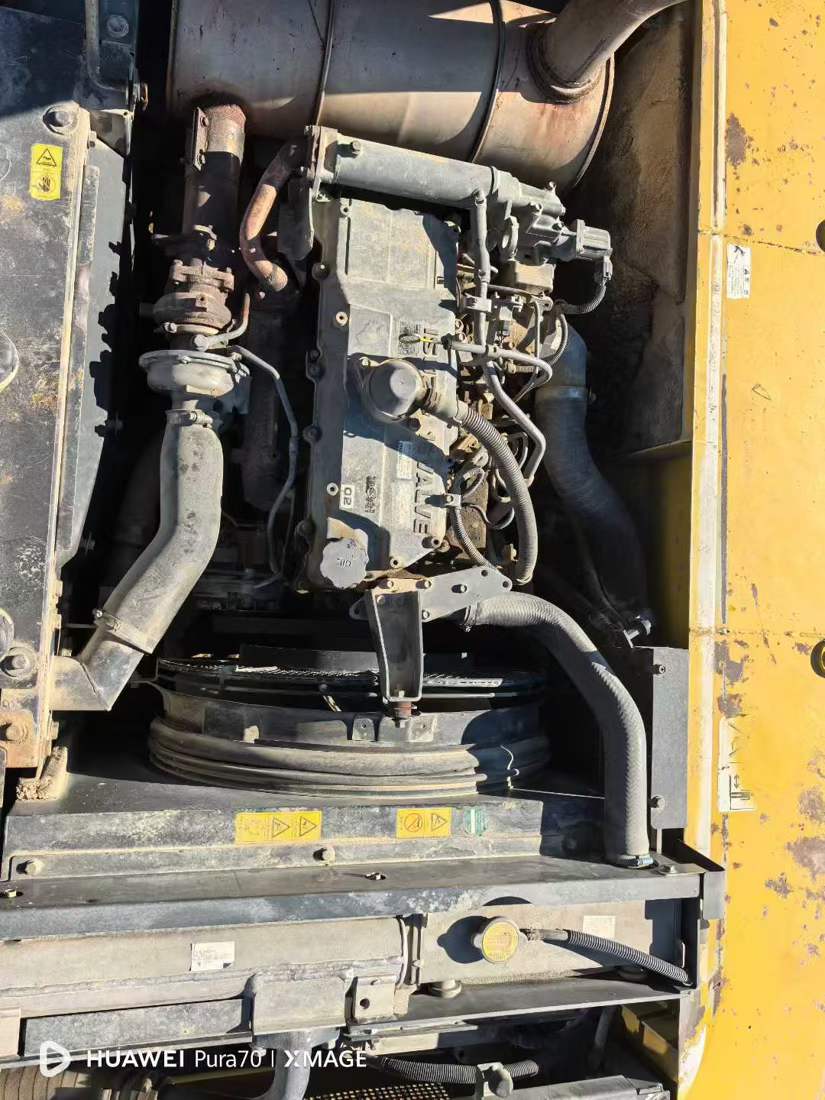

| Engine type | Isuzu AH-4HK1X (Tie 3) |
| Rated power (kw/rpm) | 132.1/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 468 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 36.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 25.2 |
| Hydraulic System (L) | 250 |
| Total transport length (mm) | 9930 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3150 |
| Full cab height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3950 |
| Back end turning radius (mm) | 2940 |
| Onboard width (mm) | 2770 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3840 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6140 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10100 |
| Maximum effective digging depth (mm) | 6740 |
