| Specifications | Value |
|---|---|
| No. | 963272 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35200 |
| Bucket capacity (m³) | 1.2-1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | AH-6HK1XYSS |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Main overflow set pressure (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
Description

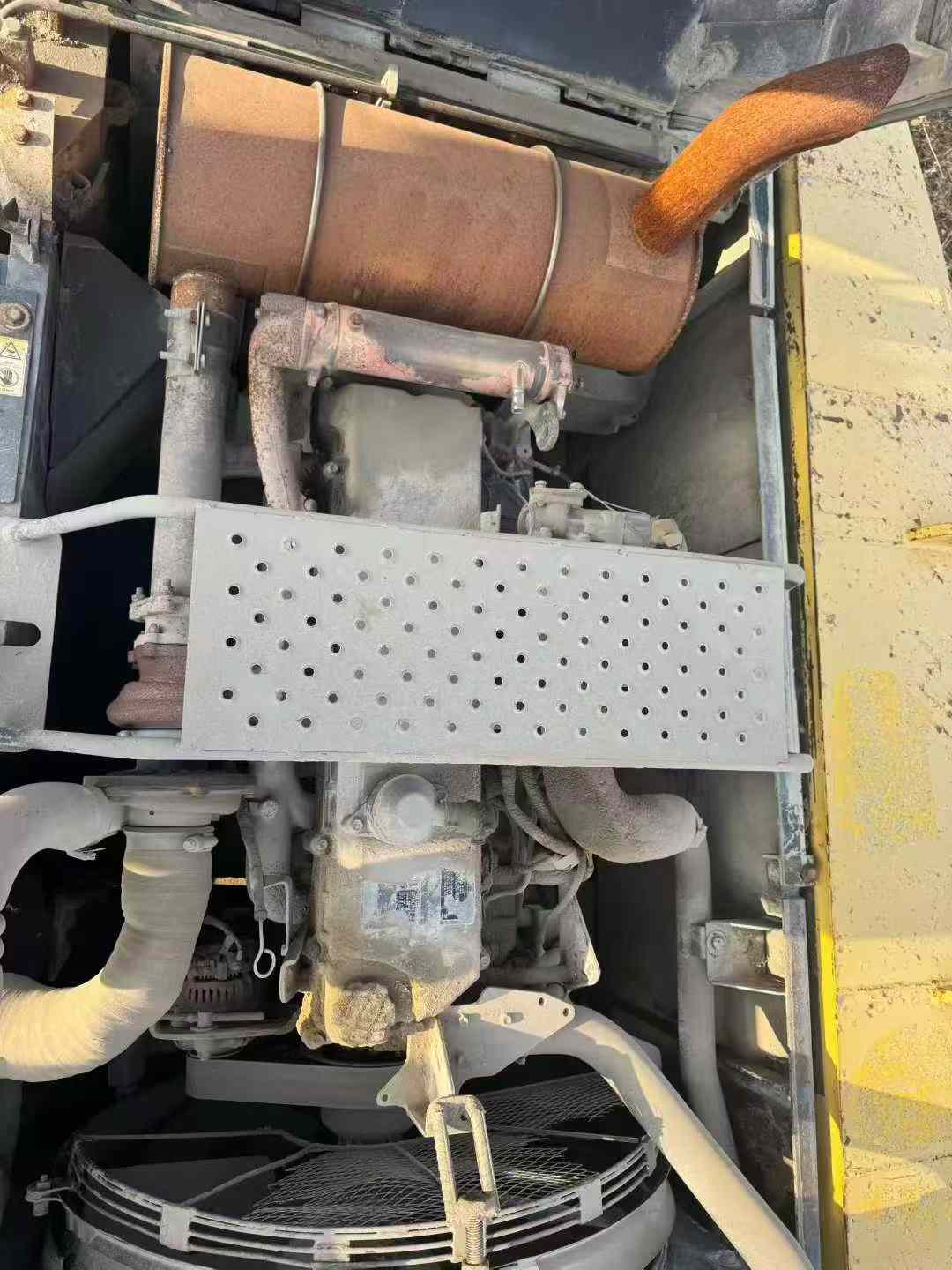

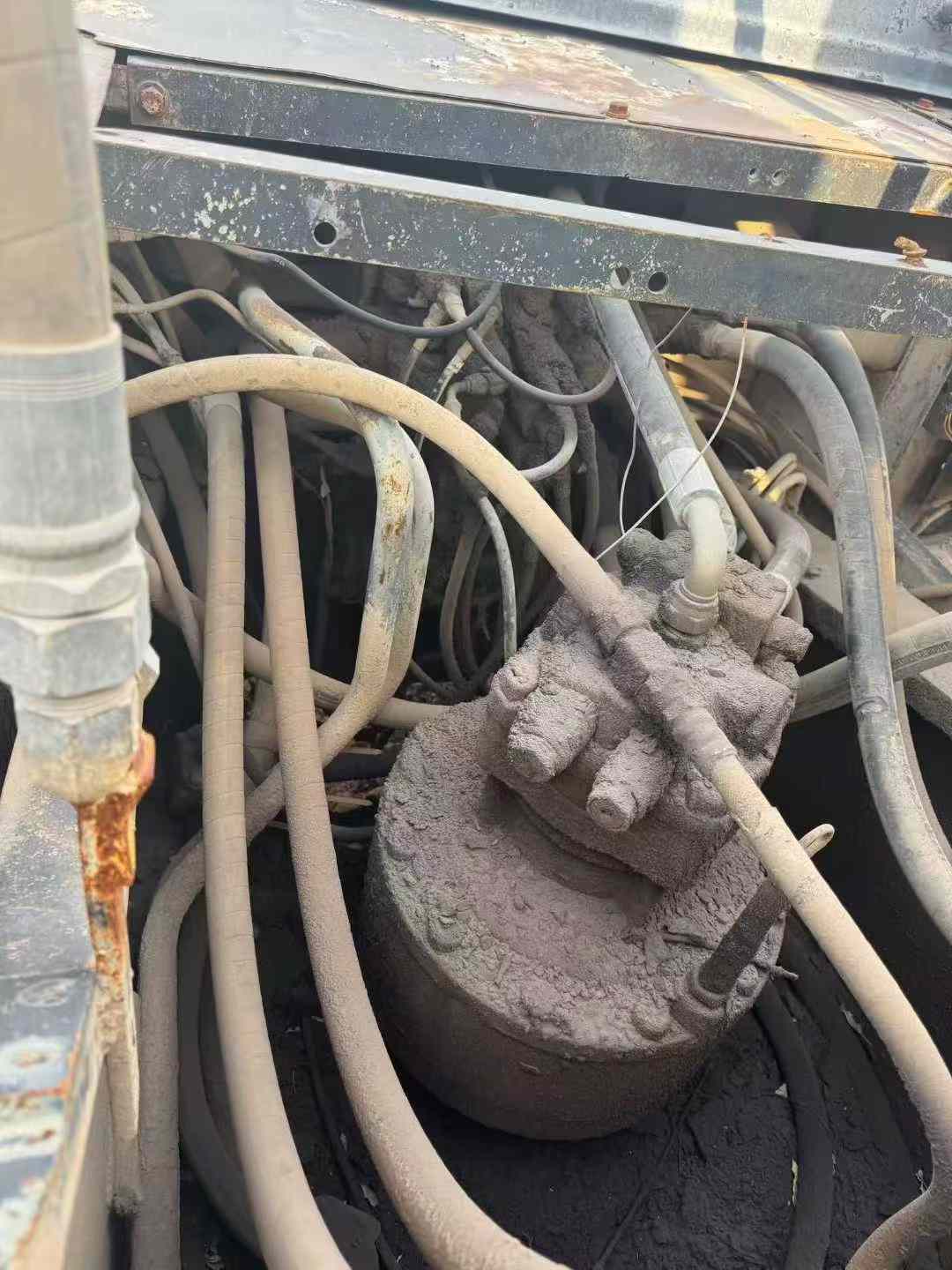

【 Used Sumitomo SH350-5 Excavator 】 This second-hand Sumitomo SH350-5 excavator is a highly cost-effective choice in the market. It has a stable working record of 4,500 hours. For a heavy machine, this is only equivalent to its "teenage years", meaning it still has a long service life waiting to be discovered. This machine is equipped with the well-tested Isuzu 6BG1-T inline six-cylinder turbocharged diesel engine, with a maximum output power of up to 202kW (approximately 272 horsepower). It not only offers strong power but also has excellent fuel economy, effectively reducing operating costs. In terms of the Hydraulic System, the SH350-5 adopts Sumitomo's patented SIHCS (Sumitomo Intelligent Hydraulic Control System) intelligent hydraulic control system. This system can automatically adjust the pump flow according to the operation requirements to ensure the best balance between excavation force and speed. At the same time, it reduces unnecessary energy loss and improves work efficiency. In addition, the large-capacity fuel tank and high-efficiency cooling device it is equipped with also ensure the stable operation of the equipment during long-term continuous operation. Most importantly, the feature of "Sumitomo 350-5 being affordab
