| Specifications | Value |
|---|---|
| No. | 967342 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 41700 |
| Bucket capacity (m³) | 2.2-2.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270/1950 |
| Maximum torque (N.m/rpm) | 98 |
| Ground specific pressure (Kpa) | 341 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 243.3 |
| Rod digging force (kN) | 221.4 |
| Travel speed (km/h) | |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230/460 |
| Total transport length (mm) | 12070 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3720 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 540 |
| Minimum turning radius of front working device (mm) | 5030 |
| Back end turning radius (mm) | 3690 |
| Total track length (mm) | 5100 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 11800 |
| Maximum digging depth (mm) | 7470 |
| Maximum excavation height (mm) | 11130 |
| Maximum unloading height (mm) | 7710 |
| Maximum vertical digging depth (mm) | 5610 |
Description

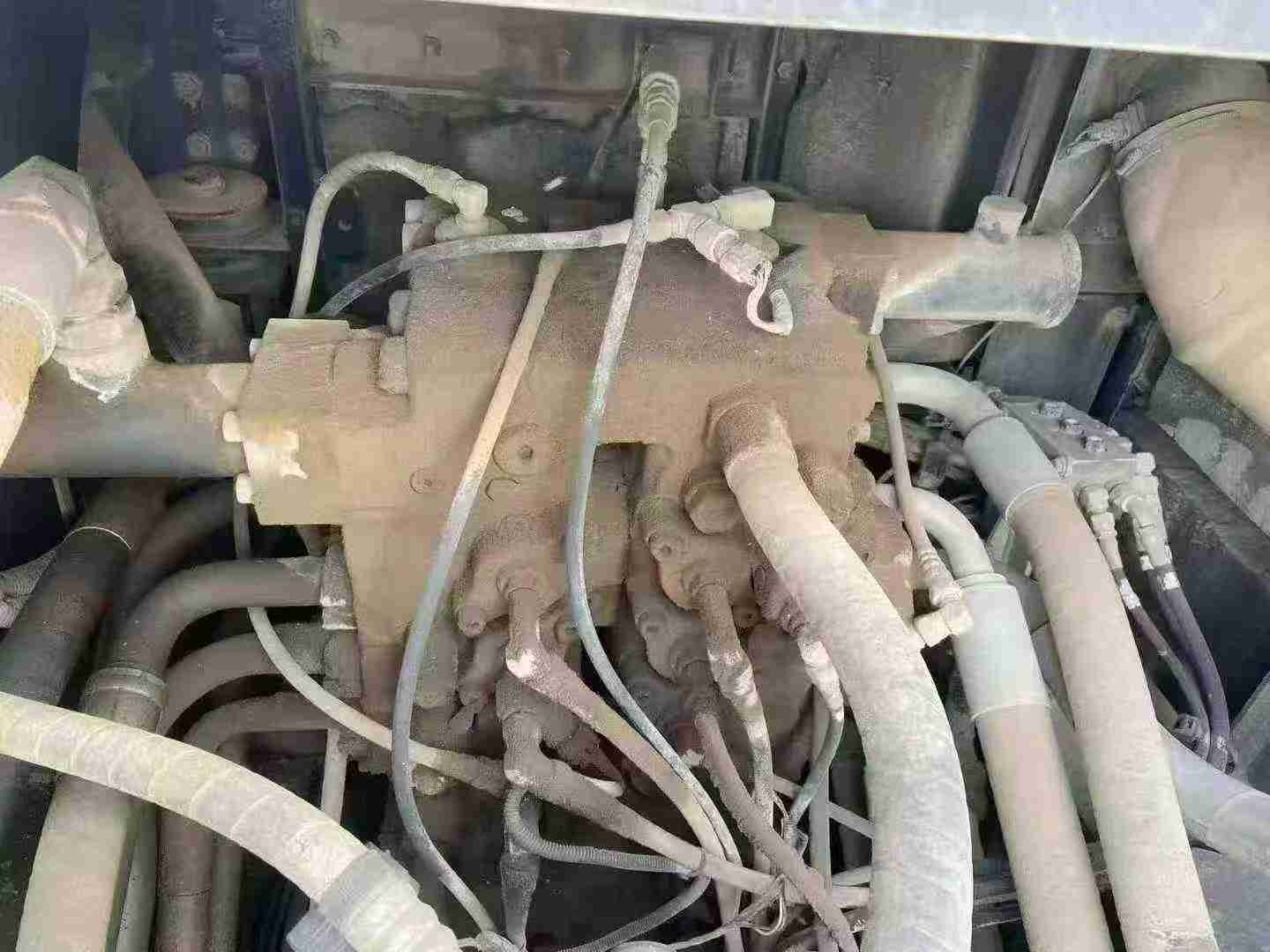

【 Premium Recommendation 】 Second-hand Sumitomo SH480-6 excavator with hammer bucket from 2018 This second-hand Sumitomo SH480-6 excavator from 2018 has been in use for only 3,500 hours since its commissioning and is in excellent working condition. This machine is equipped with a high-performance Cummins QSM11 engine, which is powerful and has good fuel economy. Its maximum power can reach 320kW, and it can maintain efficient and stable performance even under complex working conditions. Its advanced electronic control system can achieve precise control, ensuring that the engine always operates within the optimal working range, extending its service life while reducing maintenance costs. In terms of the hydraulic system, the Sumitomo SH480-6 is equipped with the latest CLSS closed center load sensing system, which responds quickly and operates smoothly. It can handle both excavation and crushing operations with ease. In addition, this model is specially equipped with a dedicated hammer bucket device, which is suitable for various rock crushing and demolition projects, greatly improving work efficiency and application scope. The whole machine has a sturdy and durable structure. Key components such as the main pump and motor have all un
