Product Description

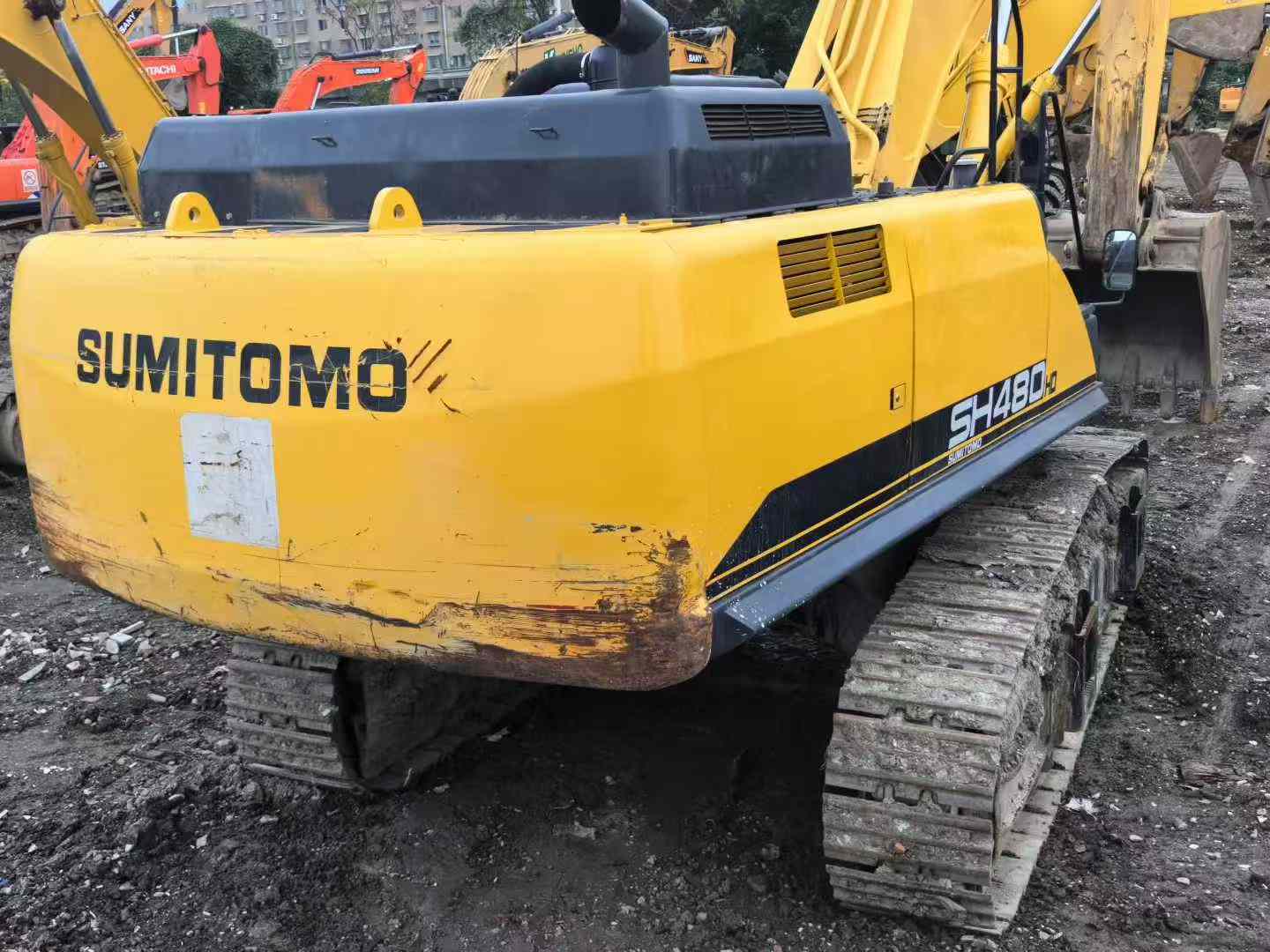

【 Premium Recommendation 】 Multiple top-quality 2021 Sumitomo SH480-6 excavators We have carefully selected multiple second-hand Sumitomo SH480-6 excavators from 2021 for you. Each one is a high-quality device that has undergone strict screening and comprehensive testing. The working hours of these excavators are all within 2,000 hours, ensuring that what you purchase is not only cost-effective equipment but also high-quality machinery with stable performance and a long service life. The Sumitomo SH480-6 is equipped with an advanced power system - the Cummins QSL9-C325 engine. This engine is renowned for its powerful output and smooth operation. While ensuring efficient operation, it can also effectively reduce fuel consumption and achieve the goal of energy conservation and emission reduction. In addition, it is also equipped with the HIOS III hydraulic system independently developed by Sumitomo. This system not only has a fast response speed and high operational flexibility, but also can automatically adjust the power output according to different working conditions, thereby improving work efficiency and extending the machine's service life. As a large excavator, the SH480-6 features a spacious and comfortable cab design, equipped
| Specifications | Value |
|---|---|
| No. | 971733 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
