| Specifications | Value |
|---|---|
| No. | 967143 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 12920 - 15870 |
| Bucket capacity (m³) | 0.25 - 0.66 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D3.8E |
| Rated power (kw/rpm) | 77.4/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 100 x 120 |
| Maximum torque (N.m) | 369.5/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.77 |
| Rotation speed (rpm) | 11.2 |
| Bucket digging force (kN) | 82.2 |
| Rod digging force (kN) | 61.8 |
| Maximum tractive force (kN) | 119 |
| Travel speed (km/h) | 2.9/5.2 |
| Turning torque (Nm) | 30.2 |
| Maximum flow of main pump (l/min) | 2 x 118 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Main pump type | 2* variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 13.2 |
| Coolant (L) | 22.3 |
| Hydraulic System (L) | 230 |
| Total transport length (mm) | 7720 |
| Total transport width (mm) | 2590 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 920 |
| Minimum ground clearance (mm) | 436 |
| Minimum turning radius of front working device (mm) | 2570 |
| Back end turning radius (mm) | 2200 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3760 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5530 |
| Maximum excavation height (mm) | 8160 |
| Maximum unloading height (mm) | 5790 |
| Maximum vertical digging depth (mm) | 4580 |
| Maximum excavation radius of stop surface (mm) | 7820 |
Description

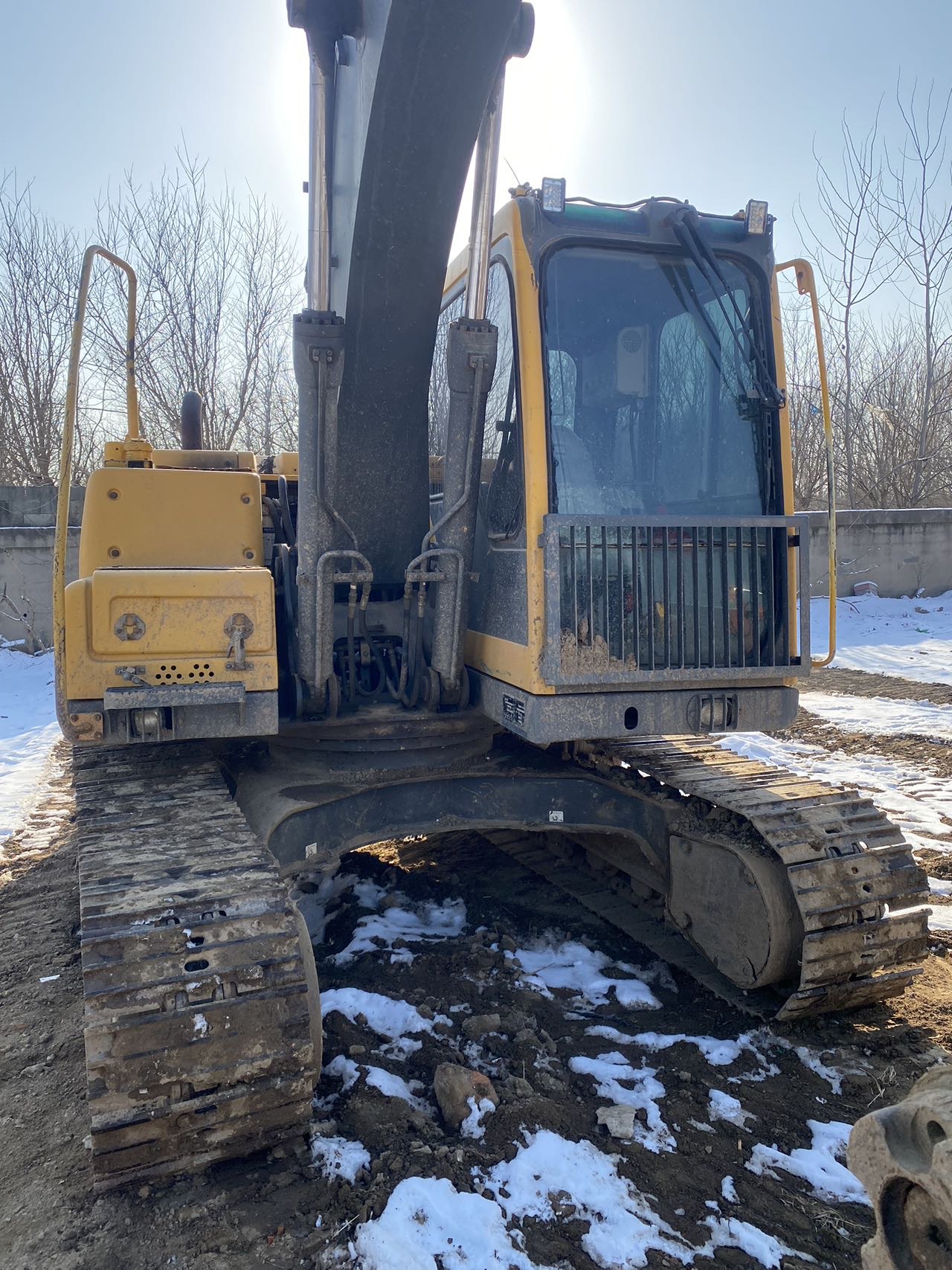

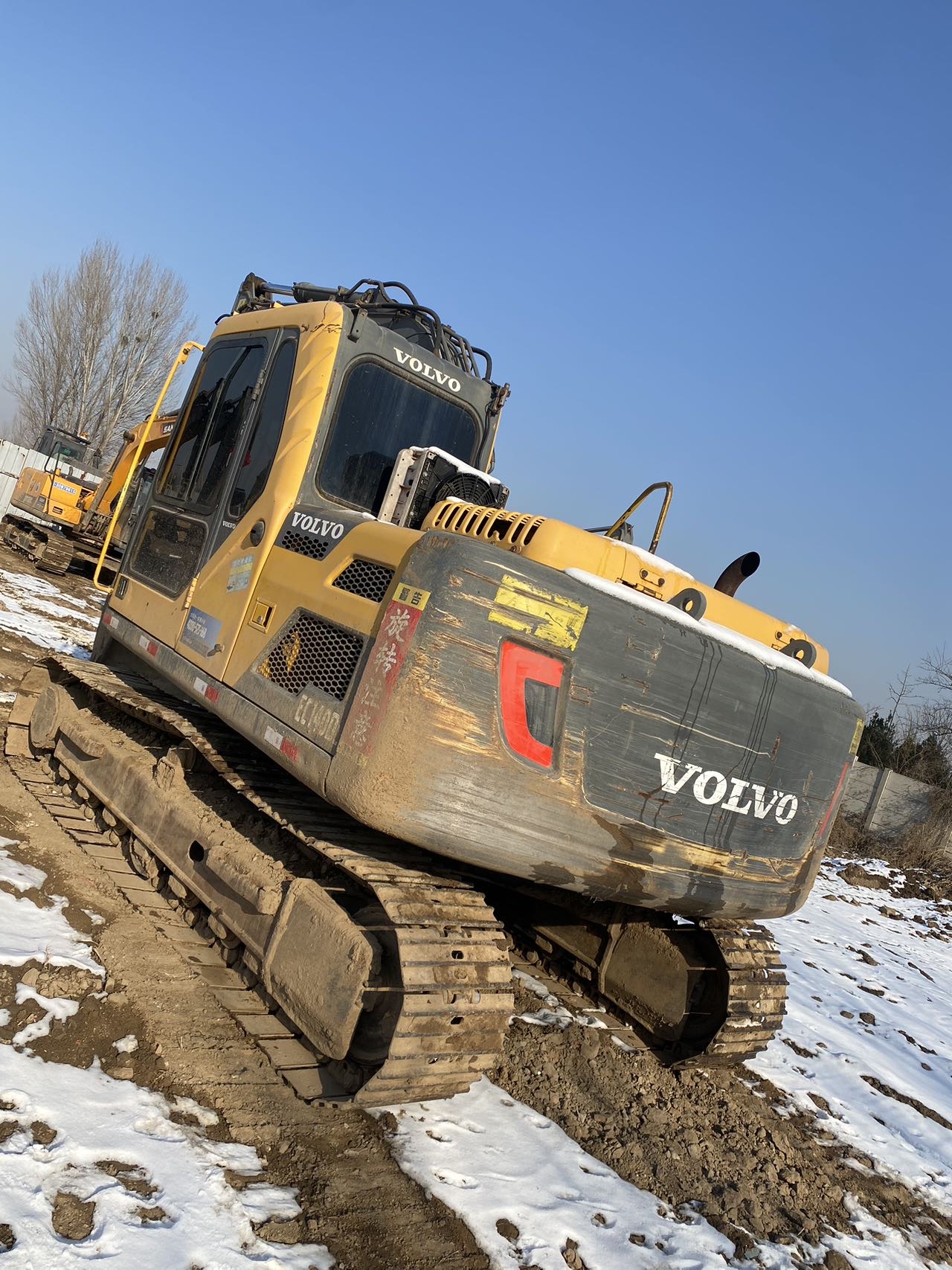

【 Premium Recommendation 】 Original Volvo 140DL second-hand excavator, outstanding performance, quality guaranteed! This Volvo 140DL earth-moving truck is your reliable assistant on the construction site. Since its manufacture, this equipment has accumulated a working time of only 3,500 hours, which is far lower than the average service life of similar equipment, ensuring the overall good condition of the machinery. The power system is equipped with an original imported Volvo engine, which not only has strong power but also high fuel economy. It can handle both plain and mountainous operations with ease. The hydraulic system has undergone professional testing and maintenance. There is no leakage in the pumps and valves. The operation is flexible and precise, capable of quickly responding to various complex working conditions and achieving efficient excavation. It is particularly worth mentioning that this excavator is equipped with an original factory earthwork bucket, which is sturdy and durable, and suitable for excavation tasks under various soil conditions. None of the three core components (engine, hydraulic pump and main control valve) have shown any oil leakage, which proves that their sealing performance and reliability are e
