Product Description
Engineered with precision hydraulics delivering 21 Mpa system pressure and 43 l/min main pump flow, this 2019 Volvo EC20 compact excavator demonstrates superior performance in confined workspaces. The robust Mitsubishi L3E engine generates 14kW at 2200 rpm with 54 N.m maximum torque, providing reliable power for demanding applications.
Key technical specifications include:
- 1,780kg working weight with 0.05m³ bucket capacity
- Maximum digging depth of 2,570mm and 4,010mm excavation radius
- Compact transport dimensions: 3,780mm length × 1,200mm width
- Low ground pressure at 28.4 Kpa minimizes surface damage
- 21-liter fuel tank ensures extended operation cycles
Built to Volvo's exacting manufacturing standards, this EC20 combines Swedish engineering excellence with proven Japanese engine technology. The machine's 1,160mm rear swing radius and 950mm track gauge optimize maneuverability in tight quarters while maintaining stability. Currently located in Luzhou, Sichuan, this excavator represents exceptional value for contractors requiring dependable compact earthmoving capability.
| Specifications | Value |
|---|---|
| No. | 985888 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 1780 |
| Bucket capacity (m³) | 0.05 |
| Boom length (mm) | 1900 |
| Rod length (mm) | 1050 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

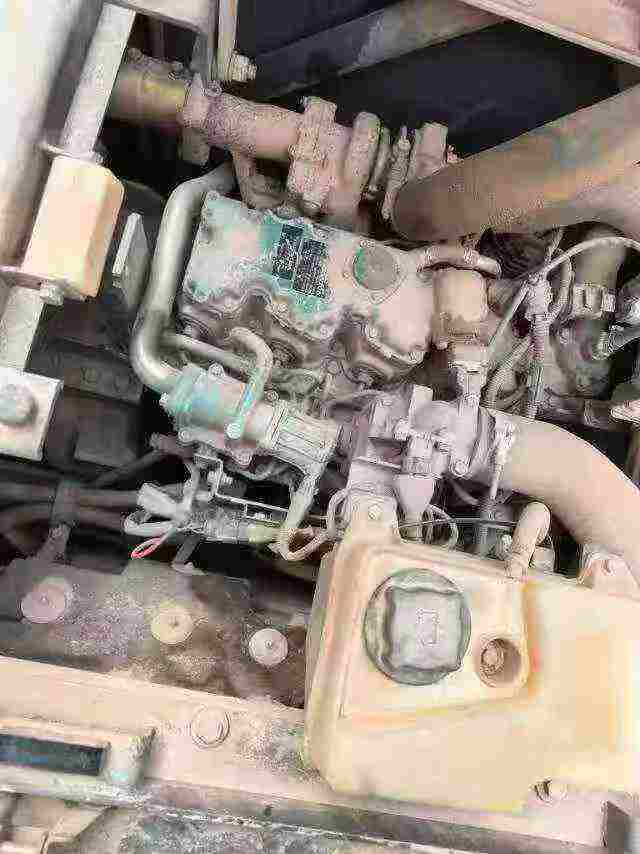

| Engine type | Mitsubishi L3E |
| Rated power (kw/rpm) | 14/2200 |
| Maximum torque (N.m) | 54/1850 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 0.95 |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 10 |
| Travel speed (km/h) | 4.7 |
| Main overflow set pressure (Mpa) | 21 |
| Maximum flow of main pump (l/min) | 43 |
| Fuel Tank (L) | 21 |
| Engine Oil changes (L) | 3.6 |
| Coolant (L) | 4.5 |
| Hydraulic System (L) | 23 |
| Total transport length (mm) | 3780 |
| Total transport width (mm) | 1200 |
| Total transport height (mm) | 2270 |
| Full cab height (mm) | 2270 |
| Counterweight ground clearance (mm) | 470 |
| Back end turning radius (mm) | 1160 |
| Track gauge (mm) | 950 |
| Track plate width (mm) | 250 |
| Track ground length (mm) | 1240 |
| Maximum digging depth (mm) | 2570 |
| Maximum excavation height (mm) | 3750 |
| Maximum unloading height (mm) | 2670 |
| Maximum vertical digging depth (mm) | 1580 |
| Maximum excavation radius of stop surface (mm) | 4010 |
