| Specifications | Value |
|---|---|
| No. | 962314 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48162 |
| Bucket capacity (m³) | 2.6 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | VOLOV D13F |
| Rated power (kw/rpm) | 270/1800 |
| Maximum torque (N.m) | 1836/1400 |
| Rotation speed (rpm) | 8.9 |
| Bucket digging force (kN) | 284 |
| Rod digging force (kN) | 235 |
| Maximum tractive force (kN) | 333.4 |
| Travel speed (km/h) | 5.1/3.1 |
| Turning torque (Nm) | 166.3 |
| Maximum flow of main pump (l/min) | 2*355 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 680 |
| Engine Oil changes (L) | 55 |
| Coolant (L) | 60 |
| Total transport width (mm) | 3440 |
| Full cab height (mm) | 3280 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 515 |
| Back end turning radius (mm) | 3880 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 11817 |
| Maximum digging depth (mm) | 7478 |
Description

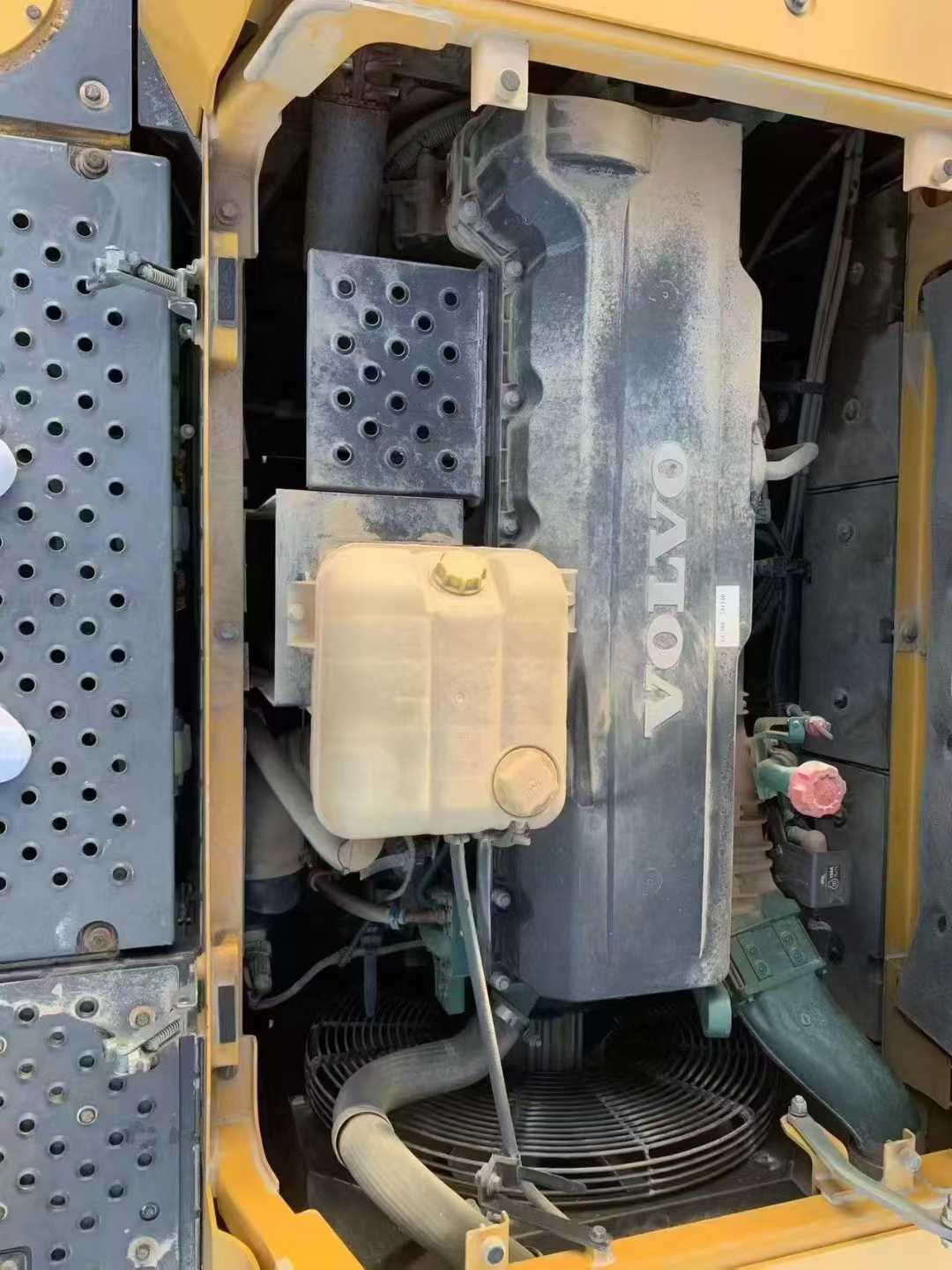

【 Premium Recommendation 】 Volvo EC480 excavator is your ideal choice for engineering operations! This second-hand excavator not only maintains an excellent appearance but also features stable and reliable performance, making it highly suitable for various construction environments. The cumulative working time of this machine is only 5,200 hours, which is far lower than the average service life of similar equipment, indicating that it still has a long service life to be explored. In terms of power, it is equipped with a powerful Volvo original imported engine, ensuring outstanding power output and a smooth operating experience. This engine is renowned for its high efficiency and energy conservation. While ensuring strong digging power, it can also effectively reduce fuel consumption, helping users save operating costs. In addition, its advanced cooling system can effectively control the temperature and maintain the best working condition even in high-temperature environments. The hydraulic system adopts the latest technology, featuring rapid response and precise control. It can handle both fine operations and heavy-load work with ease. The powerful main pump combined with the precise control system makes the overall operation of the
