| Specifications | Value |
|---|---|
| No. | 964483 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48162 |
| Bucket capacity (m³) | 2.6 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | VOLOV D13F |
| Rated power (kw/rpm) | 270/1800 |
| Maximum torque (N.m) | 1836/1400 |
| Rotation speed (rpm) | 8.9 |
| Bucket digging force (kN) | 284 |
| Rod digging force (kN) | 235 |
| Maximum tractive force (kN) | 333.4 |
| Travel speed (km/h) | 5.1/3.1 |
| Turning torque (Nm) | 166.3 |
| Maximum flow of main pump (l/min) | 2*355 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 680 |
| Engine Oil changes (L) | 55 |
| Coolant (L) | 60 |
| Total transport width (mm) | 3440 |
| Full cab height (mm) | 3280 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 515 |
| Back end turning radius (mm) | 3880 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 11817 |
| Maximum digging depth (mm) | 7478 |
Description

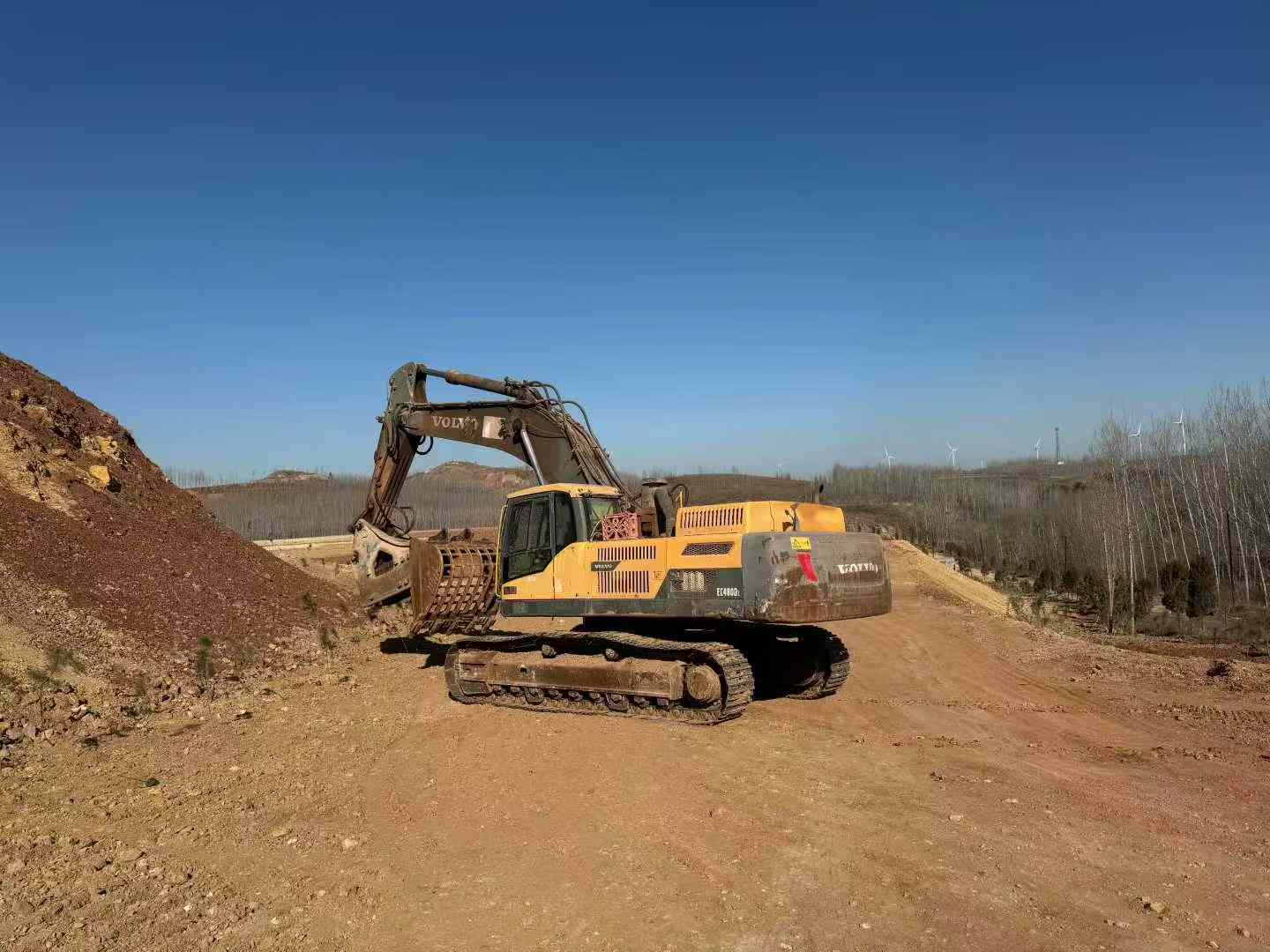

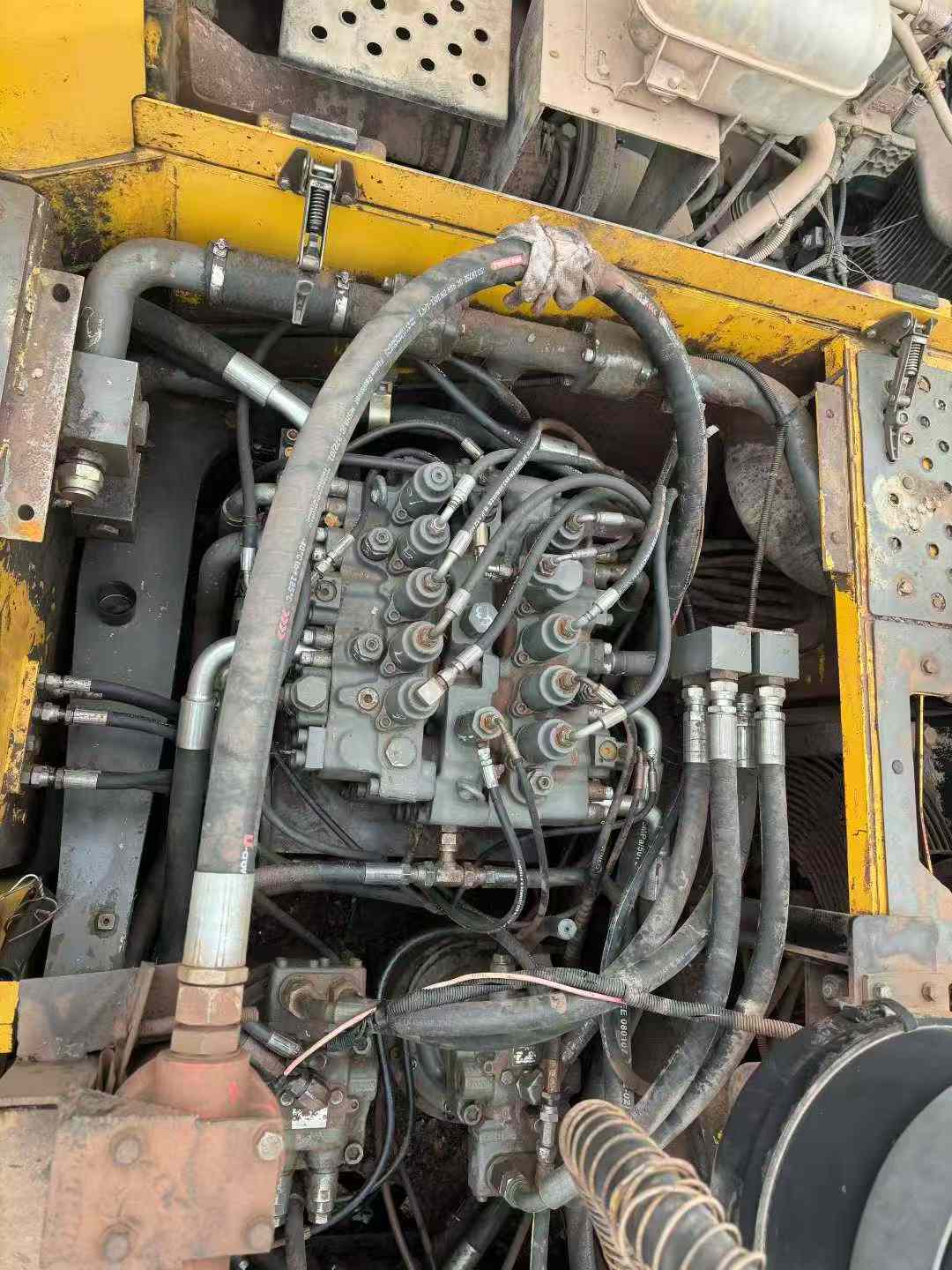

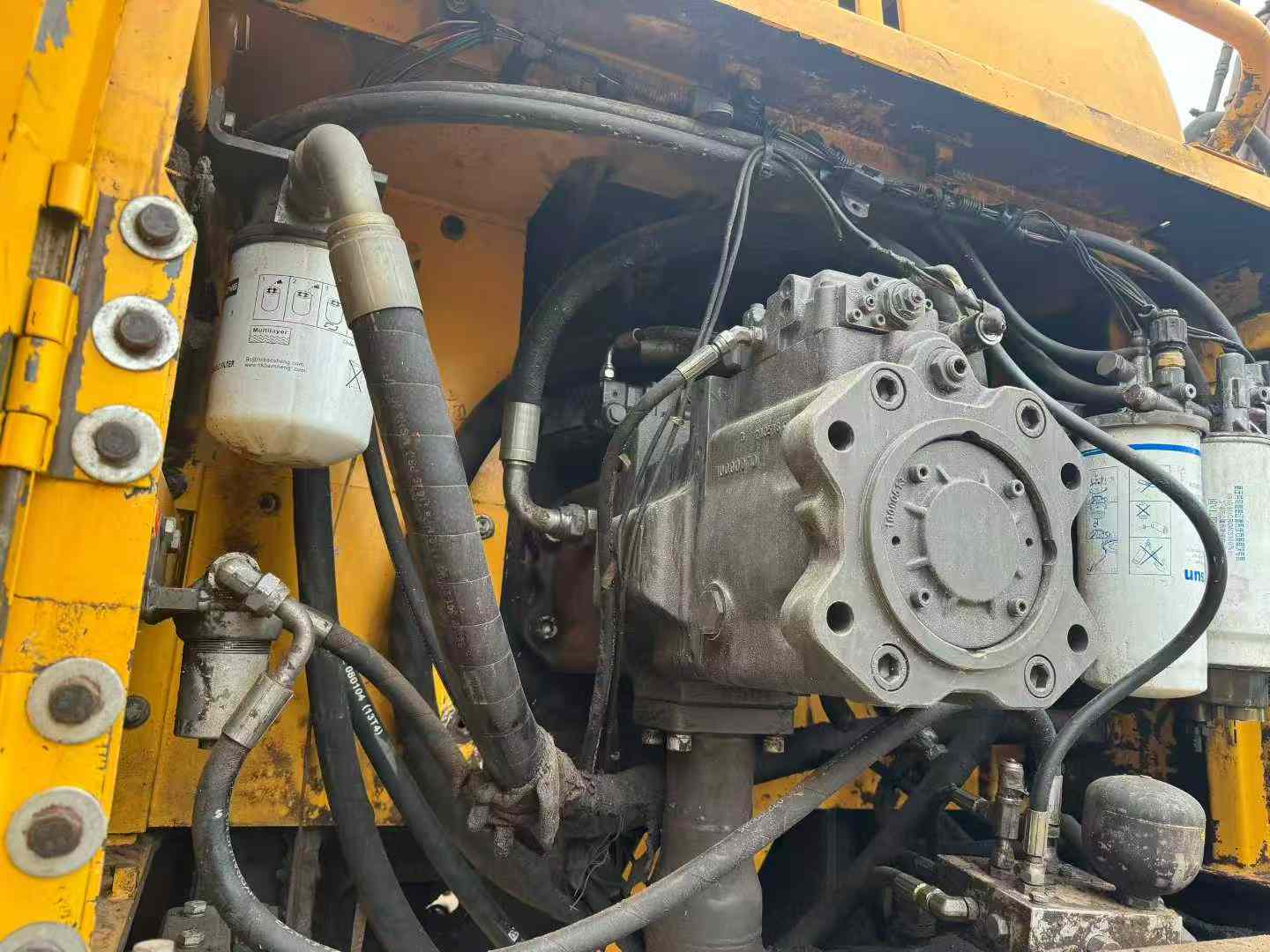

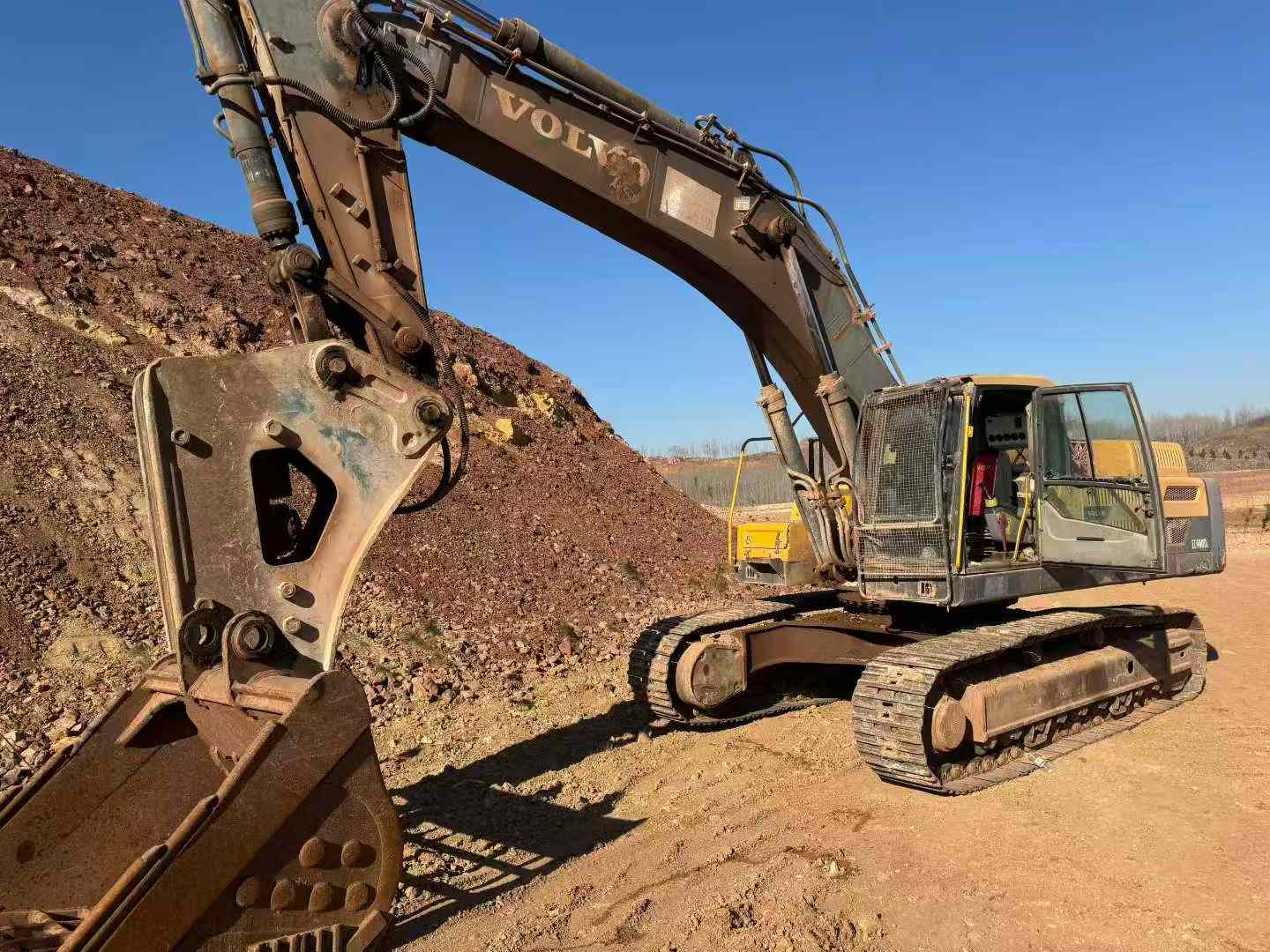

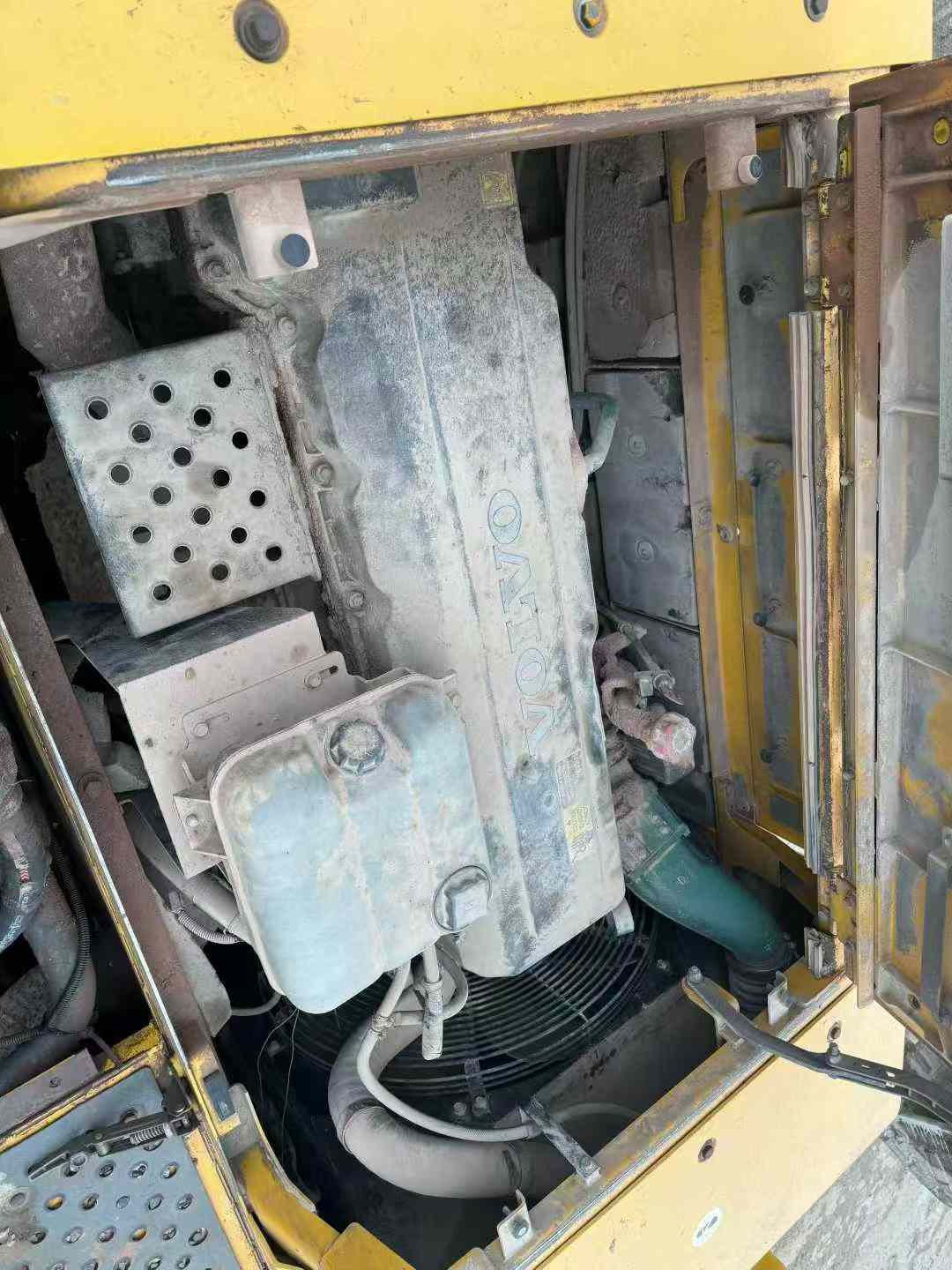

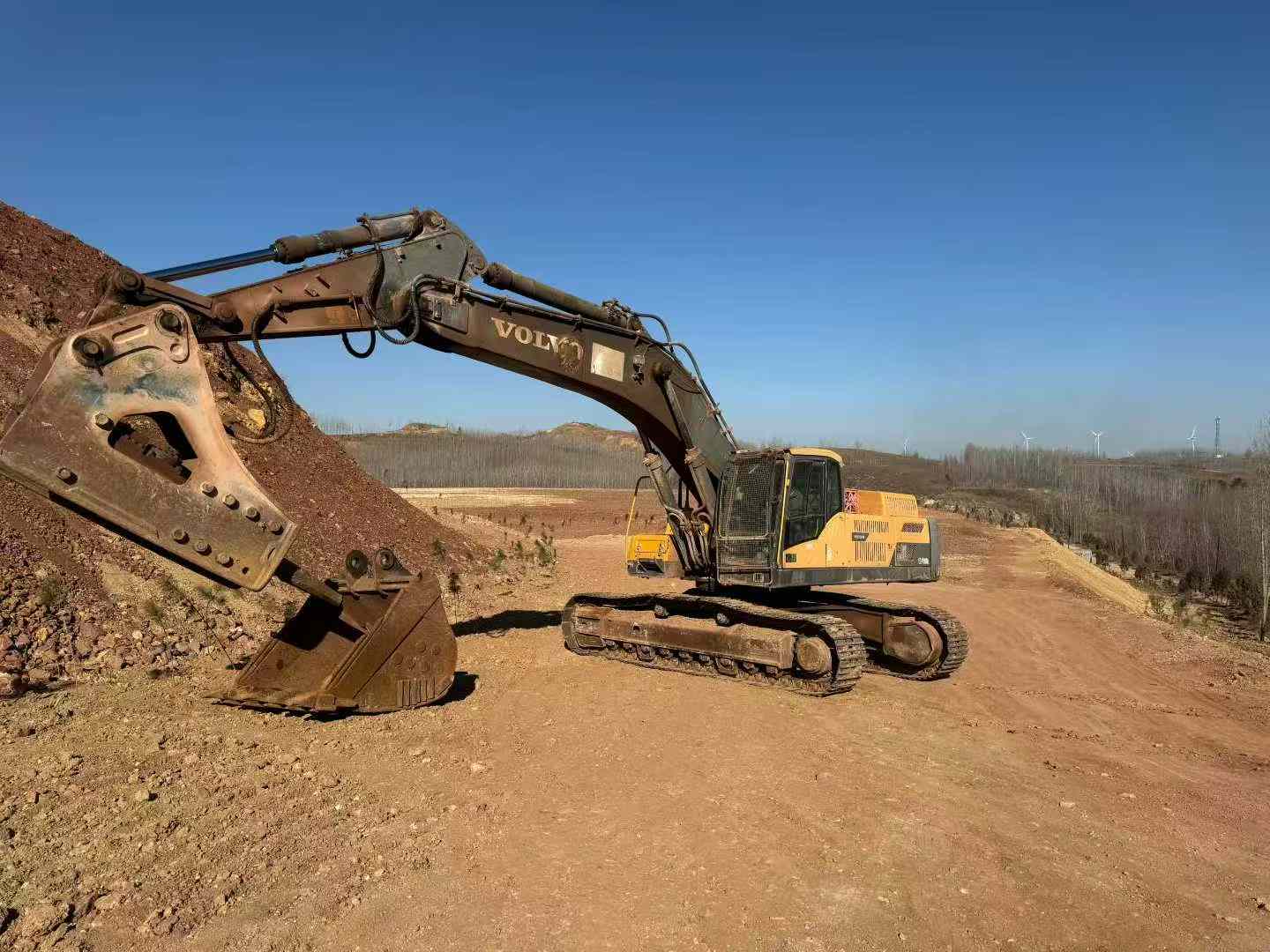

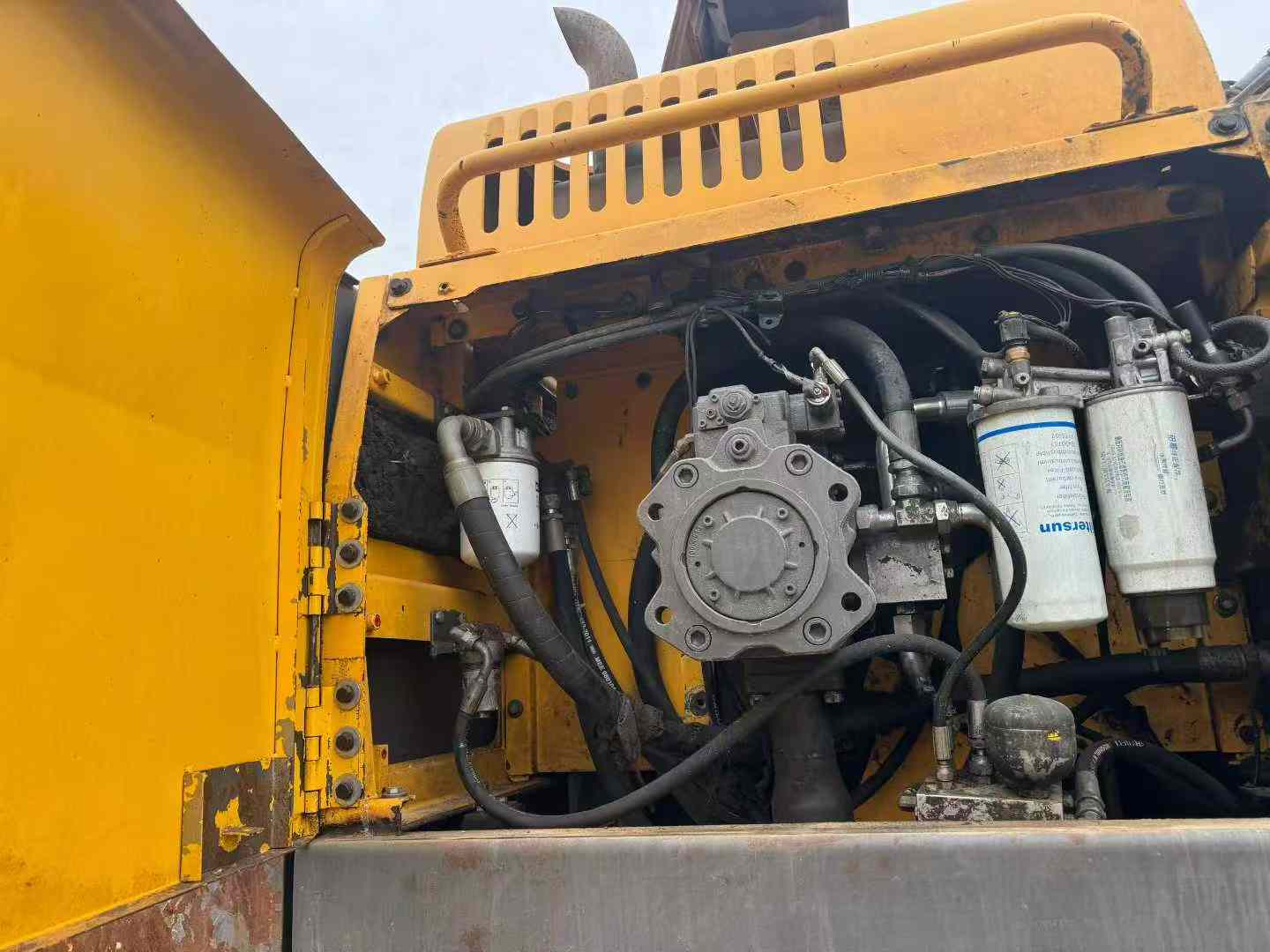

【 Recommended Second-hand Volvo 480 Excavator This Volvo 480 excavator is one of the second-hand devices we have carefully selected. It not only boasts outstanding working performance but also performs well in terms of durability and reliability. Since its commissioning, this excavator has only worked for 3,500 hours in total, which means that its core components and structure are still in excellent condition, capable of providing efficient and stable services for your projects. In terms of the power system, the Volvo 480 is equipped with a powerful heart - a high-performance diesel engine. This engine is renowned for its excellent fuel economy and low emissions, providing abundant power while effectively reducing operating costs. More importantly, through comprehensive inspection and maintenance by our professional team, the good operating condition of the engine has been ensured, allowing you to use it with confidence. The hydraulic system is one of the key indicators for evaluating the quality of an excavator. This machine adopts advanced load-sensing hydraulic technology, making the operation smoother and more sensitive. Whether it is excavation or loading operations, it can handle them with ease. Especially when equipped with t
