| Specifications | Value |
|---|---|
| No. | 965742 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48162 |
| Bucket capacity (m³) | 2.6 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | VOLOV D13F |
| Rated power (kw/rpm) | 270/1800 |
| Maximum torque (N.m) | 1836/1400 |
| Rotation speed (rpm) | 8.9 |
| Bucket digging force (kN) | 284 |
| Rod digging force (kN) | 235 |
| Maximum tractive force (kN) | 333.4 |
| Travel speed (km/h) | 5.1/3.1 |
| Turning torque (Nm) | 166.3 |
| Maximum flow of main pump (l/min) | 2*355 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 680 |
| Engine Oil changes (L) | 55 |
| Coolant (L) | 60 |
| Total transport width (mm) | 3440 |
| Full cab height (mm) | 3280 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 515 |
| Back end turning radius (mm) | 3880 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 11817 |
| Maximum digging depth (mm) | 7478 |
Description

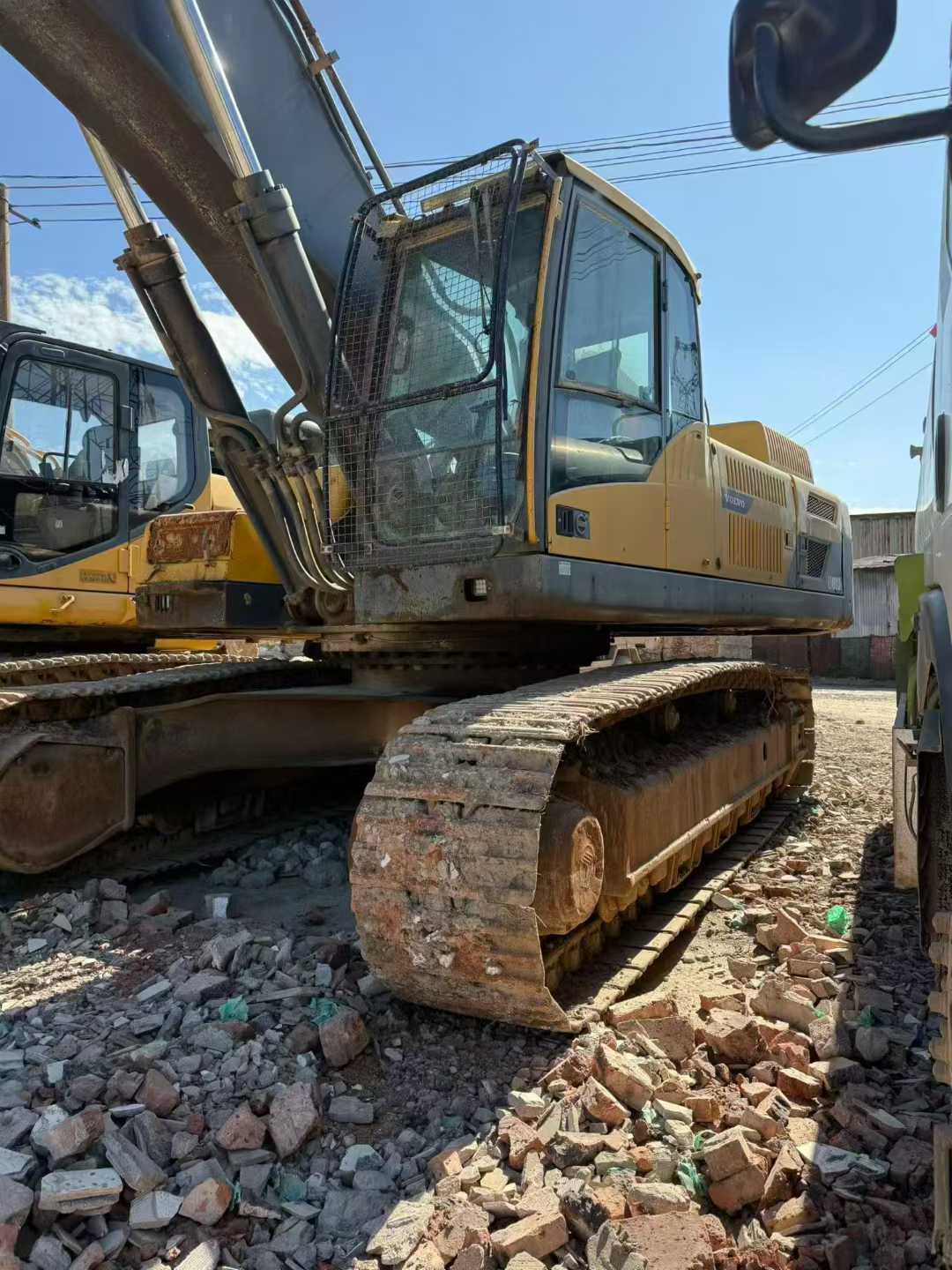

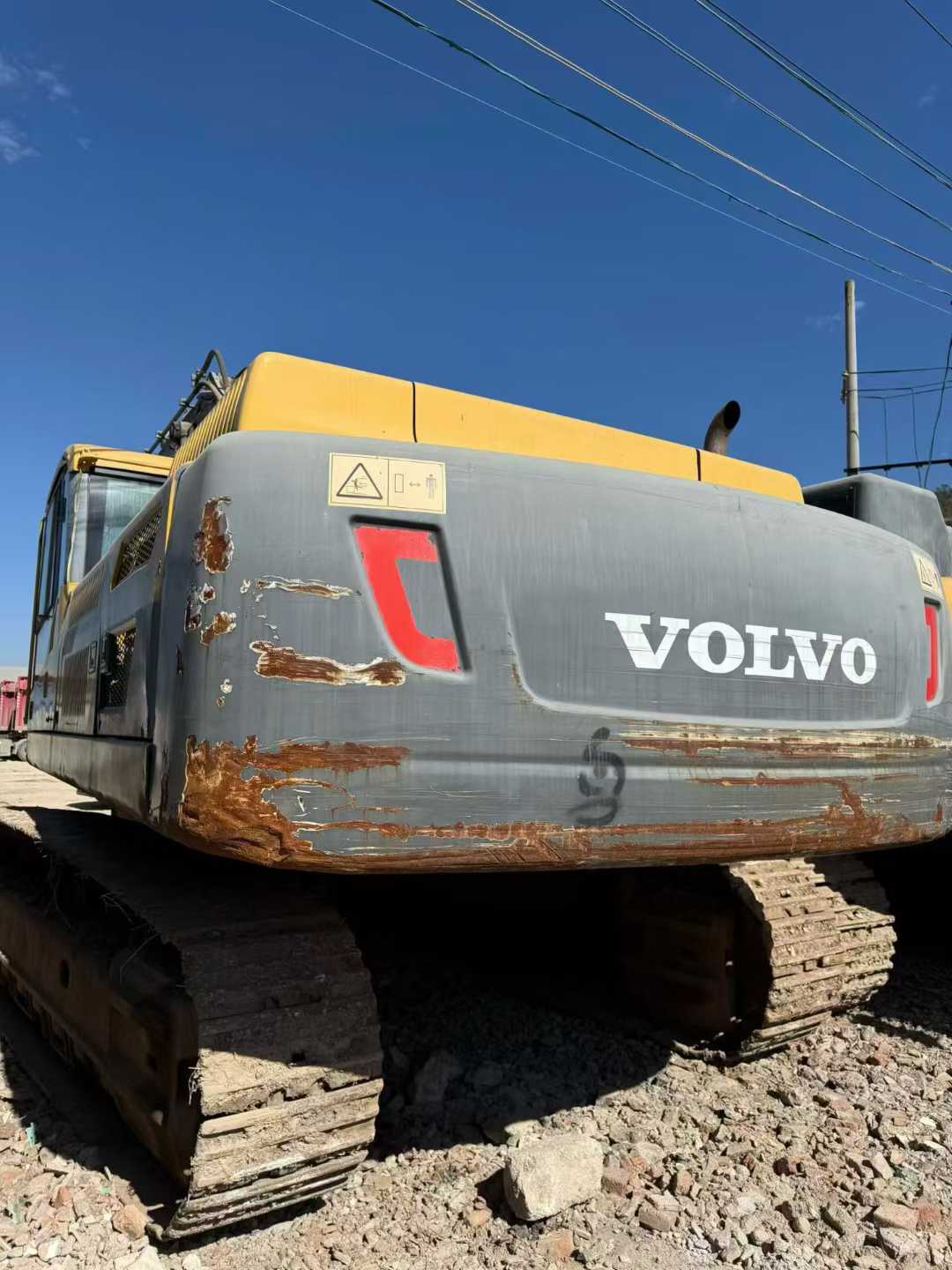

【 Premium Recommendation 】 Volvo EC480 excavator from 2013, affordable price, available for on-site viewing at any time! This Volvo EC480 excavator from 2013 has been highly praised in the market for its outstanding performance and reliable quality. The cumulative working time of the equipment is 6,500 hours, and it is in good working condition, suitable for various earthwork projects, mining, construction and other application scenarios. In terms of the power system, this machine is equipped with a high-performance Volvo original imported engine, which features strong power output and smooth operation characteristics, ensuring efficient operation under various complex working conditions. Meanwhile, the low fuel consumption design has significantly reduced operating costs and enhanced economic benefits. The hydraulic system is a major highlight of this excavator. It adopts advanced negative flow control technology, which responds quickly and operates flexibly. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, its robust and durable structural design, along with the application of high-quality materials, endows the entire machine with extremely strong fatigue resistance and durabilit
