| Specifications | Value |
|---|---|
| No. | 967066 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 47,300~53,100 |
| Bucket capacity (m³) | 1.77 - 3.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D13F |
| Rated power (kw/rpm) | 270/1800 |
| Cylinder diameter × stroke (mm) | 131 x 158 |
| Maximum torque (N.m) | 1800 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Rotation speed (rpm) | 8.8 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 3.1 / 5.1 |
| Turning torque (Nm) | 166.3 |
| Maximum flow of main pump (l/min) | 2 x 358 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*165 x 1,330 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190 x 1,850 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*165 X 1,590 |
| Fuel Tank (L) | 685 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 520 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3340 |
| Full cab height (mm) | 3257 |
| Counterweight ground clearance (mm) | 1275 |
| Minimum ground clearance (mm) | 550 |
| Back end turning radius (mm) | 3880 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 52 |
| Maximum digging radius (mm) | 10930 |
| Maximum digging depth (mm) | 6580 |
| Maximum excavation height (mm) | 10600 |
| Maximum unloading height (mm) | 6970 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 10680 |
Description

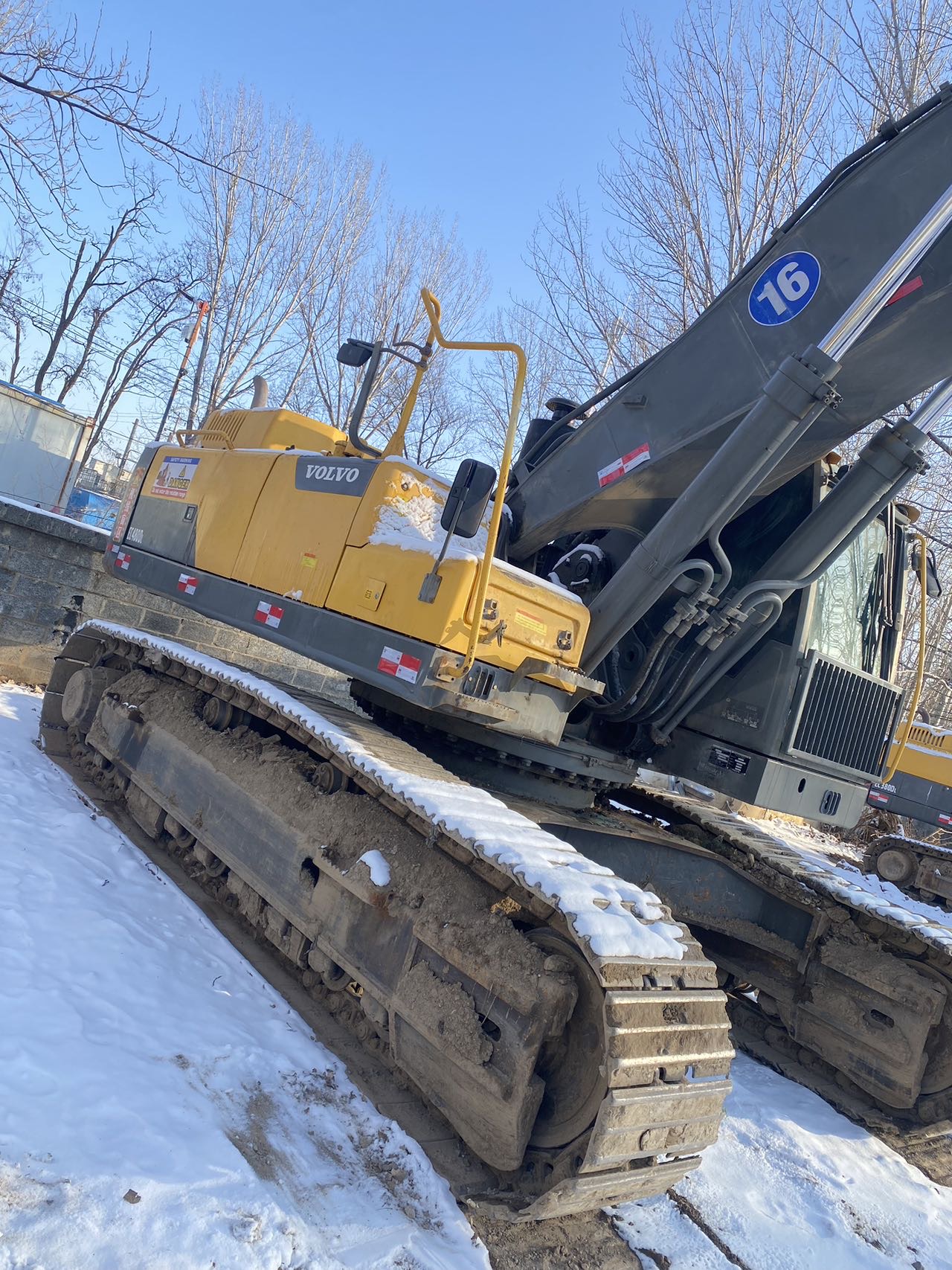

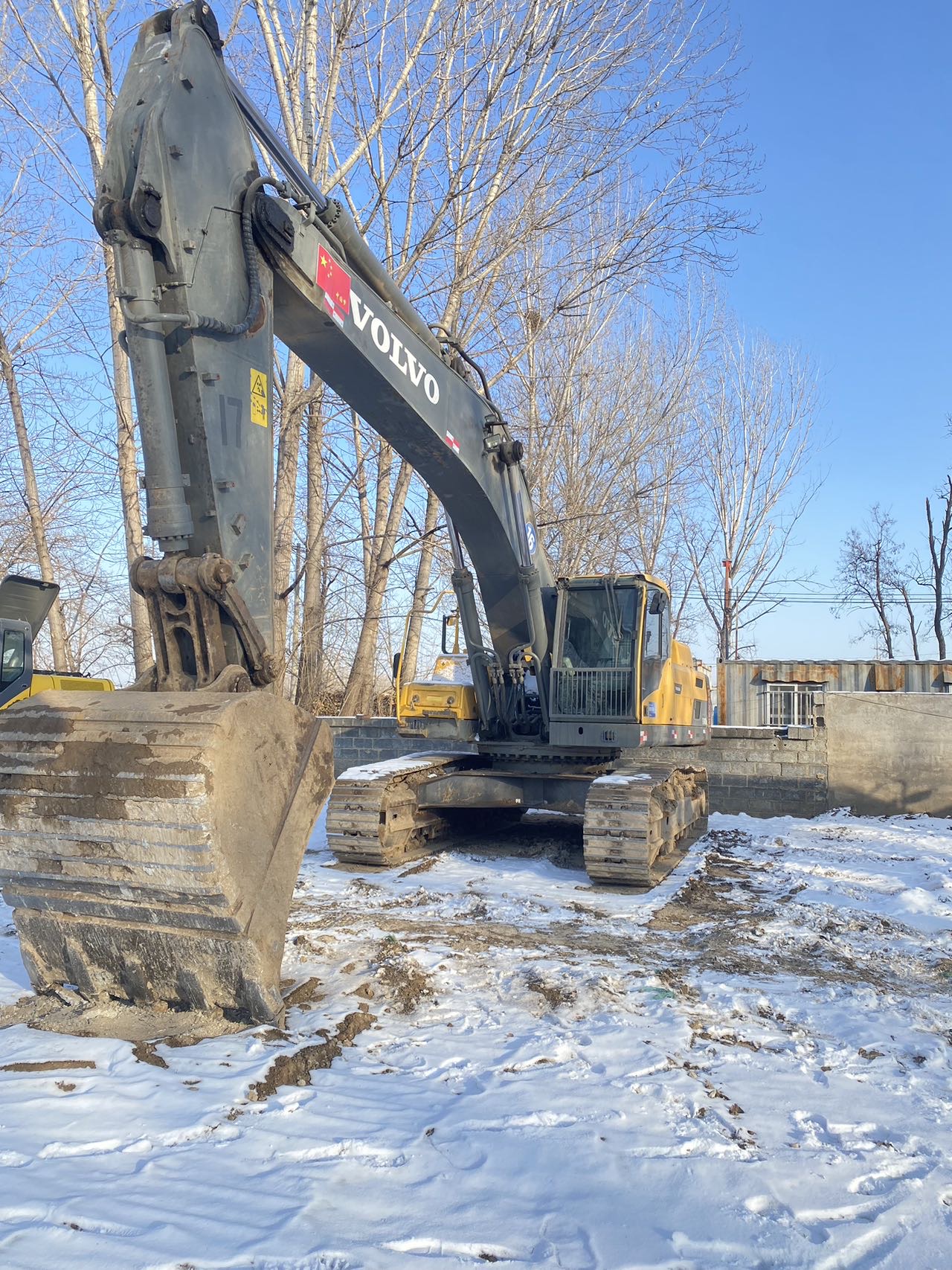

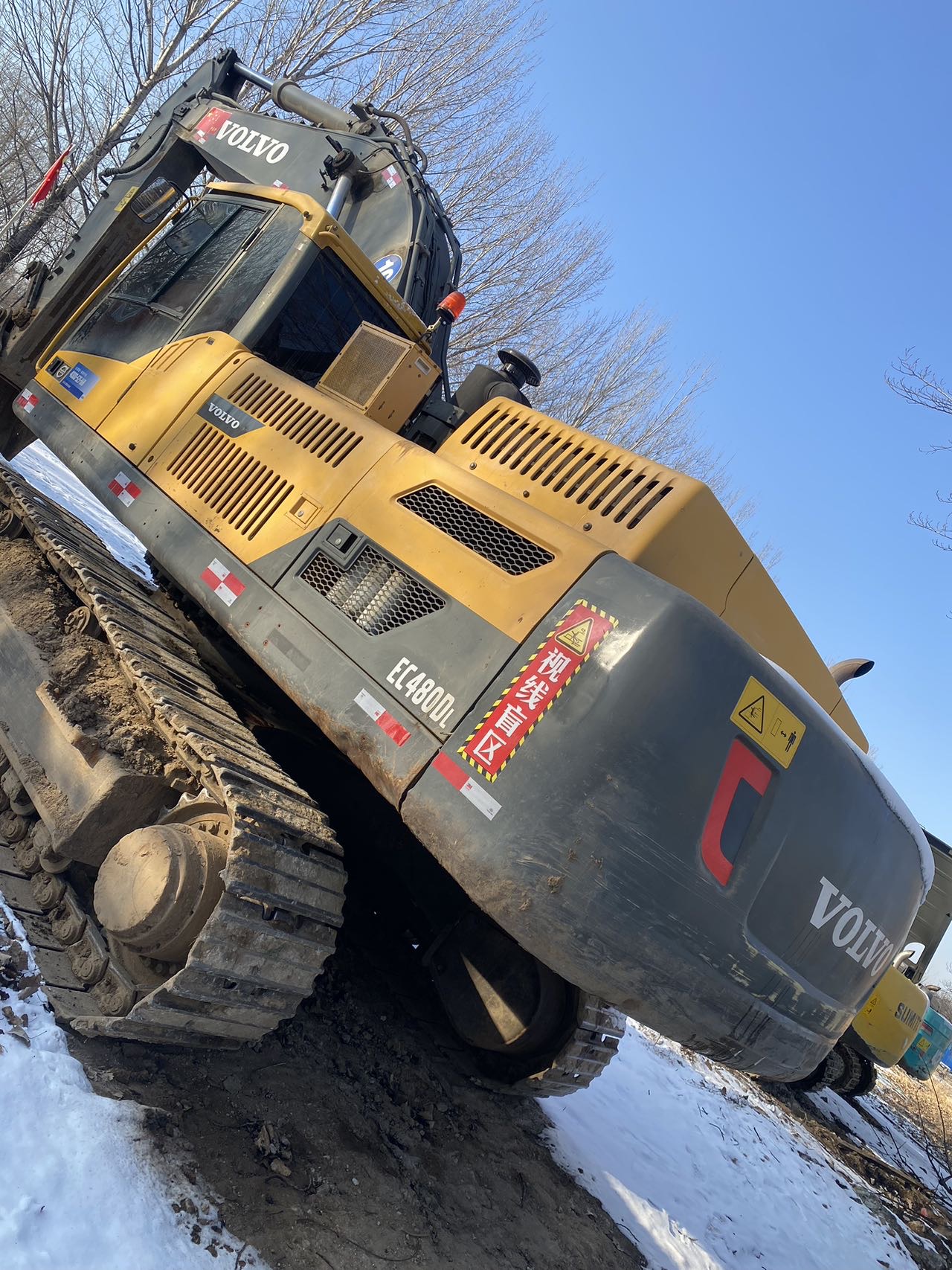

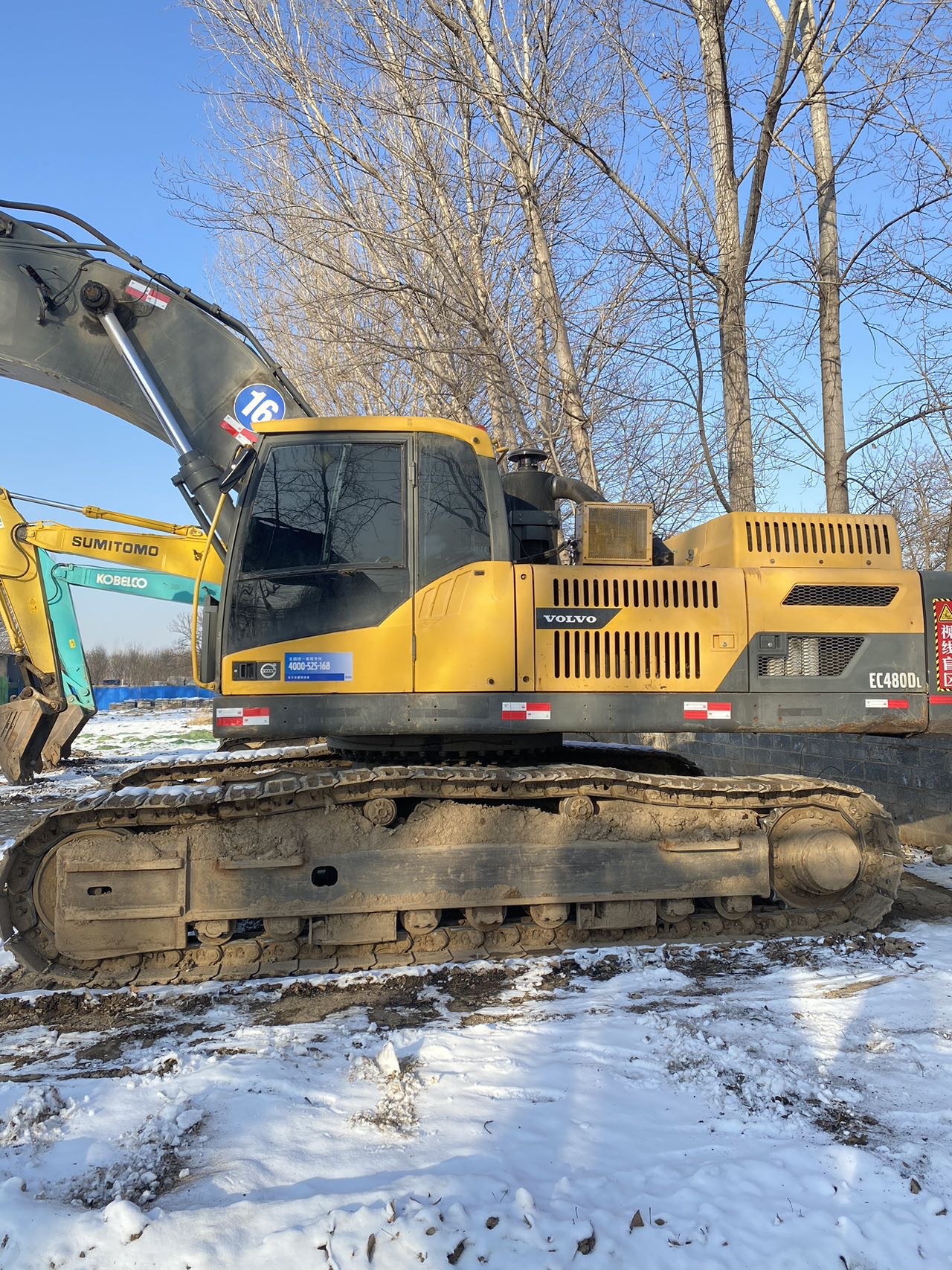

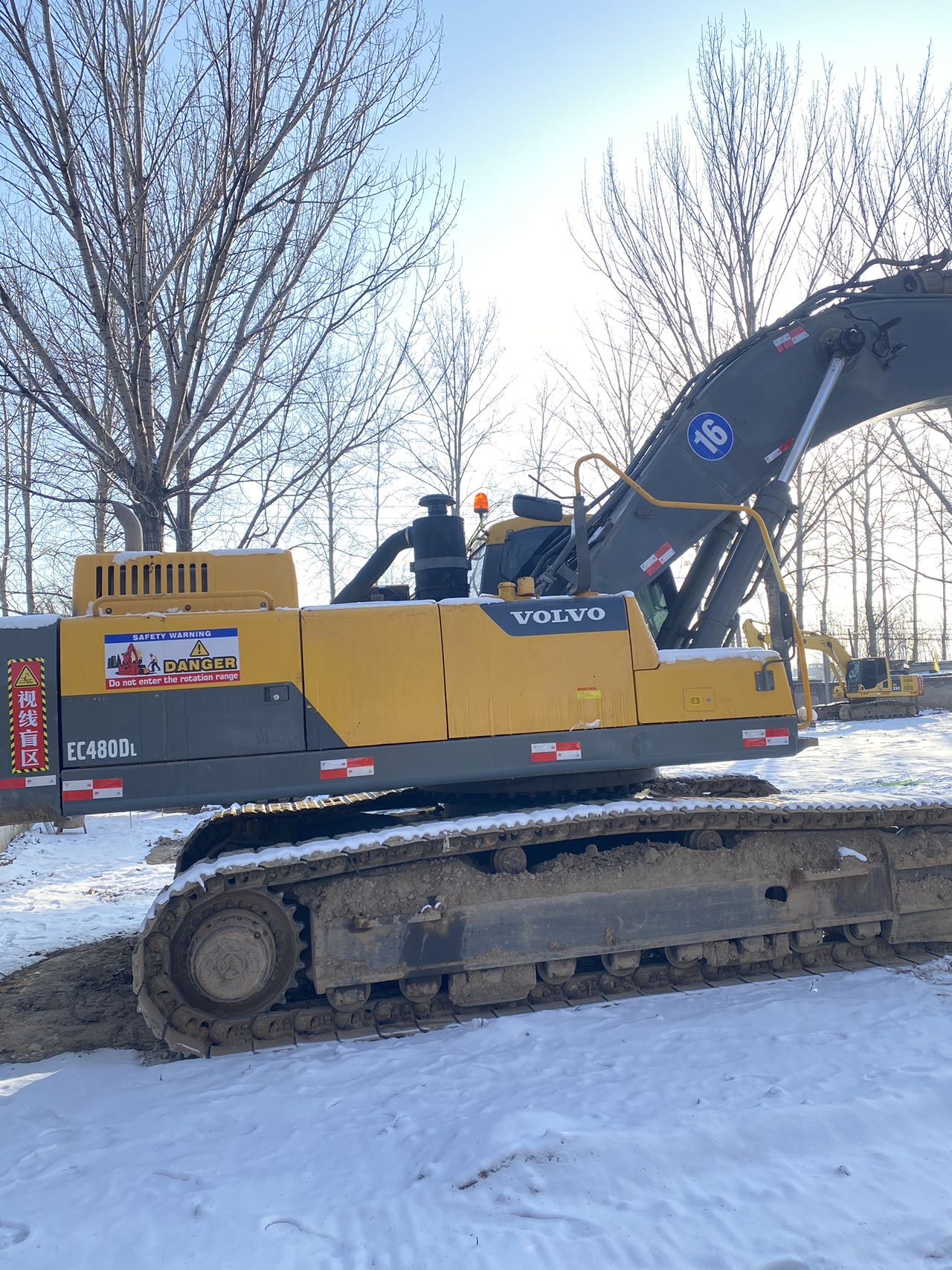

【 Volvo 480DL Second-hand Excavator 】 - Outstanding performance, excellent condition, waiting for your discovery! This Volvo 480DL excavator is in top-notch condition. It has only been used in earthwork operations from beginning to end and has never participated in high-intensity work such as hammering, ensuring the integrity of the entire machine structure. The car body retains the original factory paint finish, with the color still bright and new, fully demonstrating its excellent maintenance condition. The original vehicle chassis is still in a 90% new condition, solid and reliable, providing a strong guarantee for your project. The cumulative working time of this excavator is 3,500 hours. For a professional-level device, this duration indicates that it is in the best working condition. Equipped with an efficient and stable Volvo original imported engine, it is powerful and fuel-efficient, capable of handling complex terrains and heavy tasks with ease. The hydraulic system adopts an advanced closed-loop design, which responds quickly and operates smoothly. It can provide continuous and precise force output, making every excavation action more efficient and effortless. In addition, this machine is also equipped with a comfortable
