Product Description

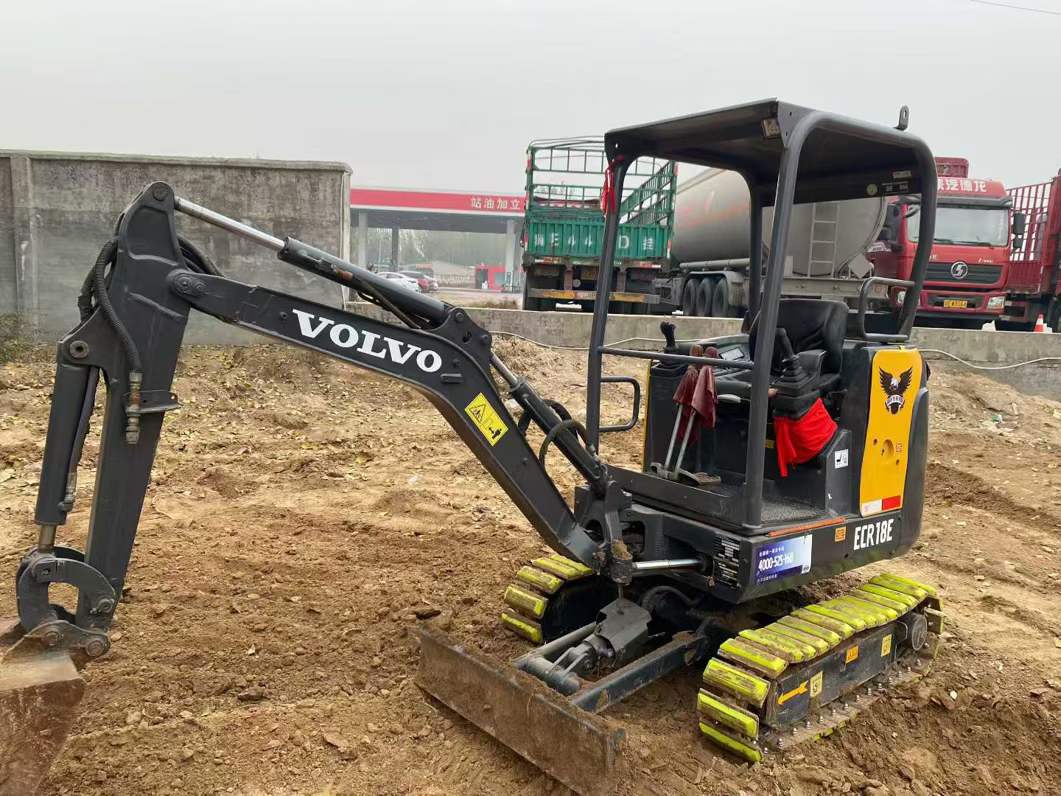

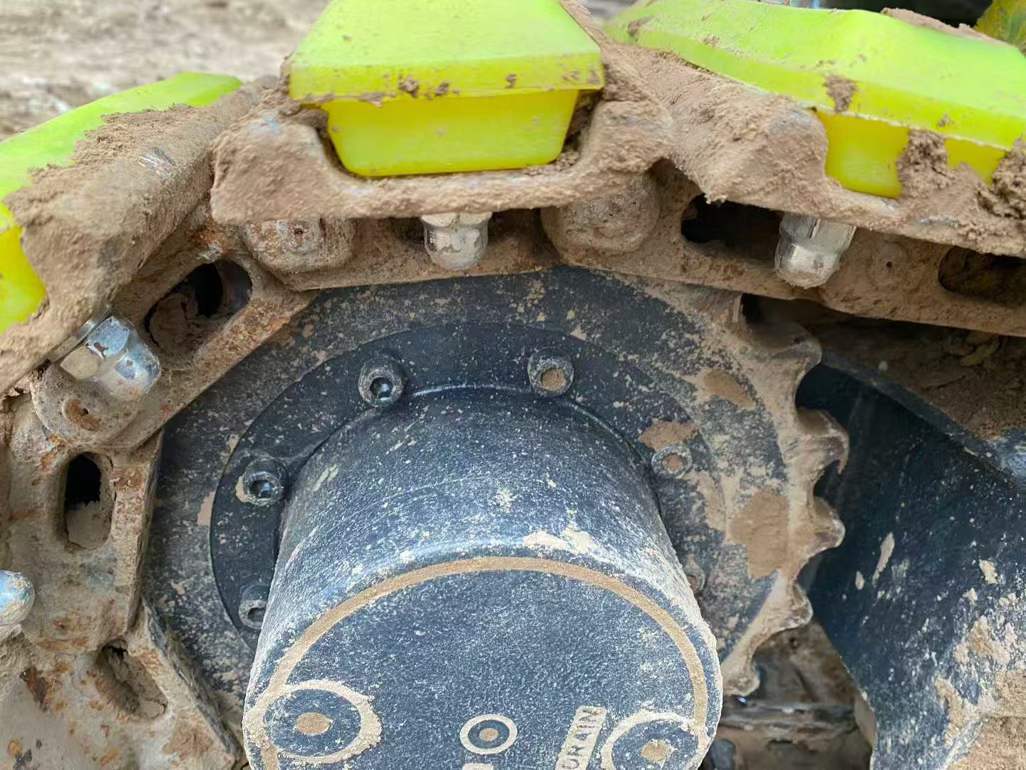

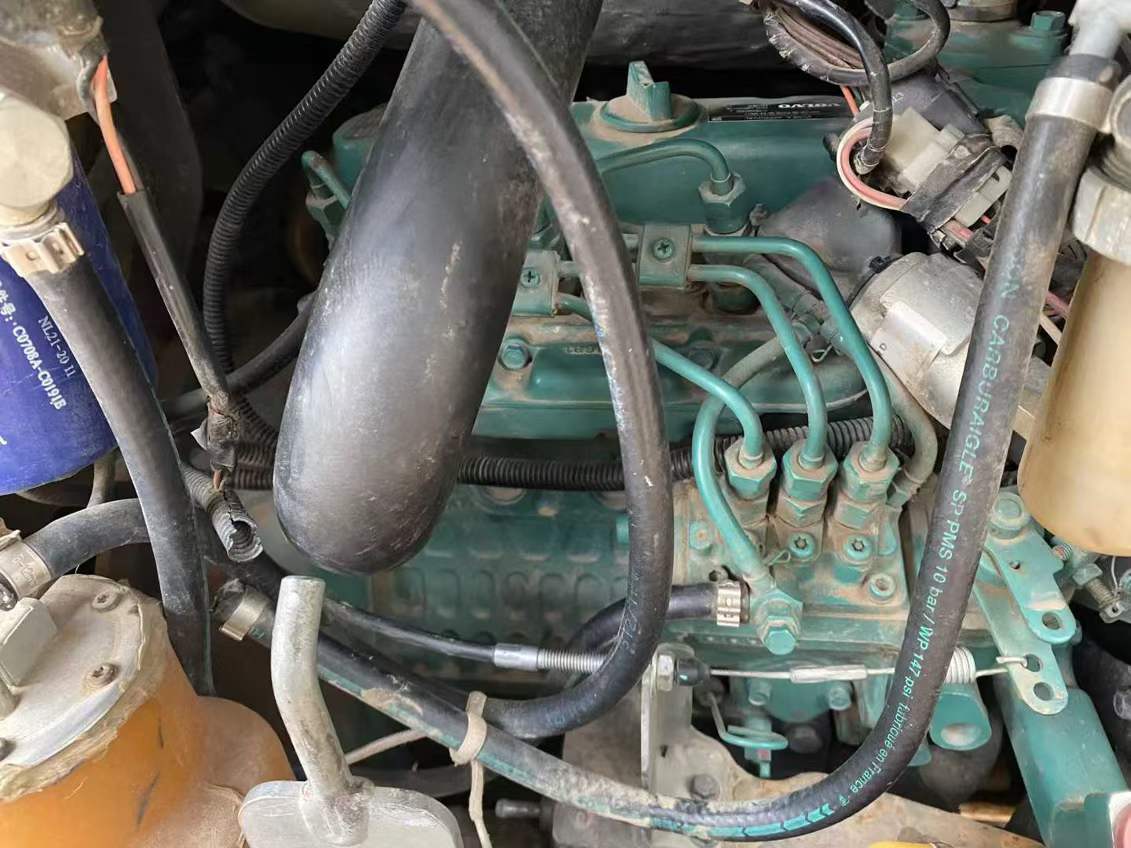

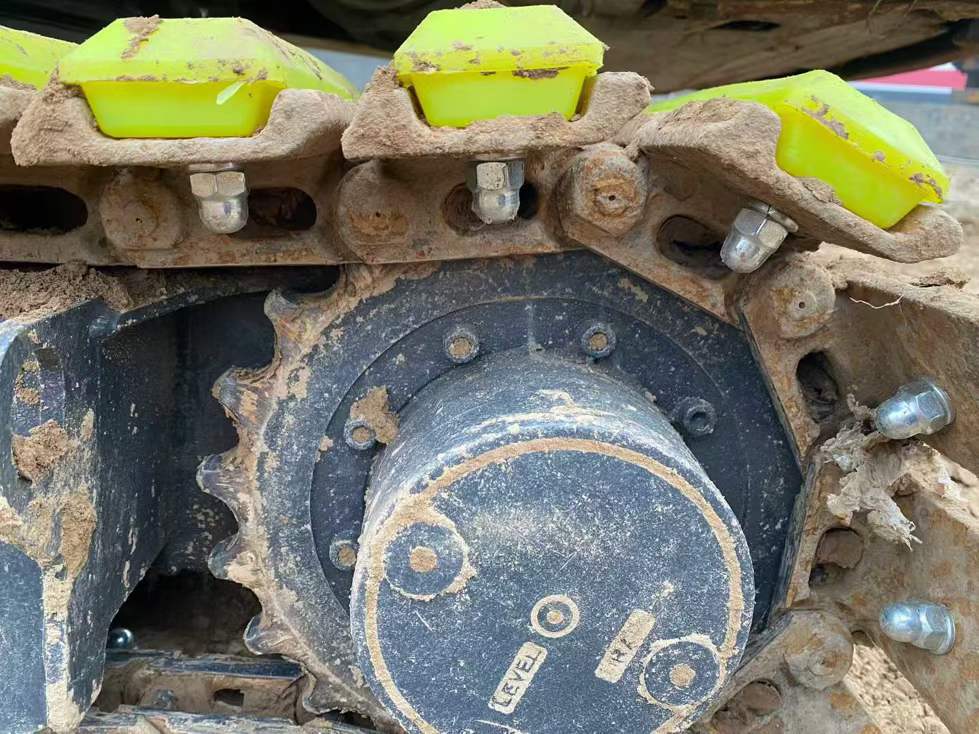

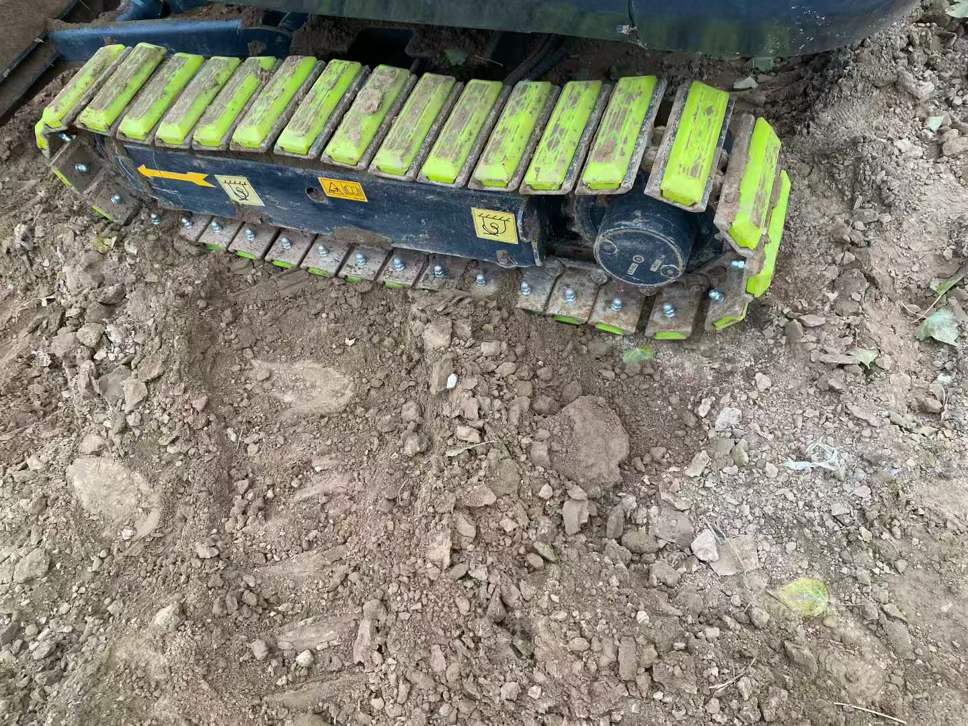

There is currently a second-hand Volvo EC18 excavator for sale. Since its purchase, this equipment has mainly been used for home work and has been in use for a very short time, with a cumulative working time of only a few hundred hours, ensuring its good condition and outstanding performance. Equipped with an efficient and energy-saving engine (model: expected to be D1.6A-T), with a rated power of 14.2kW, it can provide strong power support and meet the operation requirements under various working conditions. In terms of the hydraulic system, it is equipped with a high-quality combination of hydraulic pumps and motors, ensuring the smoothness and response speed of the entire machine's operation. Whether it is excavation or transportation, it can handle it with ease. In addition, what is particularly worth mentioning about this machine is its newly installed rubber track blocks. These not only enhance the vehicle's ability to pass through complex terrains but also effectively reduce the degree of damage to the ground, making it highly suitable for construction projects in cities or sensitive areas. All key components are in good condition, and "no oil leakage at all" is the truest description of it. It also features a retractable chass
| Specifications | Value |
|---|---|
| No. | 979506 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 1700 |
| Bucket capacity (m³) | 0.01 - 0.05 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D0.9A |
| Rated power (kw/rpm) | 12/2300 |
| Cylinder diameter × stroke (mm) | 72*73.6 |
| Maximum torque (N.m) | 52/1800 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 0.9 |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 12.9 |
| Rod digging force (kN) | 7.95 |
| Maximum tractive force (kN) | 13 |
| Travel speed (km/h) | 1.8 / 3.5 |
| Turning torque (Nm) | 2.43 |
| Maximum flow of main pump (l/min) | 34 |
| Fuel Tank (L) | 21 |
| Hydraulic Tank (L) | 15 |
| Hydraulic System (L) | 21 |
| Total transport length (mm) | 3431 |
| Total transport width (mm) | 995 |
| Number of sprockets (single side) (each) | 0 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging depth (mm) | 2528 |
| Maximum excavation height (mm) | 3442 |
| Maximum unloading height (mm) | 2444 |
| Maximum vertical digging depth (mm) | 1898 |
| Dodging plate width × height (mm) | 1340*230 |
| Maximum excavation radius of stop surface (mm) | 3921 |
