| Specifications | Value |
|---|---|
| No. | 966094 |
| Tonnage (tons) | 3 |
| Working weight (kg) | 3336.2 |
| Bucket capacity (m³) | 0.08 |
| Boom length (mm) | 2300 |
| Rod length (mm) | 1250 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo Volvo D1.6 |
| Rated power (kw/rpm) | 20.6/2200 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.6 L |
| Ground specific pressure (Kpa) | 30.3 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 2932 |
| Rod digging force (kN) | 1953 |
| Travel speed (km/h) | 3.9 |
| Maximum flow of main pump (l/min) | 94.3 |
| Fuel Tank (L) | 49 |
| Engine Oil changes (L) | 7 |
| Coolant (L) | 5 |
| Hydraulic System (L) | 48 |
| Total transport length (mm) | 4420 |
| Total transport width (mm) | 1620 |
| Total transport height (mm) | 2440 |
| Full cab height (mm) | 2440 |
| Counterweight ground clearance (mm) | 580 |
| Minimum ground clearance (mm) | 290 |
| Back end turning radius (mm) | 810 |
| Track gauge (mm) | 1320 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1600 |
| Maximum digging depth (mm) | 2740 |
| Maximum excavation height (mm) | 4430 |
| Maximum unloading height (mm) | 3190 |
| Maximum vertical digging depth (mm) | 2540 |
| Maximum excavation radius of stop surface (mm) | 4810 |
Description

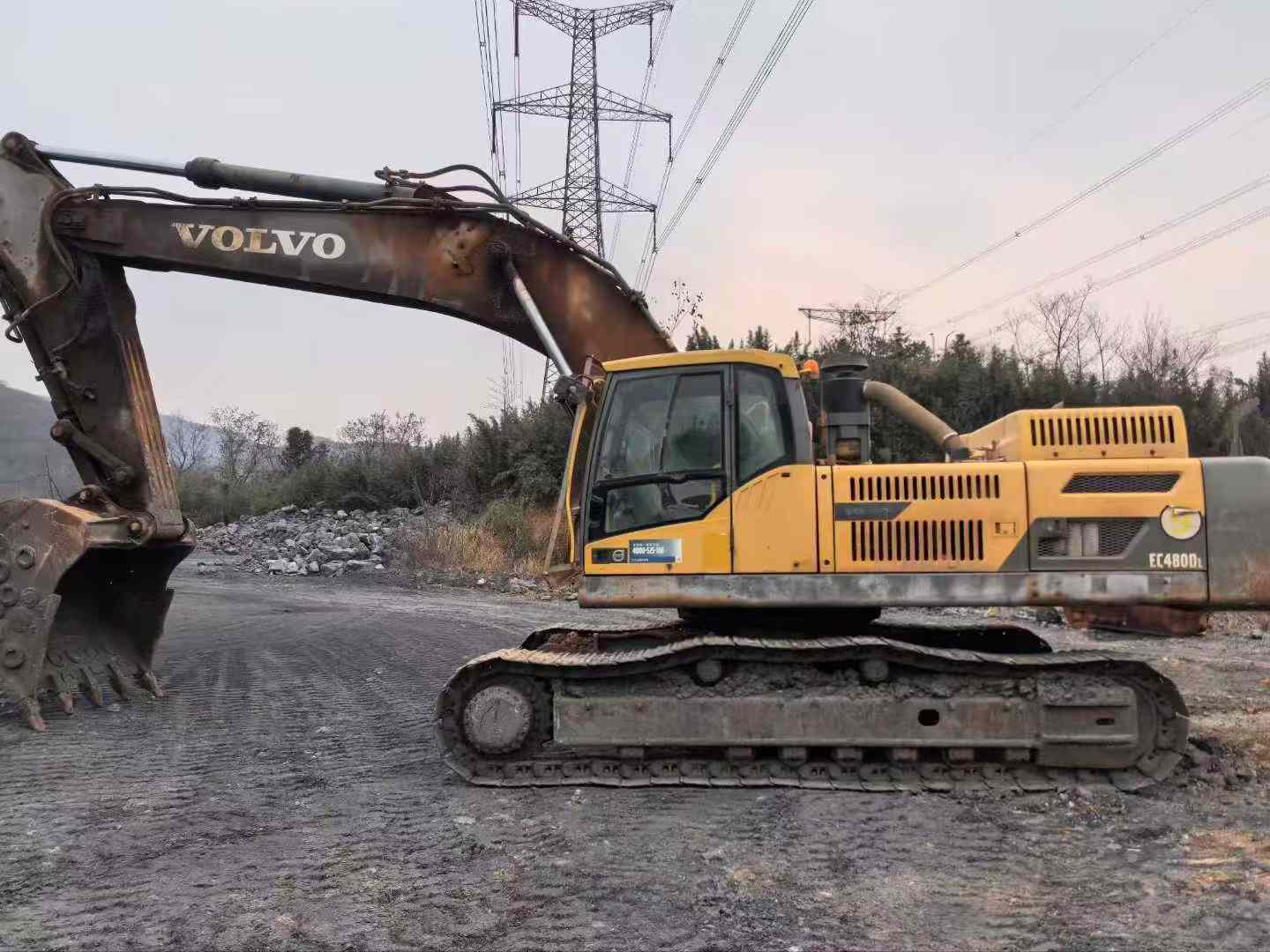

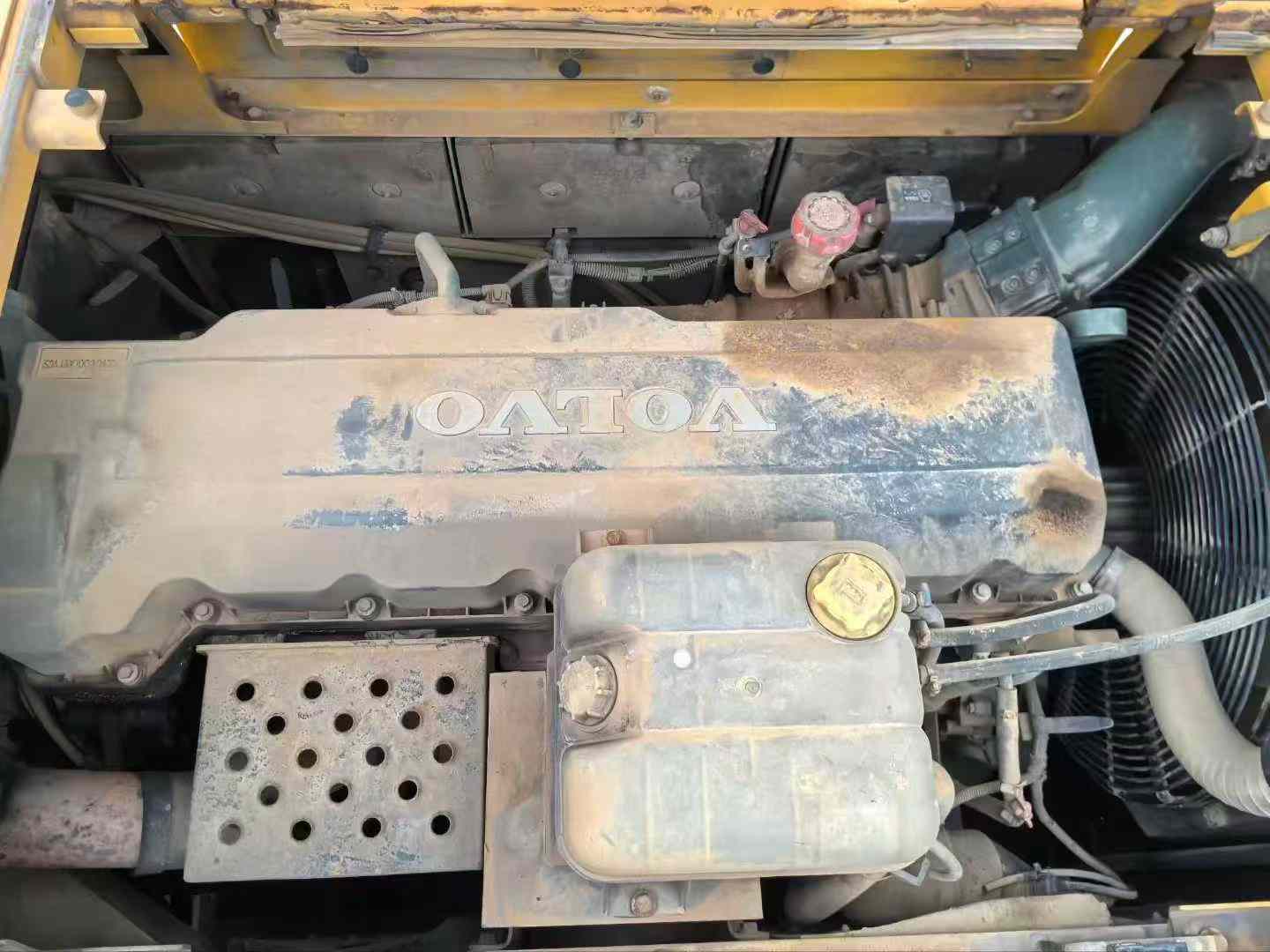

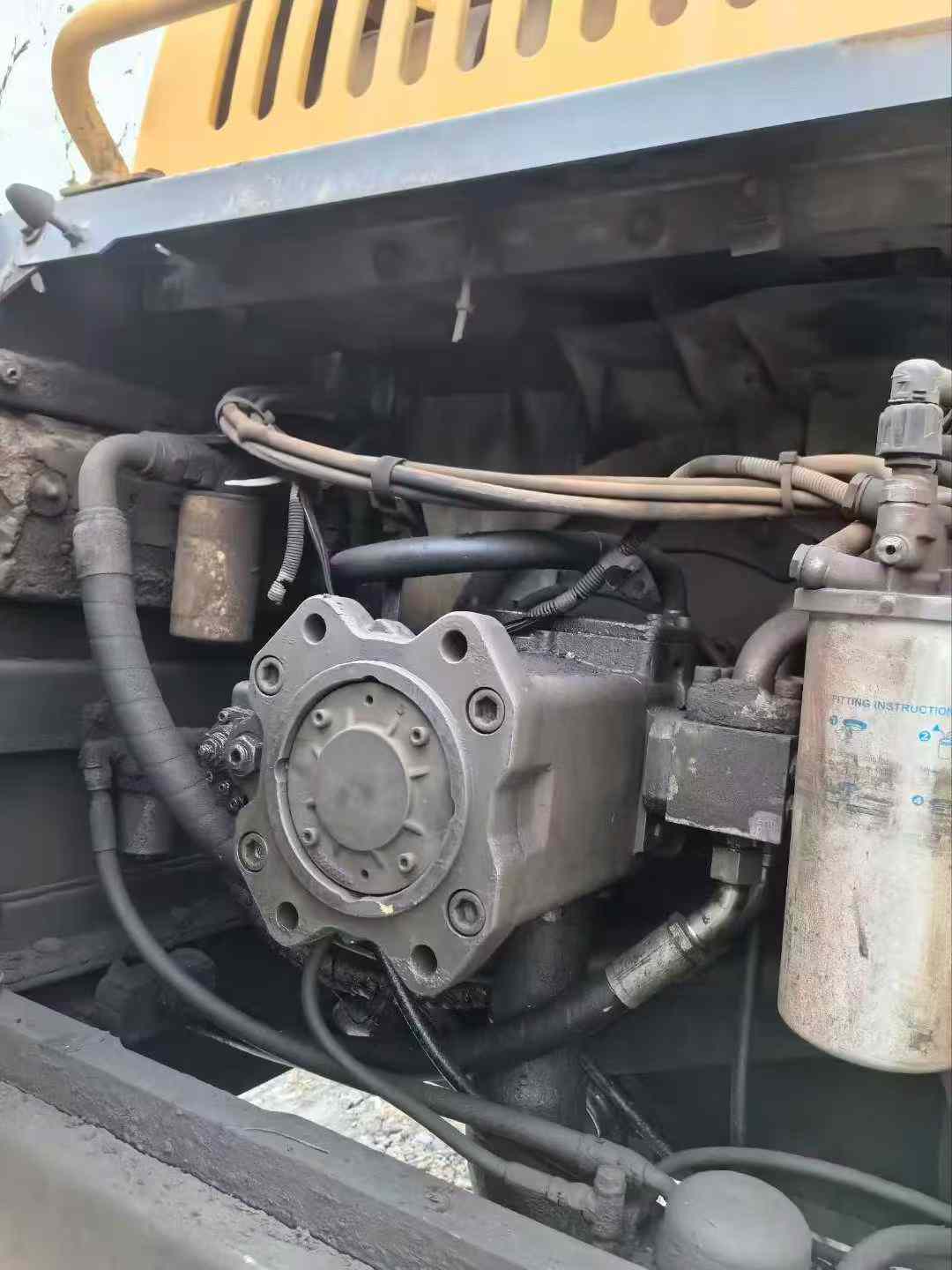

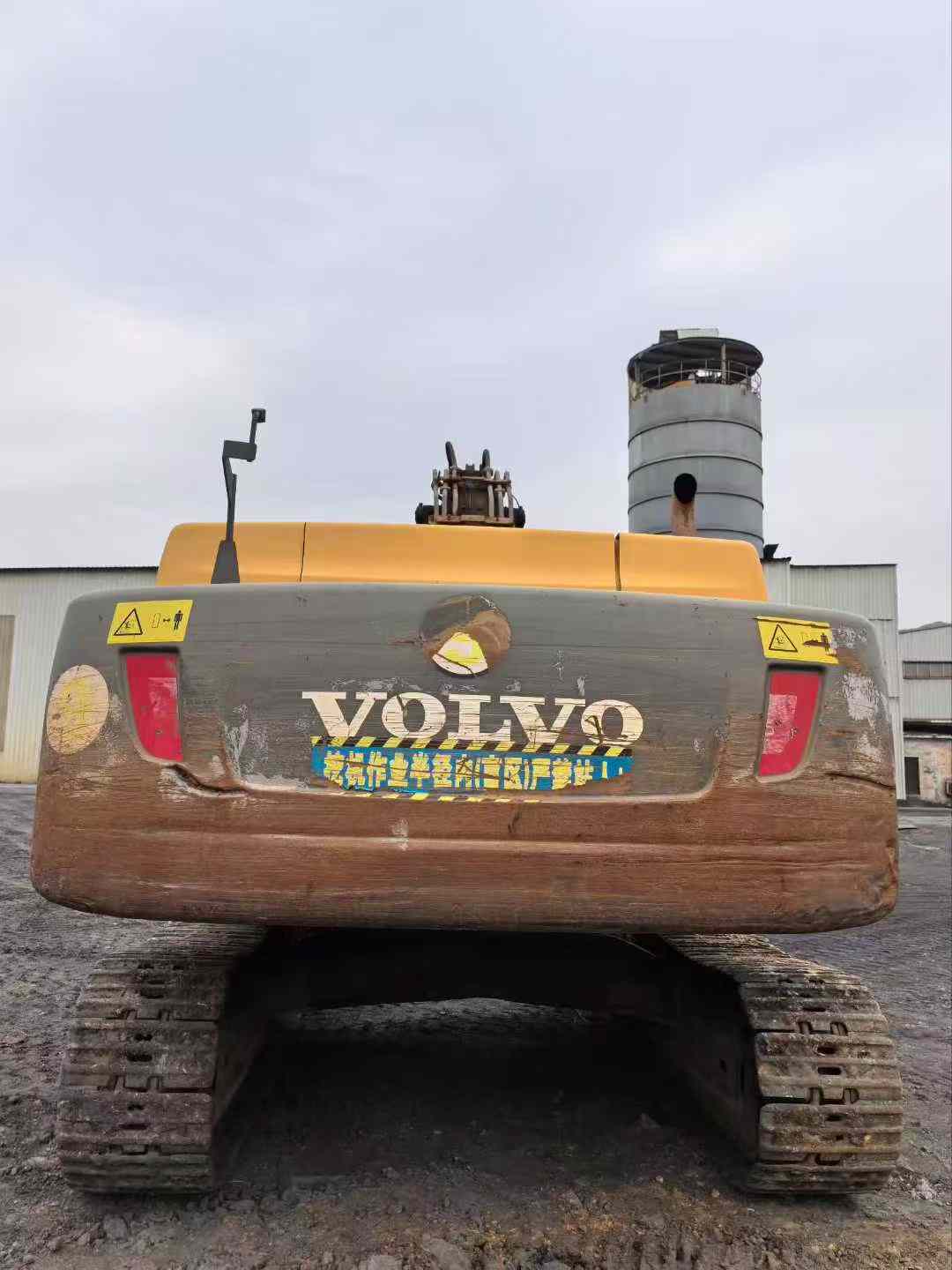

【 Premium Recommendation 】 Volvo EC380 excavator from 2017. This equipment not only boasts outstanding performance but also offers an extremely high cost-performance ratio. Its working time is only over 2,000 hours, which means that the overall condition of the machine is good and the degree of wear and tear is low. For second-hand construction machinery, such a service life is very ideal and can almost be regarded as nearly new. In terms of the power system, this machine is equipped with an efficient Volvo engine, ensuring strong and stable power output. It can handle both hard rocks and soft soil with ease. In addition, its advanced fuel management system can effectively reduce fuel consumption, improve work efficiency and be more environmentally friendly and energy-saving. The hydraulic system is one of the key factors in evaluating the quality of an excavator. This EC380 is equipped with an advanced hydraulic control system, which is flexible and precise in operation and responds quickly. Whether it is for meticulous excavation or heavy-load operations, it can maintain efficient and stable performance. With the original factory standard breaker hammer (commonly known as "cannon") and bucket, this model can handle tasks with ease
