| Specifications | Value |
|---|---|
| No. | 962901 |
| Engine type | |
| Rated power (kw/rpm) | 162 |
| Working form | |
| Bucket capacity (m³) | 2.5~4.5 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 16900 |
| Max - Unloading height (mm) | 3150~3560 |
| Unloading distance (mm) | 1274 |
| Maximum tractive force (kN) | 156 |
| Wheelbase (mm) | 2900 |
| Machine length (mm) | 8010 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3350 |
| Minimum turning radius of outer wheel center line | 6172 |
| Turning radius - Outside of bucket (mm) | 6920 |
| Lift (s) | 5.6 |
| Ternary sum (s) | 9.9 |
| Speed 1 gear (km/h) | 11.5/16.5 |
| Speed 2 (km/h) | 38 |
Description

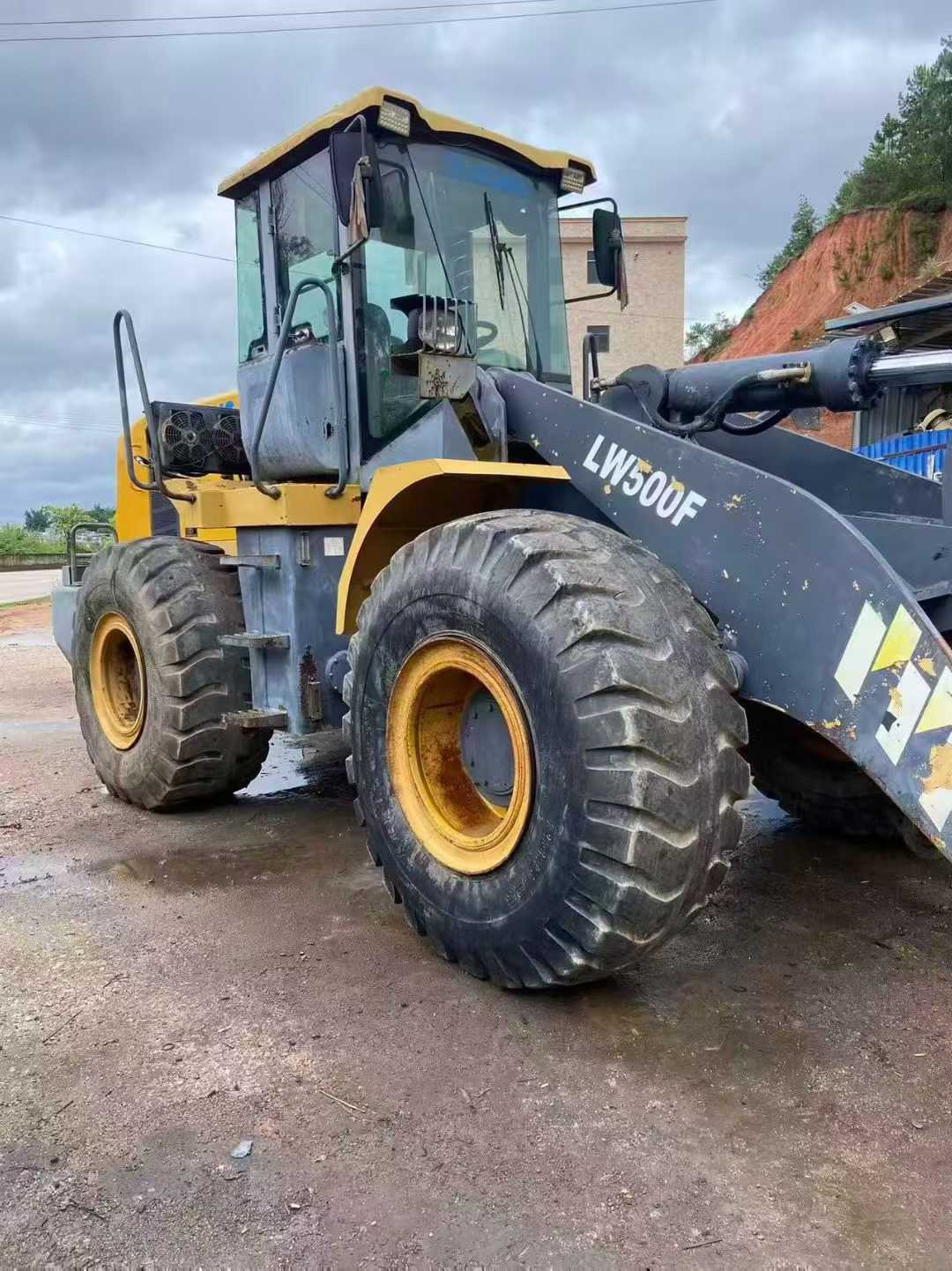

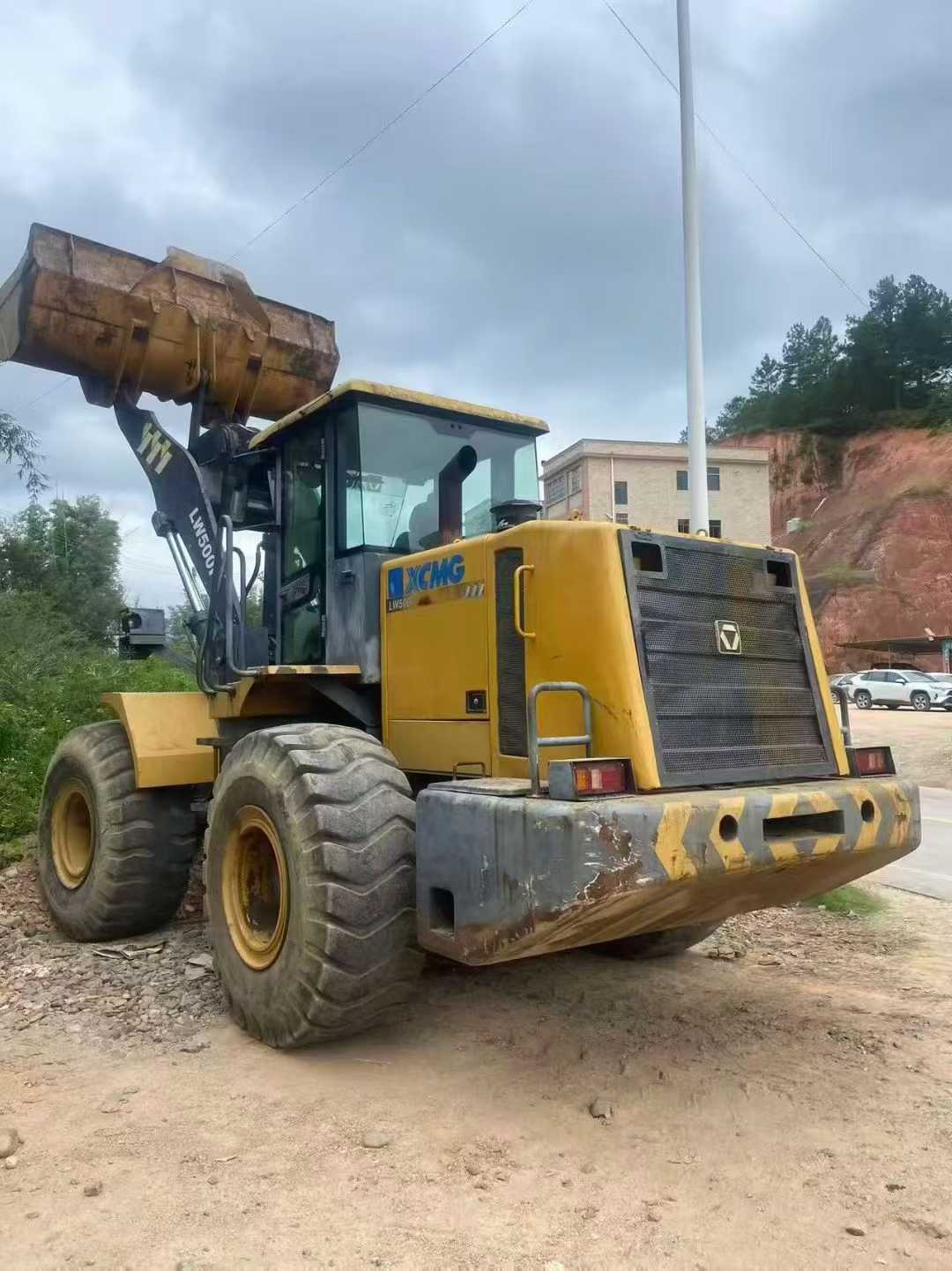

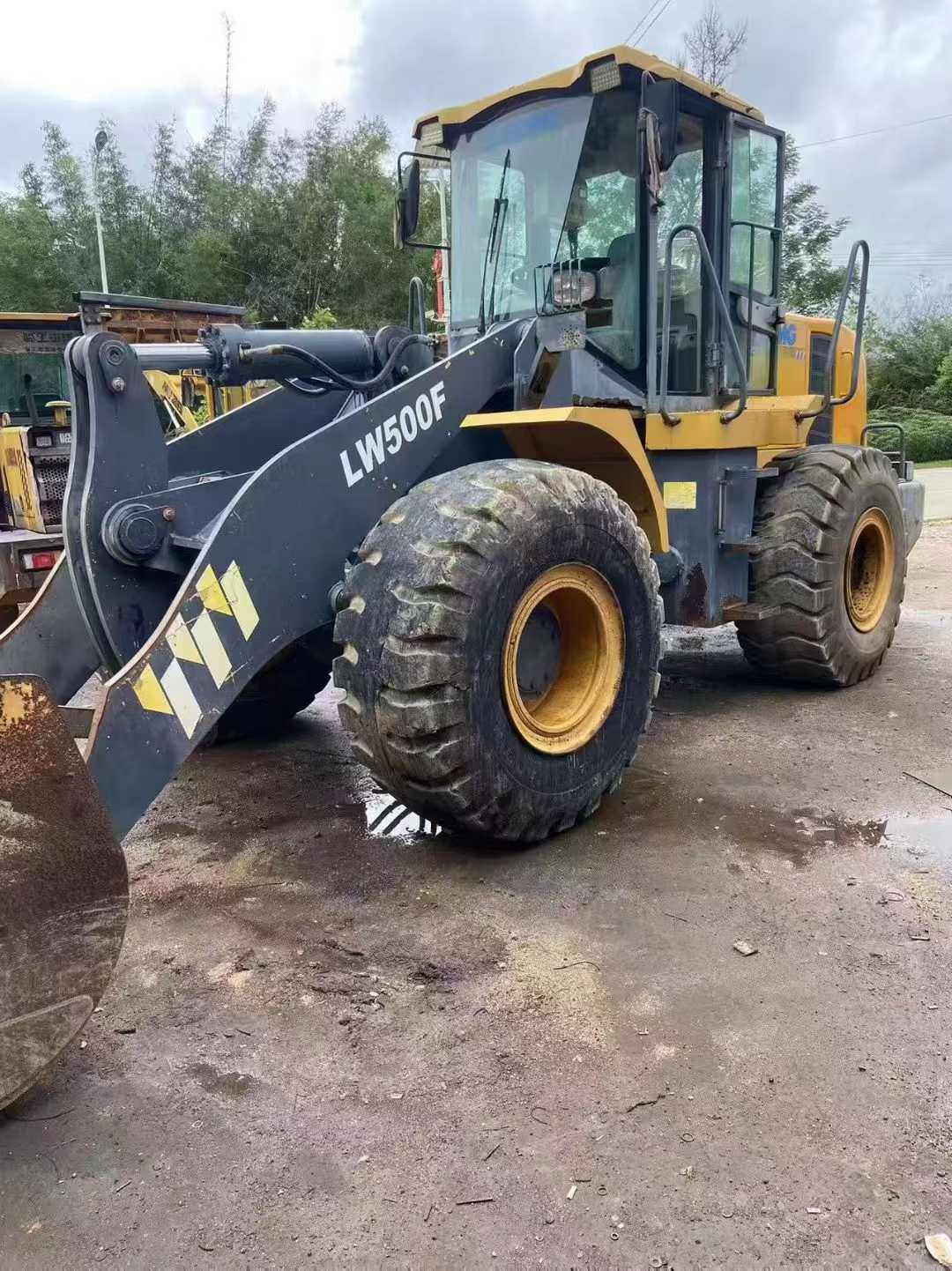

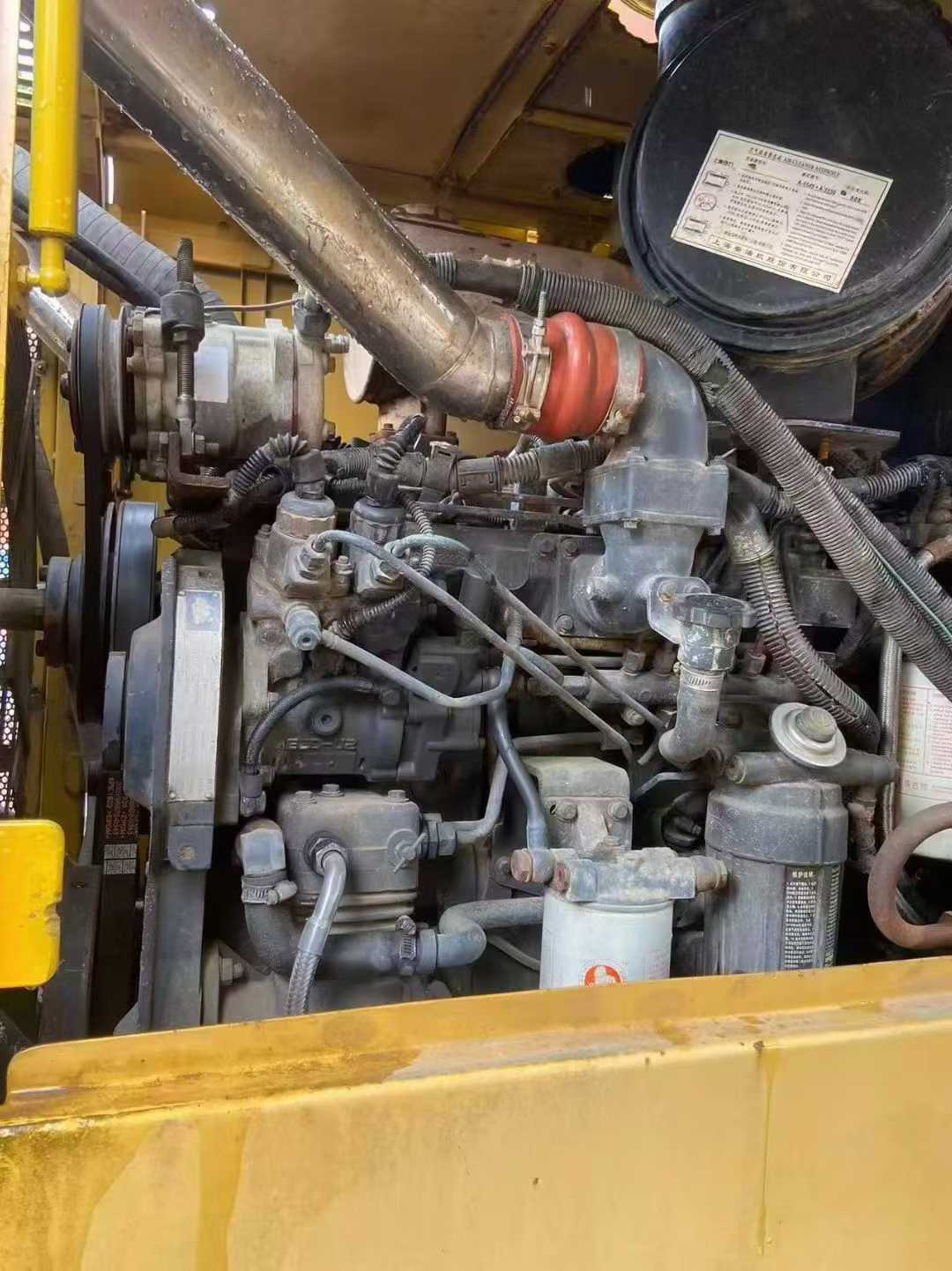

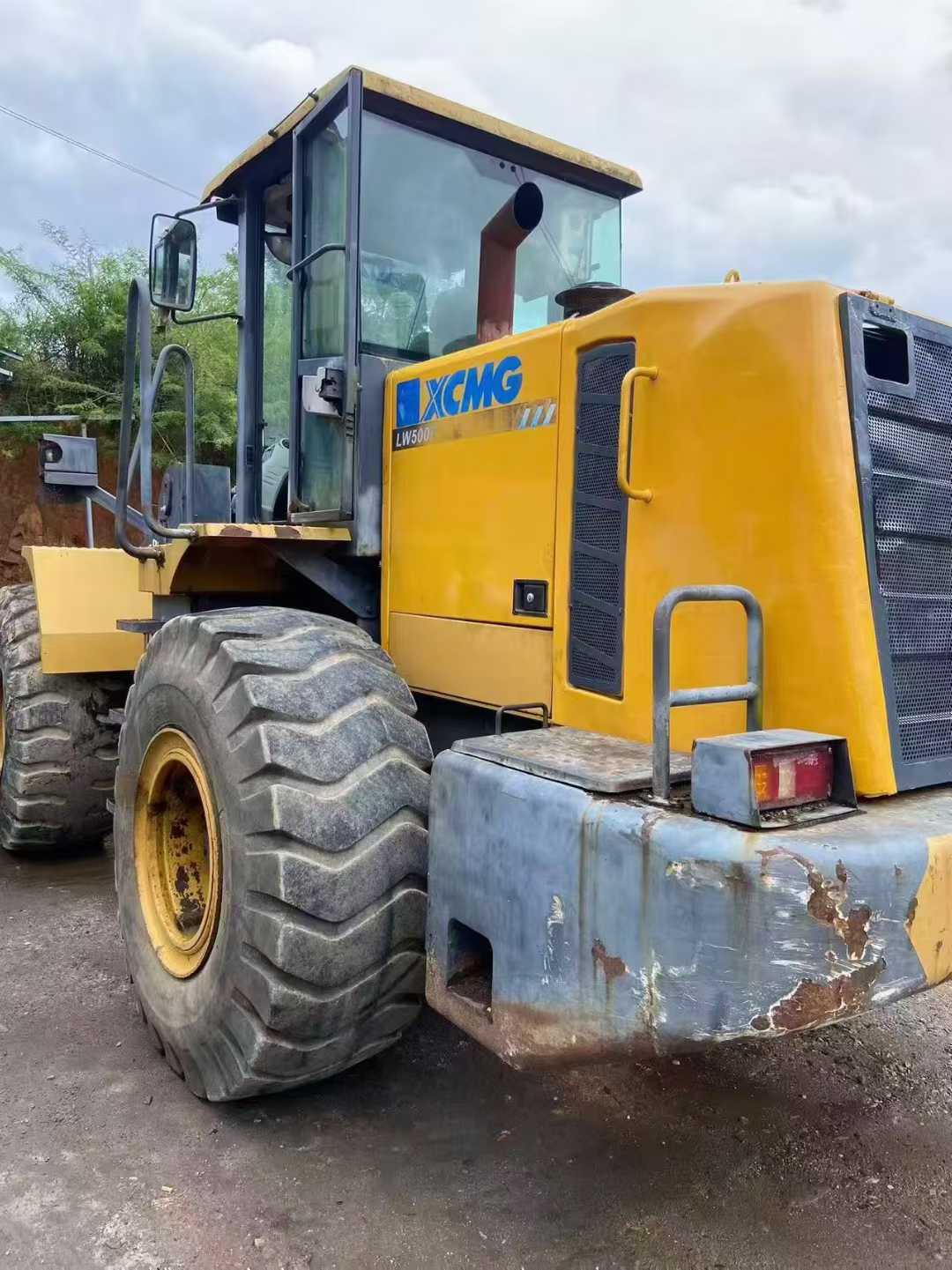

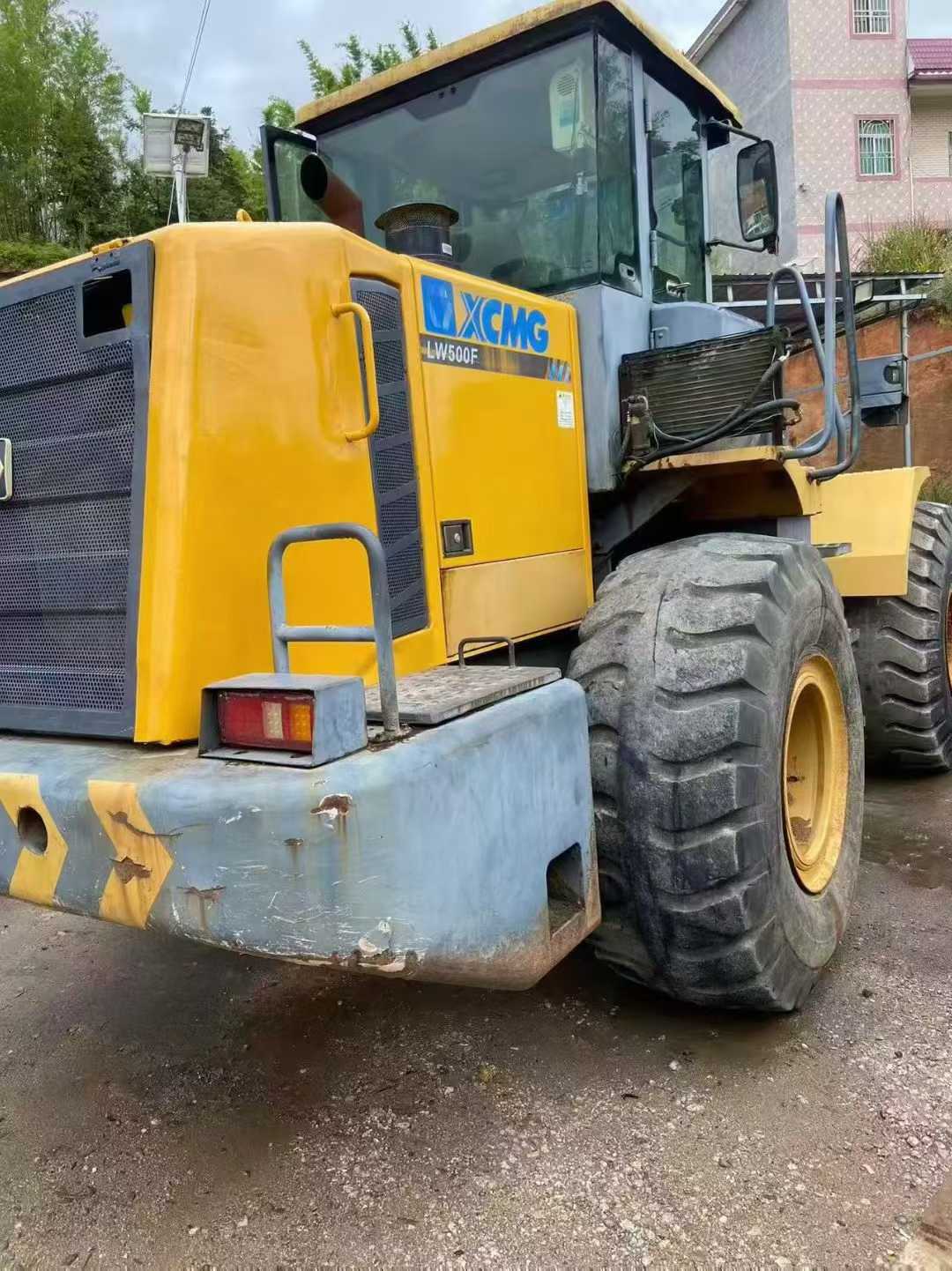

【 Recommended Second-hand XCMG LW500F Loader This XCMG LW500F loader, as one of the highly praised medium-sized loaders in the market, has won the favor of many users with its outstanding working performance and reliable stability. This machine has a cumulative working time of 2,800 hours and is currently in the best mechanical performance state, suitable for operation requirements in various complex environments. It is equipped with the Weichai WP10G220E343 engine, which features powerful output and smooth operation. With a maximum power of 162kW/220 horsepower, it ensures efficient operation while effectively reducing fuel consumption and saving costs for users. In terms of the hydraulic system, the LW500F is equipped with an advanced combination of a fixed displacement pump and a variable motor, ensuring flexible operation and rapid response of the entire machine. Meanwhile, through the optimized design of the oil circuit layout, this model can still maintain good heat dissipation effect under long-term high-intensity use, greatly extending the service life of the hydraulic components. In addition, its spacious and comfortable cab design, user-friendly control interface and comprehensive safety protection measures are also advanta
