| Specifications | Value |
|---|---|
| No. | 965230 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
Description

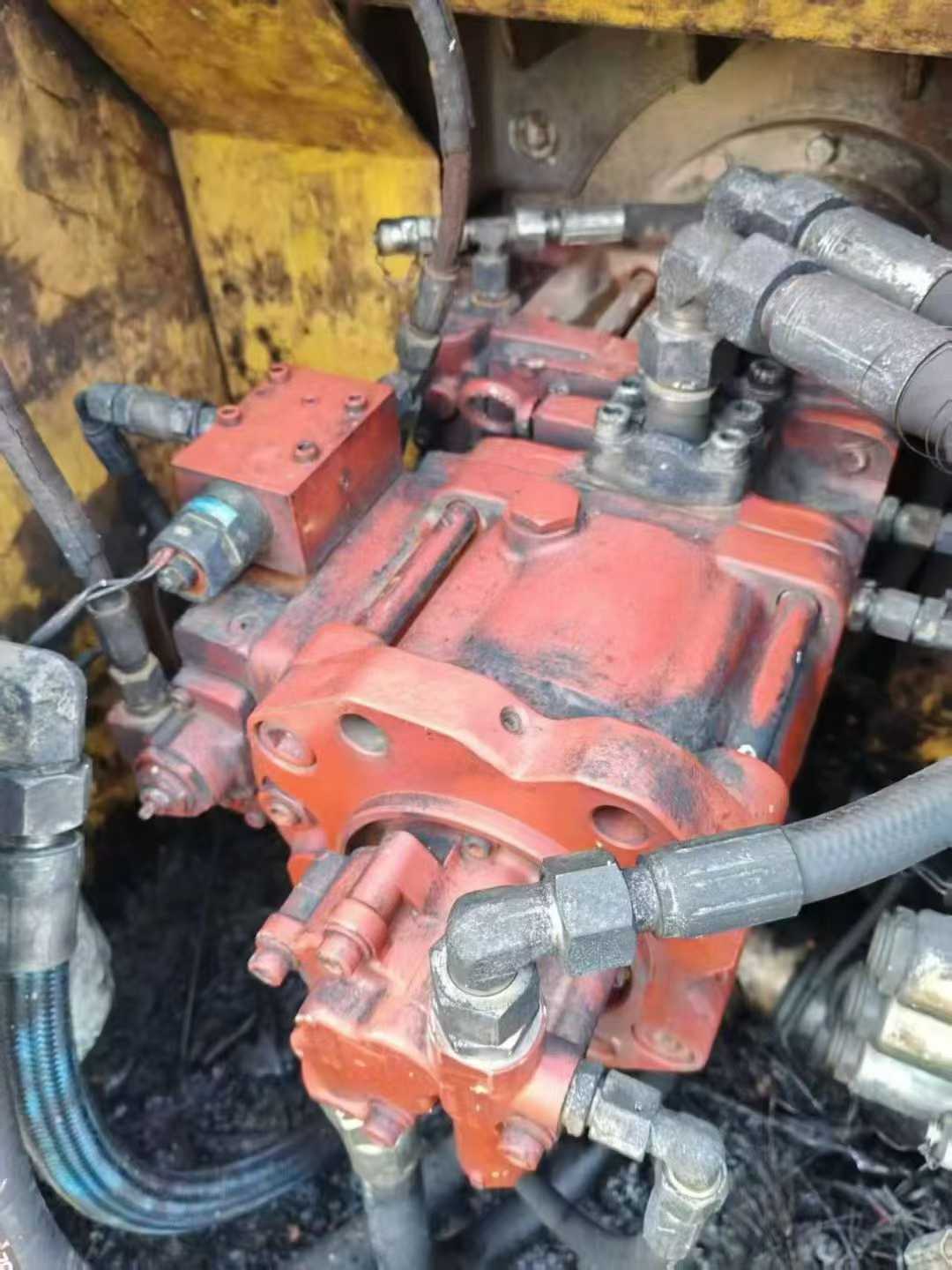

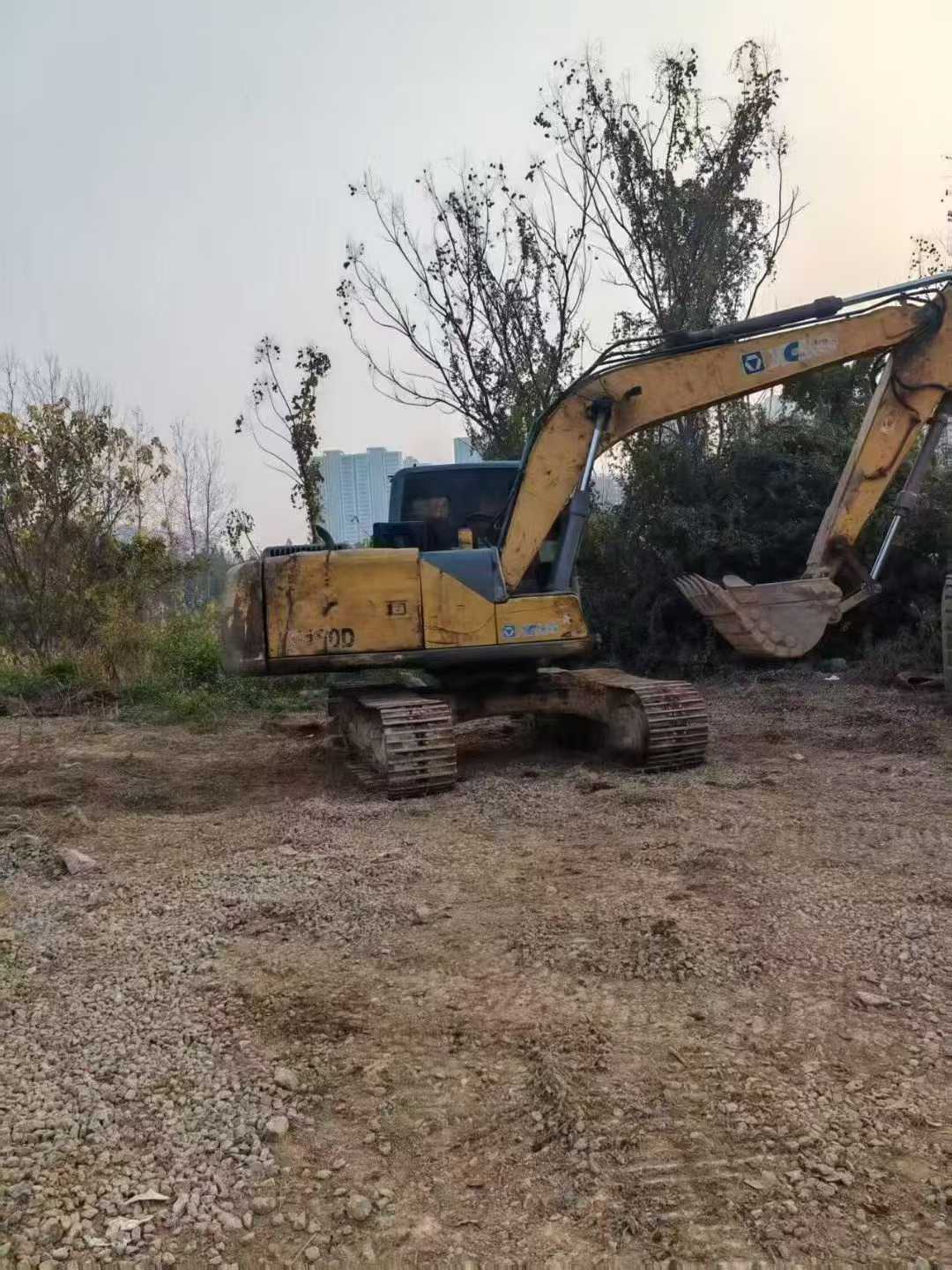

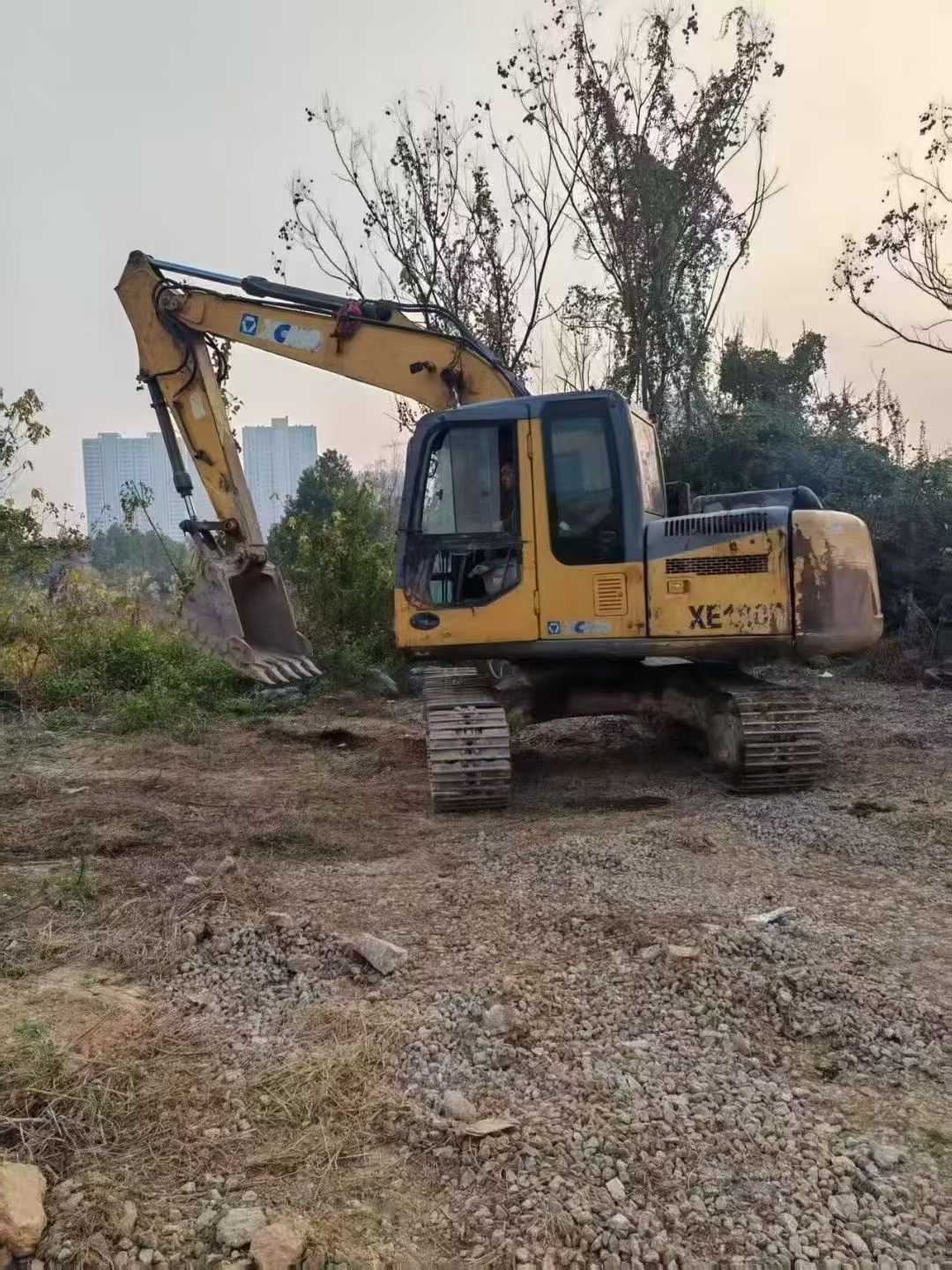

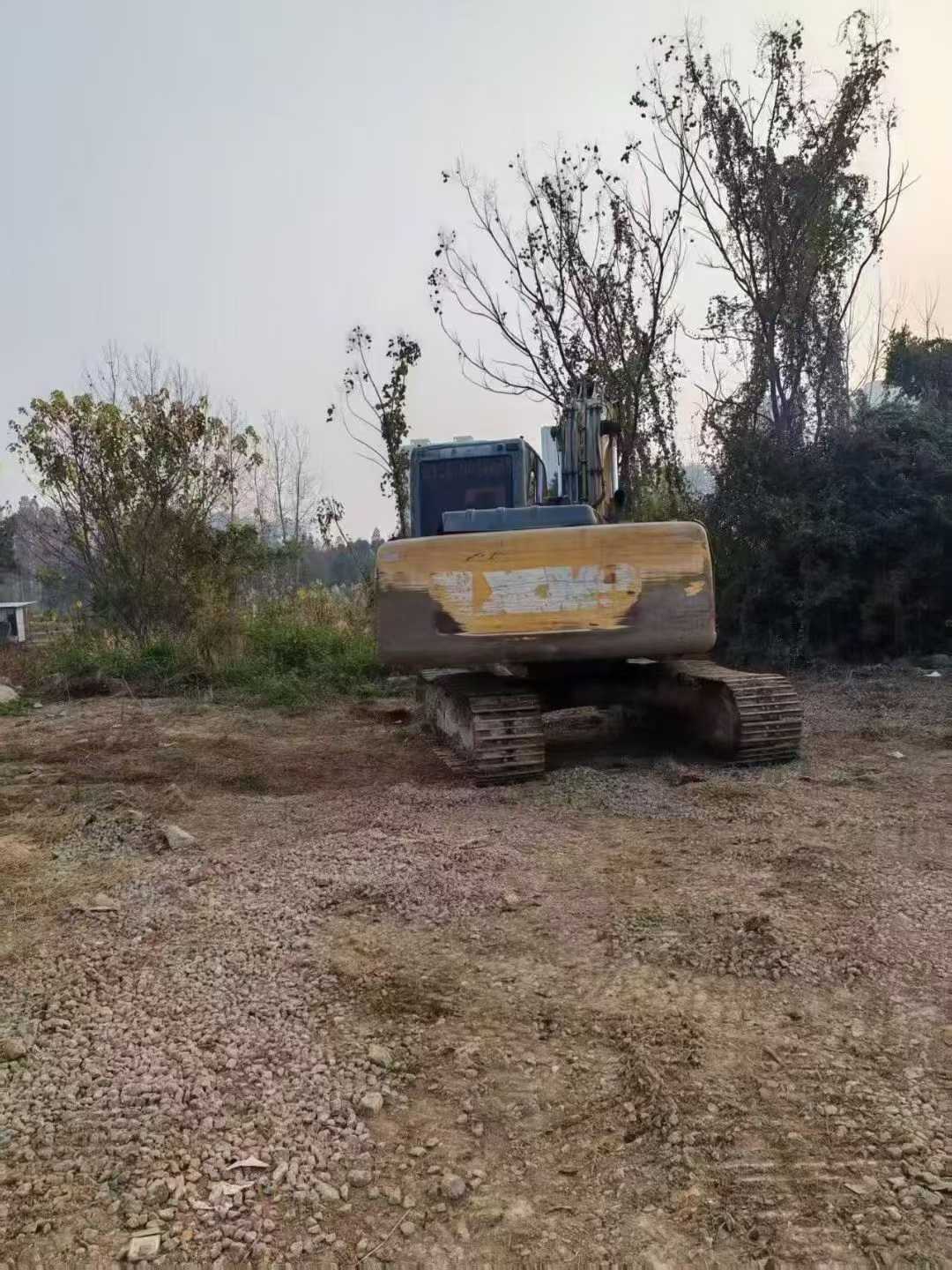

【 Premium Recommendation 】 The second-hand XCMG XE135 excavator from 2014 is in excellent condition and offers high cost performance. It is your ideal choice for engineering operations. This excavator has a cumulative working time of only over 8,000 hours. With a moderate usage frequency and proper maintenance, its overall performance is stable and reliable. In terms of the power system, this machine is equipped with an efficient and energy-saving engine, featuring strong power output and smooth operation performance. It can handle both plain and mountainous operations with ease. The engine has undergone professional testing, and all indicators meet the standards, ensuring its reliability and durability during long-term operation. The hydraulic system adopts advanced hydraulic technology, featuring rapid response and flexible operation, capable of meeting the precise control requirements under various complex working conditions. The key components such as the hydraulic pump and motor have all undergone strict inspection and maintenance, ensuring the high efficiency and stability of the entire machine during operations like excavation and loading. It is particularly worth mentioning that this XE135 is equipped with a brand-new chassi
