| Specifications | Value |
|---|---|
| No. | 965909 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
Description

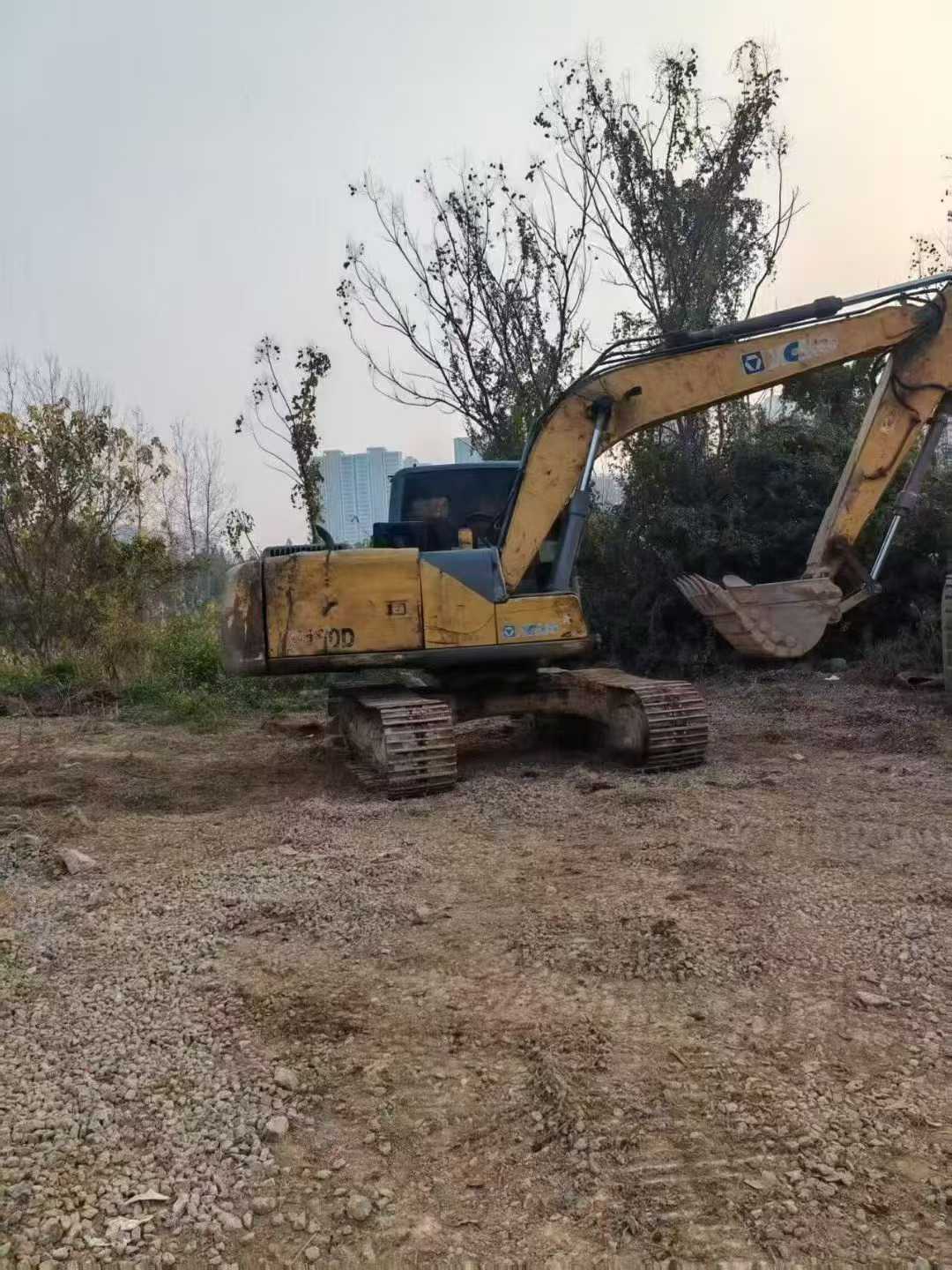

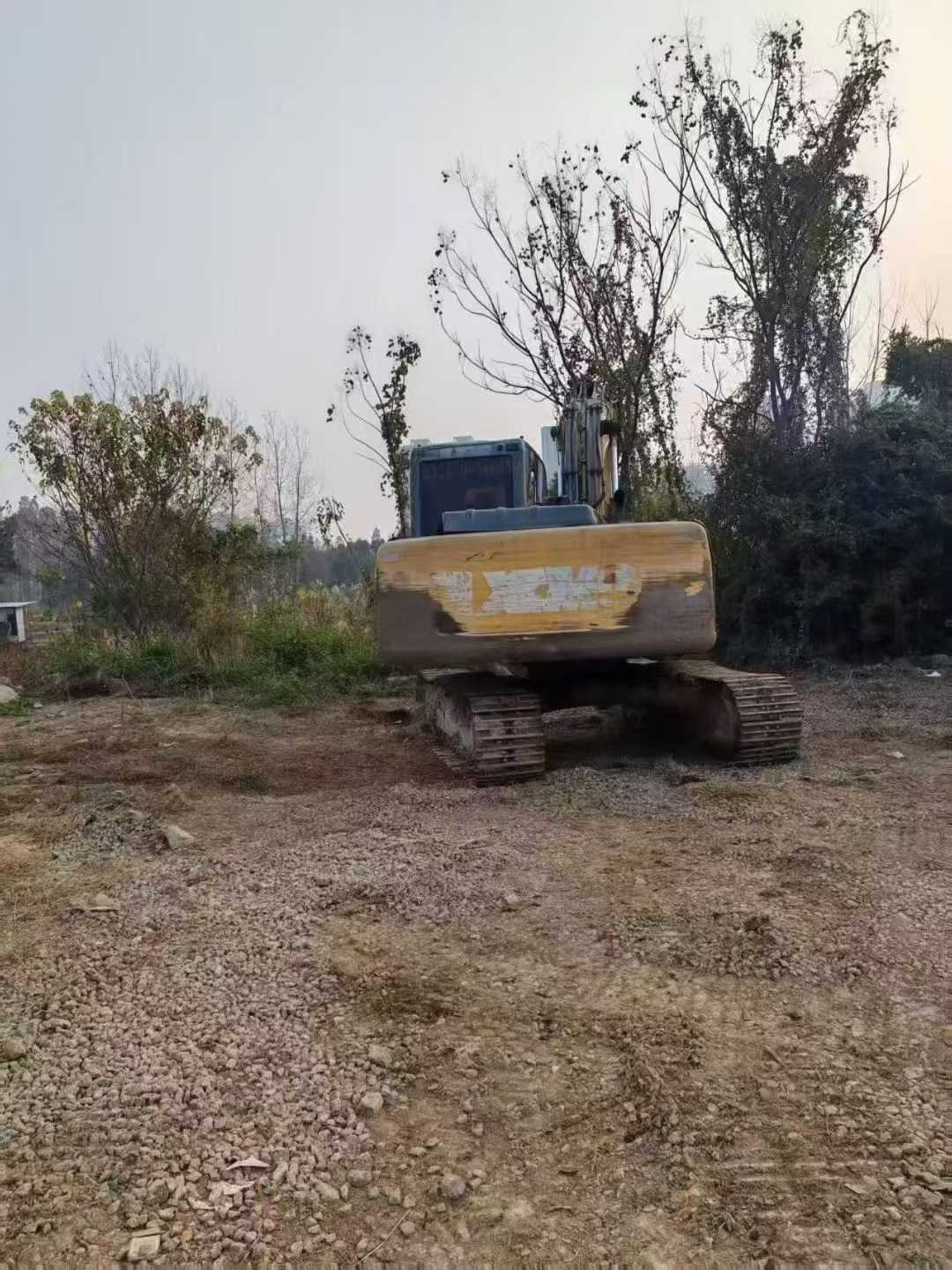

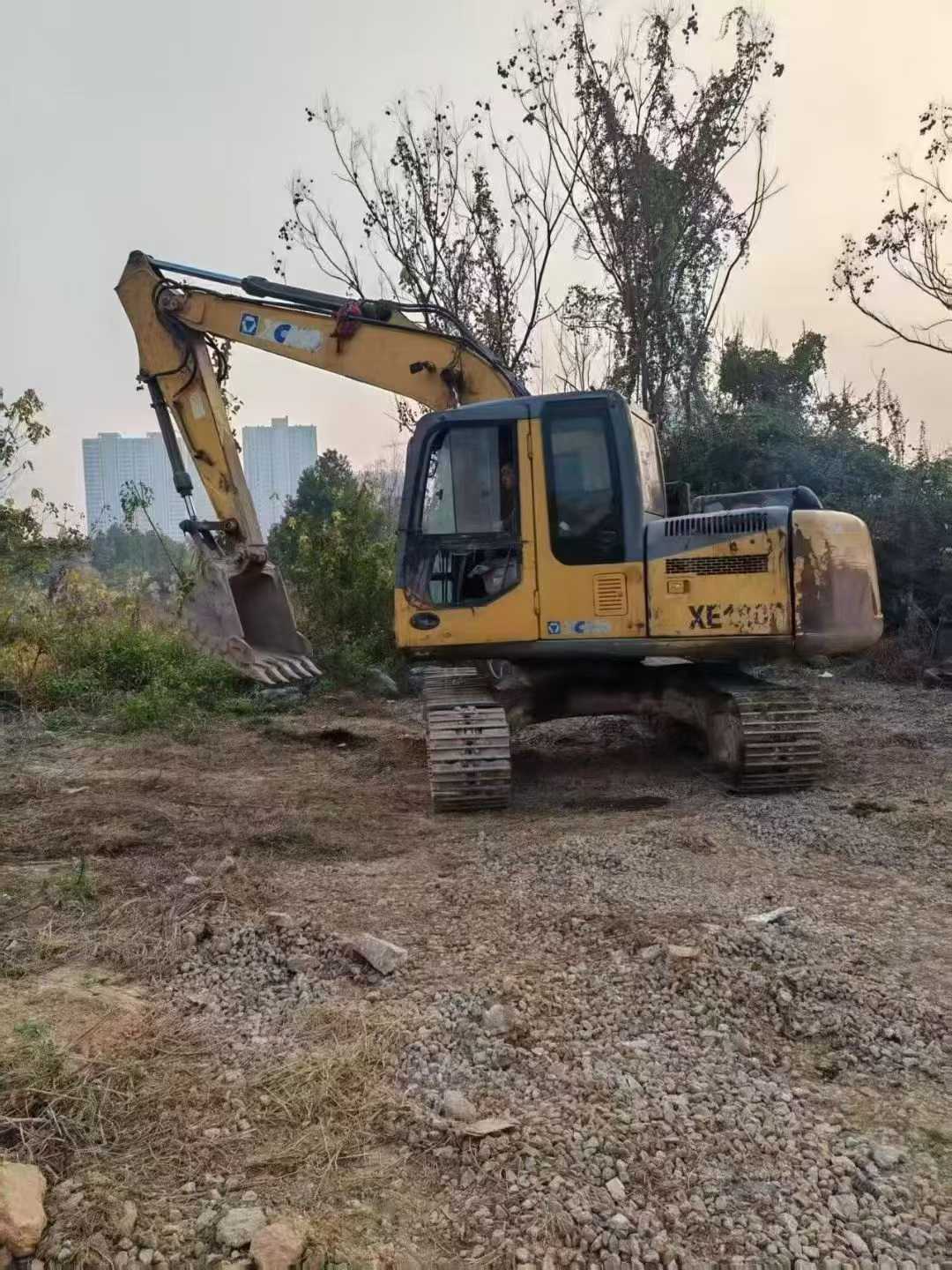

This 2014 XCMG XE135 excavator is a medium-sized excavator that has received high praise in the market. It features a brand-new chassis design, ensuring stability and durability in various complex terrains. Since leaving the factory, the cumulative working time of this equipment has only been 8,000 hours, which is in the golden usage period of the mechanical life cycle, and its performance is still very excellent. In terms of power, the XCMG XE135 is equipped with an efficient and energy-saving engine, which not only provides strong power output but also has good fuel economy, reducing operating costs. In addition, its advanced hydraulic system adopts core components of internationally renowned brands, making the entire machine operation more flexible and precise, with a faster response speed. Whether it is excavation, loading or crushing operations, it can handle them with ease. More importantly, this hydraulic system also has a self-protection function. It can automatically adjust when encountering abnormal situations, effectively extending the service life of the equipment. The new chassis is a major highlight of this second-hand excavator. Compared with the old model, it not only improves the vehicle's passability but also enhanc
