| Specifications | Value |
|---|---|
| No. | 966003 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
Description

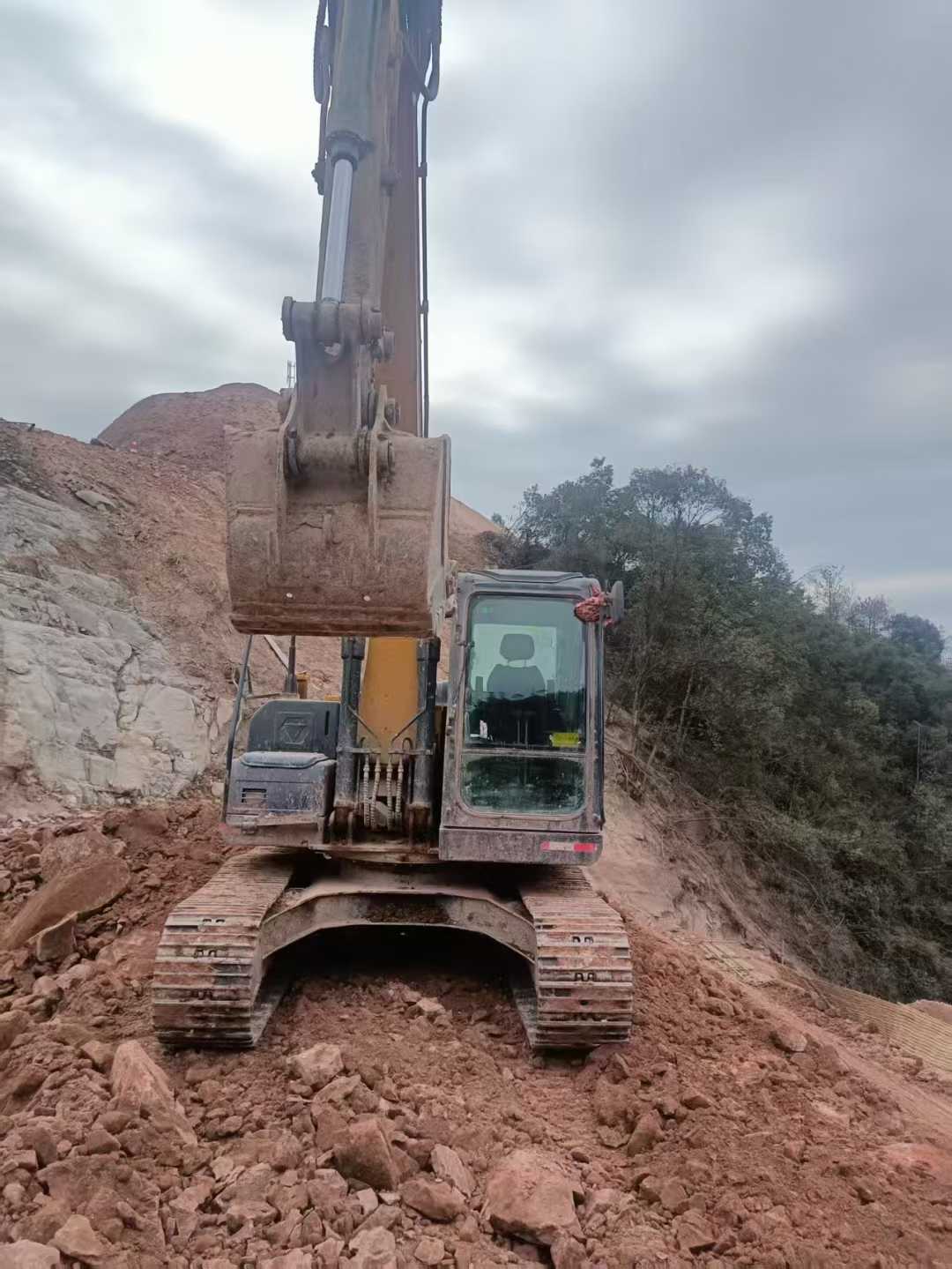

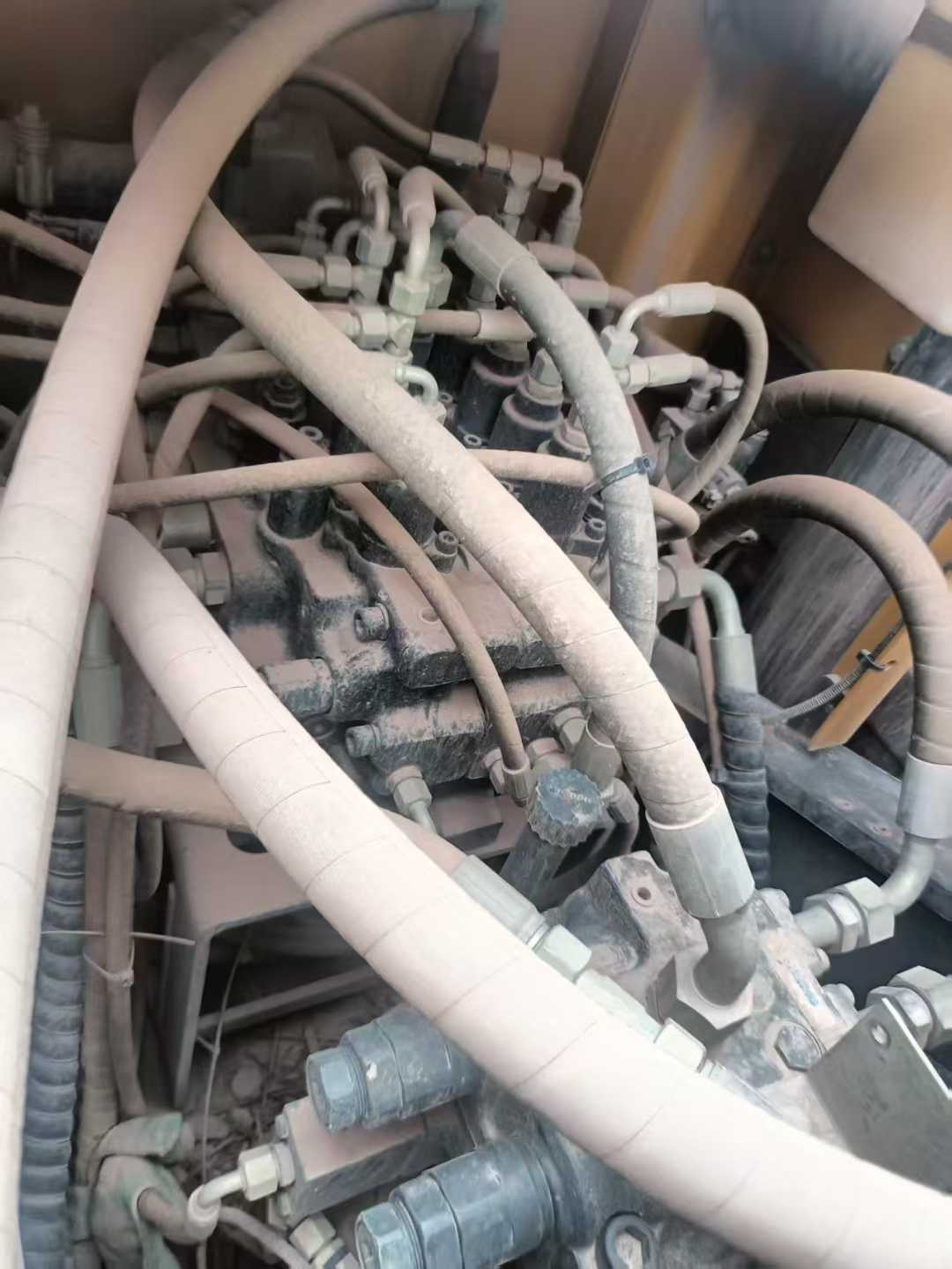

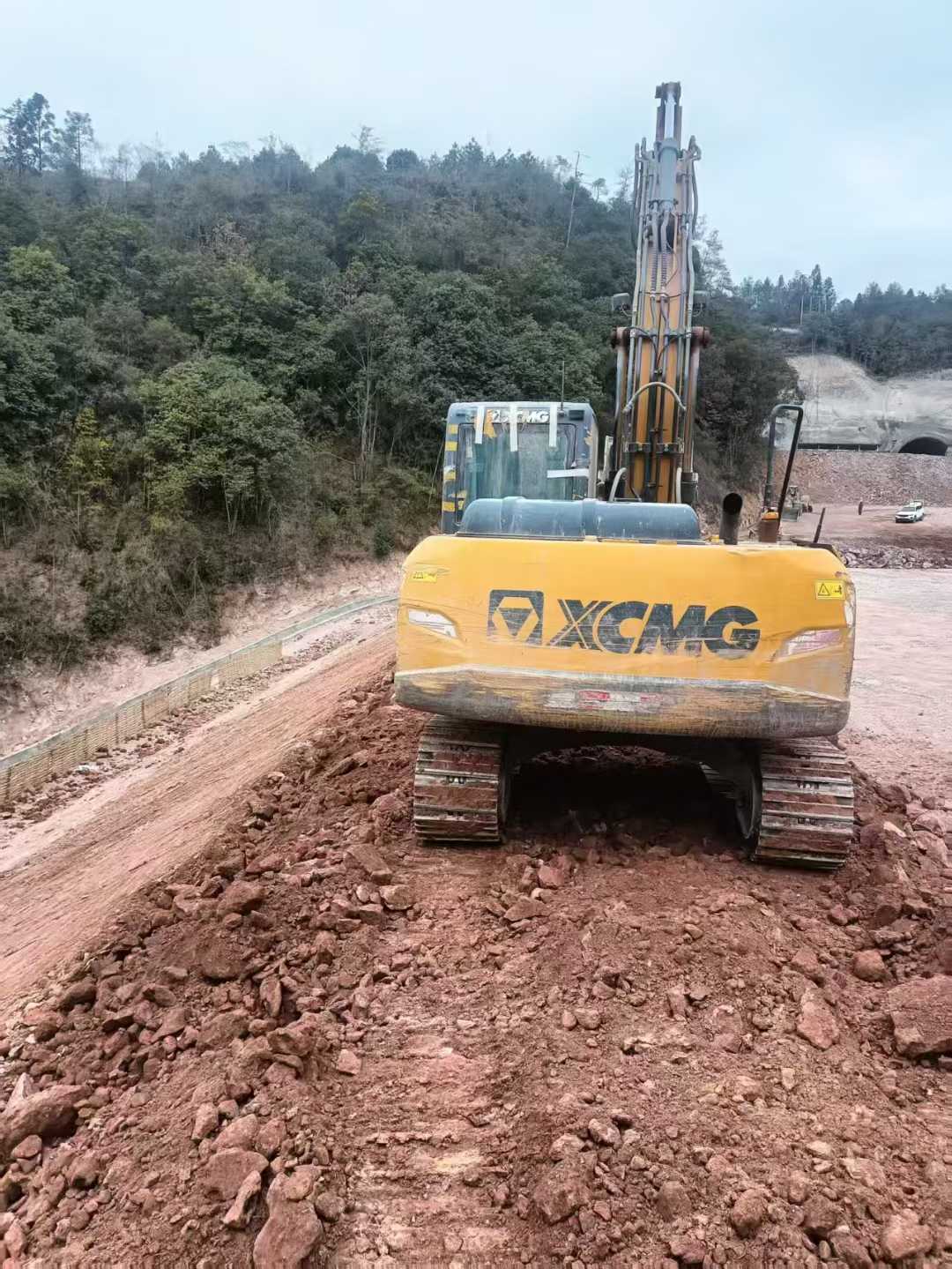

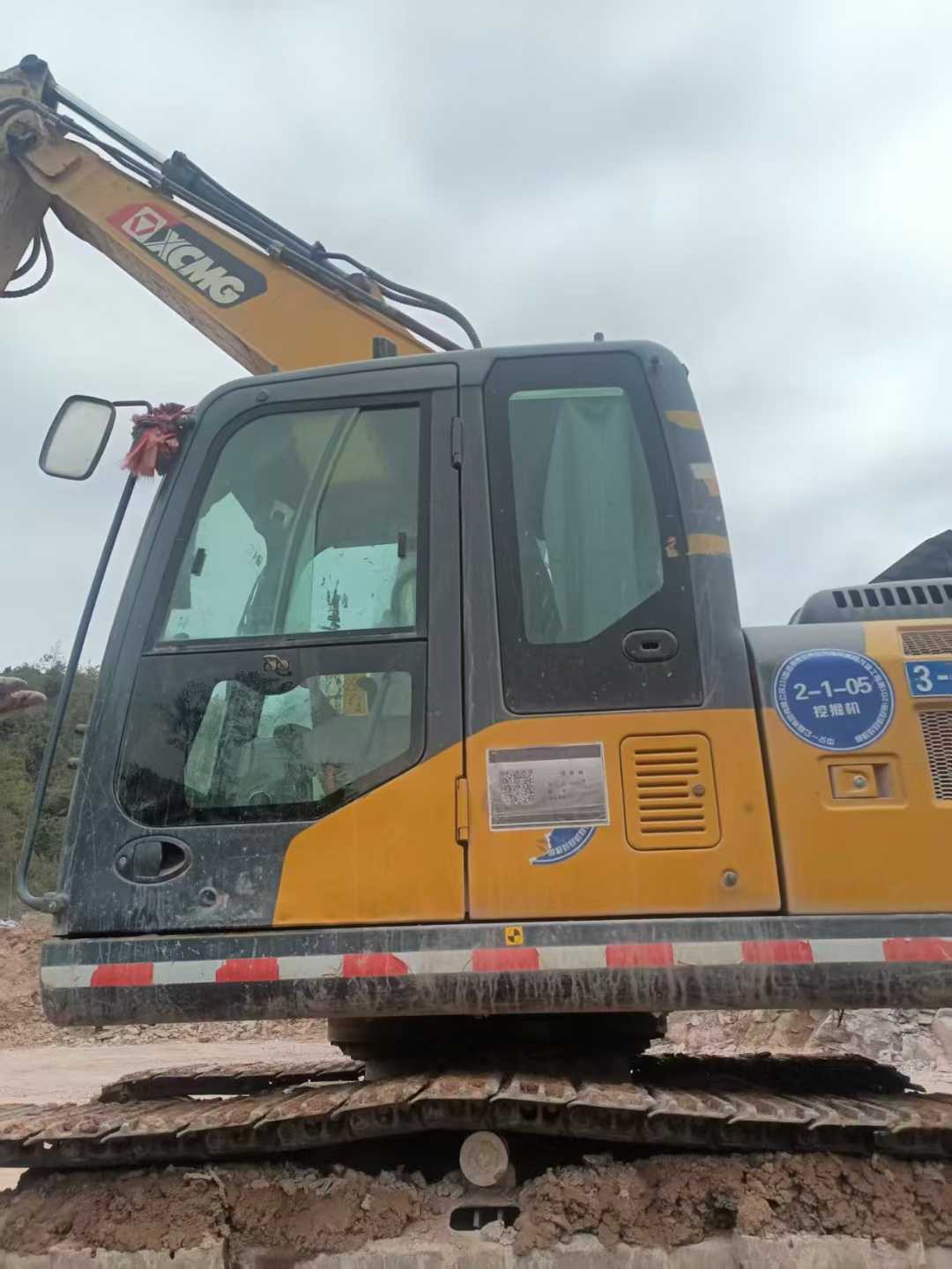

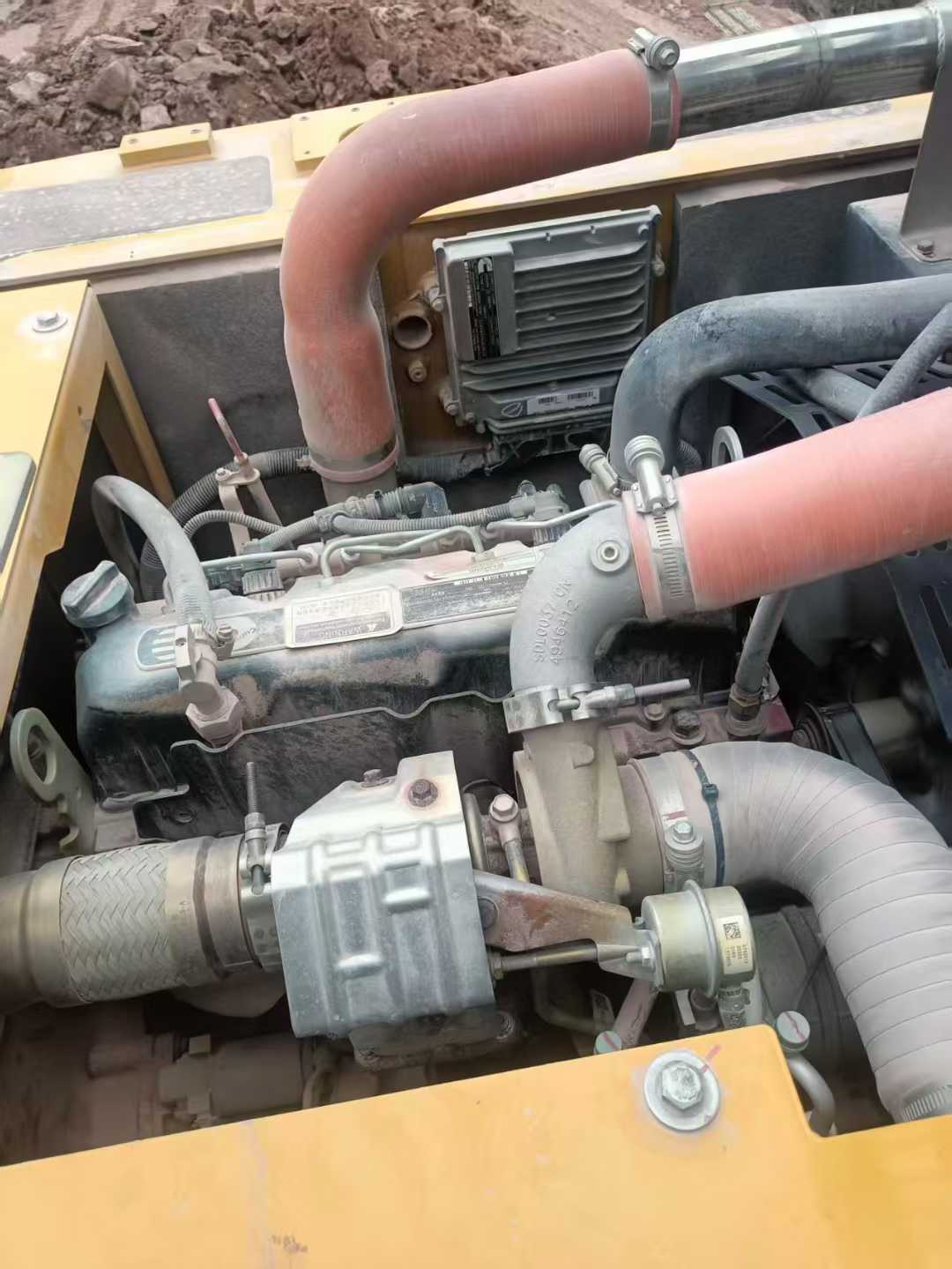

【 Premium Recommendation 】 Second-hand XCMG XE135DA excavator, 2021 model, only 158,000 yuan! This XCMG XE135DA excavator is a model from 2021 and is in excellent overall condition. Its working time is only 2,600 hours. With proper maintenance, stable mechanical performance and moderate usage frequency, it is very suitable for users who pursue cost performance. This machine is equipped with a Cummins B3.3 engine, which is powerful and fuel-efficient, with a maximum power output of up to 74kW. It can easily meet the operational requirements under various complex working conditions. Meanwhile, its highly efficient hydraulic system not only ensures smooth operation but also significantly enhances work efficiency. The imported hydraulic pump and motor equipped on this machine enable the entire machine to perform outstandingly during operations such as excavation and loading, with rapid and precise movements. In addition, this excavator is equipped with a spacious and comfortable cab, offering a wide field of vision and convenient operation. You won't feel tired even after working for a long time. In terms of appearance, the body paint is as bright as new, with no obvious scratches or rust. The internal structure is intact, and all compon
