| Specifications | Value |
|---|---|
| No. | 970438 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
Description

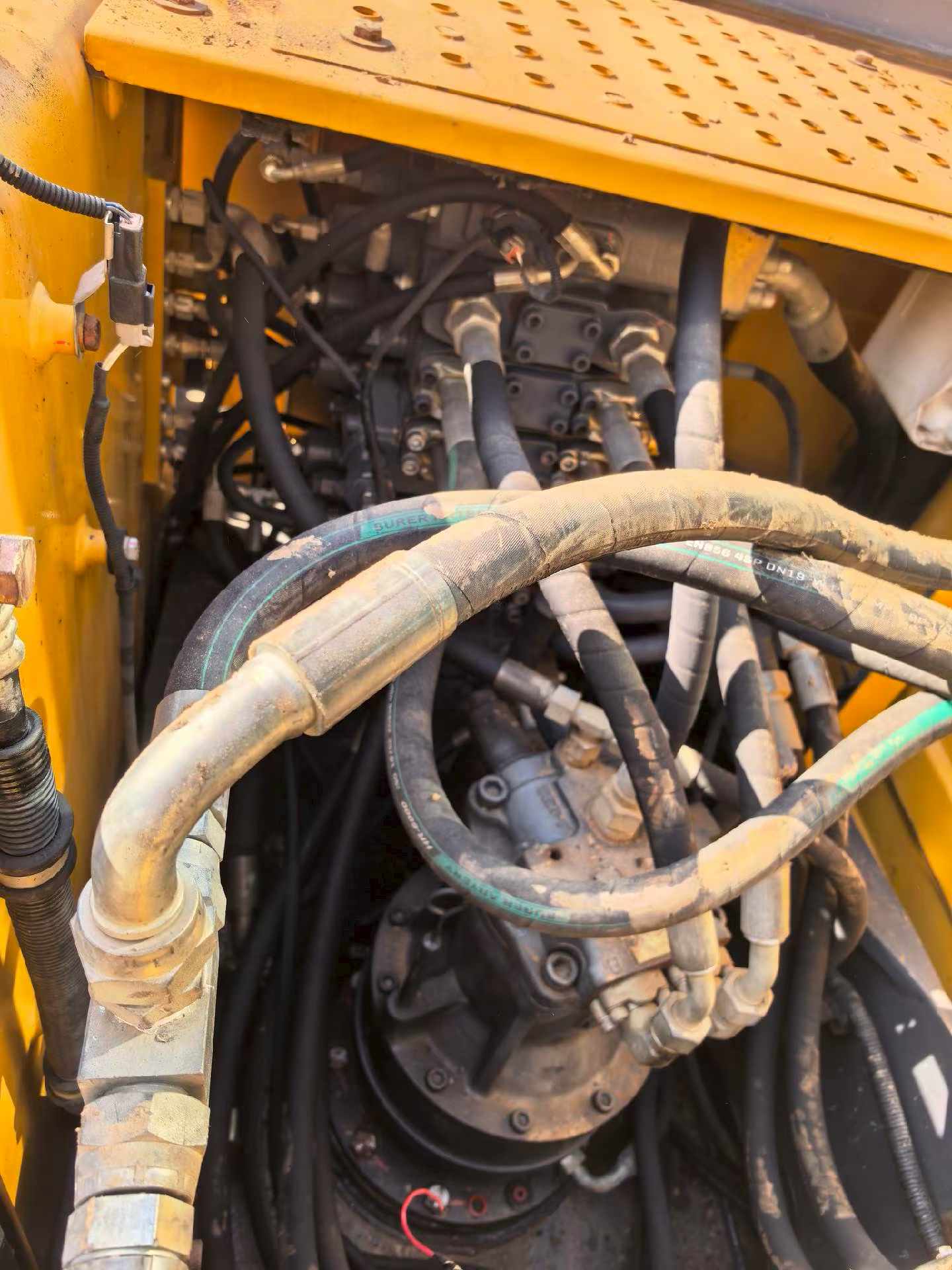

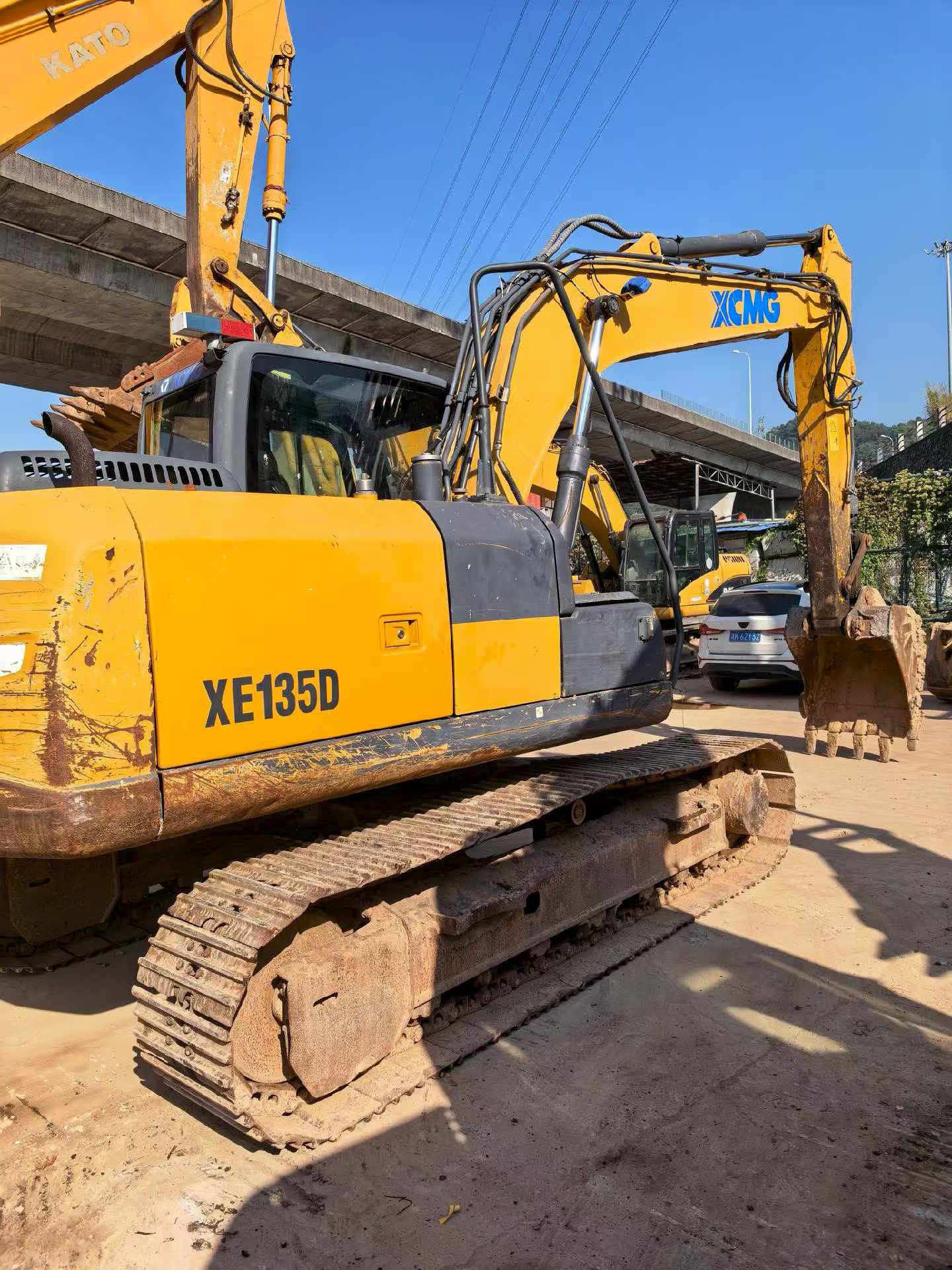

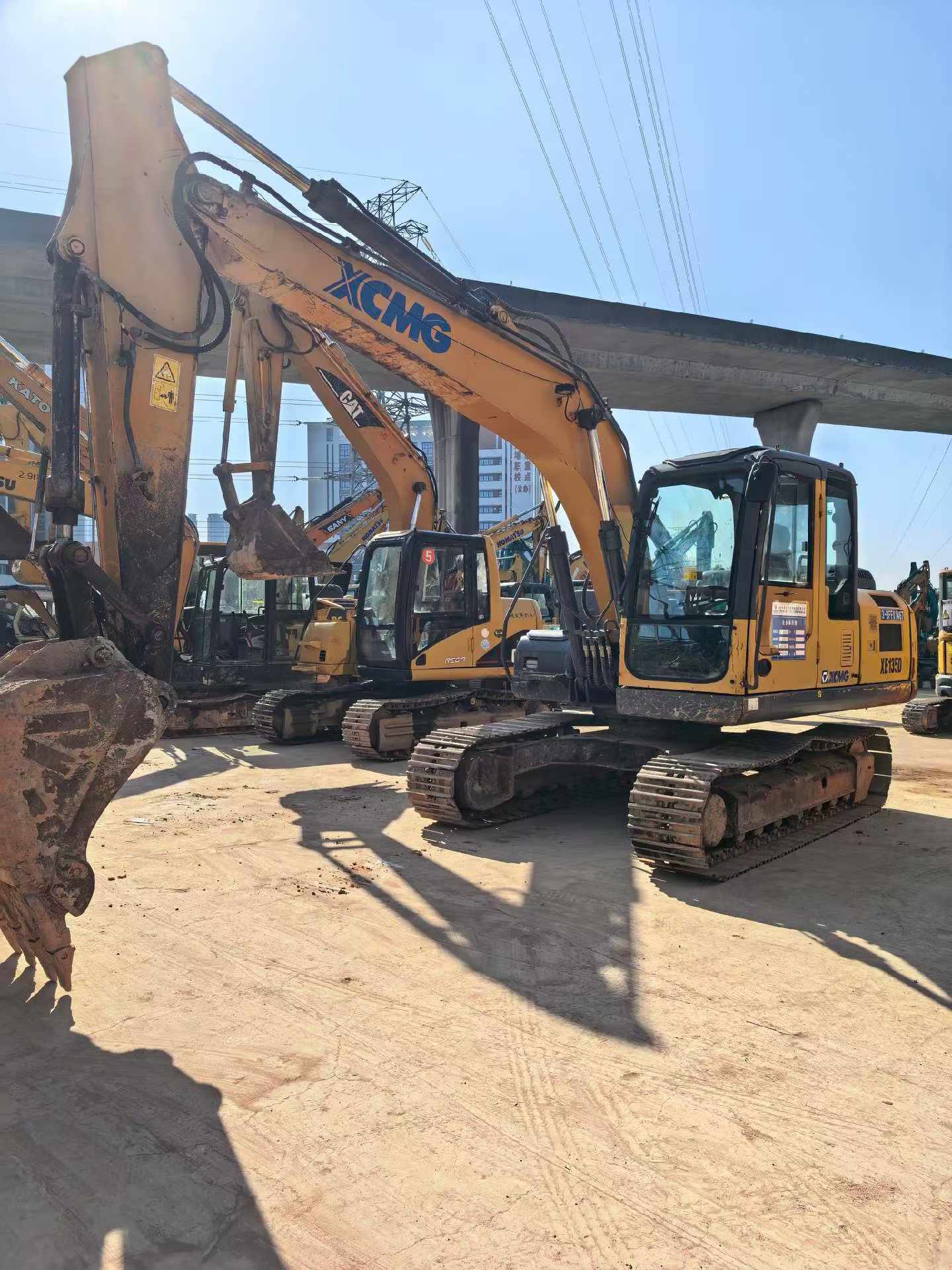

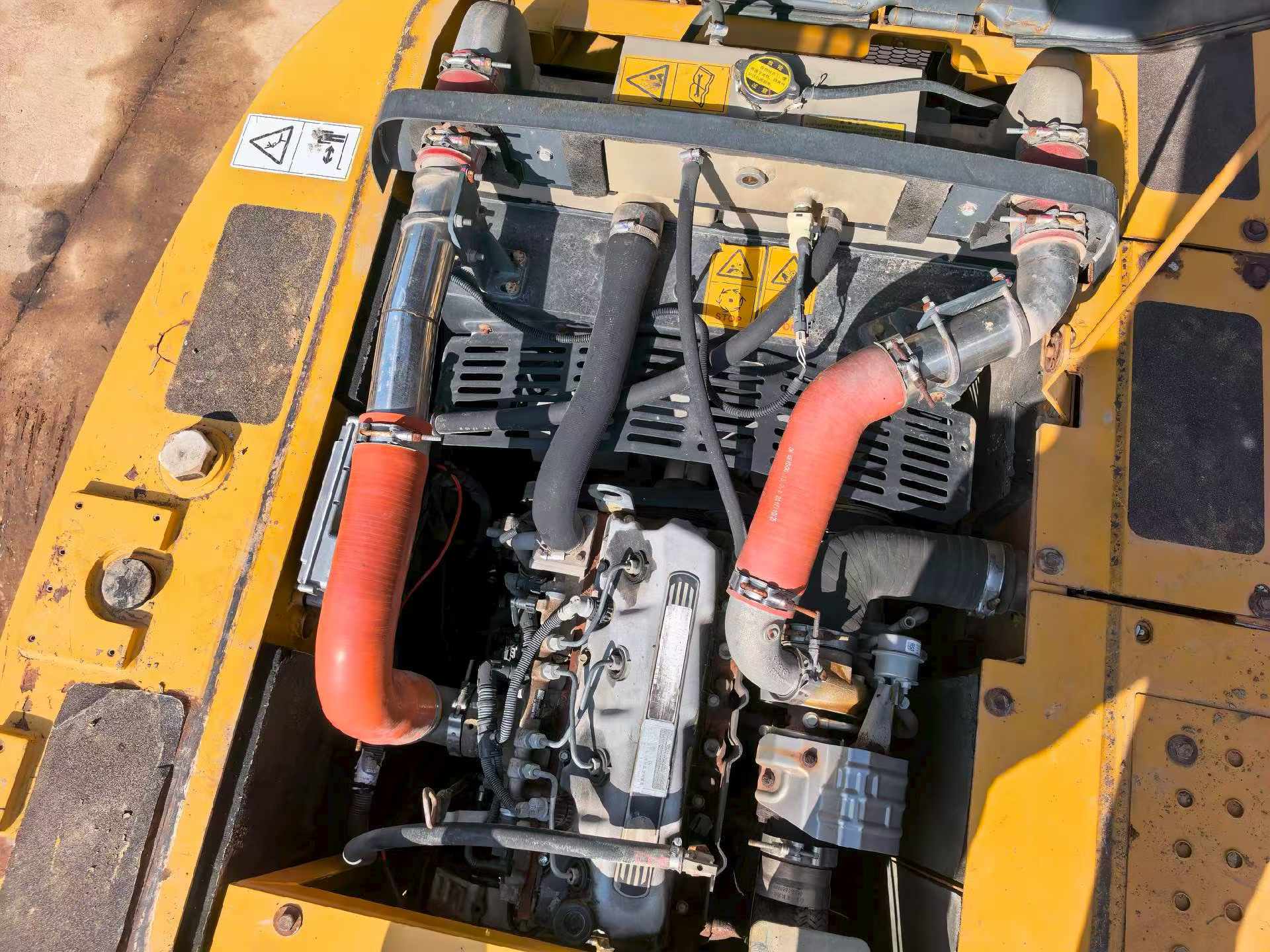

【 Premium Recommendation 】 XCMG XE135D Excavator of 2017, with outstanding performance and inspection-free quality! Since its commissioning in 2017, this XCMG XE135D excavator has maintained a good working condition. The current total working time is only 4,500 hours, which is far lower than the average service life of the same model of equipment. This means that it still has a long service life to be explored. This excavator not only has a well-maintained appearance but also a very healthy internal structure, ensuring its excellent working efficiency and reliability. In terms of the power system, this device is equipped with an efficient and energy-saving engine, which not only has strong power but also excellent fuel economy, capable of meeting the demands of various complex working conditions. Whether it's flat ground construction or mountain operations, it can handle them with ease, providing stable and reliable power support for your project. The hydraulic system adopts advanced load-sensitive technology, making the operation more precise and smooth, and greatly improving work efficiency. Meanwhile, through regular inspections and maintenance by a professional maintenance team, the cleanliness and sealing of the entire hydrauli
