| Specifications | Value |
|---|---|
| No. | 970854 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
Description

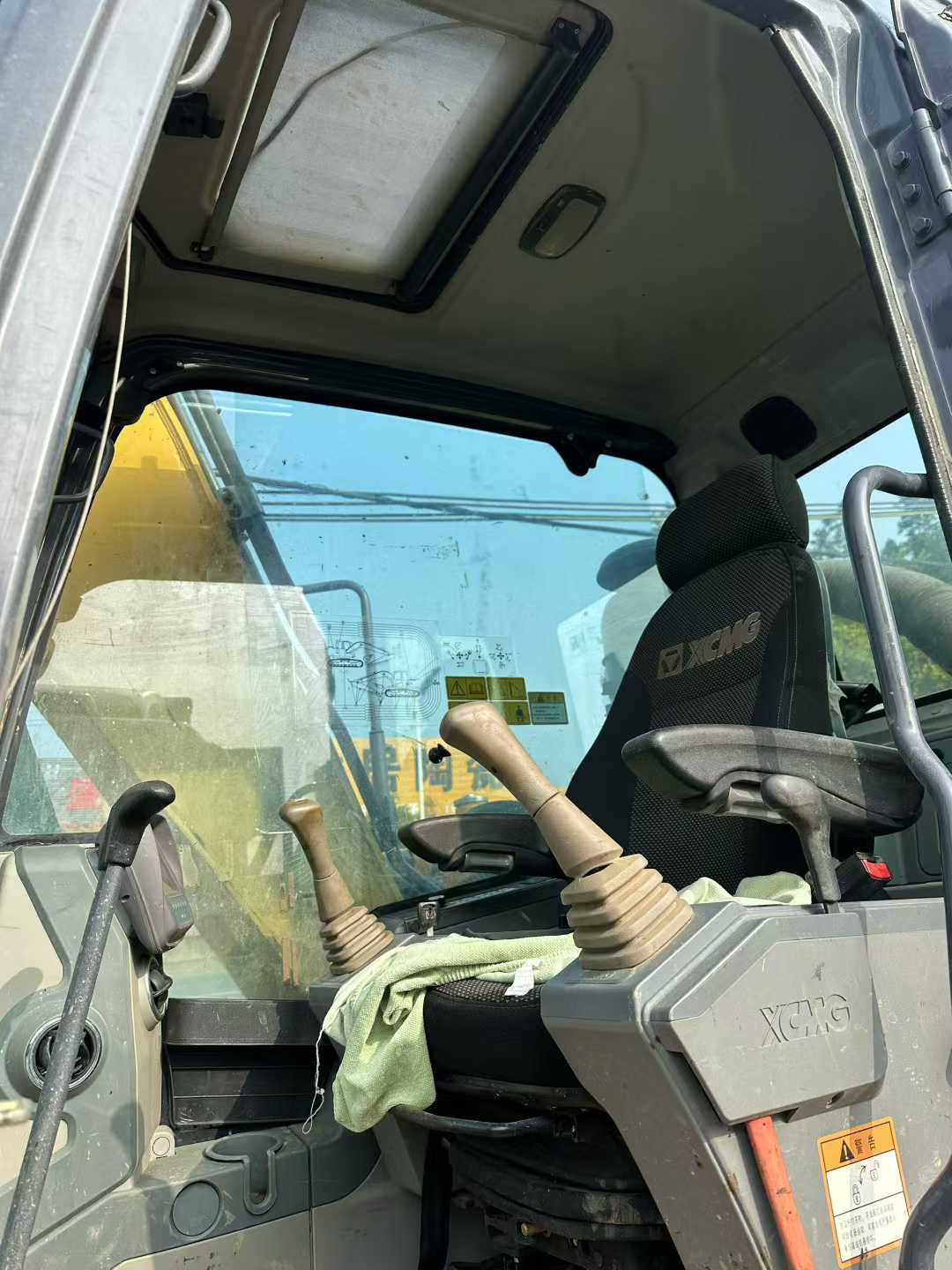

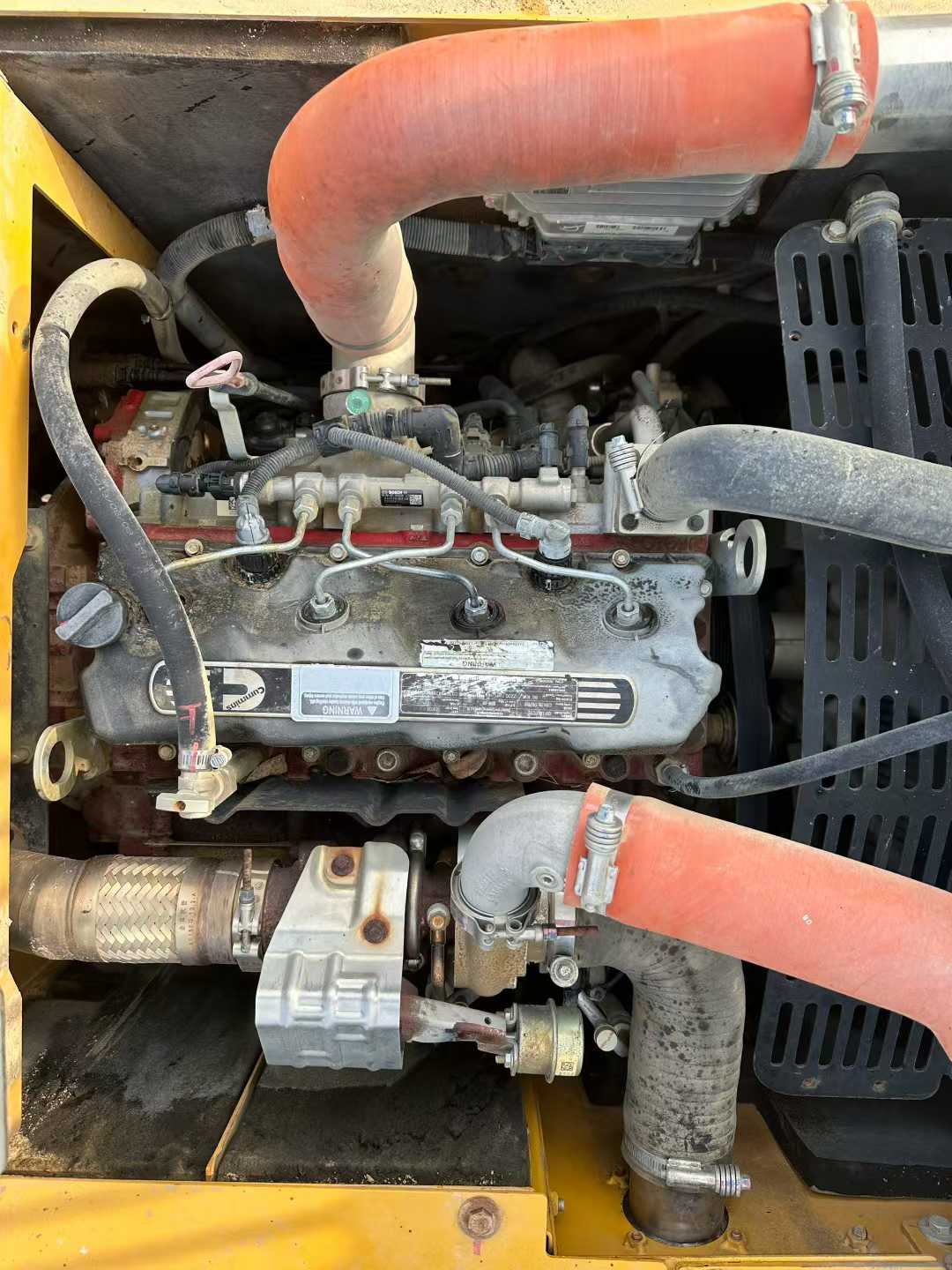

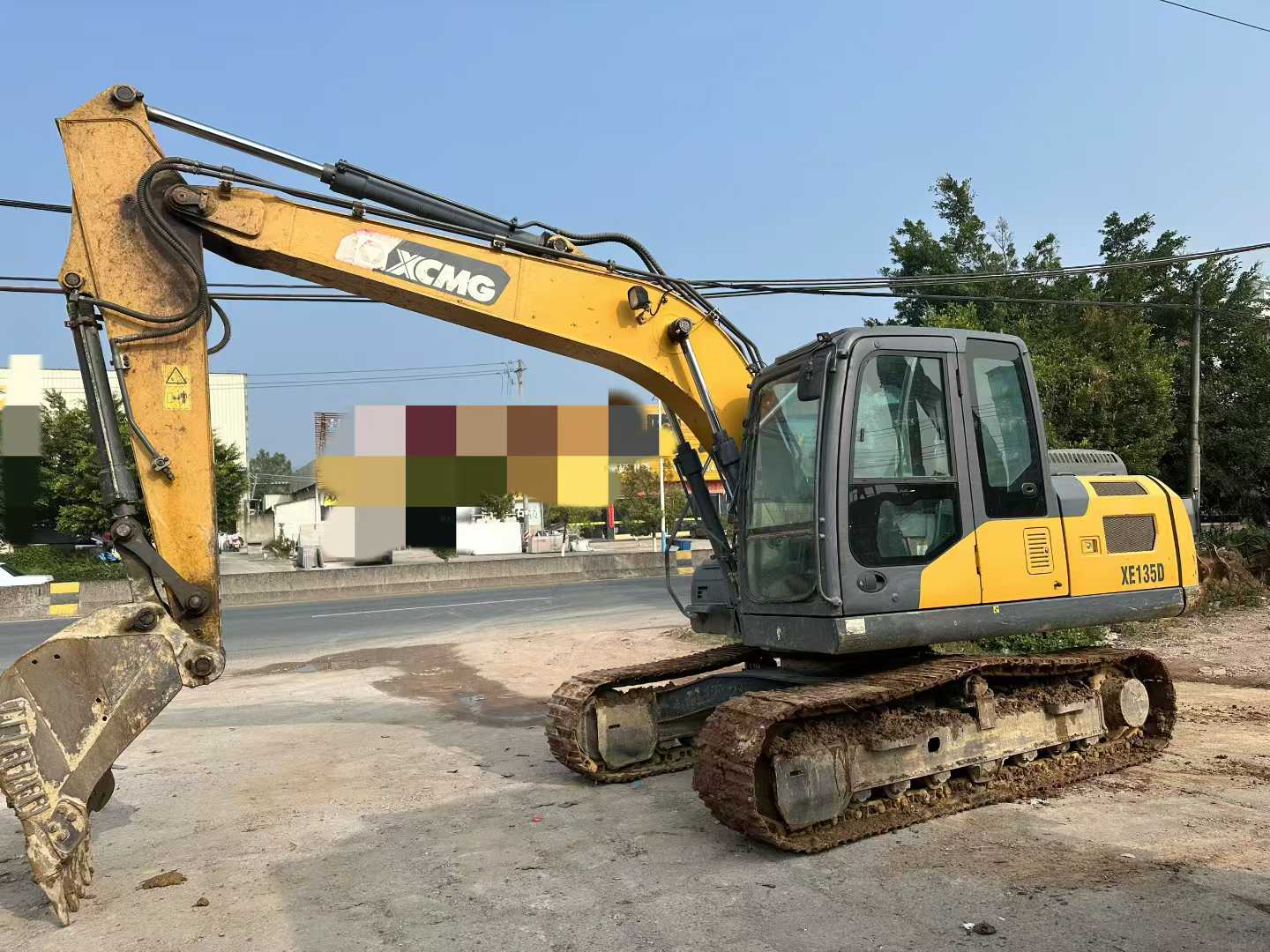

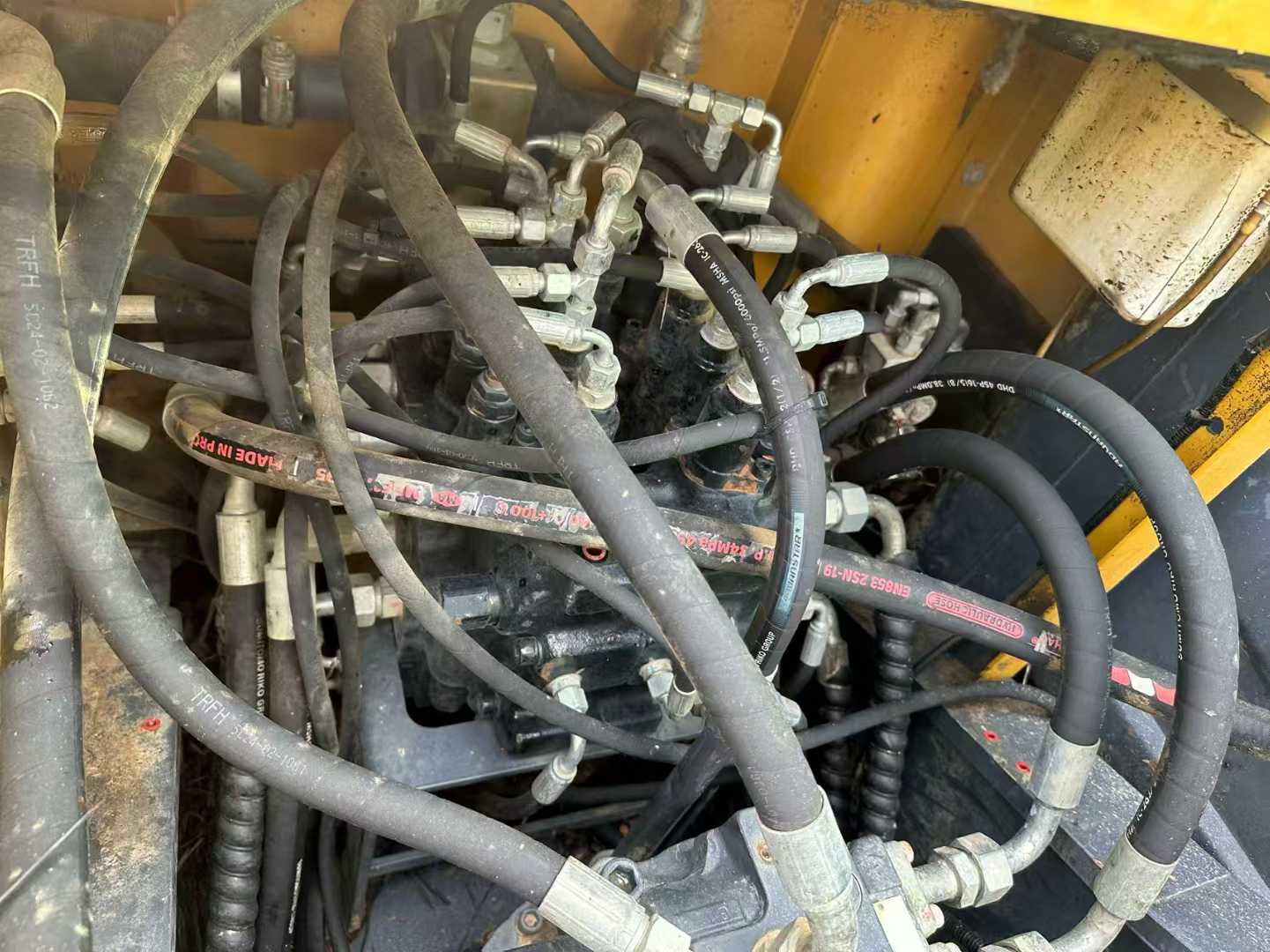

"XCMG XE135D second-hand excavator This second-hand XCMG XE135D excavator from 2019 is one of the highly praised small excavators in the market. Its working hours are only 2,600 hours, with a relatively low usage frequency. Overall, it is in good condition and almost meets the standards of a nearly new car. This machine is equipped with the well-tested Isuzu 4JG1 engine, which is powerful, stable and reliable. It not only meets the operation requirements under various complex working conditions, but also has excellent fuel economy, effectively reducing operating costs. In terms of the hydraulic system, XCMG XE135D adopts advanced negative flow control technology, ensuring smoother and more precise operation of the entire machine, while significantly enhancing work efficiency and construction quality. In addition, this excavator is also equipped with a reinforced boom and bucket arm, featuring a sturdy and durable structure. The cab is spacious and comfortable, and is equipped with an air conditioning system, providing a good working environment for the operators. In conclusion, this is a second-hand excavator with extremely high cost performance and outstanding performance, which is very suitable for earthwork excavation, crushing ope
