| Specifications | Value |
|---|---|
| No. | 963588 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
Description

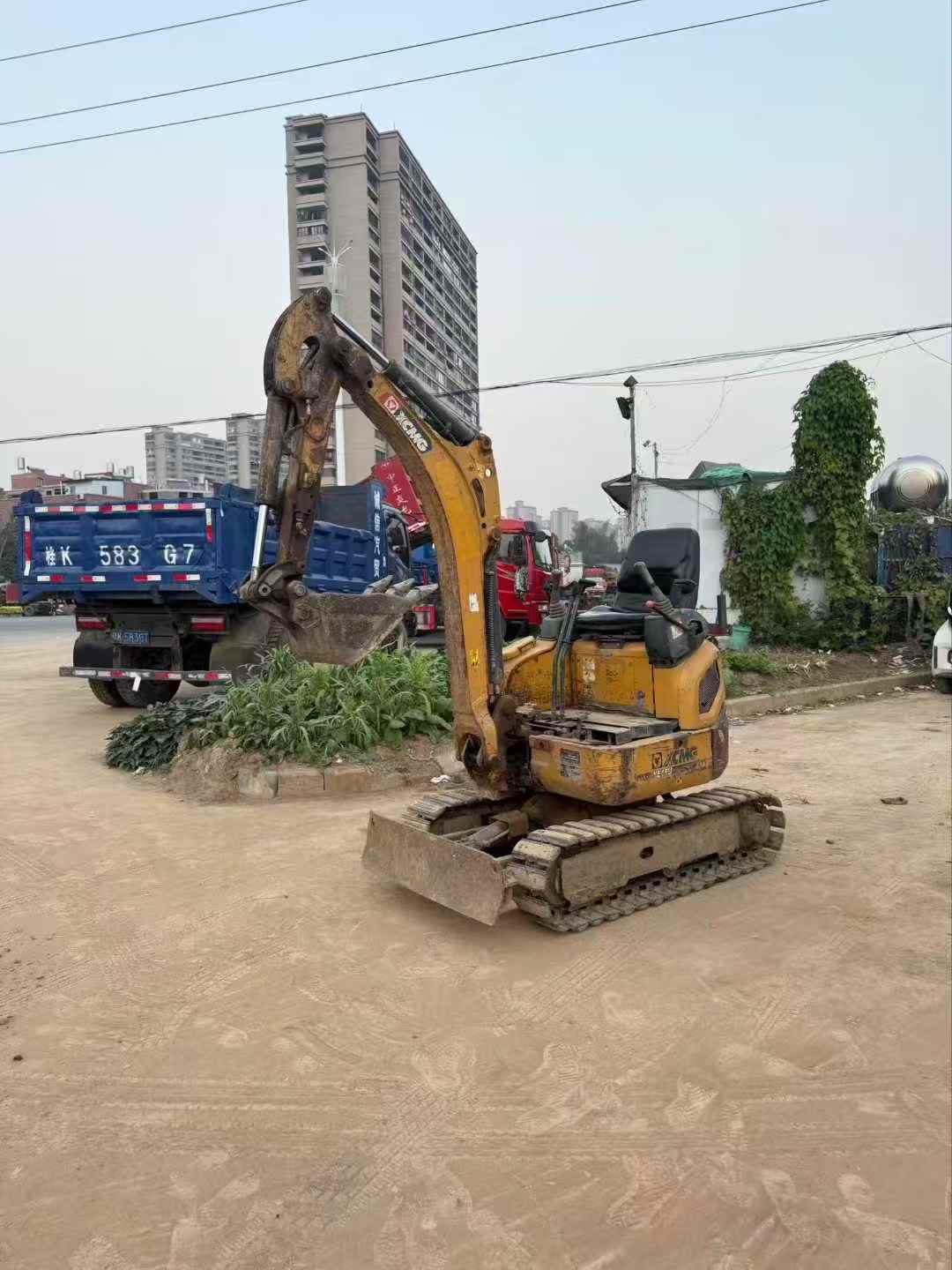

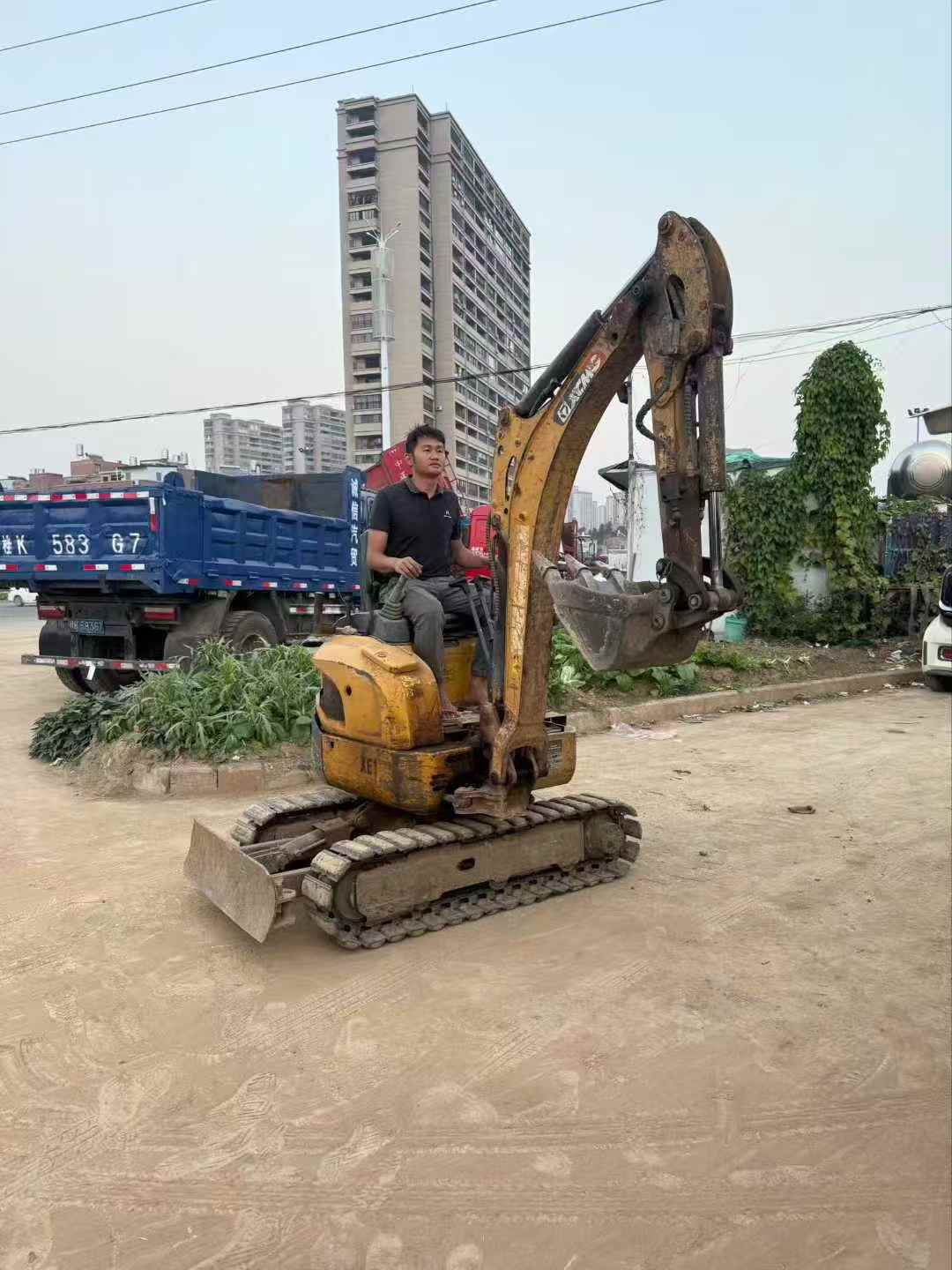

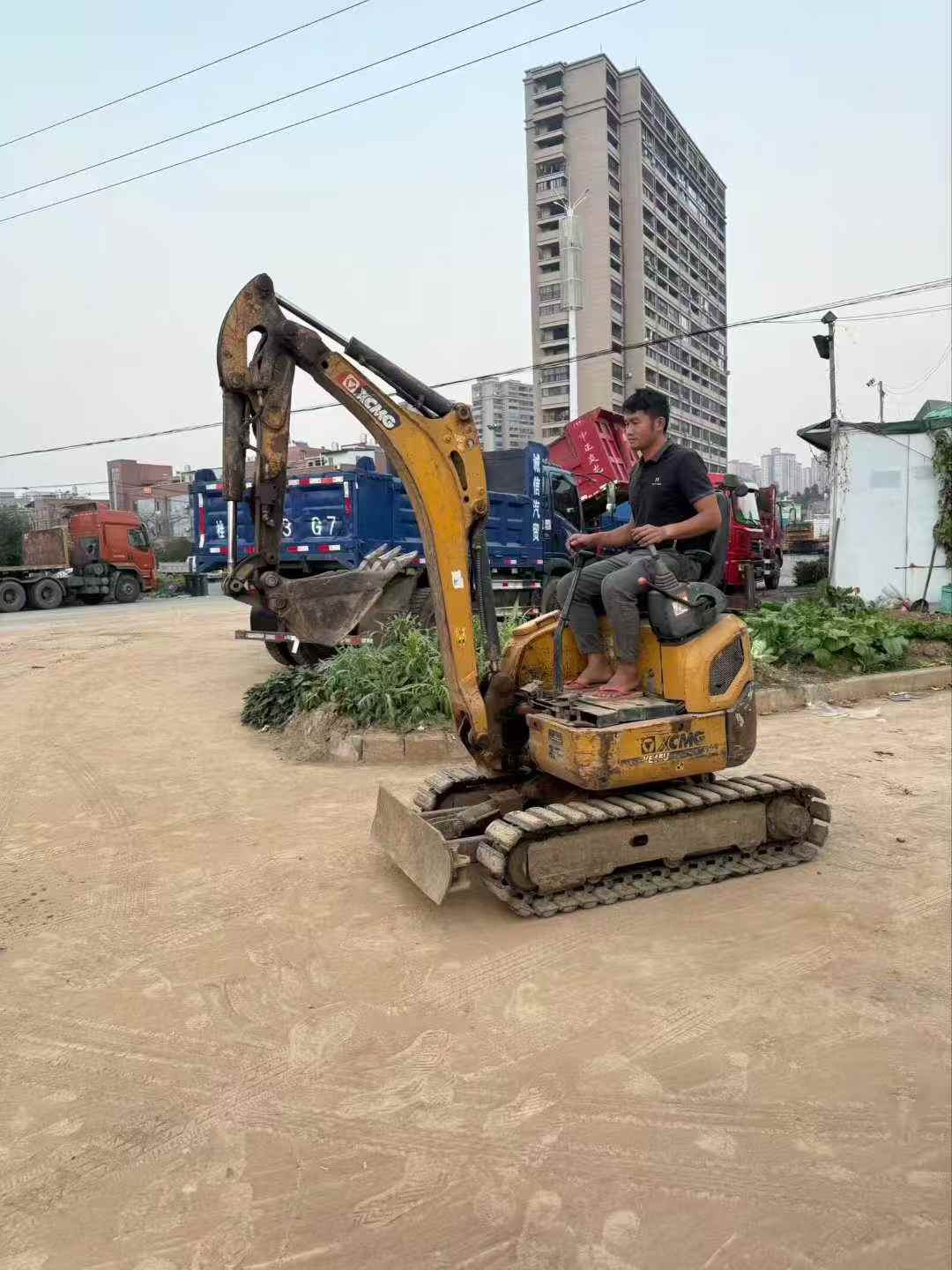

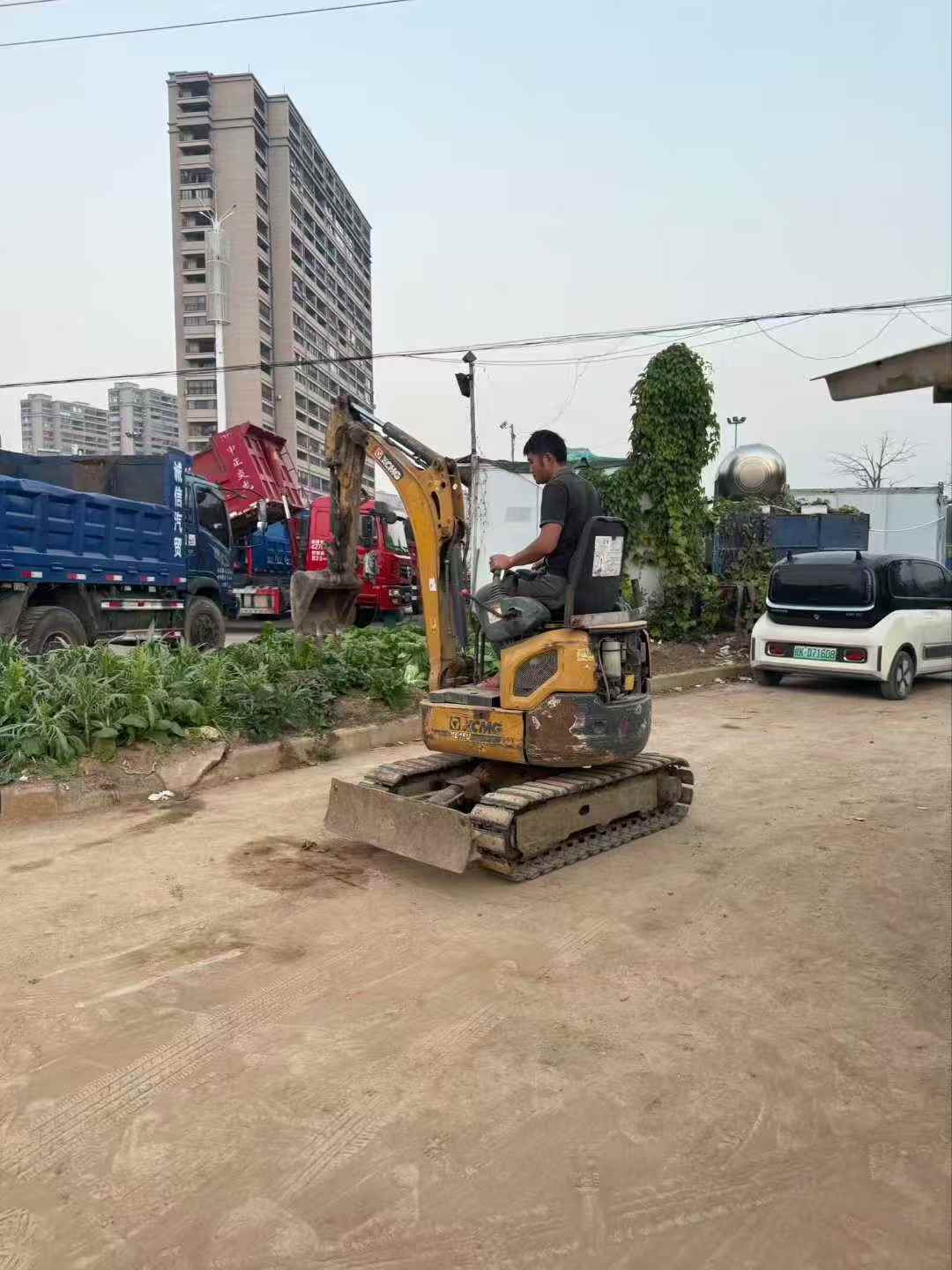

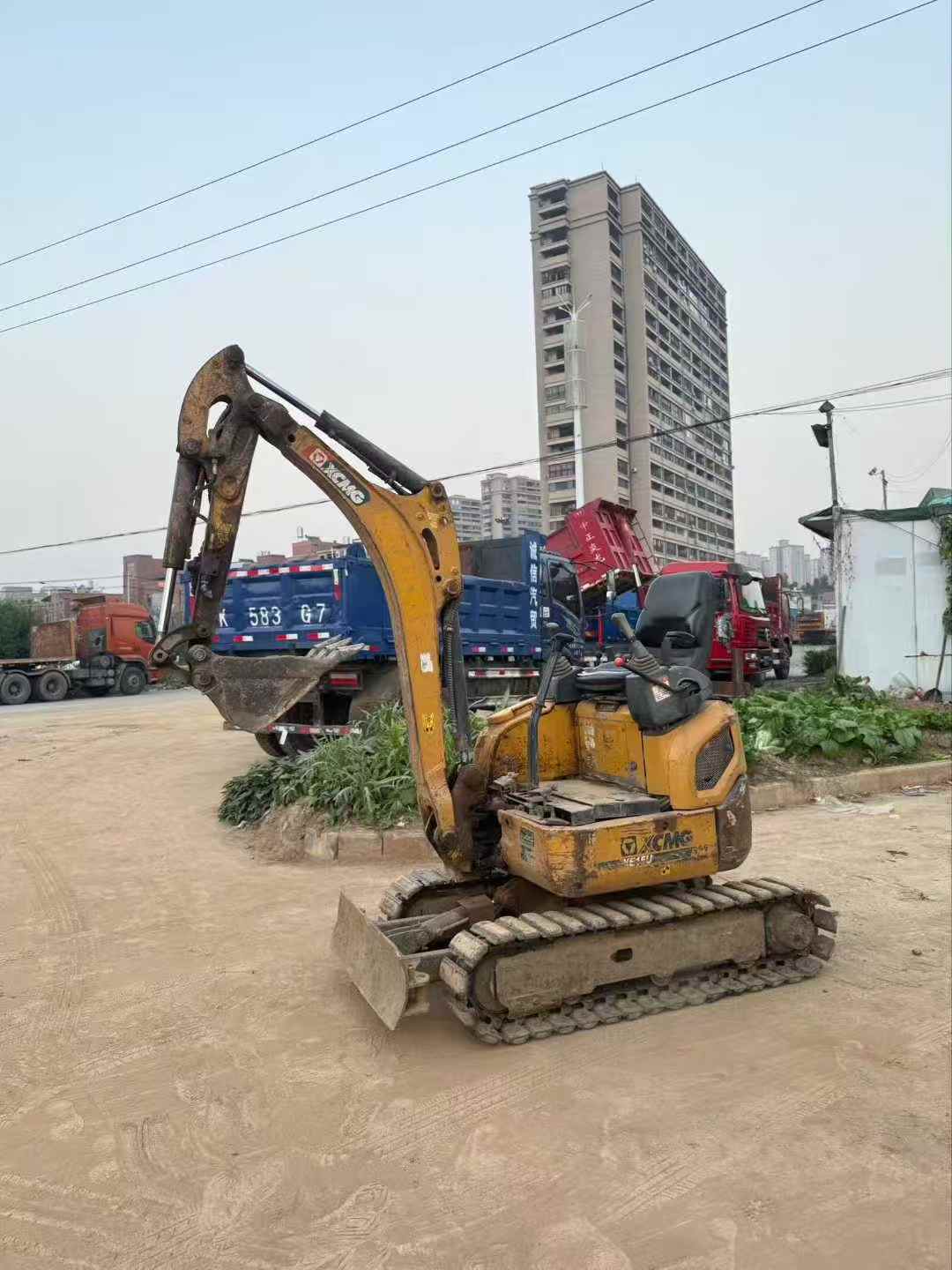

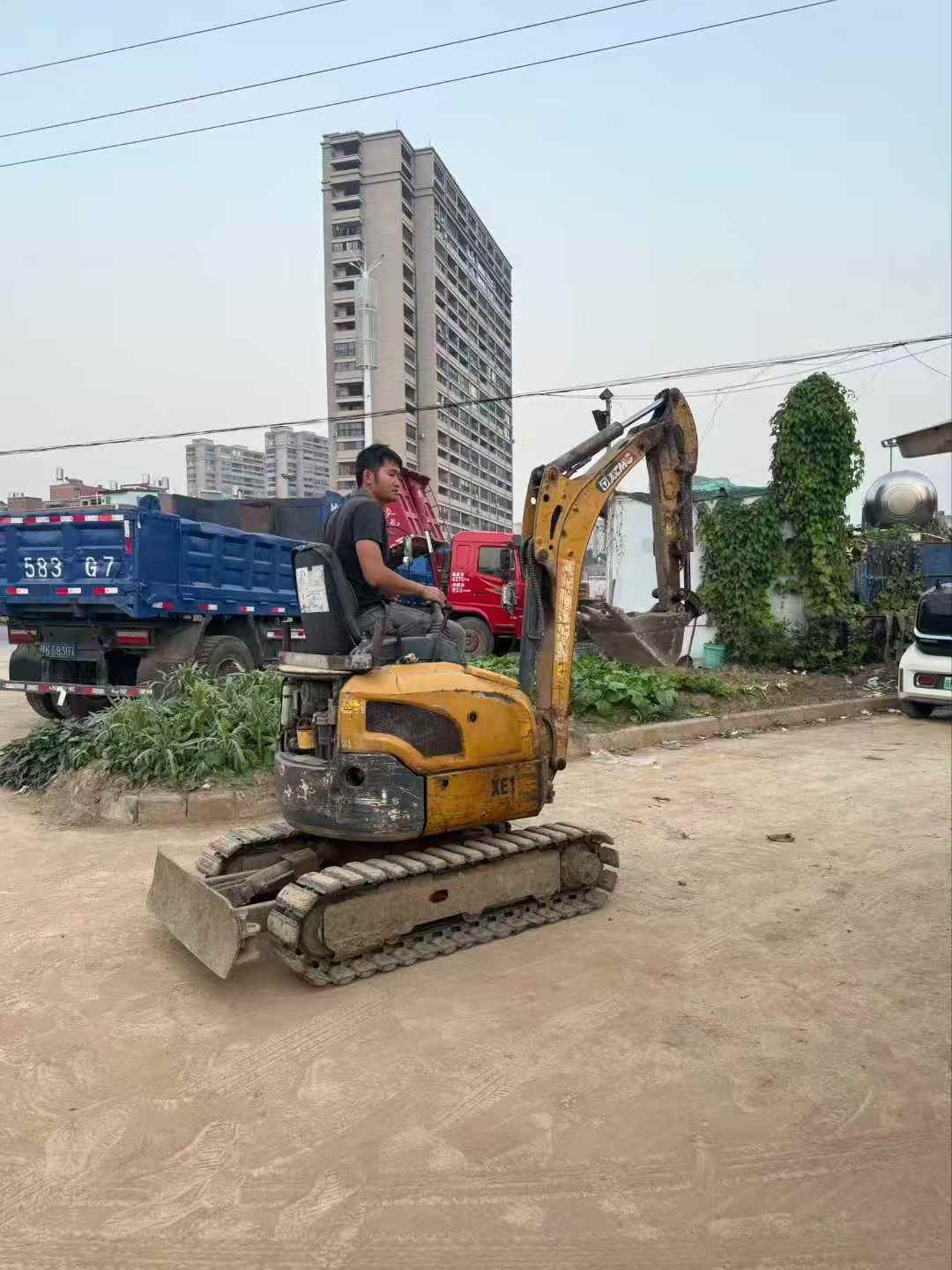

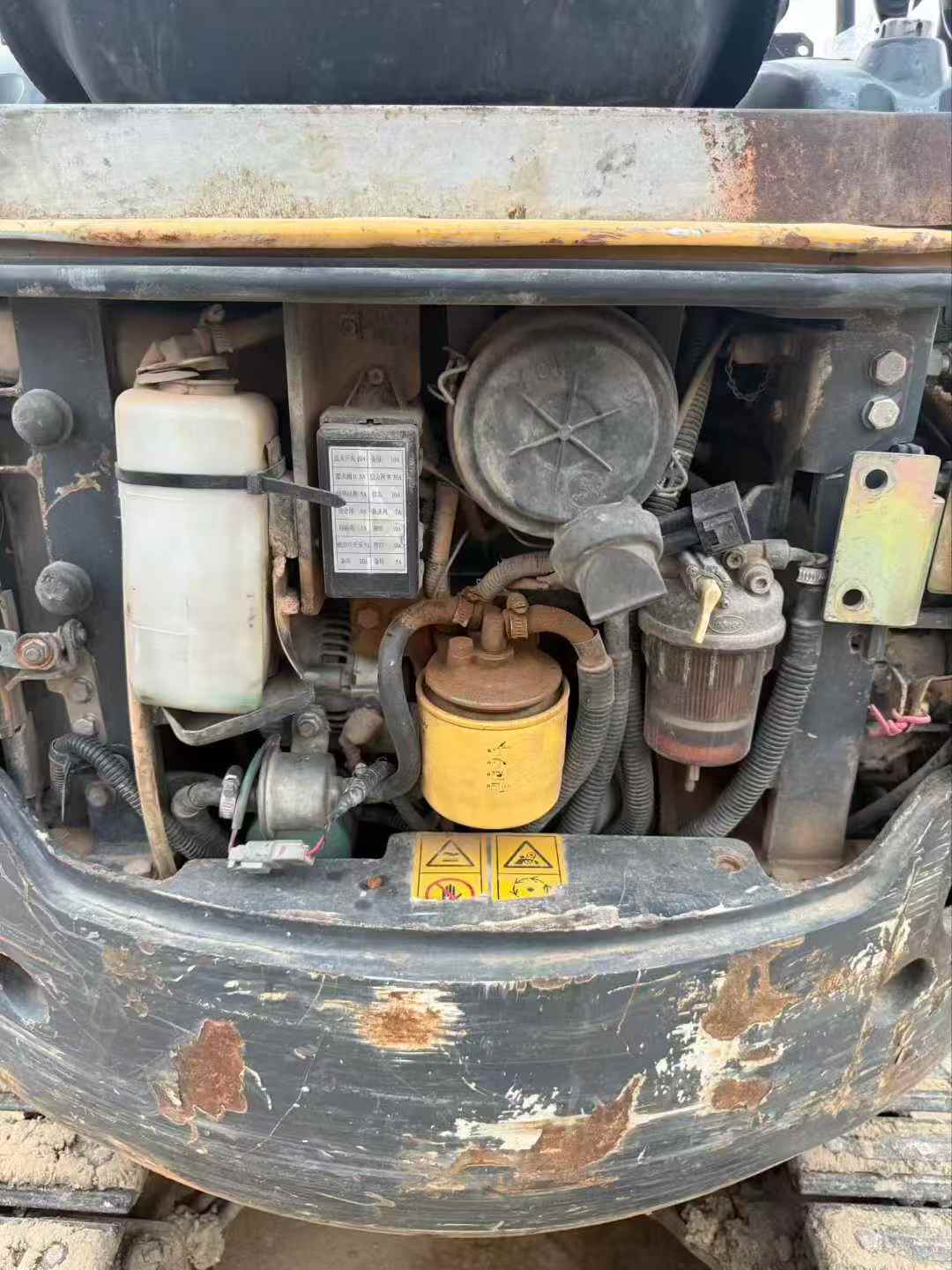

【 Second-hand XCMG XE15 excavator, priced at 38,000 yuan, with detailed information and video This second-hand XCMG XE15 excavator is a standout among small excavators and is particularly suitable for operations in narrow Spaces, such as urban greening, farmland renovation, and garden construction. The overall working time of the machine is only 1,200 hours. With a relatively low usage frequency and proper maintenance, it is almost as good as a new car. The overall performance is stable and reliable. In terms of the power system, this machine is equipped with a high-quality original imported engine, which is powerful, fuel-efficient, starts quickly, runs smoothly, and generates low noise. Even after long-term continuous operation, it can maintain a good working condition. Meanwhile, its efficient fuel system design enables each liter of fuel to achieve maximum efficiency, significantly reducing operating costs. In terms of the hydraulic system, it is equipped with an advanced load-sensitive control system, which is highly responsive and flexible to operate. Whether it is excavation or loading, it can handle it with ease. In addition, the unique hydraulic oil cooling device ensures that the machine can maintain its best working condi
